Product Overview

Description

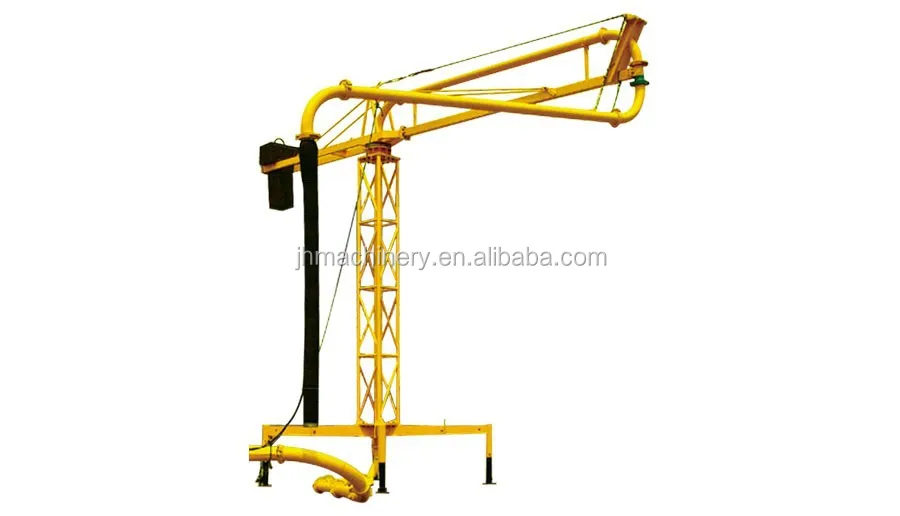

12m,15m,18m Concrete Spreader,concrete placing boom,Concrete placing equipment

Concrete Spreader is a new product to expend concrete pouring range and raise the level of mechanization of pumping construction.Which is ancillary equipment of concrete pump,connection with the concrete pump,expanding the range of concrete pumping.Solved the problem of pouring cloth wall effectively,also improved construction efficiency,reduced labor intensity.

There are Manual Concrete Distributor and Hydraulic Concrete Distributor in the market.

Our company mainly produce manual concrete distributor.It designed rational with full swing arm frame fabric structures,operated manually.structure is stable and reliable,turned flexible,360-degree forward and reverse rotation.Can changed fabrics orientation only pulling the rope.



Technical Parameters



Model	HG12	HG15	HG18
Rotation mode	Manual	Manual	Manual
Max Turning radius	12m	15m	18m
Jib turning radius	6m	7.5m	9m
Bearing block height	5m	5m	6m
Effective height	5.4 m	5.4 m	6.4 m
Landingleg max span	3.4m×3.4m	3.4m×3.4m	5.8m×5.8m
Self weight	1300kg	1400kg	1700kg
Counterweight(self-provide)	1200kg	1500kg	1800kg



Precautions

1To keep the appearance and internal cleaning,after use,must be carefully cleaned,does not allow concrete residue.

2Cantilever pump tube and vertical pump tube connect with both side of the main beam pipe bends .tube is not too tight.

3Slewing should be regularly oiling,shot butter every 100 hours of working.

4The machine must be installed on a solid level area.

5stop work more than 5 wind force.And required the user to take precautions to avoid losses.
