ZH 1600BFST автоматическая машина для изготовления коробок для пиццы с сертификатом CE

Product Overview

Description

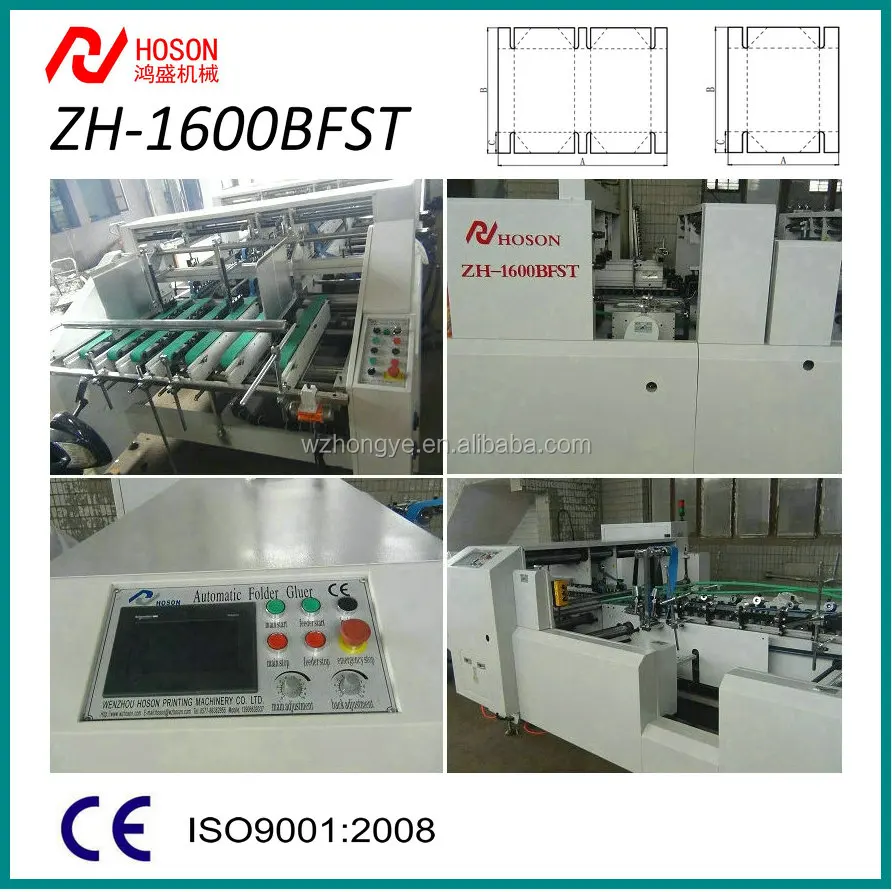

ZH-1600BFST 4/6 Corner Type Folder Gluer Machine
It is designed for 4/6 corner box, straight linebox ,Crash-lock bottom box, double walls box.

Paperboard and corrugated are both workable in this machine.





Feature:

1) The machine is running steady with strengthened driving system, and easy for maintenance.



2) The motor is controlled by transducer which are available for automatic timing. It is power saved and helps to work stably.



3) An electric adjusting system in the machine makes it more conveniently when adjusting the space of carriers which usually based o te double-face tooth rods adjusting system.



4) Grinders are provided in both side of the machine, to help gluing more stably and firm.



5) There have two standard gluing system, the top for bottom glue and lower unit for side glue.

Both of units are supply Line glue. Also, equipped with HHS spray gluing system.

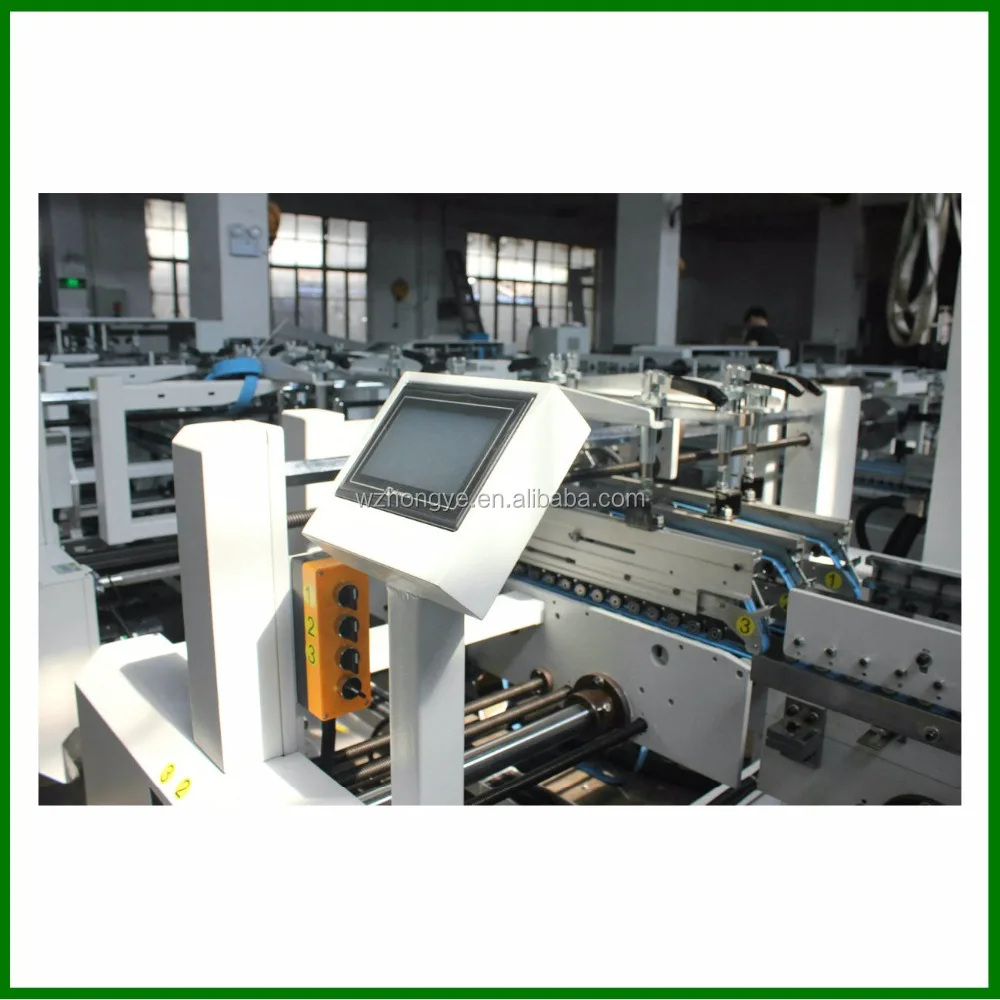

6) PLC system and touch screen for easy maintenance. Out-put quantitly/speed etc., is able to be set by the system.



7) Pressing unit of this machine designed with pneumtic system. Pressing also by a sponge belts in this section to keep out-put in a perfect conditon.



8) An special design is available for this machine.





Parameters:

Box Type	Picture	A Max	A Min	B Max	B Min	C Max	C Min	D Max	D Min
6 Corner Collapsible Box		1200-400mm		800-260mm		100-30mm
4 Corner  Collapsible Box		1200-300mm		800-260mm		100-30mm
Crash-lock  Bottom Box		1250-350mm		900-400mm		300mm		50mm
Straight Line box		1380-300mm		900-300mm
Double Walls Box		980mm		900mm		150mm		800mm



1	Line speed	0-200m/min , Continuous adjustment
2	Usage paper	350-800 g/ms, paperboard,corrugated
3	Box forming	4/6corner box, bottom-lock, straight line box, double walls box
4	Fold method	1st fold 90°and 3rd folds 90°, 2nd & 4th folds 180°
5	Paper feeding	Automatic feeding, grinding unit
6	ElectricPower	17.2 kw
7	Dimension	14.5*2.4*1.6m
8	Weight	7600 kgs
9	Condition	New







































Details for ZH-1600BFST 4/6 Corner Type Folder Gluer Machine









Packed in 4 Iron Shelf, below picture for Ref.





Optional : Plasma of Surface Processor Device  (for tectorial box, to better stick together)
