Humidity And Temperature Sensor Probe
US $35.00-$48.00
ZL 7830A, 30A relay, 100 240Vac, Digital, Humidity Controller, Hygrostat, Humidistat, Lilytech, DHC 100
- Category: Temperature Instruments >>>
- Supplier: Suzhou Lily Tech. Co. Ltd.
Share on (60237893368):
Product Overview
Description
Product Description
ZL-7830A HUMIDITY CONTROLLER
Humidity control.
With optional sensor ZL-SHr05B, it is suitable for sausage or cheese depositing.
Humidifying or dehumidifying control
Humidity calibration
Warning
Power supply: 100 ~ 240Vac, 50/60Hz
Input: Humidity sensor, wire length 2 meters
Sensor precision:
±3%/25℃ (ZL-SHr03A)
±2%/25℃ (ZL-SHr05B)
Setting range: 0 ~ 100.0%RH
Resolution: 0.1%RH
Output: R1, 30A/250Vac. The parameters are based on resistive load.
Working environment: -20 ~ 45℃; 5 ~ 85% RH without dew
Case dimension: L78 x W34.5 x D71 (mm)
Drilling size: L 71 x W29 (mm)
Case materials: PC + ABS, fireproof
Protection level: IP65 (Front panel only)

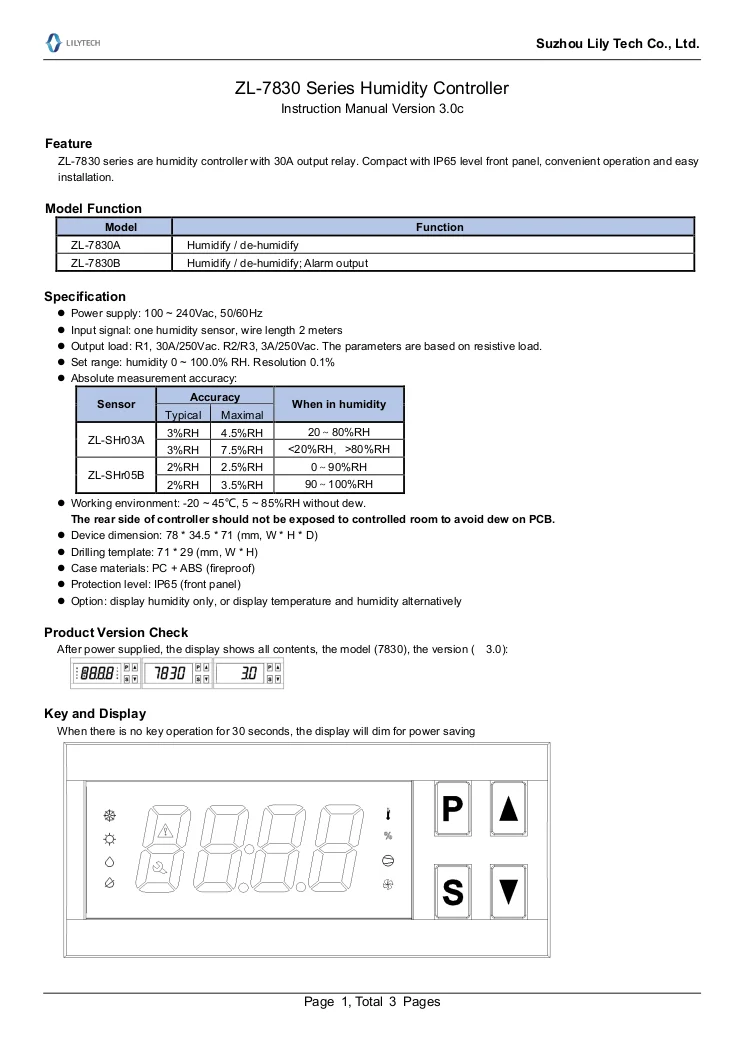

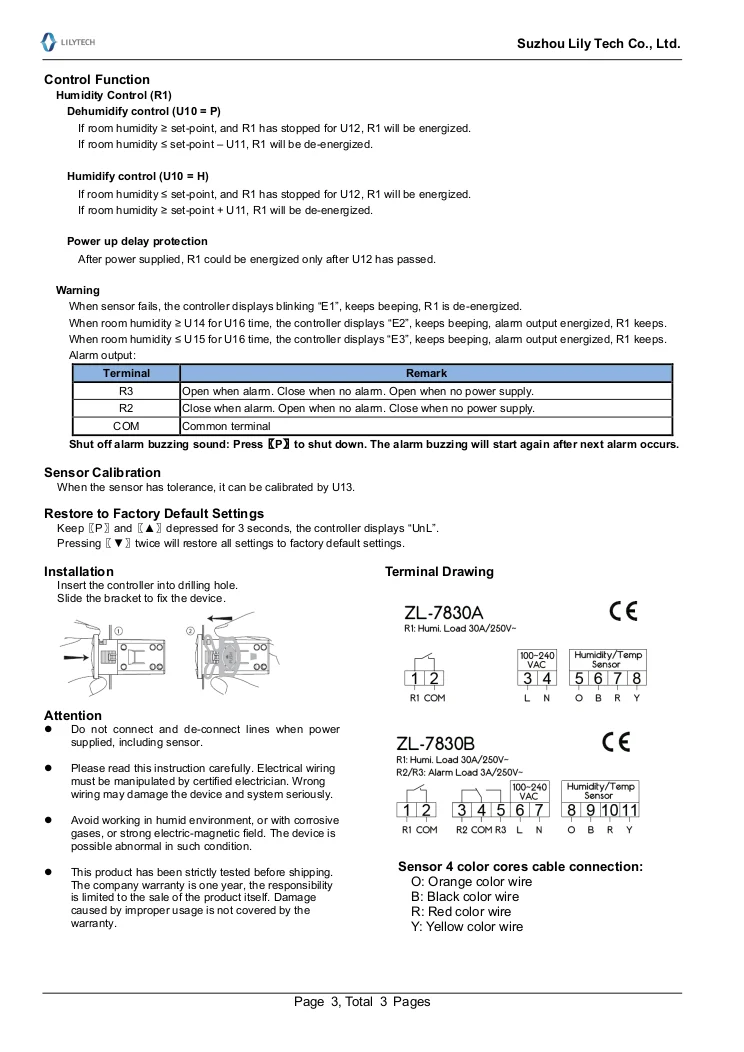

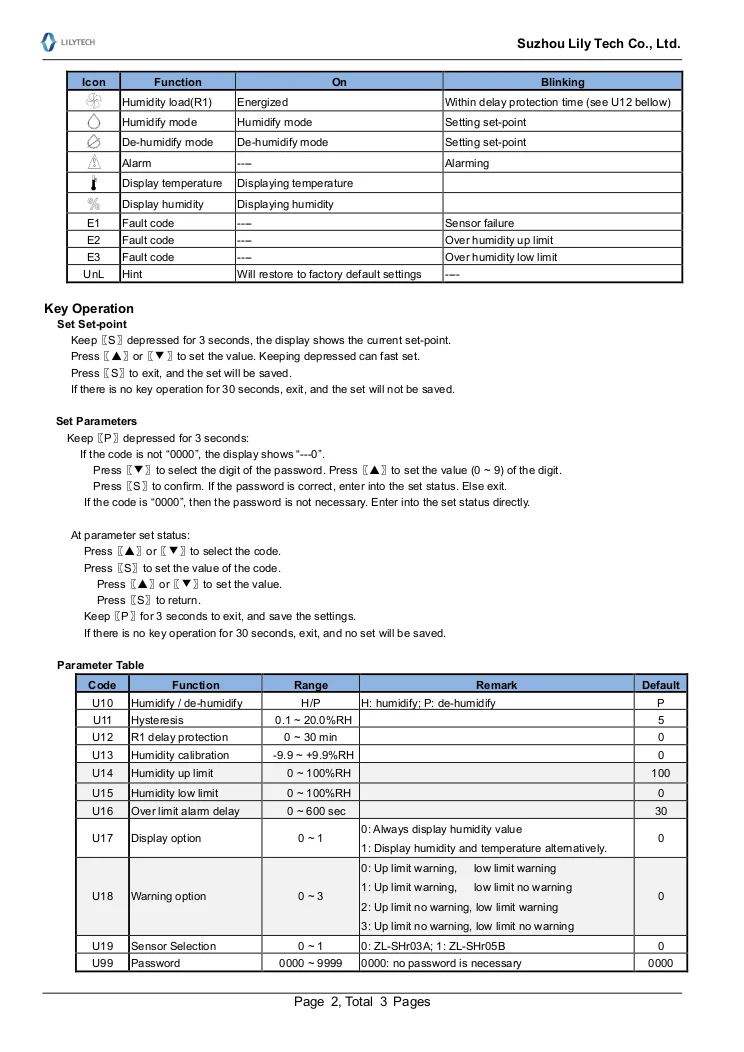

Manual link (copy and paste to browser to view and download):
www.suzhoulily.com/pdf/ZL-7830AB_en_V3.0c.pdf

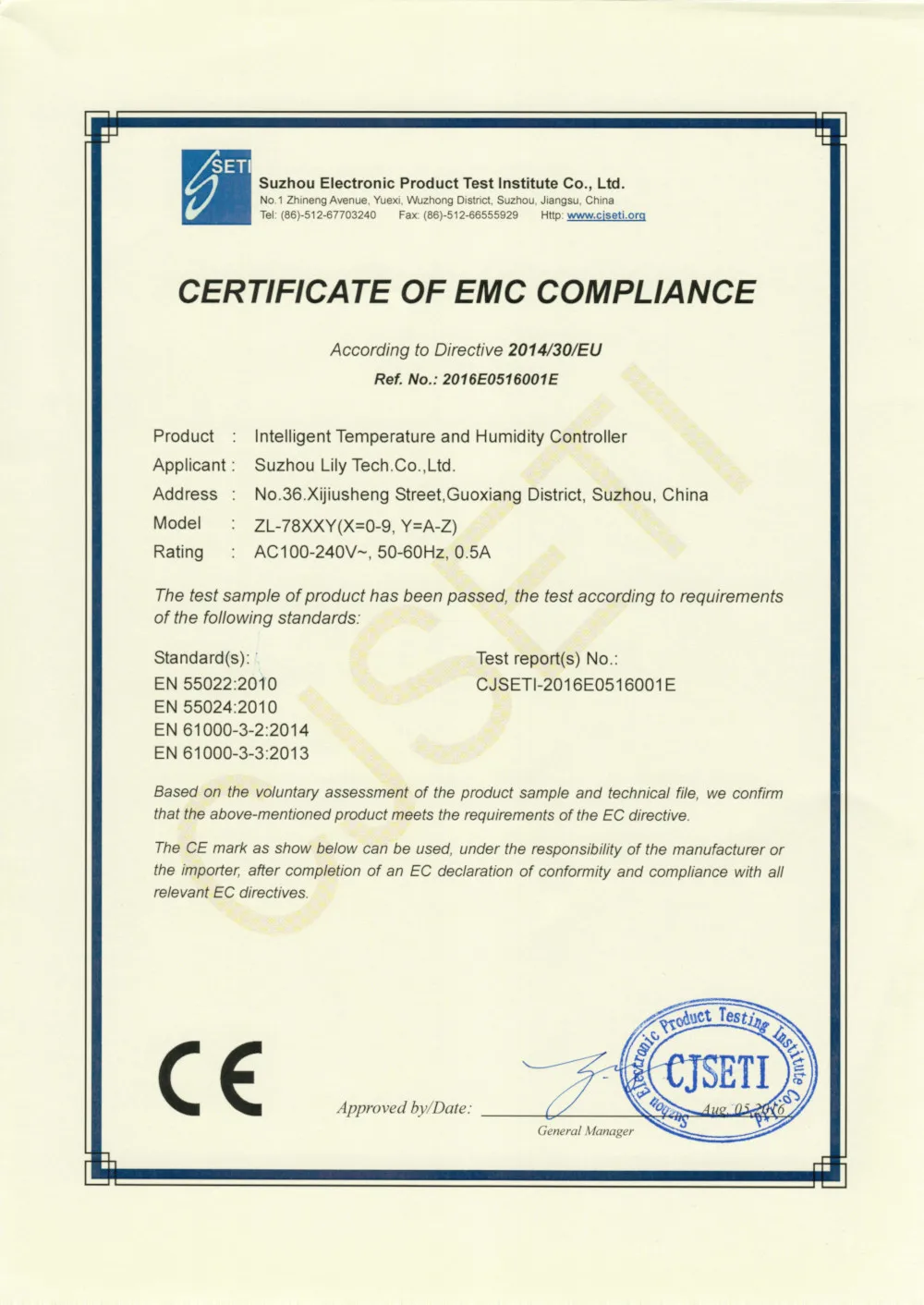

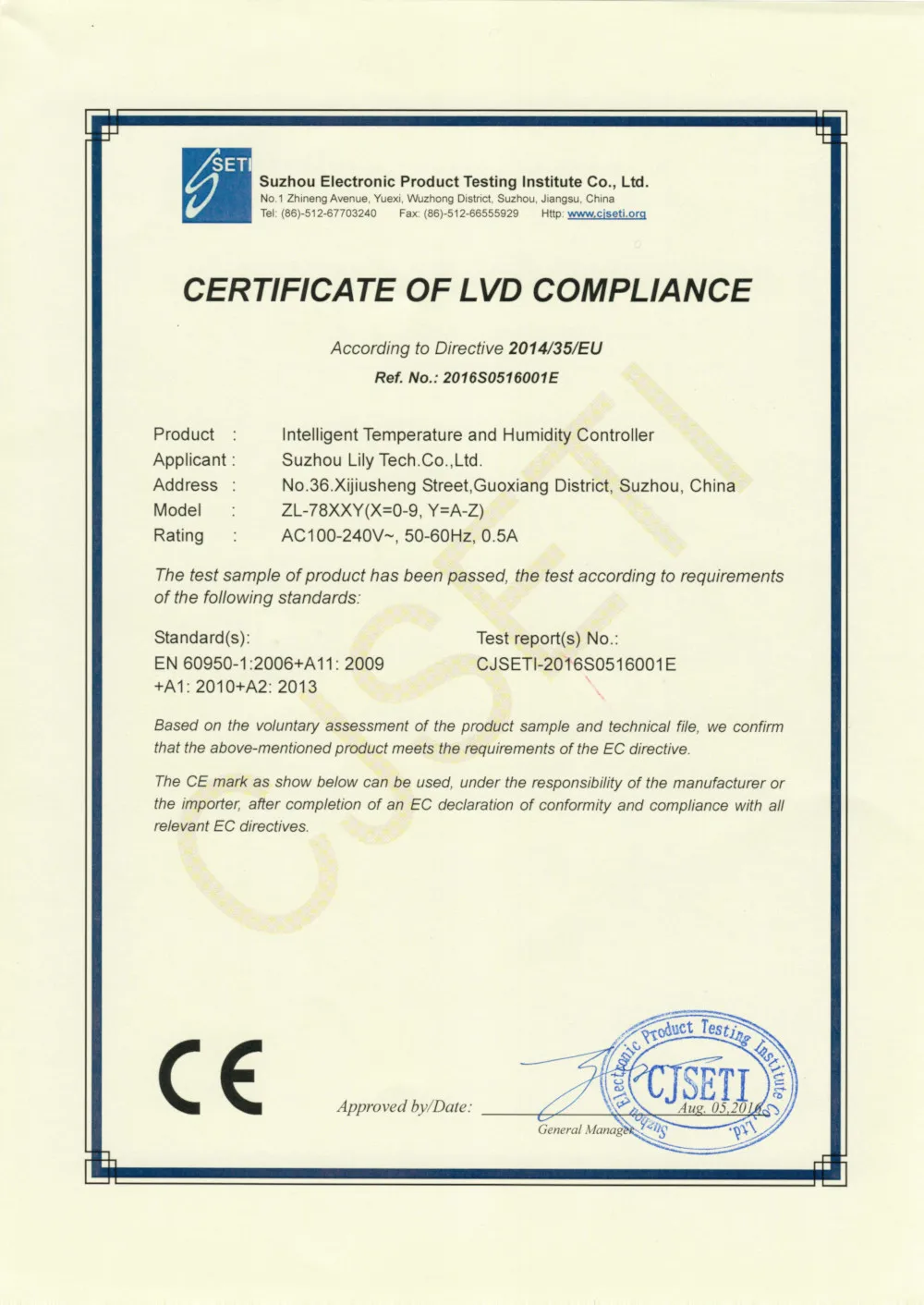

CE
ISO
Packaging & Shipping
One piece packing: 11 * 9 * 7.5 cm, 0.233 kg
One carton packing: 33 * 37 * 47 cm, 15.9 kg, 64 pcs

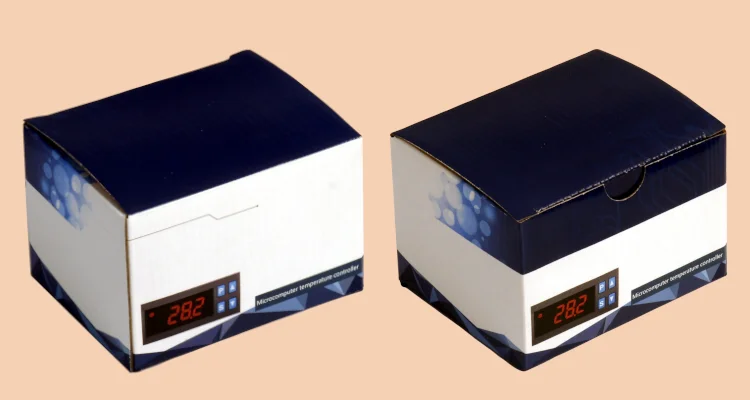

Color box:
