High Quality Dry Mix Mortar Production Line, Thermal Insulation Mortar

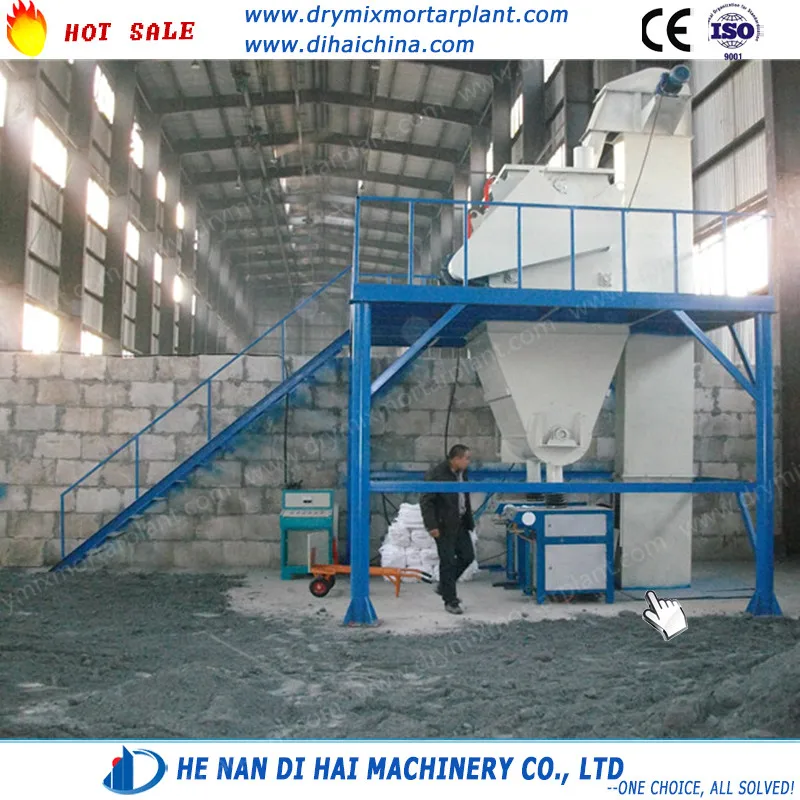

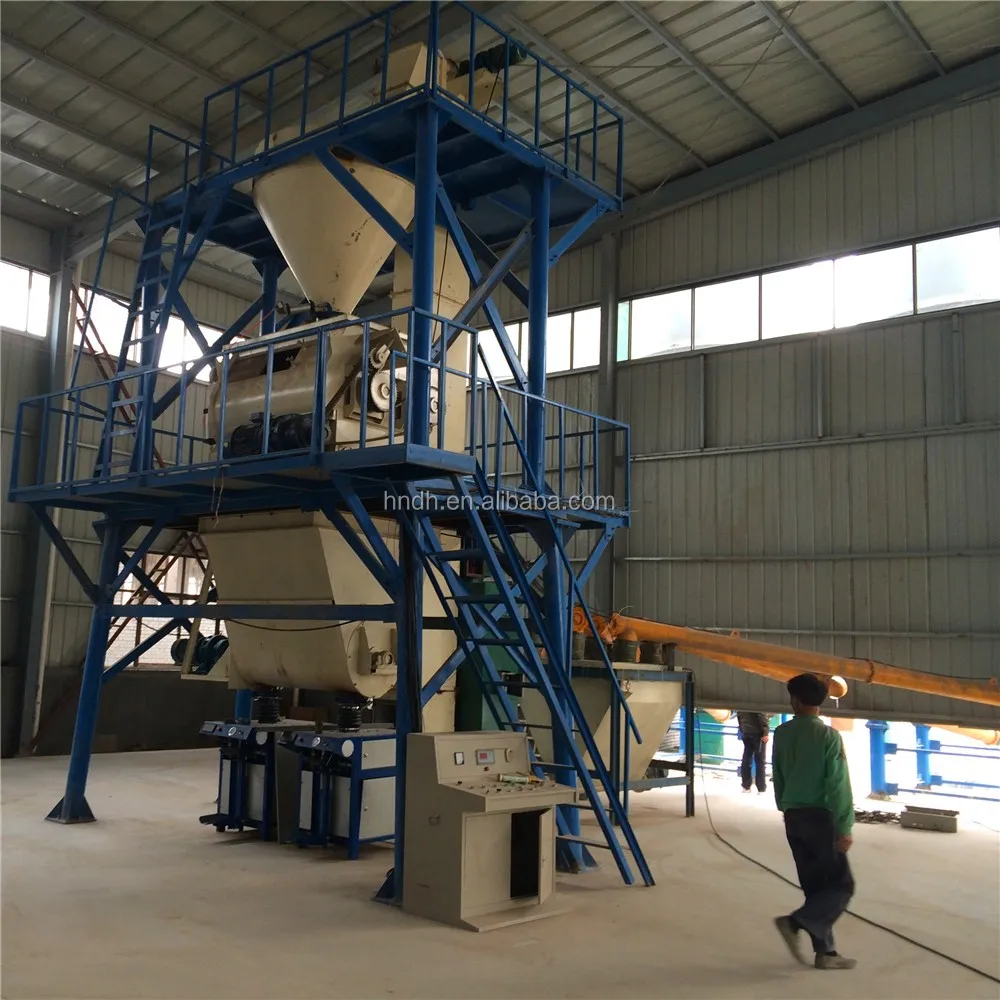

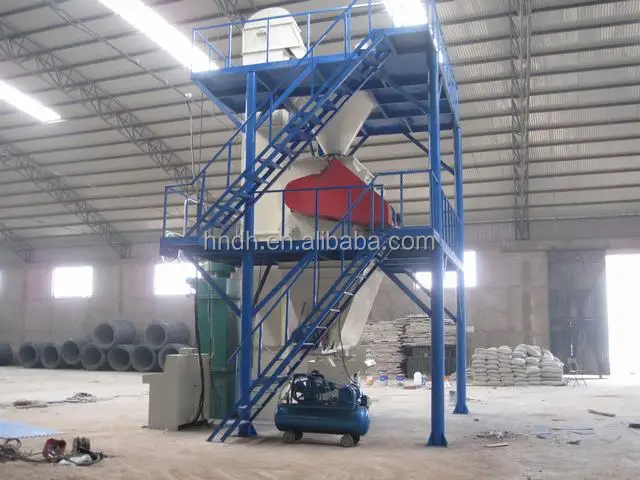

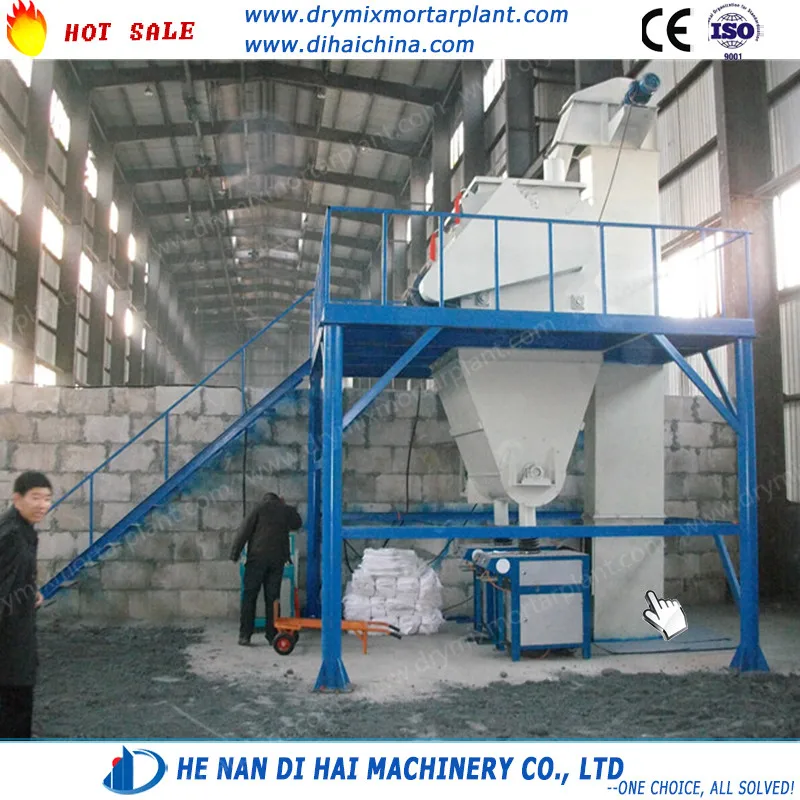

1. Introduction of High Quality Dry Mix Mortar Production Line, Thermal Insulation Mortar(30-35T/H)

We are one of the leading companies in China dry-mixed mortar equipment industry.With over 16 years'experience, we keep improve the machine quality to provide customer's stable, efficienct dry-mixed mortar production line.

Dry mortar is also called pre-mixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water in construction site. It has different properties though adding different additives.

2. Application of High Quality Dry Mix Mortar Production Line, Thermal Insulation Mortar(30-35T/H)

1.Bonding Mortar

Masonry mortar, wall(ceramic) and floor tile adhesive mortar etc

2.Decoration Mortar

Decorative plaster, inner and outer wall putty, colorful decoration mortar etc

3.Protection Mortar

Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar etc.

3.Technical data:

Model	Automatic Dry mortar Production line
Capacity	30-35 t/h
Mixing system	DWZ3000 Double Shaft Paddle Mixer
Total power	120kw
Raw material	Cement, fly ash, additives, sand, etc
After-sale service	Erection & commissioning, operator training
Warranty	12 months after erection
Each System Part Technical Data

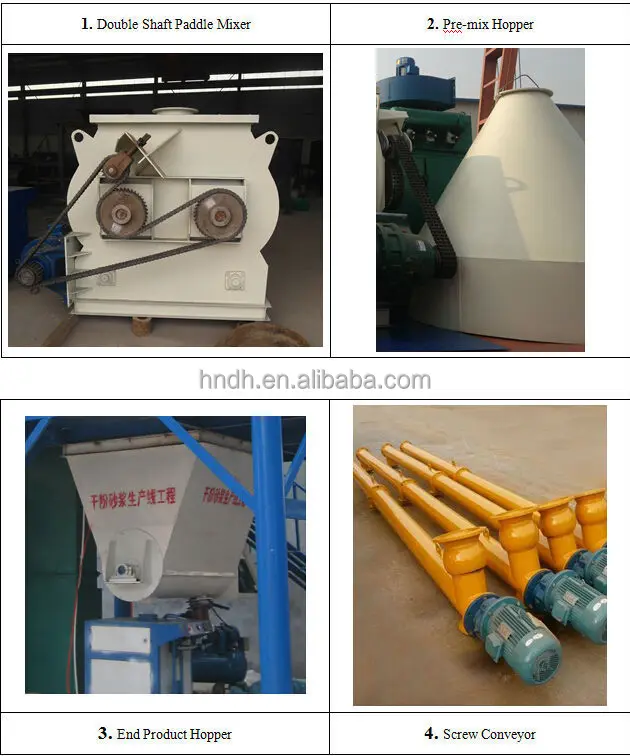

Mortar Mixer Model & Quantity	DWZ3000 Double Shaft Paddle Mixer, 1 unit
Discharge capacity	2.34t  per batch
Feeding capacity	2.34t  per batch
Mixing cycle time	150S
Motor power	37kw
Air Cylinder	QGB100*300
Total weight	3500kg
Overall dimension  L*W*H	2350*2100*1900 mm
Mixing System Pre-mixing hopper Model & Quantity	3.0m3 Pre-mixing hopper, 1 unit
Volume	3.0m3
Pneumatic Valve	DN150

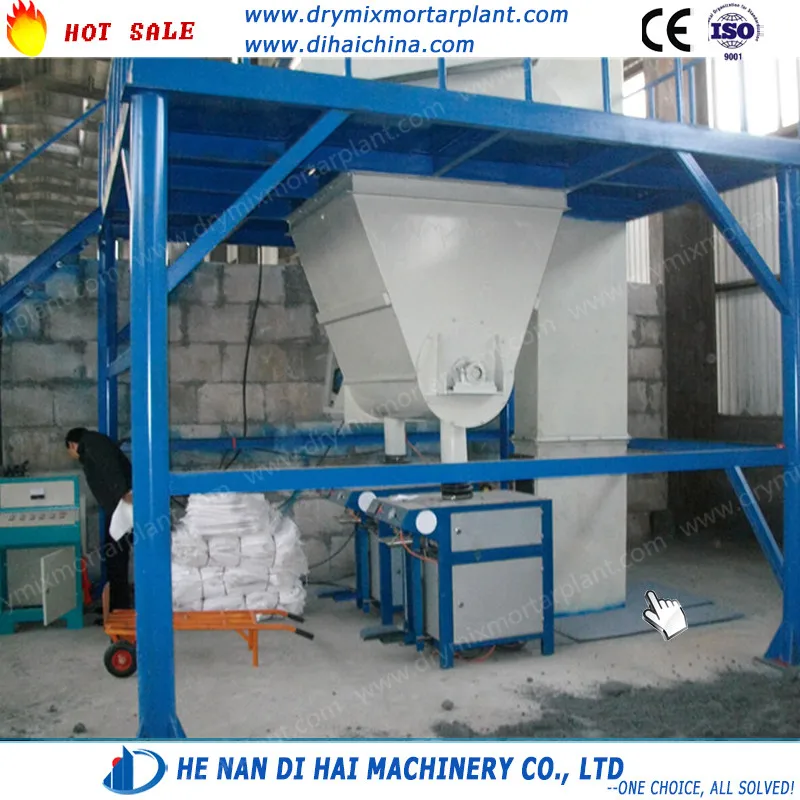

Mixing System End Product Hopper Model & Quantity	3.0 m3 End product hopper, 1 unit
Volume	3.0m3
Motor Power	11kw

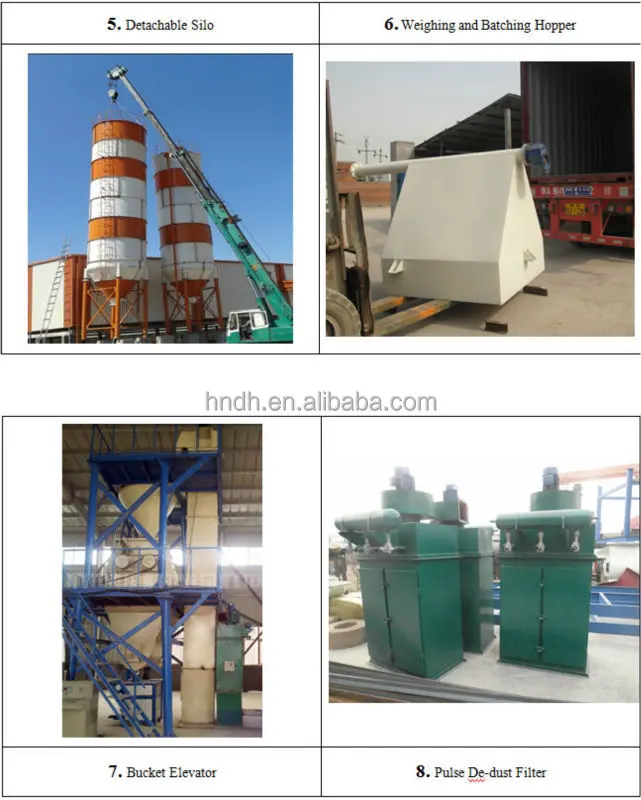

Raw Material Storage System Model & Quantity	100T Detachable Silo, 1 set
Silo Diameter	3.0m
Silo Height	9.0m
Silo Total Height	12.0m
Discharge Height	1.5-3.0m
Pneumatic Valve	DN300
Weight	5.0 tons
Batching & Weighting System Model & Quantity	V=3m3 Batching Weighing Hopper, 1 unit
Volume	3.0m3
Motor power	5.5kw
Screw Conveyor	LSY219*2800mm
Overall dimension  L*W*H	3.2* 1.26 *1.7m
Conveying System Model & Quantity	LSY219 Screw Conveyor, 2 units
Tube Diameter	219mm
Spiral Diameter	180mm
Carrying Capacity	45t/h









1.According to your inquiry, We will reply to you in 24 hours.

2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.

3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.

4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.



1)FCL: in nude for standard exporting container

2)LCL: Poly wood case

Wire cables are used for fastening the machine

Cork wood are placed in front or behind the machine to protect it.

Plastic film is covered on the machine as a rain-roof.
