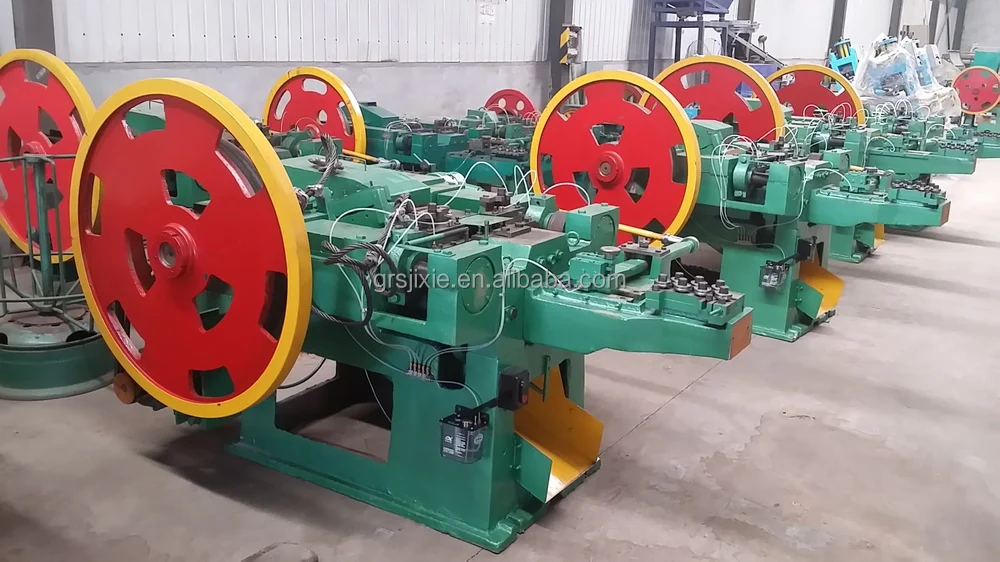

for processing 150 300mm length steel/iron nail china screw/concrete/common nail making machine

Product Overview

Description

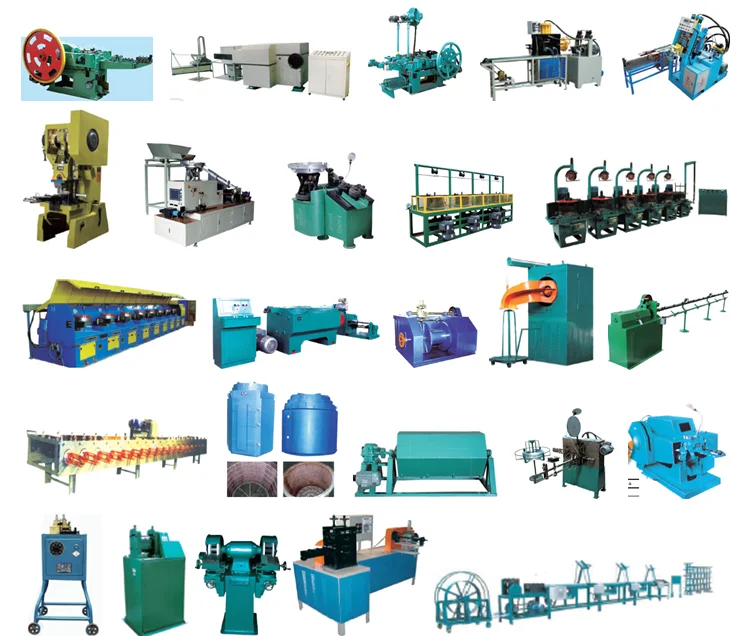

Our main products:



F/T Straight line pneumatic staple nail production line, U type pneumatic staple production line, common nails machine, high speed nail making machine, double line nail making machine, umbrella roofing nail making machine, coil nail making machine, thread rolling machine, C type nail making machine, Clip staple nail making machine, steel nail making machine, rivet nail making machine, etc



uCommon pulley type wire drawing machine, Luxurious pulley type wire drawing machine, high speed straight line wire drawing machine, water tank wire drawing machine



uSpool reeling machine, elephant nose type reeling machine, straightening and cutting machine, annealing furnace, galvanizing production line, polishing machine, butt welding machine, head pointing machine, cutter grinding machine, etc

Features

This machine aopts plunger type structure to ensure its high working speed, low noise and



low impact characteristics. Especially it can also make high quality You Mao nails which are



 used for high speed welding machine and nail gun, and it can make nails for other uses.



Technical parameter



Model	Z94-1C	Z94-2C	Z94-3C	Z94-4C	Z94-5.5C	Z94-6.5C
Max. dia. of nail	1.6mm	2.8mm	3.5mm	4.5mm	5.5mm	6.5mm
Min. dia. of nail	0.9mm	1.2mm	1.8mm	2.8mm	3.8mm	3.4mm
Max. Length of nail	25mm	50mm	75mm	100mm	150mm	203mm
Min. length of nail	9mm	16mm	30mm	50mm	80mm	100mm
Motor power	1.5kw	2.2kw	3kw	4kw	5.5kw	11kw
Nail making speed	450pcs/min	350pcs/min	320pcs/min	260pcs/min	200pcs/min	160-200pcs/min
L*W*H	1.5*1.3*1.2m	1.7*1.3*1.4m	2.0*1.4*1.4m	2.2*1.6*1.65m	2.5*1.6*1.5m	3.25*1.85*1.8m
Weight	1.2tons	1.45tons	1.8tons	2tons	2.3tons	5.5tons















Our nail making Machine's advantage:

1. Max.nails machine speed: 1100pcs/min (according to machine model)

  Max. Wire drawing machine speed: 1200m/min (according to machine model)

2. High efficiency lubricating system

3. Wastage rate: <0.2%

4. Automatic reading and monitoring real-time state system

(high efficiency, high precision, high reliability, high stability)

5. Energy saving (about 30%), environment and good appearance

6. High precision casting stability of fuselage structure

7. High speed and high precision driving bearing system



8. Equipped with excellent durability vulnerable parts

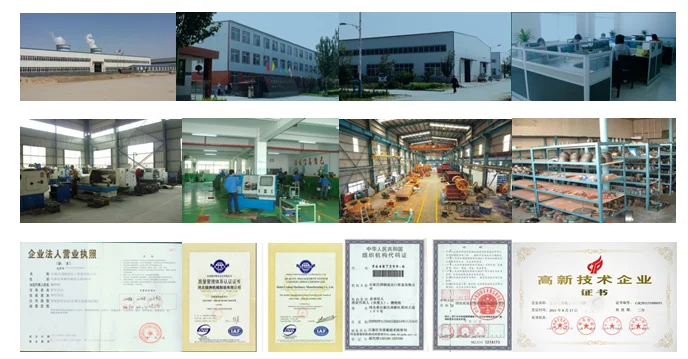

 About us

Our company was founded in 1998 with registered capital of CNY 16 million and covered the building area total 20000 square meters. It is certified by ISO9001:2008 International Quality Management System,Hebei Province Private Science and Technology Enterprise, Hebei Famous Trademark and National High-tech Enterprise







Other choices:
