Wenzhou Factory Multimeter YX 360TRF Analog Multimeter With function Weak Current
- Category: Multimeters >>>
- Supplier: Wenzhou Habo Technology Co. Ltd.
Share on (60243410088):
Product Overview
Description
Product Overviews

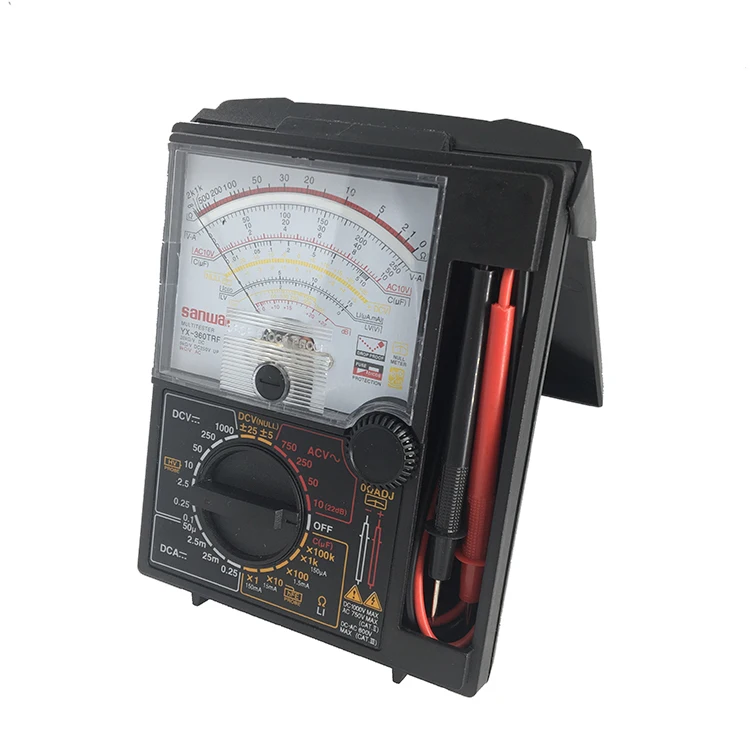

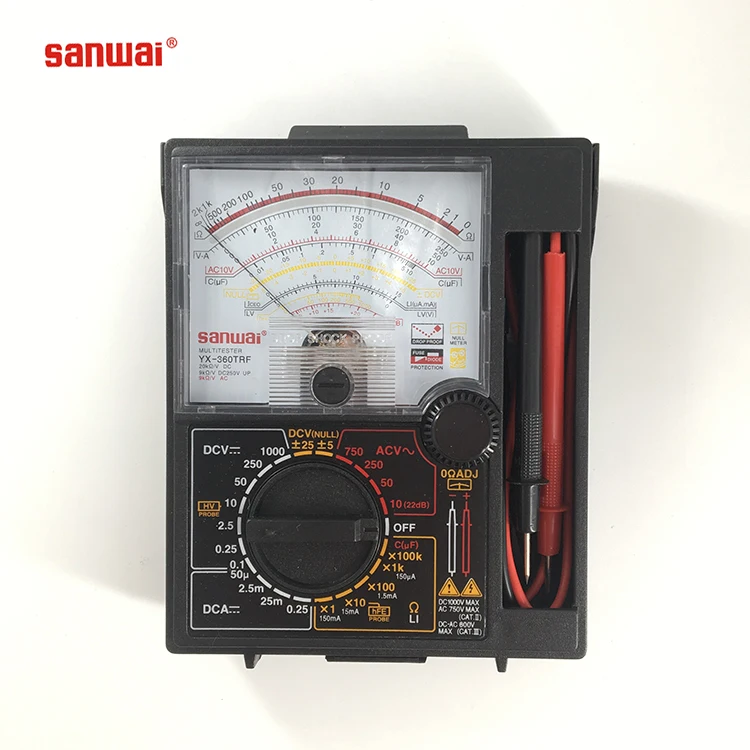

This instrument is portable multimeter designated for measurement of weak current circuits.

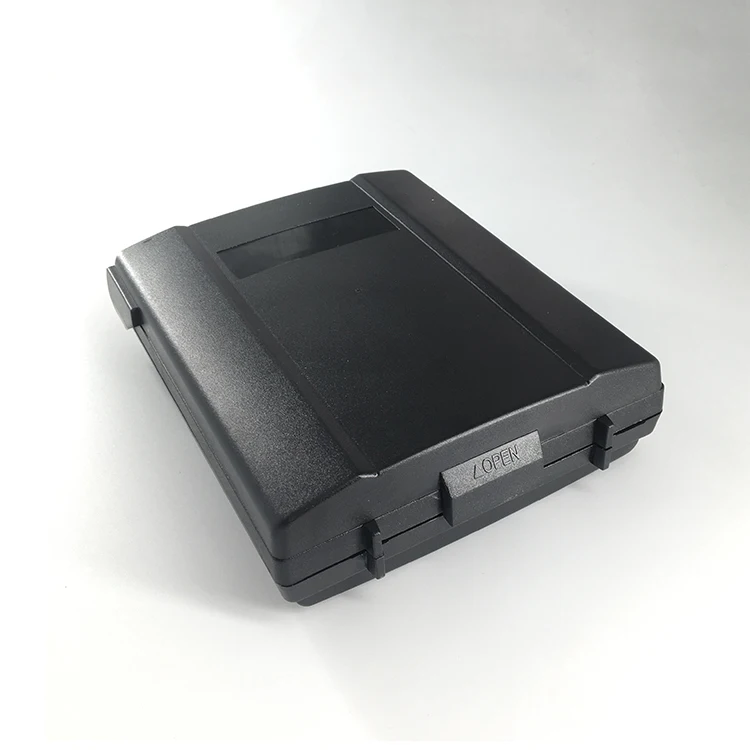

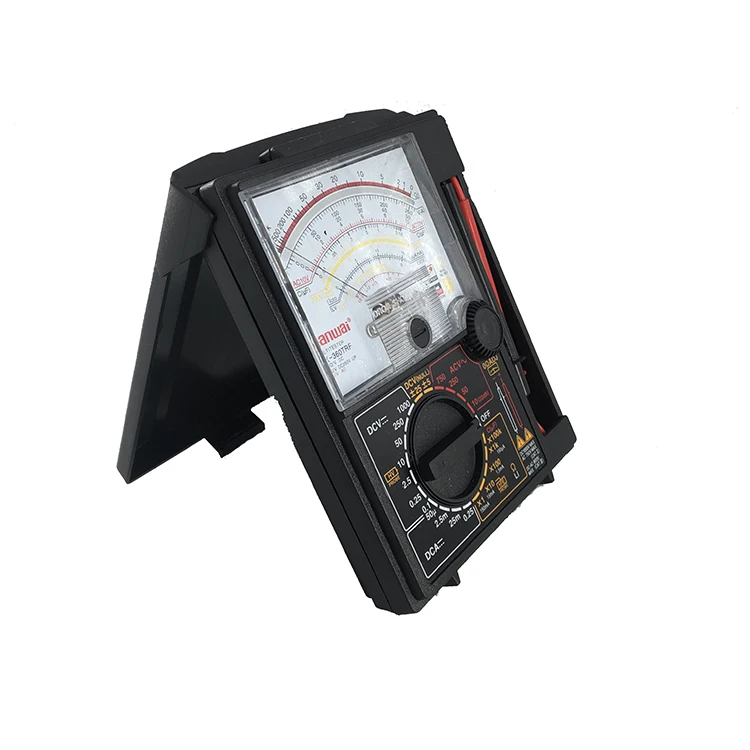

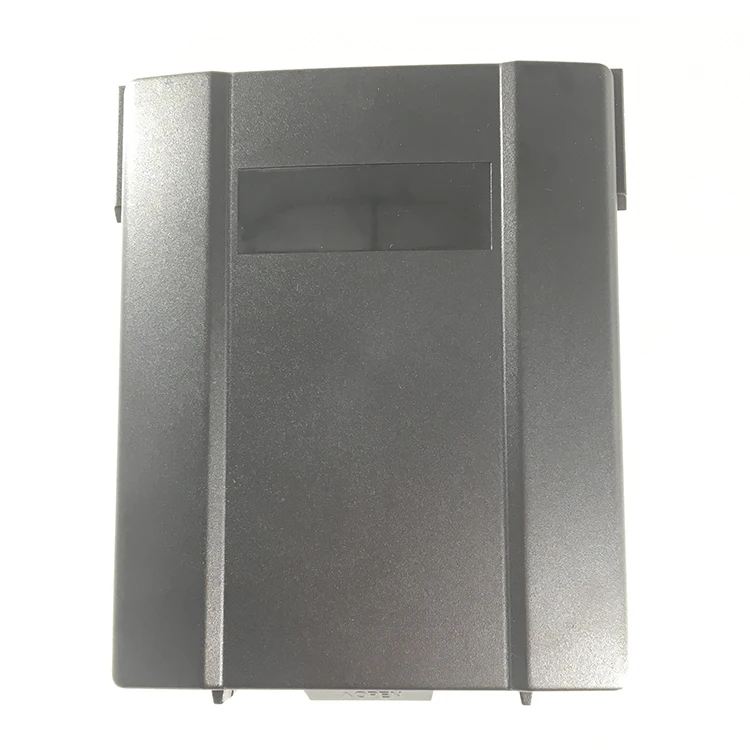

Panel face protection cover which serves also as a stand is employed.
Our technology has made it possible to measure high resistance(up to maximum 200MΩ) with low voltage.
Overload protection circuit up to maximum 230V is provided.
| 1. General Specifications: | |||
| Items | Specification | ||
| Circuit protection | The circuit is protected by fuse even when voltage of up to AC 230V is impressed on each range for 5 seconds. | ||

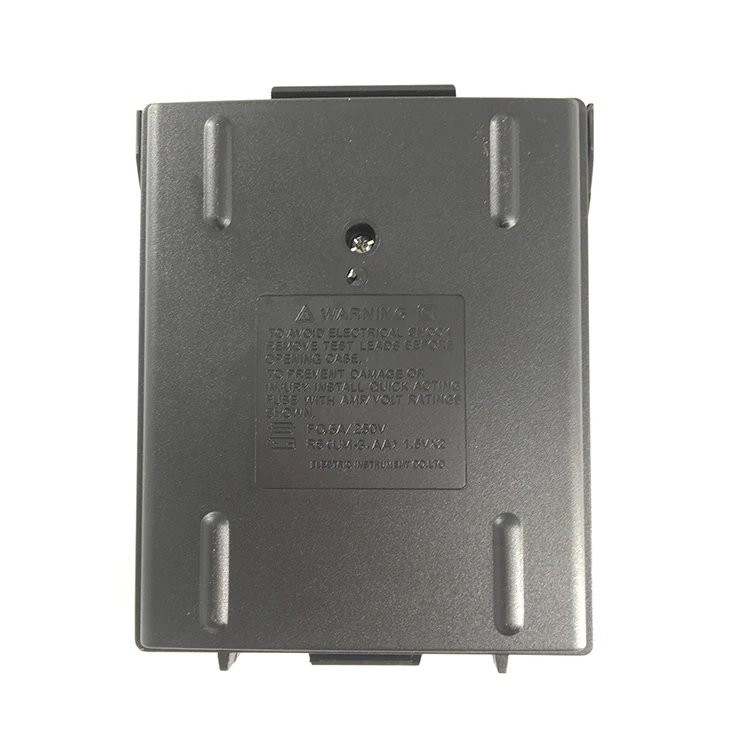

| Internal battery | R6(IEC) or UM-3 1.5Vx2 | ||
| Internal fuse | 0.5A/250V 5.2mm dia x20 mm | ||
Stadard calibration temp. and humidity range | 23±2°C 45-75%rRH | ||
Operating temoreature and huidity range | 0-40°C80% RH max., No condensation | ||
| Witstand voltage | 3KV AC(1min.)between input terminal and case | ||
| Dimensions and weigh | 159.5x129x41mm/approx.320g | ||

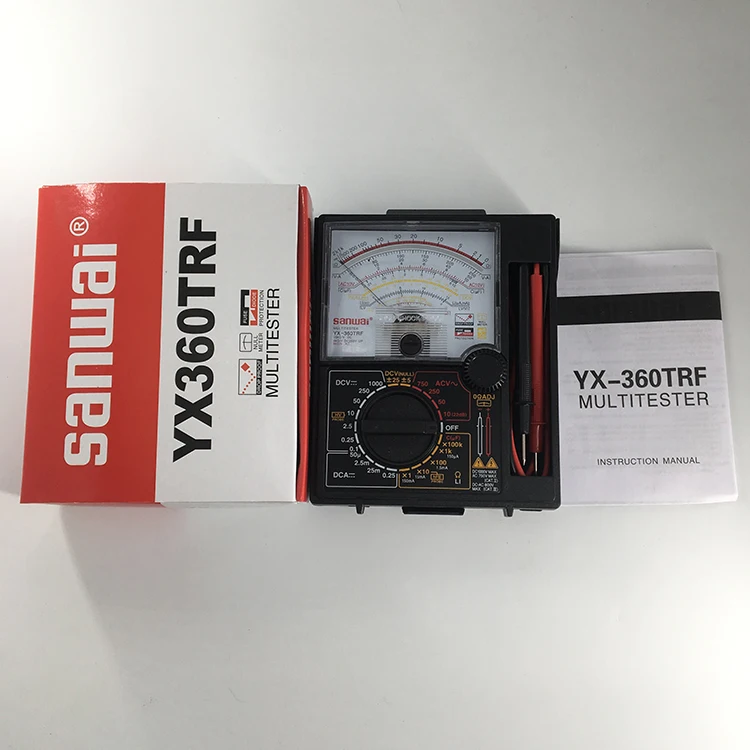

| Accessories | One copy of instruction manual | ||
| 2.Measurement Range and Accuracy | |||
| Function | Accuracy | Remarks | |
| DCV | 0.1 | ±5% against full scale | input impedance 20k Ω/V |
| DCV | 0.25/2.5/10/50 | ±3% against full scale | input impedance 20k Ω/V |
| DCV | 250/1000 | ±3% against full scale | Input impedance 9k Ω/V |
| ACV | 10/50/250/1000 | ±4% against full scale | Input impedance 9k Ω/V 30Hz-100kHz within 3%f.s. (AC 10V range) |
| DCA | 50u | ±3% against full scale | *1 Voltage drop 0.1v |
| DCA | 2.5m/25m/0.25 | ±3% against full scale | *1 Voltage drop 0.25v |
| Ω | 2k/20k/2M (X1/X10/X100/X1K) | ±3% of arc | Center value 20 Ω Max.value 2k Ω release voltage 3v |
| Ω | 200M(X1000K) | ±5% of arc | Center value 20 Ω Max.value 2k Ω release voltage 3v |
| C | 10uF | ____ | *2 |
| dB | -10dB~0~+22dB (for 10VAC)~+62dB | ____ | Input impedancce 9k Ω/ |
| LI | 0~150mA atx1 range 015mA atx10 range 0~150uA atx1k range 0~1.5uA atx100k range | current across test pins | |
| Ues the | optional probe | ||
HV(DC HIGHT VOLT | DC 25KV | HV-10T PROBE | |
| hFE | 1000 ATX 10 RANGE | hFE-6T PRODE | |
*1 Not including the resistance of the fuse.
*2 Pointer indication of the maximum move by charged current in the capacitor.
3.PACKING:40PCS/CARTON,N.W.:12KGS,G.W.:13KGS,MEAS:47x33x27.5cm
