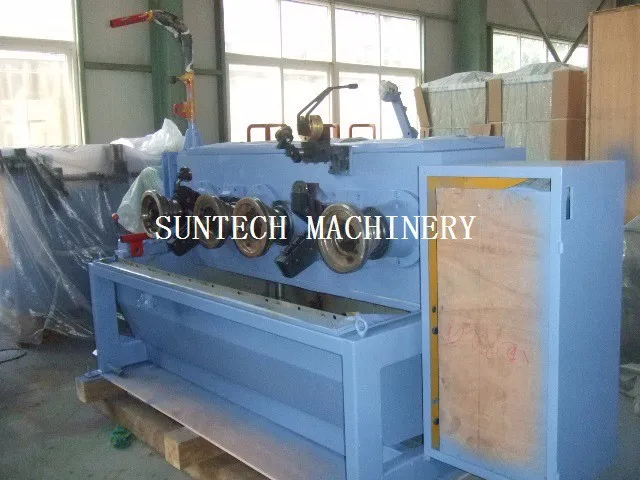

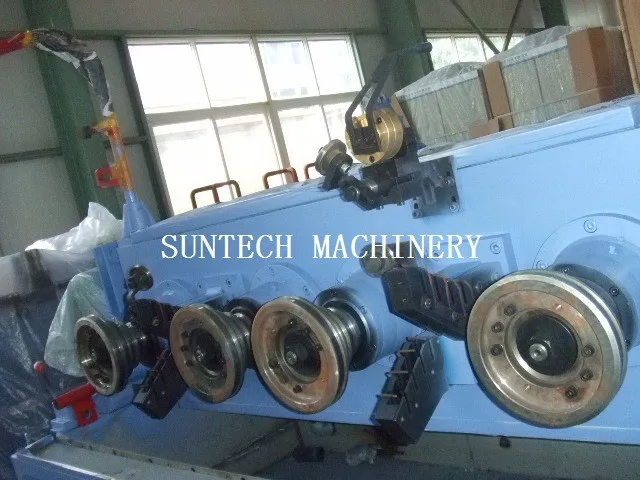

Wet type wire drawing machine for making nail

Product Overview

Description

Specifications

1. Wet type wire drawing machine
2. Drawing metal wire
3. Frequency motor
4. High speed
5. Easy operation





The wet type wire drawing machines which are produced by our company have absorbed pith from other companies in the same industry both at home and abroad in the machinery design. The configuration of wire drawing machine according to the different finished steel wire. It makes us in the leading position of concerning the product characteristics for clients. This machine is professional for drawing low carbon, medium carbon and high carbon steel wire. This machine is composed of gearbox, motor, control cabinet, capstan, die box, protection shield, etc.



LT Series wet type wire drawing machine

Model		LT-560	LT-450	LT-350	LT-315
Diameter of block	mm	560	450	350	315
Inlet diameter	mm	8-6.5	3.5-24	2.8-2.2	2.5
Outlet diameter	mm	5.5-3.5	1.8-1.2	1.6-0.8	0.5
Speed	m/min	260	280	350	<450
Total compression rate	%	52	73.5	90	<90
Average compression rate	%	16	15.5	15	13-20
Power of motor	KW	55	YCT280-4A 30	YCT280-4A 30	22-30
Size	mm	4300X2200X1600	3050X1300X1300	2100X1100X1000	2775X1254X1550
Weight	KG	7200	3000	3500	Average 3150
