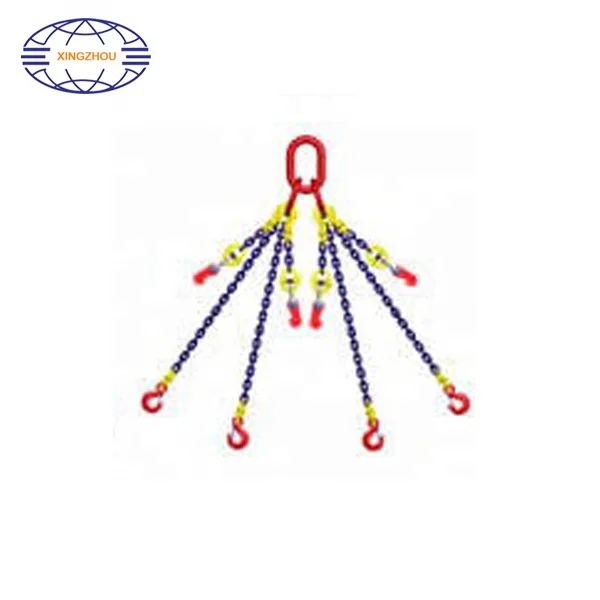

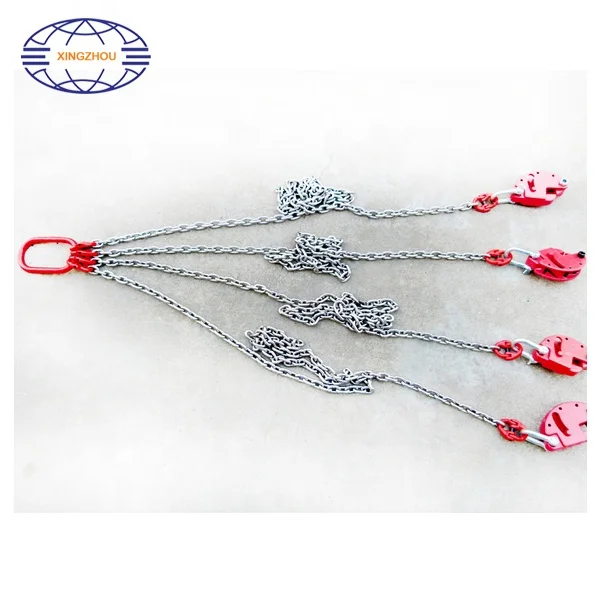

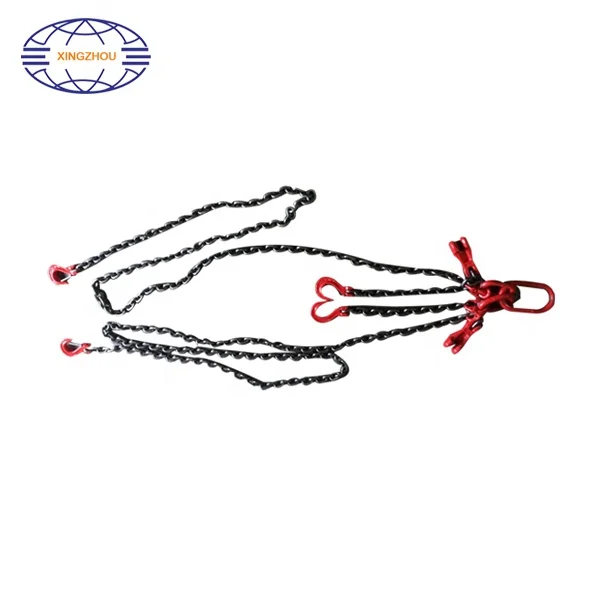

Four Legs Lifting Chain Sling

Four Legs Lifting Chain Sling

Item No.	CS Type
Features	- Diameter: 6-48 mm - Wear-Resistant - Anti-high temperature - Corrosion-resistance - Low elongation
General usage grade	S(6), T(8)
Compliance Standard	DIN5685, EN818-2, GB/T20652, GB/T12718, GB/T20946
MOQ	1 unit
Warranty	2 Years
Payment	L/C, T/T, Western Union
Packing Details	Iron Pack
Diagrammatic Drawing

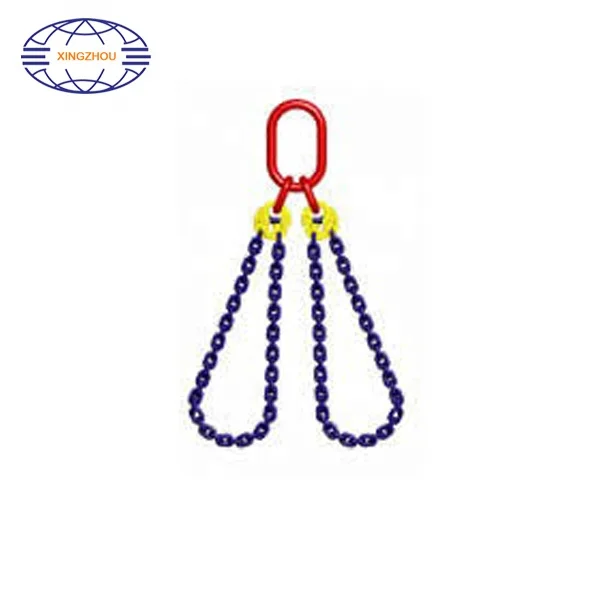

Chain sling is a convenient lifting tool, formed with lifting ring and other Accessories. It can be used as one leg choker chain sling when the hook is inside the link, bu the working load will be reduced 20%. The ratio between usage load and breaking load is 1:4.

Multi choices for the surface treatment are available: polished, blacked, galvanized, painted.

We can design and produce other type of chain sling according to your requirement.

Technical Parameter of Four Legs Lifting Chain Sling

Type	Dia of meter rated load t			Master Link	Weight	Weight per meter
	mm	α ≤45°	45°< α ≤60°	A × B × D	Kg	Kg/m
LS4-6	6	2.1	1.5	80x150x20	7.33	0.79
LS4-8	8	3.1	2.2	90x160x24	12.21	1.38
LS4-10	10	5.2	3.7	100x190x28	23.42	2.2
LS4-12	12	7.3	5.2	100x190x28	33.77	3.1
LS4-14	14	10.5	7.5	120x230x34	40.54	4.13
LS4-16	16	12.6	9	135x250x38	53.51	5.63
LS4-18	18	16.8	12	140x270x42	64.47	6.85
LS4-20	20	21	15	160x310x46	79.88	8.6
LS4-22	22	25.2	18	180x330x52	150.42	10.2
LS4-24	24	29.4	21	180x330x52	155.75	12.78
LS4-26	26	35.7	25.5	180x330x56	253.27	14.87
LS4-30	30	46.2	33	210x410x62	268.64	19.6
