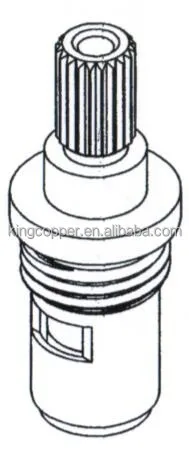

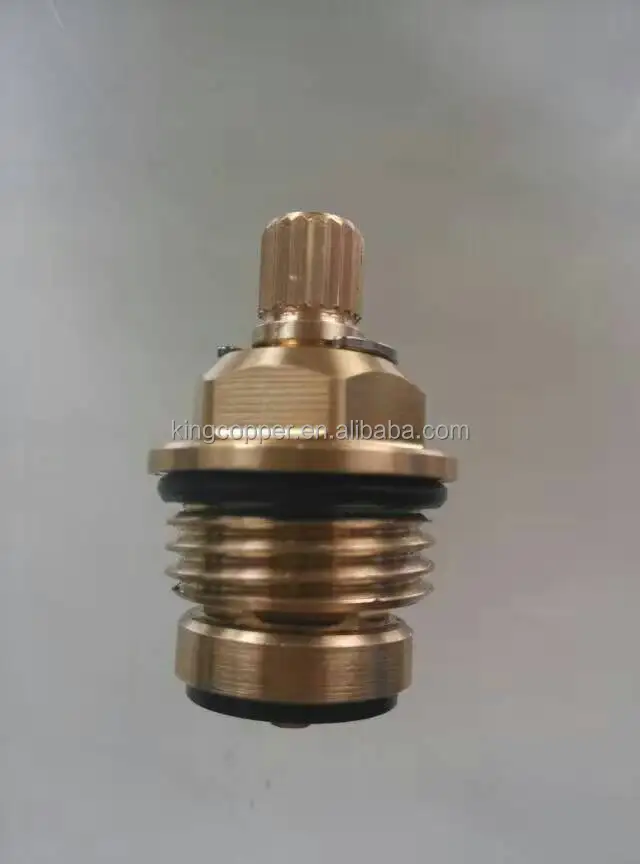

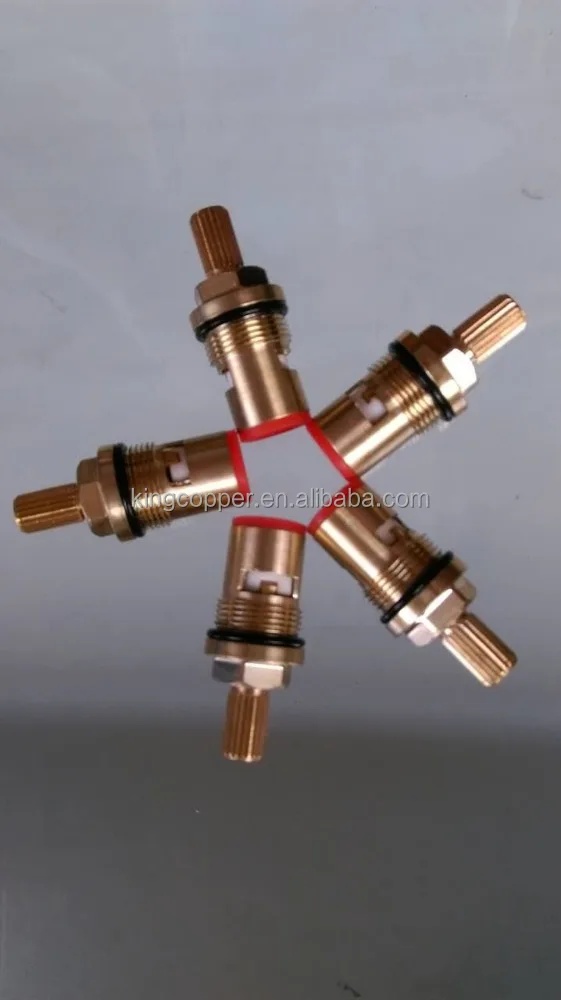

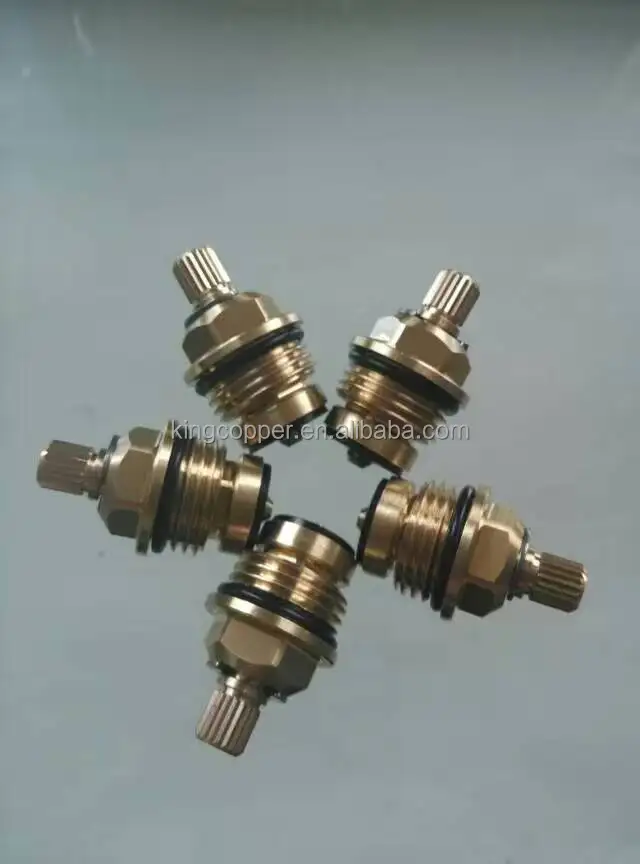

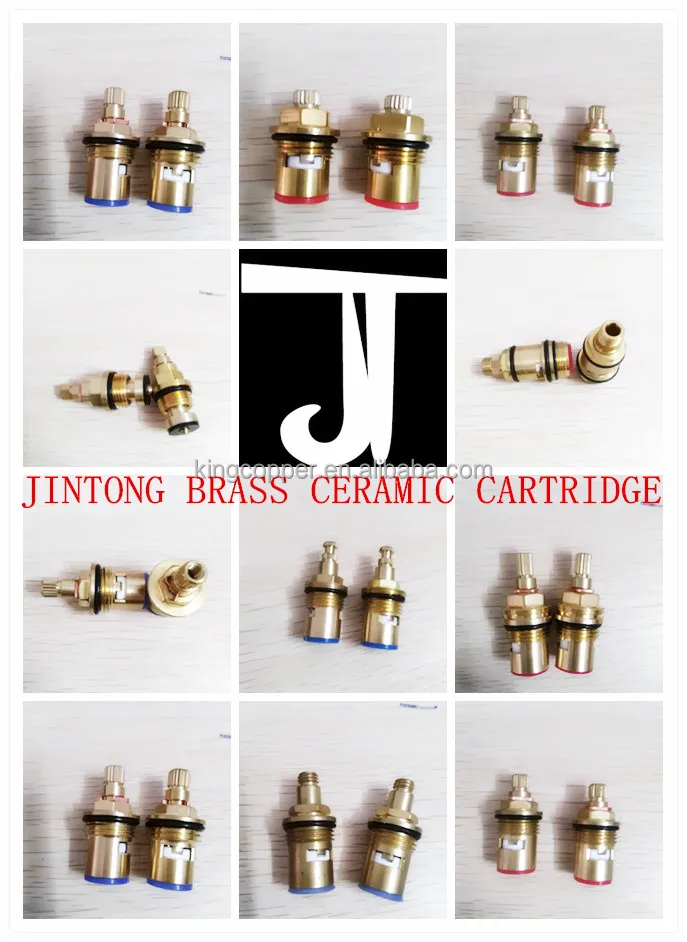

fast open brass spindle tap ceramic disc cartridge
- Category: Faucet Cartridges >>>
- Supplier: Ningbo Fenghua Jintong Sanitary Ware Co. Ltd. [Zhejiang China]Ningbo
Share on (60247710049):
Product Overview
Description
Specifications
1.High quality raw material.
2.Sleek touch,flexibly adjusting of flow, stable seal performance.
our cartridges can regularly serve 300,000 times under water-tight condition.
3.Varied design
4Rich OEM experience
5.Strict administration and inspection
6.Low price and best service.
Technical data: |
Max.temperature:90°C |
Max.turn angle :90° |
Lever tongue test:0.3-0.4n.m(static pressure is zero ) |
Noise test;Max20 db at 3 bar(with noise reducer ) |
Working pressure :Max 1.2MPa |
Lever break tonque:15Nm |
Sealing test :0.8Mpa (fully tested one by one ) |
Max pressure :water static pressure max3Mpa |
Life test:According to the En 817,Gb18145-2011 standard>300,000cycles, |
According to the ASME A112,18.1-2011 standard>500,000cycles |
Ceramic disc;Hardness>1150HVS |
Flatness:0.6um |
Roughness:Ra0.25um |
Porosity:60-80% |
