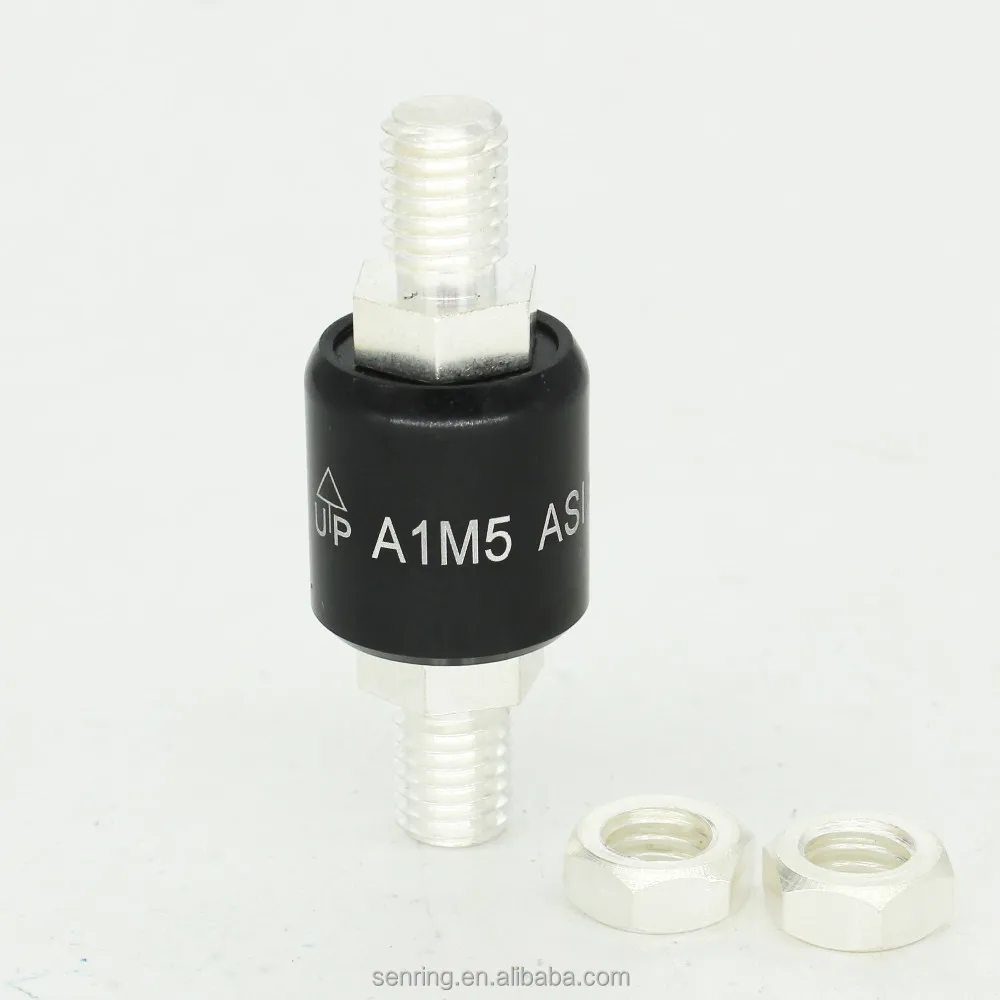

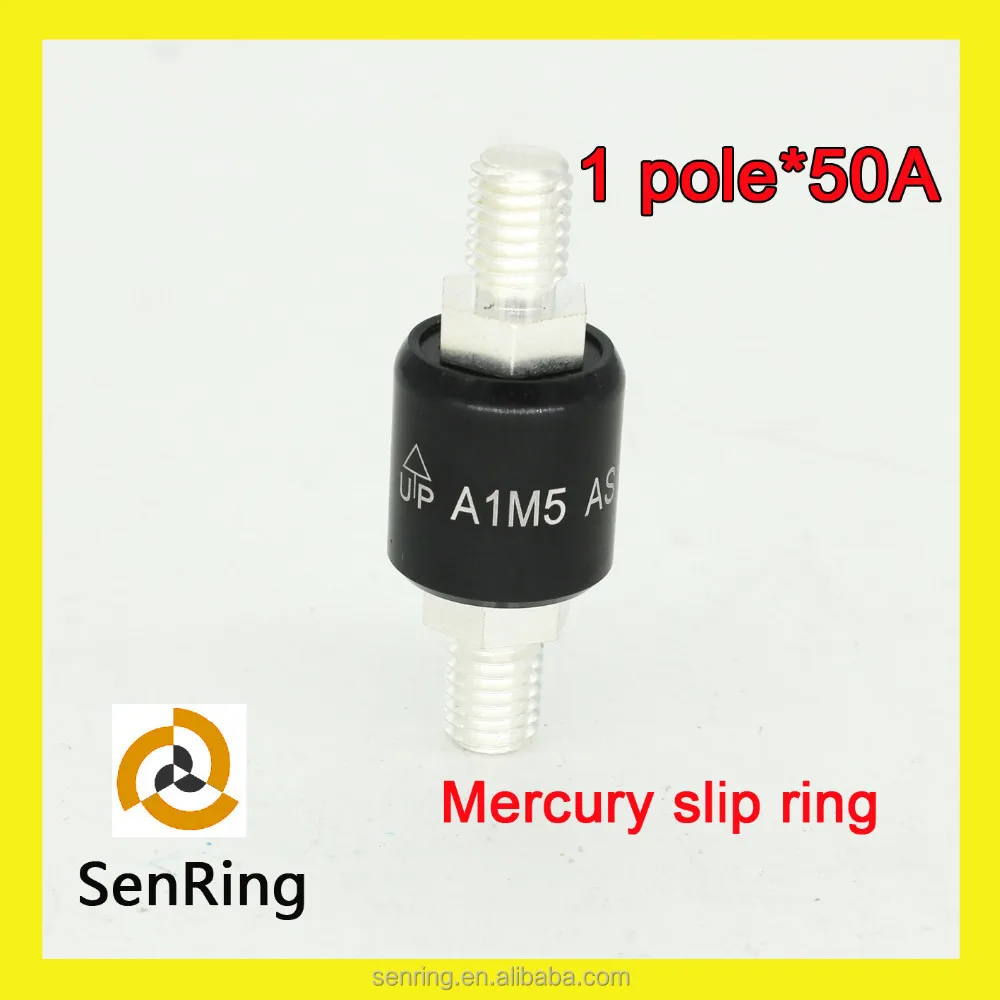

Меркурий скользящее кольцо 1 Полюс 50 А

Outline dimension:







Notice:
1,Use no more than 60 temperature.
2,The vertical direction when installed, to keep U P upward, preservation needs to keep up also.
3,Not for rotating connector itself or copper terminal welding heat.
5,Dedicated terminals should not be reused many times.
6,Revolver such as vibrations will reduce service life.
7,This connector can in shell or plastic parts into axis, a floating pull in external fixation department, but never can withstand weight.
Above such matters for rotating connector don't comply with different degree of damage or produced reduce life cycle.

Features:

     1) Anti-jamming, low price.

    2) < 1m contact resistance.

    3) Free maintenance, more durable than traditional sliprings.

    4) Suitable for any of the signal and power revolver succeeded.
