Тягач AED125A Кнопка стоп переключатель аварийный
- Category: Push Button Switches >>>
- Supplier: Zhejiang Aokai Electric Co. Ltd.
Share on (60253653728):
Product Overview
Description

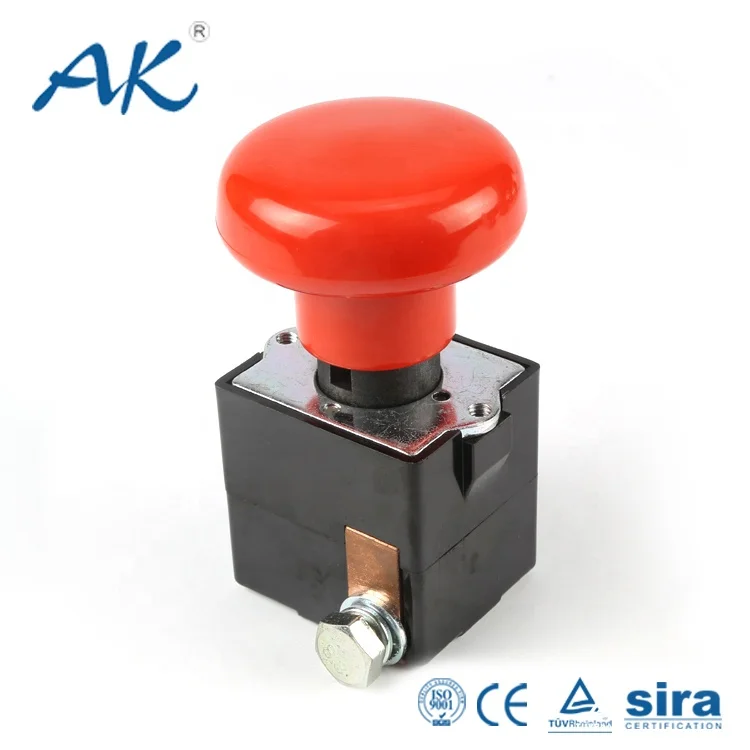

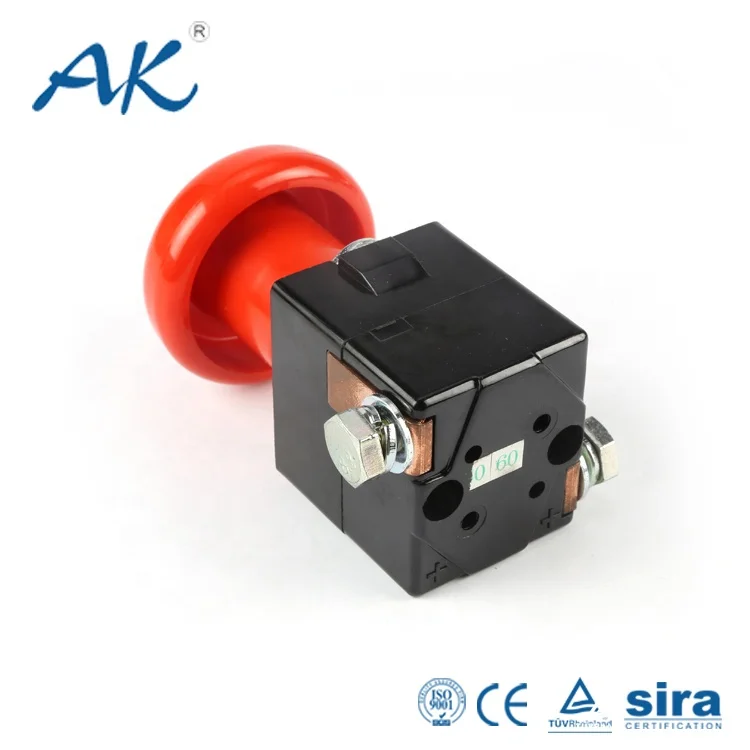

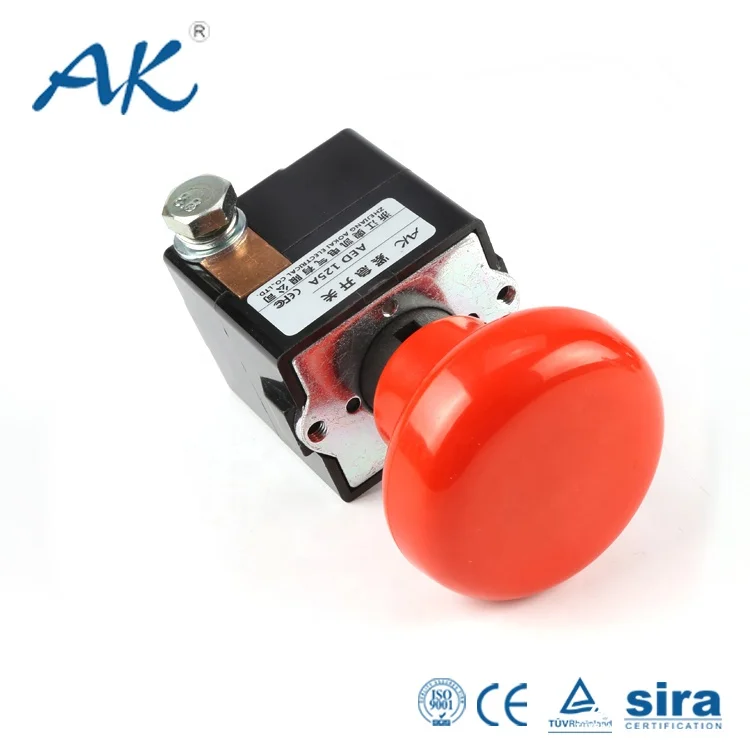

tractor AED125A push button stop switch emergency
Emergency switches are applicable for various electric motor vehicles and other electric power devices. They are safe,convenient and easy for operation.
Rated Voltage | Below 80V |
Contact Circuit Rated Load Current | 125A |
Typical Voltage Drop across contacts per 100A | Below 40mV |
Insulation Resistance | 50megohm |
Dielectric Strength | 50Hz/60Hz 1000VAC/1min |
Overload Current | Below 7le, below 1s |
Electrical Life | 20000 times |
Mechanical Life | 1 million times |
Work Specification | Continuous |
Contact Type | 1 NO |
Contact Material | AgCdO/AgCuO |
Standards Adopted | GB14048.4-2010 |
Body Size | 55.7x43.5x110mm(max) |
Weight | Below 320g |
Closing Force(F1) | From 20N to 40N |
Disconnecting Force(Ft) | From 20N to 40N |
Altitude | Below 2Km |
Ambient Temperature | -25 to +55 degree Celsius |
Protection Grade | IP50 |
Installation Type | III |
Mounting Methods | At will |
Vibration | 2.5g, (5-50)Hz |
Impact | 50g,11ms (half-sine wave) |
