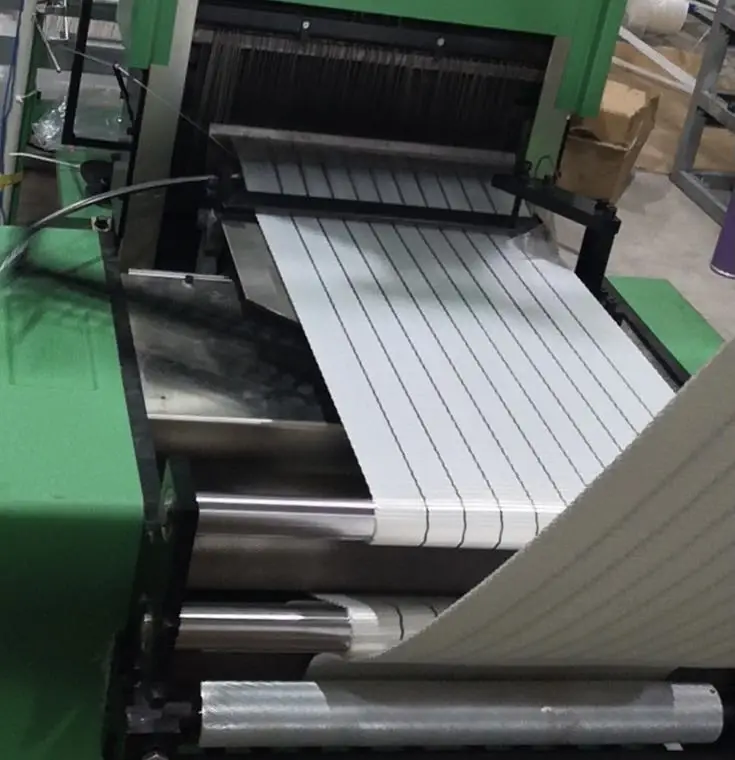

heavy belt needle loom

Product Overview

Description

Main uses and features:

With advanced desingn,this machine is suitable for weaving different material fabric such as cotton,polyacrylic,polypropylene and polyamide shoestring,eleastic cord, breast brace curtain lace,girdle, box band medical bandage Simmons lace and ribbon, etc . It features high automatic,easy to operate and maintain.
Our factory would like to provide sincere service and technology for you also we can provide installation, debugging, training and fittings for you as wess as providespare parts of ribbon loom at the special order of customers.

Model	YF-755
Size	12 × 25	10 × 25	8 × 30	6 × 45	4 × 65	2 × 150	1 × 350
NO. of ribbon	12	10	8	6	4	2	1
Max.width of reed (for yarn without overhand)	25	25	30	45	65	150	350
No.of weft (pieces/cm)	3-40
Frame	10
NO. of figure	8
Motor power	1.1 (1.5)
Speed	910 1400
Special device (optional)	Ribbon warper,reeling machine ,double-roll mechanism,post-reel mechanism, pattern feed mechanism(8/16-48),thread shelf and warp spoor
Pemarks	Optional above 48 pattern number
