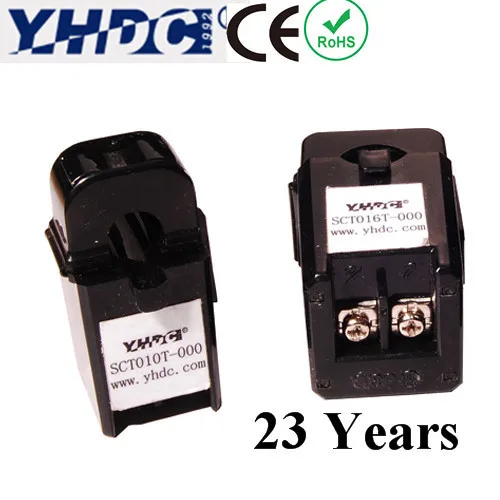

DC 5V split core current transformer voltage output current transducer
- Category: >>>
- Supplier: Beijing Yaohua Dechang Electronic Co. Ltd.
Share on (60258632480):
Product Overview
Description

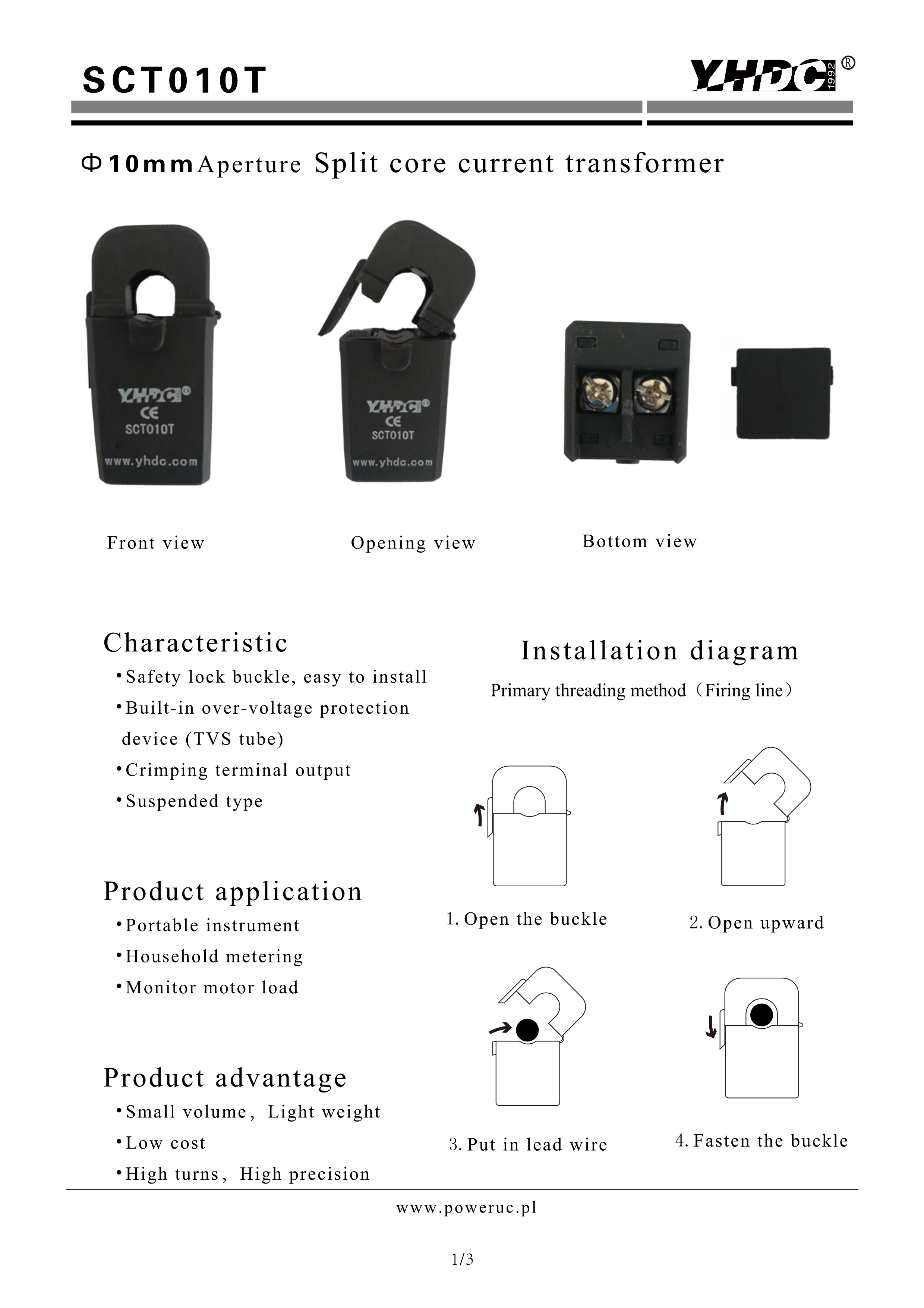

Model:SCT010T AC 50A/DC 5V
Characteristics:
Suspension installation, Crimp terminal output, built-in transient voltage suppressor for
protection.
Purpose:
Applicable for the current measuring monitoring and protection of AC motor lighting
equipment, air compressor etc.
Mechanical strength:
The number of switching is not less than 1000 times(test at 25℃)
Fire resistance property: In accordance with UL94-Vo
Work temperature: -25+60℃
Storage temperature: -30+90 ℃
Work frequency: 50Hz-1KHz
Dielectric strength:3500V AC/1mincore/output leads

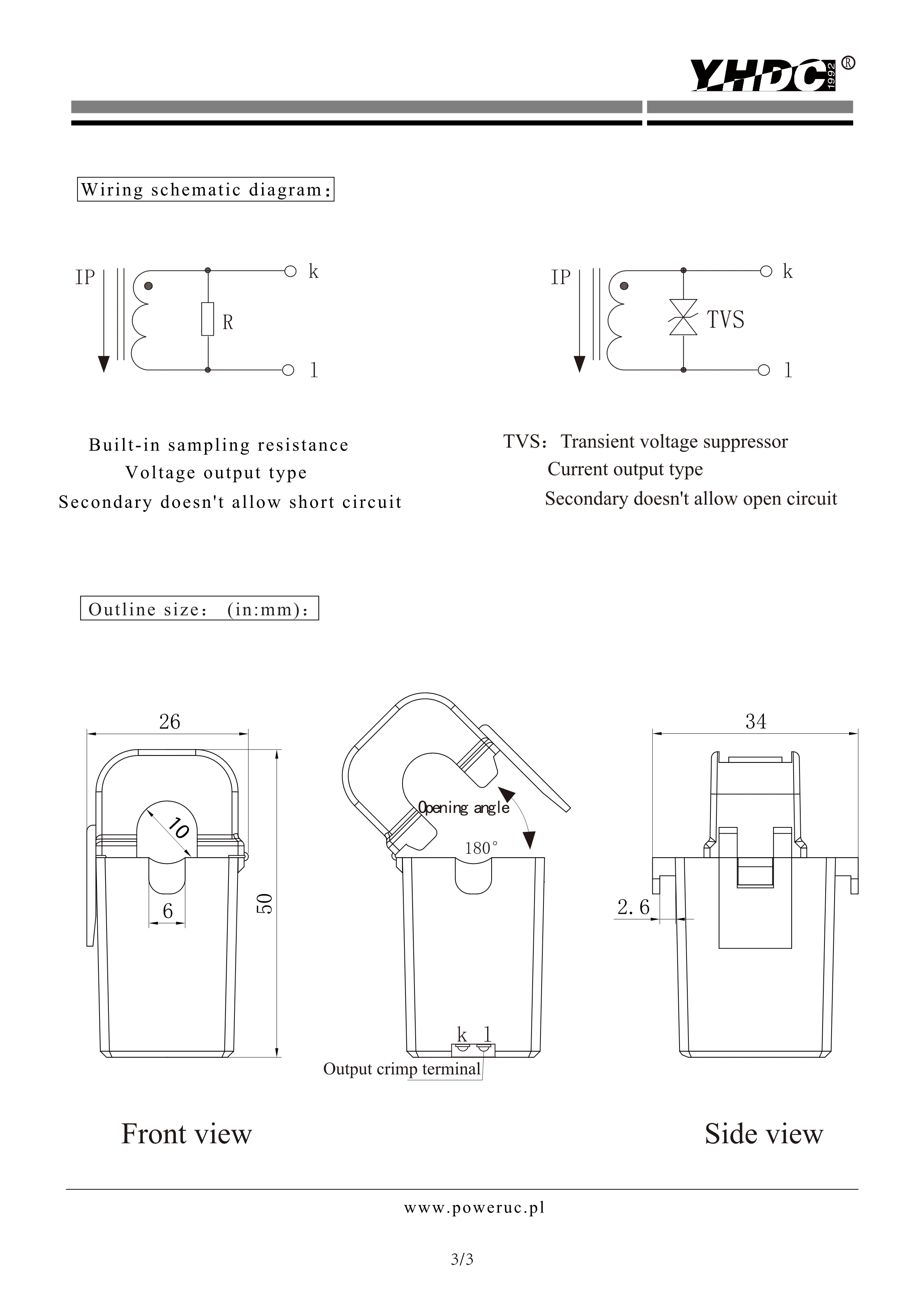

Outline size(mm):
| Model | A | B | C | φd |
| SCT-010T | 23 | 26 | 50 | 10 |

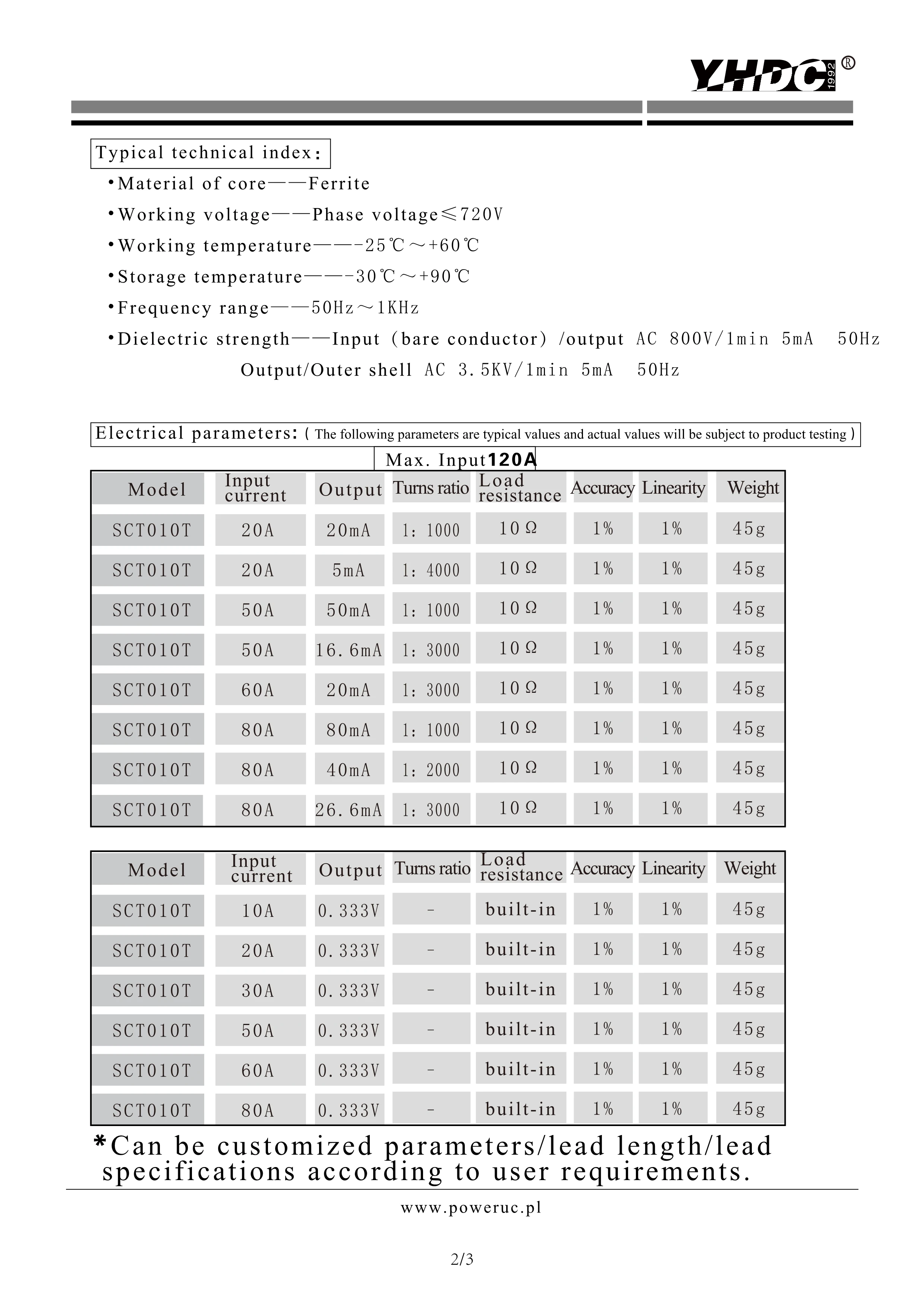

Technical parameters:
| Modle | Rated current | Max.current | Output | Working frequency | Accuracy | Dielectric strength(output/sheel) | Material of core | Opening size φD(mm) | Outline size(mm) | Weight |
| SCT-010T | 50A | 60A | 5V DC | 50-1KHz | ±1% | >3500Vac/1min | Ferrite | 10 | 23*26*50 | 45g |
SCT010T is just one model, for more split core current transformers and parameters, please click here.
About our factory:
Beijing Yaohuadechang Electronic Co., Ltd was founded in 1992.We are a manufacturer
of power transformers, current transformers, voltage transformers, pulse transformers,
current sensors and etc. Our factory covers over 12000 square meters. For 23 years
experience, our quality and price are best in China. Our product service life can be last

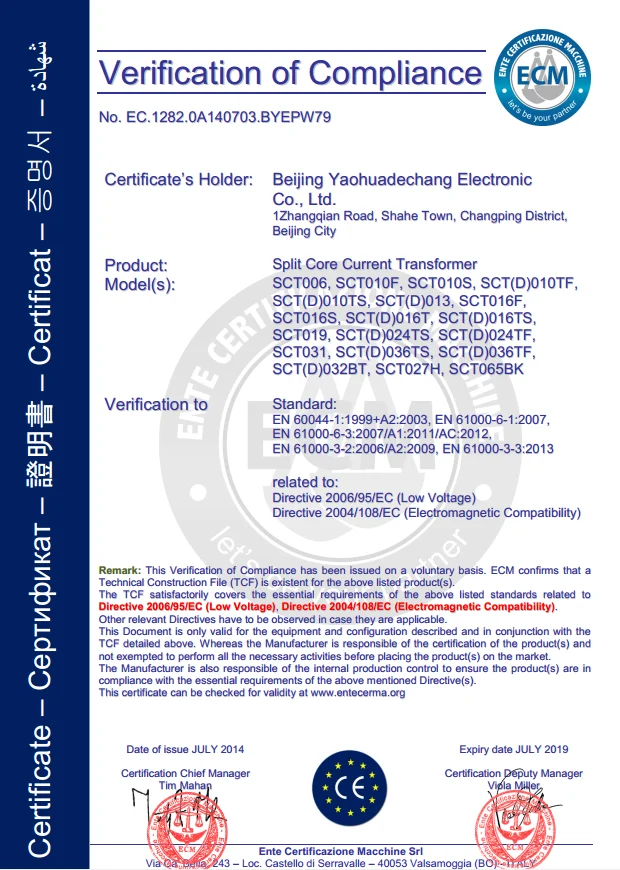

for 20 years, and have been CE approved, CQC and RoHS certified.
