100A split core CT current transformer / ring core current sensor SCT019
- Category: Power Distribution Equipment >>>
- Supplier: Beijing Yaohua Dechang Electronic Co. Ltd.
Share on (60259841796):
Product Overview
Description
Model:SCT-019-100 Rated input current:0-100A
Characteristics:
Opening size: 19mm*19mm
Compatible to foreign like product completely
Output type 0.333V (voltage output type)
precision±1% (10%--130% rated input current)
Epoxy potting 1 m leading wire
Purpose:Suitable to the current measuring, monitoring and
protection of AC motor, light equipment, air compressor and so on
Core materials: Permalloy
Safty index: Dielectric strength 3000V/1min
Woring temperature:-25℃--+70℃

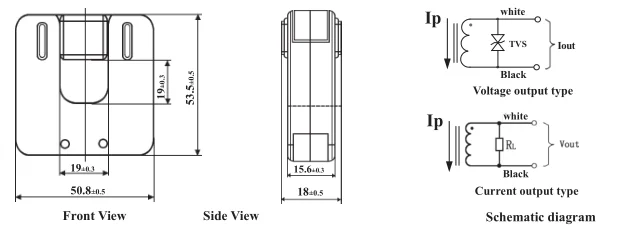

Outline size diagram:(in mm)
Technical parameters:

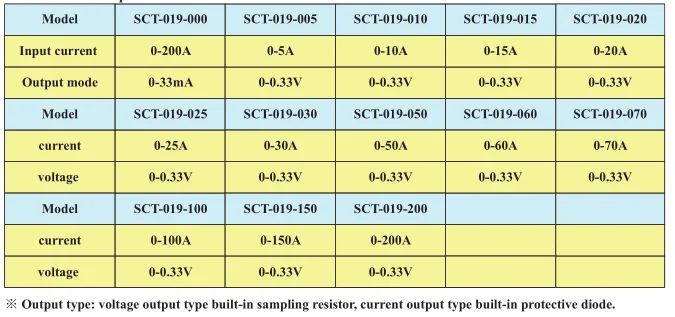

Specification:
SCT019 is just one model, for more split core current transformers and parameters, please click here.
About our factory:
Beijing Yaohuadechang Electronic Co., Ltd was founded in 1992.We are a manufacturer
of power transformers, current transformers, voltage transformers, pulse transformers,
current sensors and etc. Our factory covers over 12000 square meters. For 23 years
experience, our quality and price are best in China. Our product service life can be last
for 20 years, and have been CE approved, CQC and RoHS certified.
