Wire cage welding machine , reinforcing cage making machine for pole

Useage

Pipe welding steel roll cage is reinforced ultra high strength concrete piles into the skeleton automatic roll welding special welding.

Widely used in pre-tensioned prestressed steel cage welded.

The machine has a small weldable reinforcement strength loss, without distorting long skeleton, skeleton produce good overall performance, facilitate a variety of adjustment, stable performance, easy operation and maintenance.

Future:

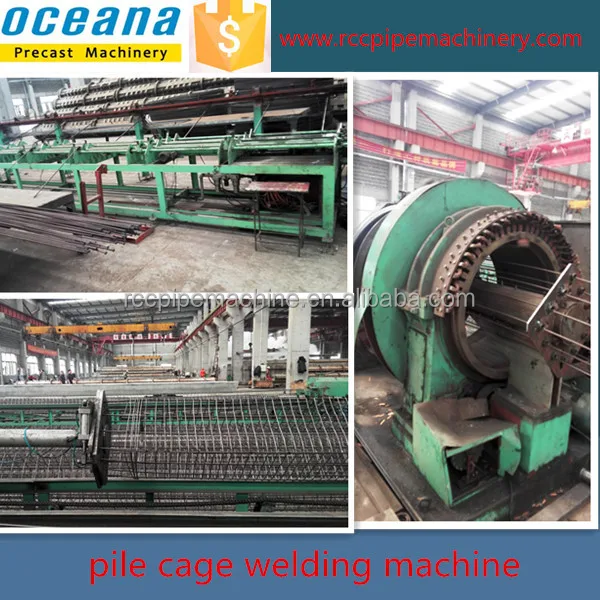

Steel frame welded seam welder mainly by the host material to relax rotating rack ring bars, steel skeleton traction mechanism, welding transformer and electrical control mechanism and other components.

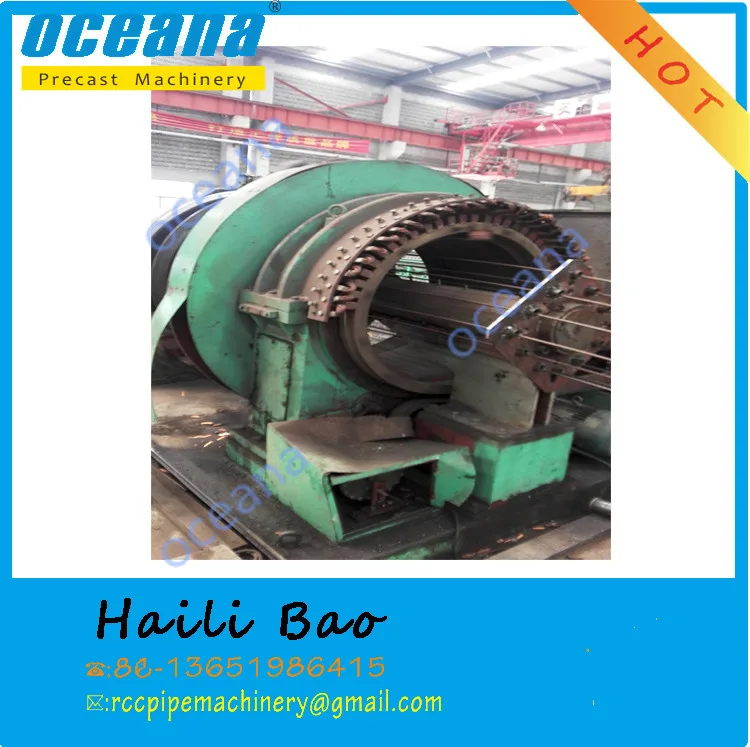

The electrode arm rotating electrode connected to one end of the brush through the secondary conductive ring and welding transformer. Electrode arm can be adjusted according to the size of the diameter welded frame, the entire device is fixed in the rotating electrode welding agencies put a large roll. In the center of the rotating mechanism mounted fixed electrode wheels, and with the other end connected to the secondary winding of the welding transformer. Each electrode insulated from each other with the host.

Spin welding institutions set by the two big roll bearing fixed. Motor through V-belt wheel drive two sets of gear drag a large roll rotation. Intercropping in big roll while rotating ring material through the winding mold steel tendons around the longitudinal diameter bars. And by dividing the signal conduction welding transformer, be reinforced crosspoint powered welding, thereby simultaneously reinforced skeleton traction motor speed reduction device via drag chain drive the car to make the skeleton straight backward.

Welder welding and manual welding automatic welding two modes work can choose according to need.

technical parameters

Shanghai Oceana Construction Machinery CO., Ltd is a leading manufacturer and supplier in the Precast Concrete machinery, with R&D, manufacturing workshop, professional sales Team and service.

Our major products are: Water drainage concrete pipe machine and moulds; Pre-stressed Concrete cylinder pipe machines, also the pre-stressed concrete electric pole and pile machine line and steel moulds. Besides we also supply the wire cage welding machine, concrete mixing plant, and other equipments. Again, we provide the factory layout design, machine  proposal, manufacturing, installation & commissioning, worker training, trial production, one-stop service.

Since founded, our company has insisted on the principle of “ Customer First, Faithful Management”. We supply our customers with High Quality product, Reasonable Price,Good after sale service. With customer’s trust and Support, Our machines have been sold to Australia, New Zealand, Vietnam, Nigeria, Algeria, Iran, Mexico, Ecuador, Sri Lanka, and Malaysia.

Look forward for the cooperation with you! Welcome you visit us!
