We are proffestional manufaturer,we can design the machine as customer requirement.
Equipment components:
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting.
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
Configurations
Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System
PLC Panasonic Inverter
Main Frame
350mm H-Beam
Main Power
18.5 kw
Pump Power
15kw
Power Supply
3-Phase,380V,50Hz
Forming Speed
12-14m/min
Hydraulic Pressure
18-20MPa
Forming Size
80-300mm
Feeding Thickness
1.5-3.2mm
Roller Station
12 Stands
Roller Diameter
80mm
Backboard Thickness
18mm
Chain Size
66mm
Cutter Standard
Cr12
Roller Standard
45#steel
Cr-Plating Size
0.05mm
Overall Size
9500×1400×1350mm
Total Weight
6T
Production Flow

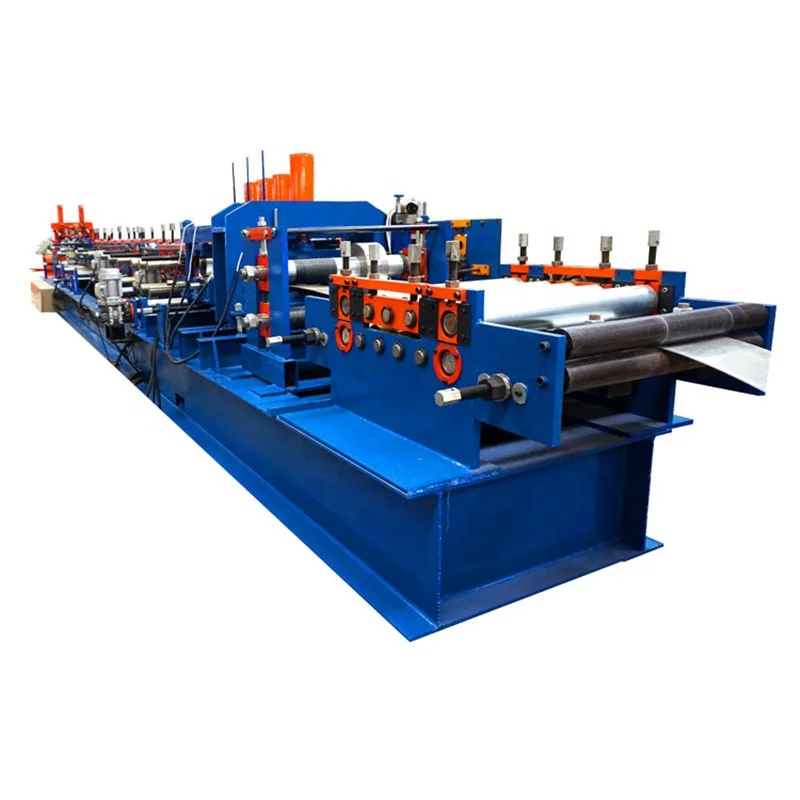

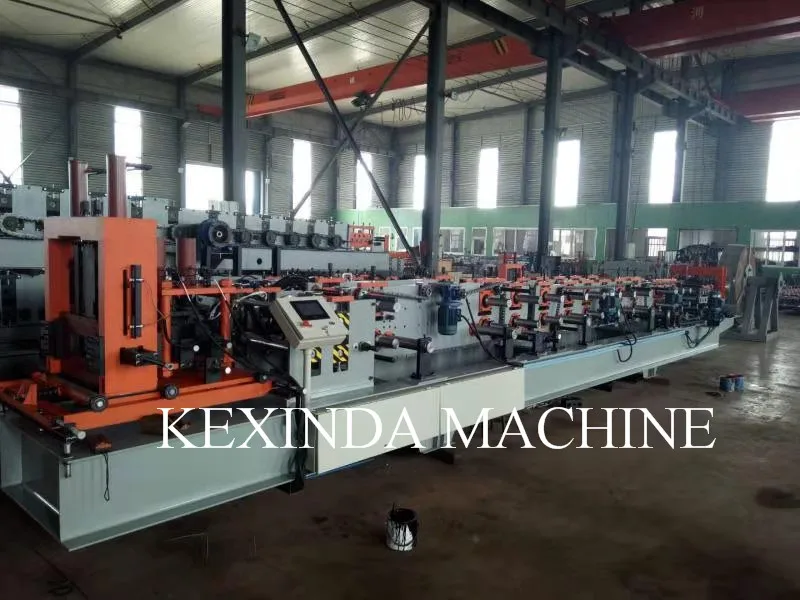

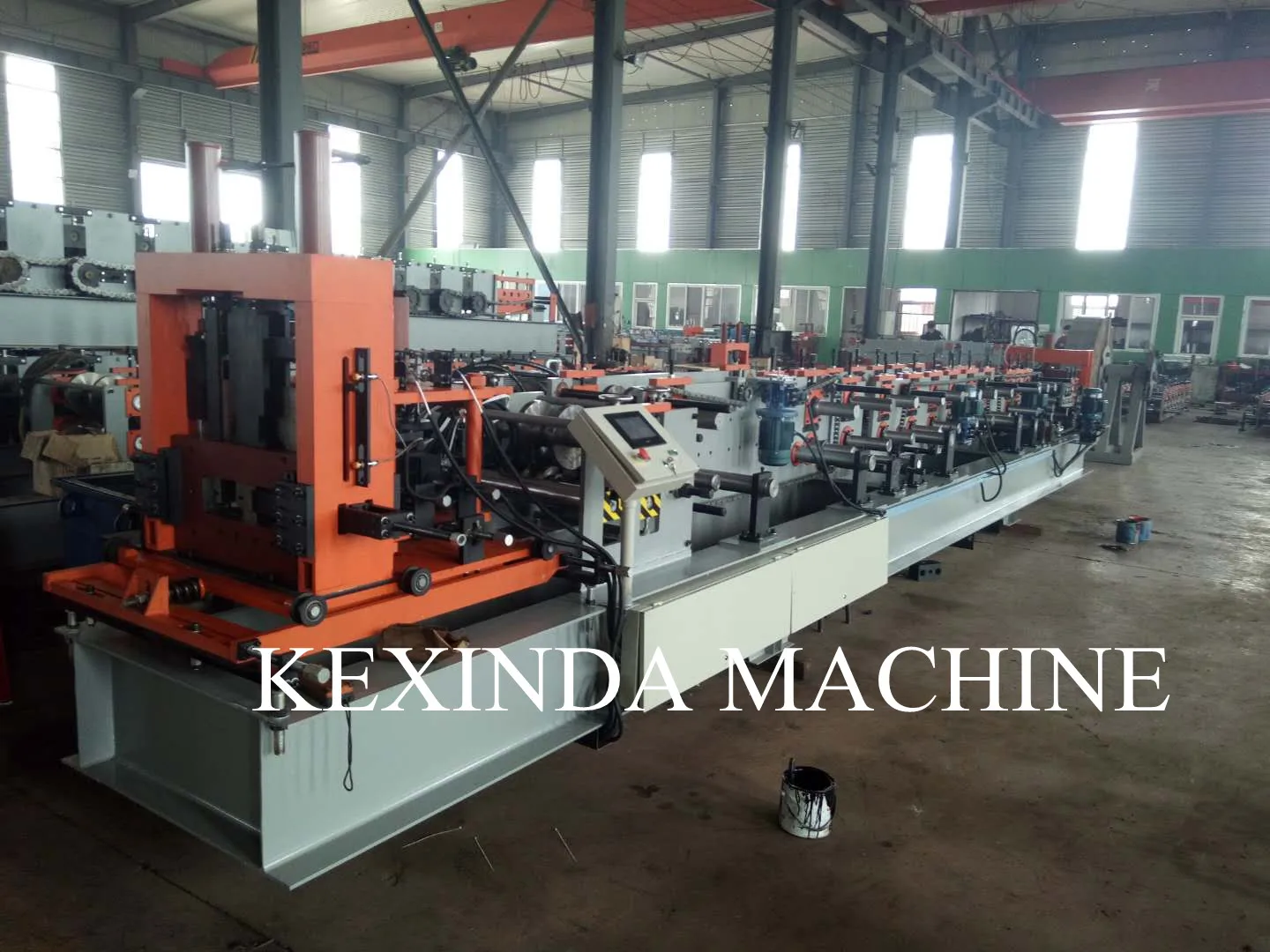

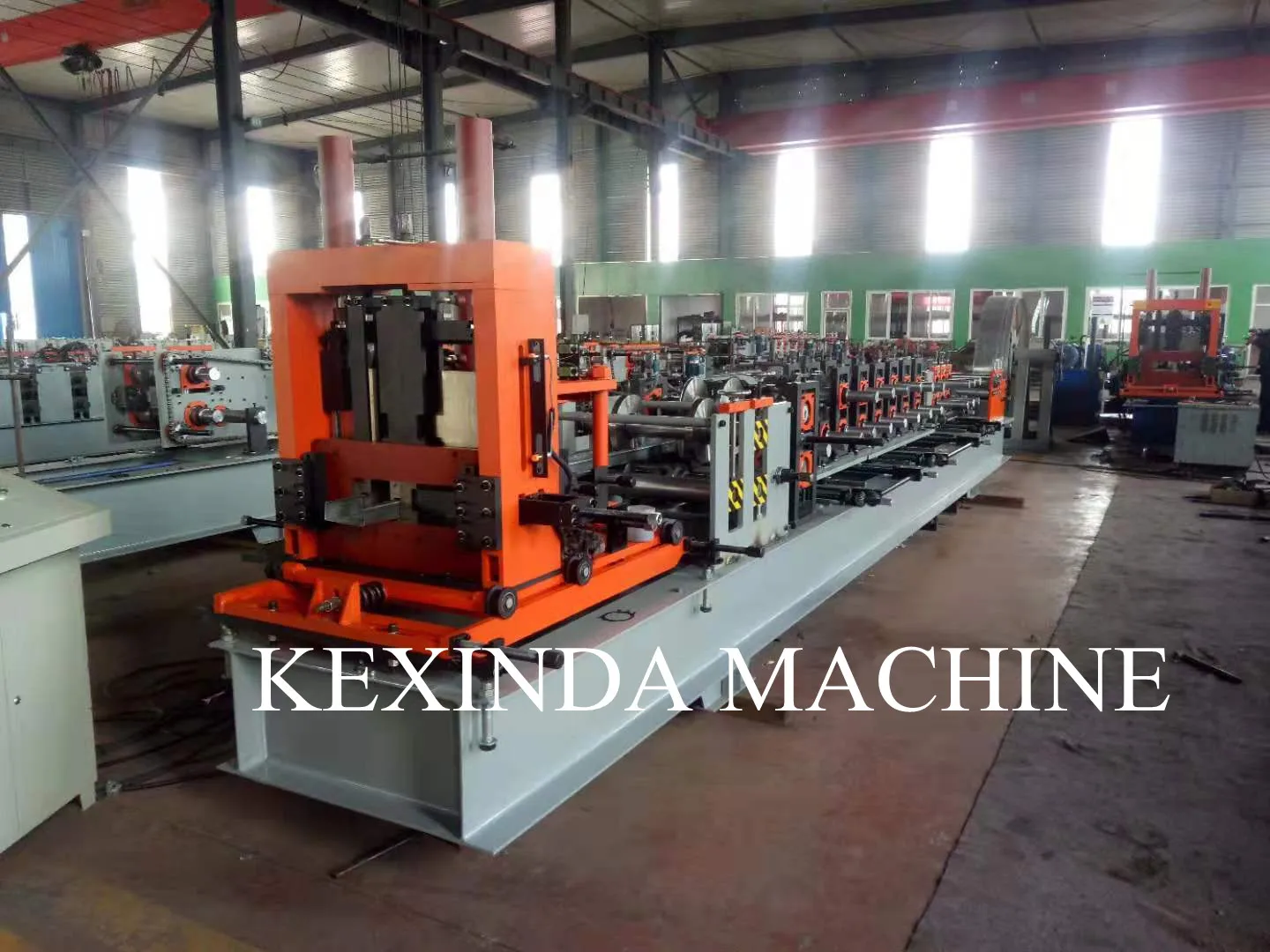

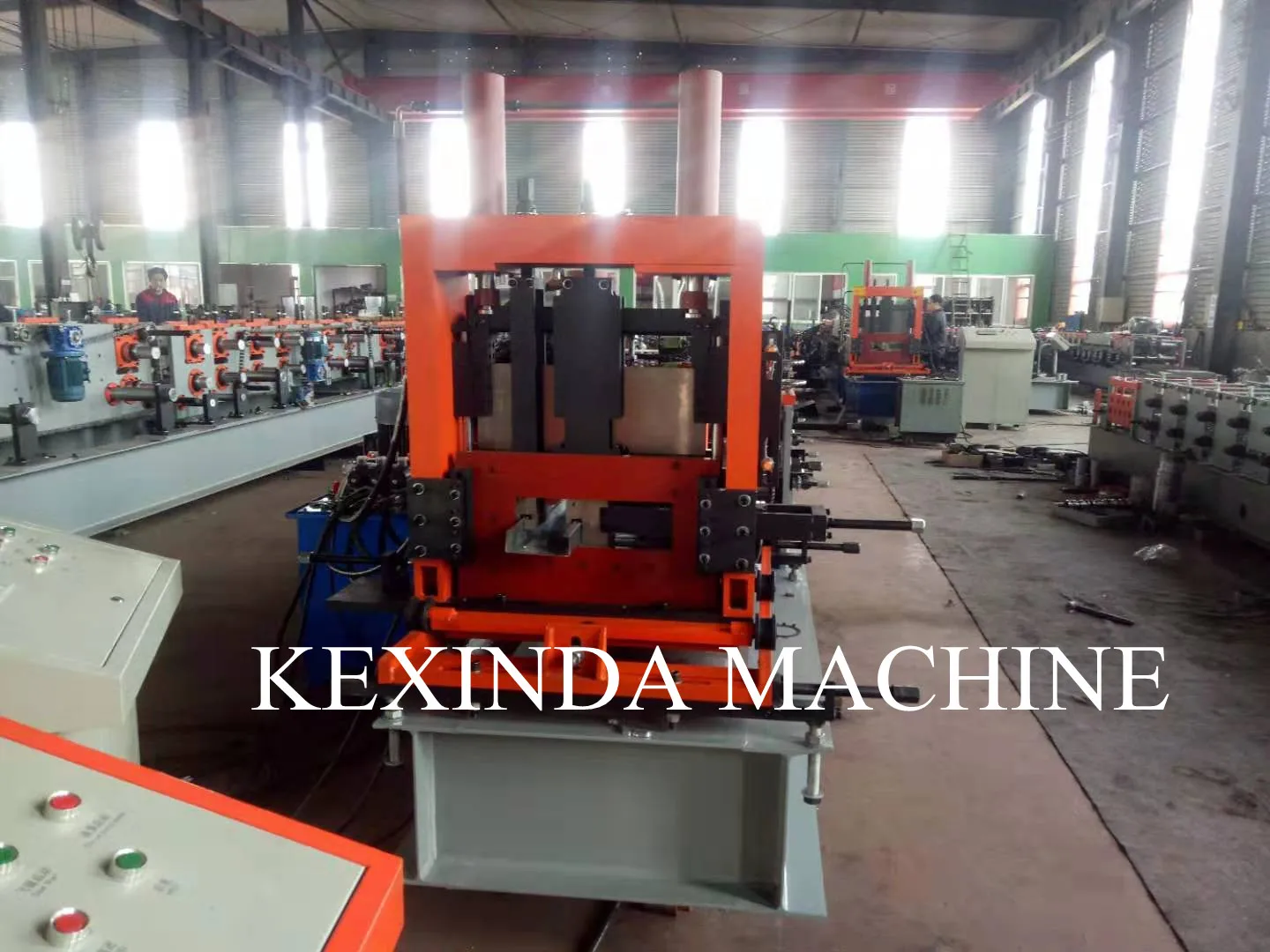

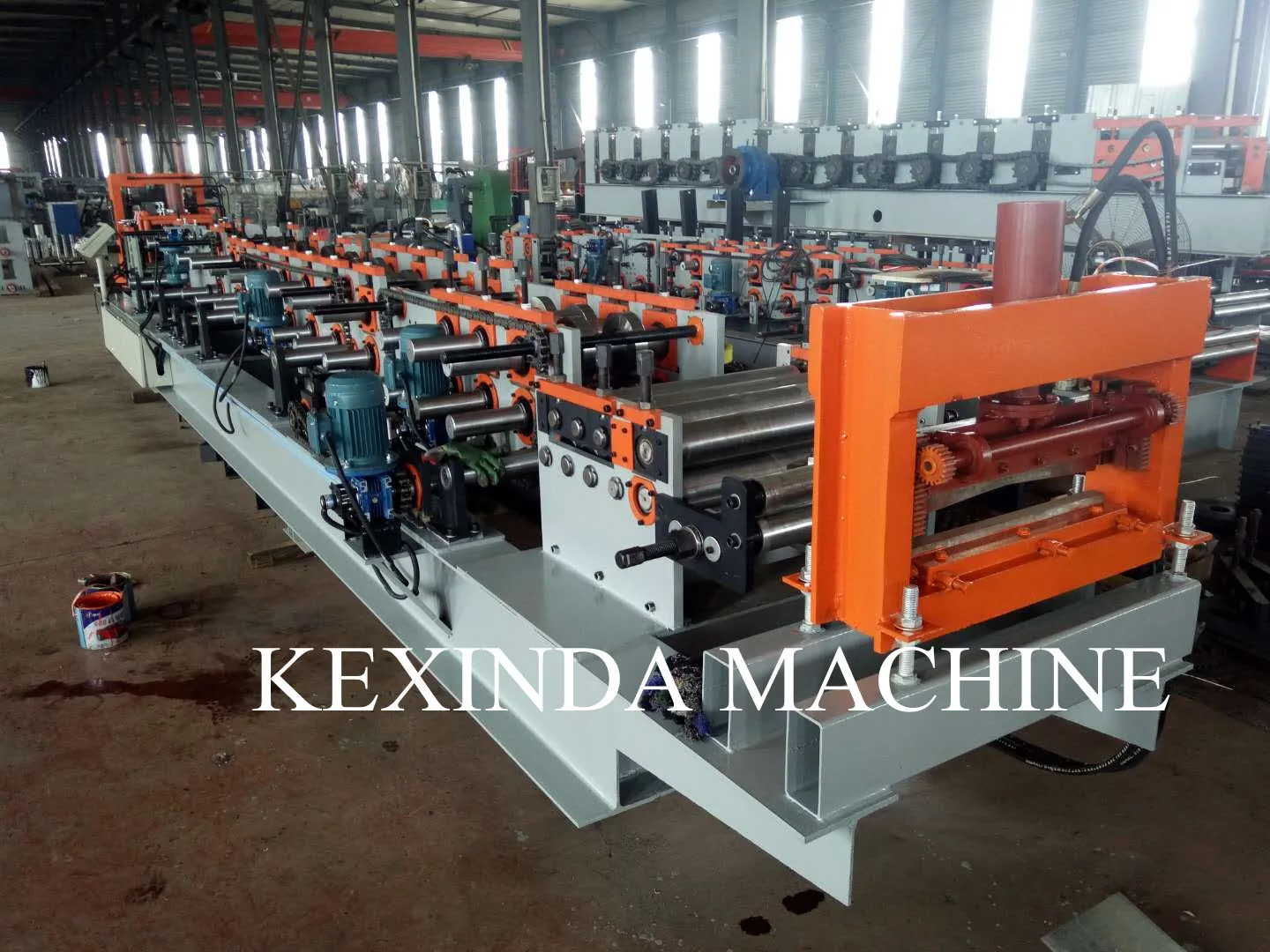

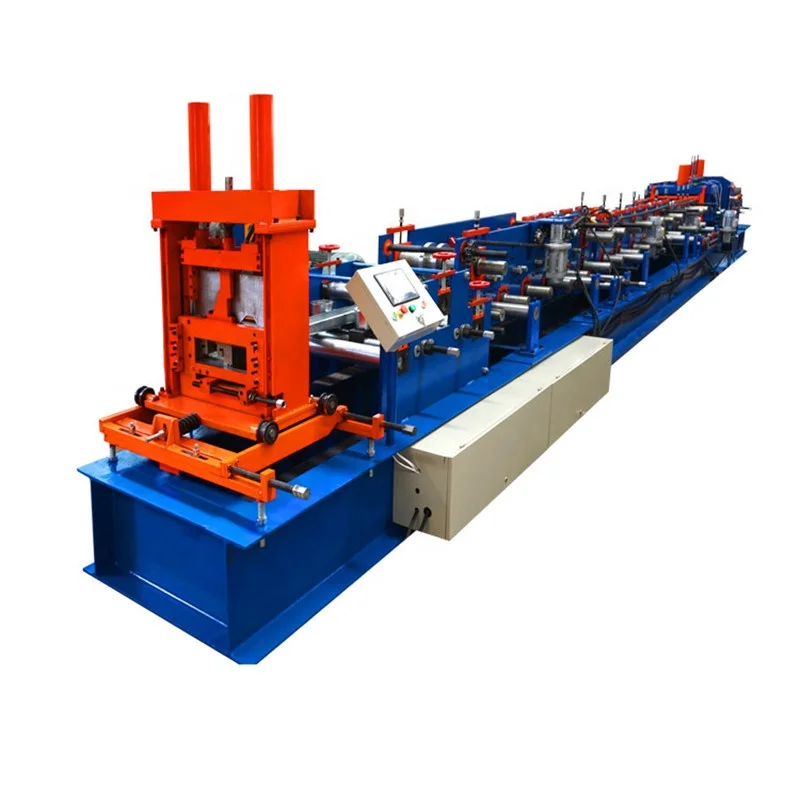

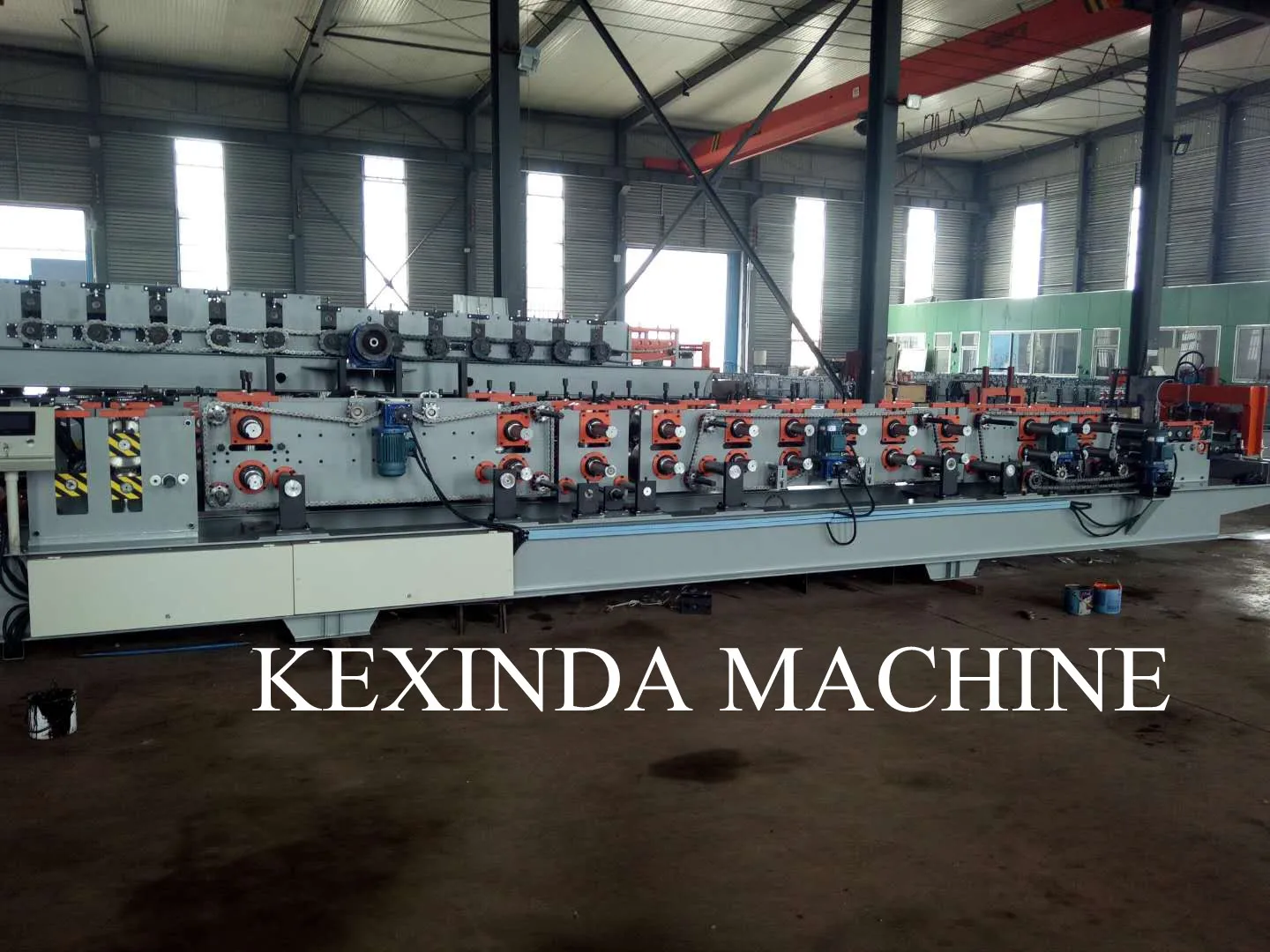

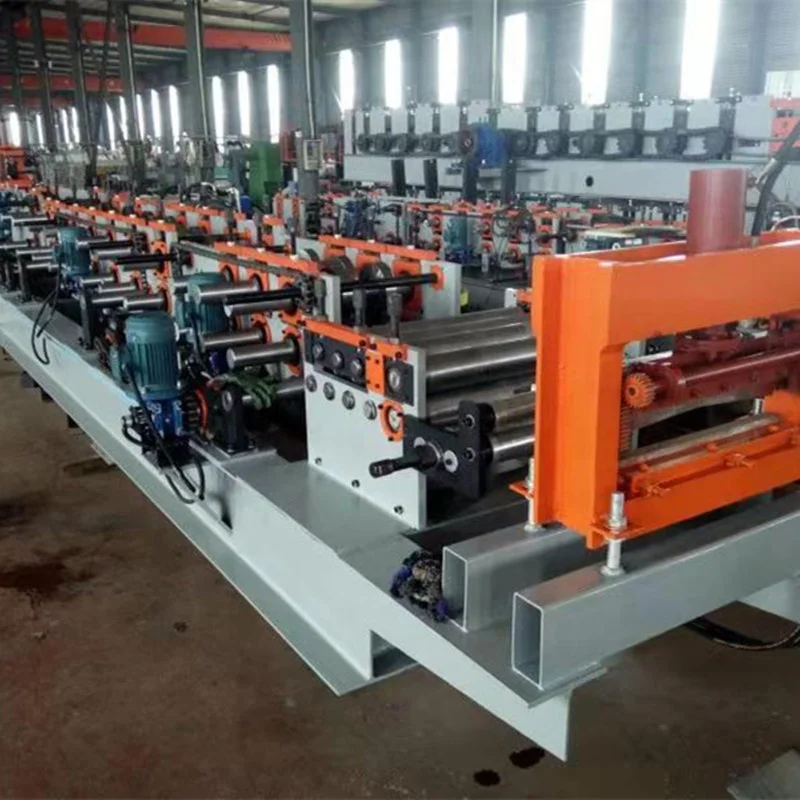

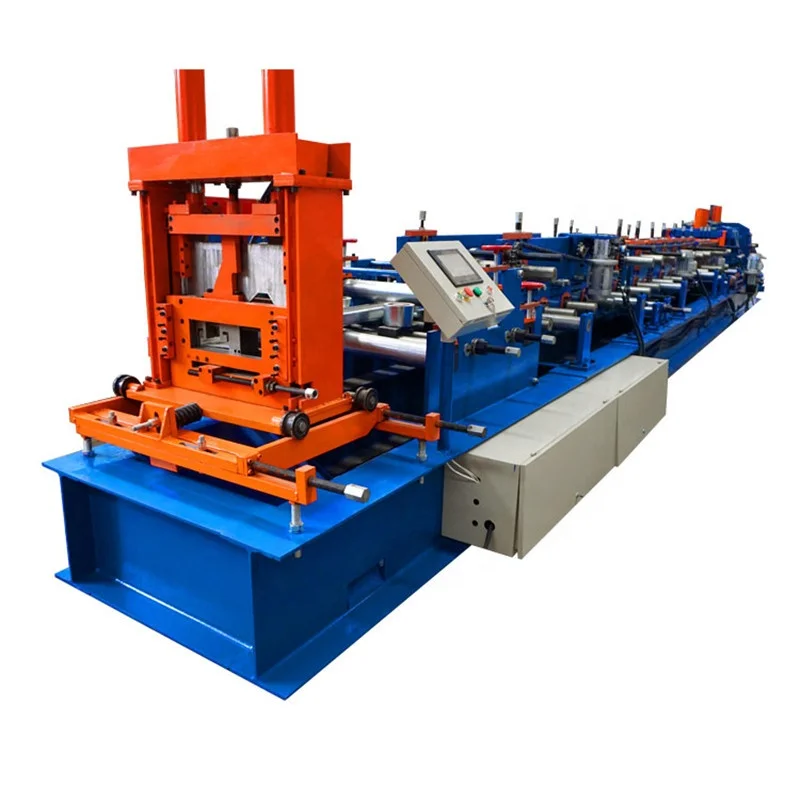

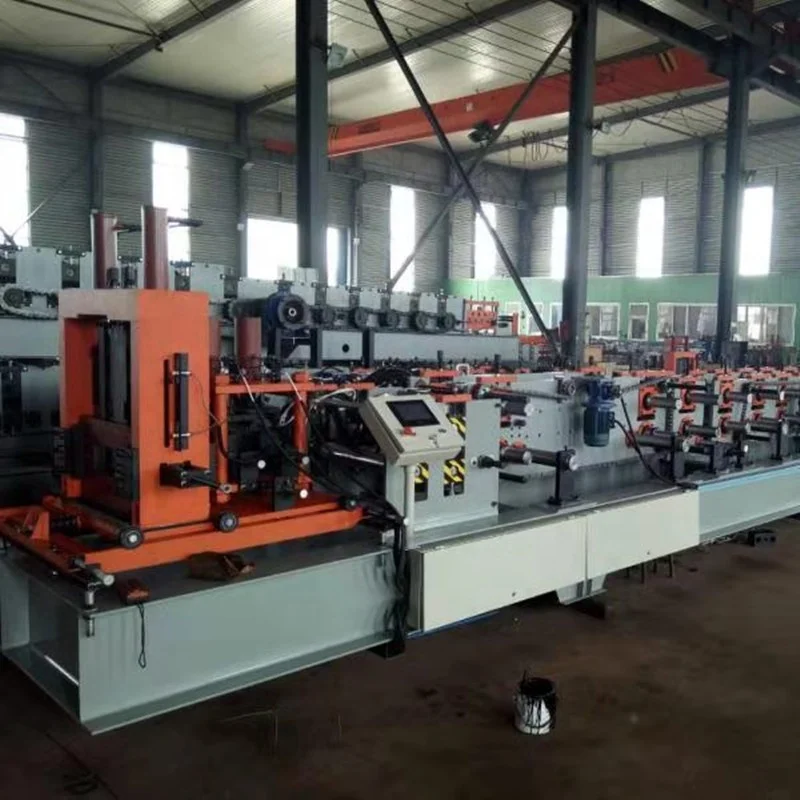

Product Overviews
Spare parts
Company Information
Hebei Kexinda Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day!
Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.
Our Services
♦ GUARANTEE:
12 MONTHS GUARANTEE. IF SOME PART OF THE MACHINE IS BROKEN.WE WILL SUPPLY THE BEST PART, BUT IF THE DAMAGED PARTS DUE TO OPERATE ERROR, BUYER WILL PAY FOR THE SHIPPING FEE.
♦ AFTER-SALE SERVICE:
WE SENT TECHNICIAN TO YOUR COUNTRY TO FIX THE MACHINE.THE BUYER SHOULD BEAR ALL THE COST INCLUDING:VISA,ROUNDTRIP TICKET AND SUITABLE ACCOMMODATION,ALSO BUYER SHOULD PAY THE SALARY 100USD/DAY.
