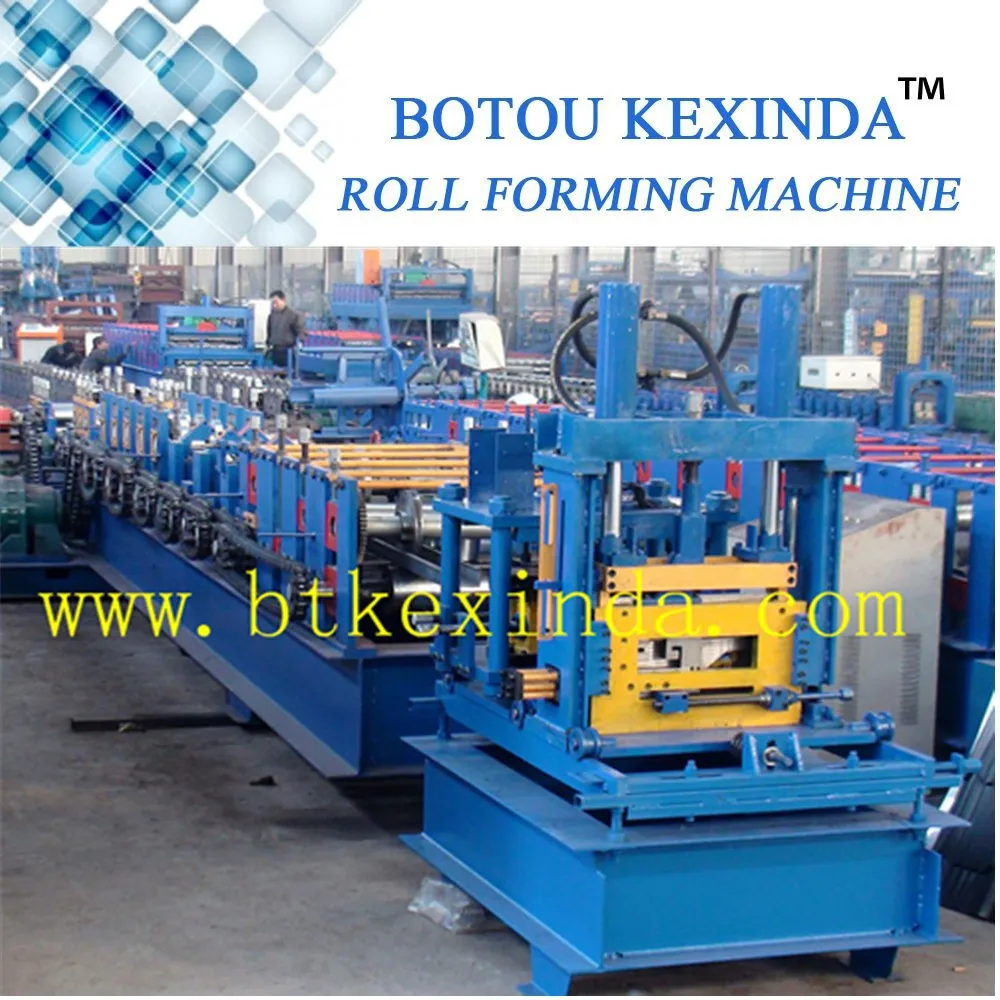

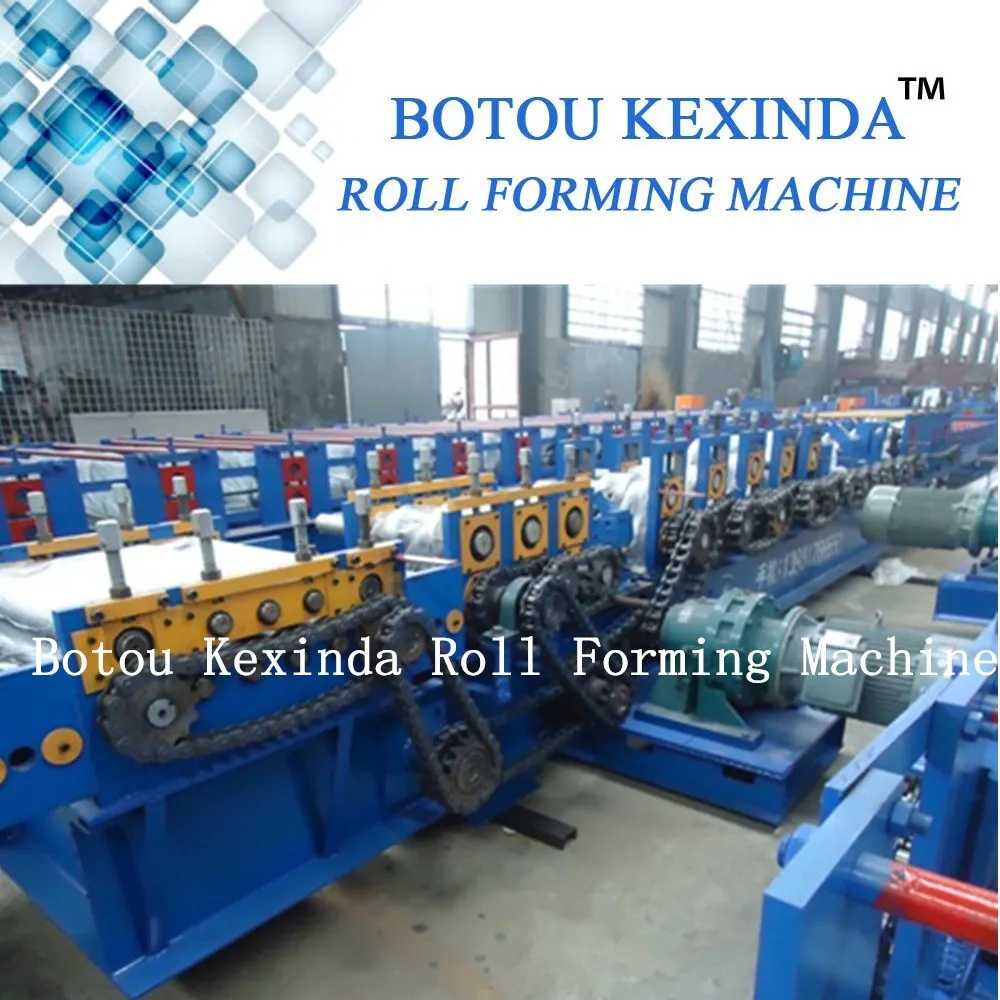

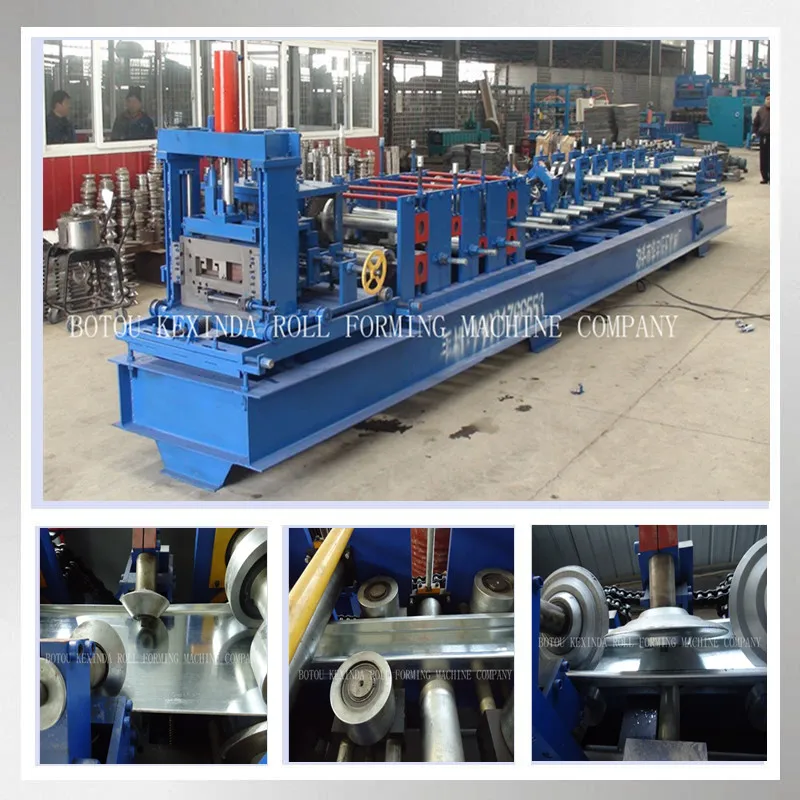

Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System
PLC Panasonic Inverter
Main Frame
350mm H-Beam
Main Power
18.5 kw
Pump Power
15kw
Power Supply
3-Phase,380V,50Hz
Forming Speed
12-14m/min
Hydraulic Pressure
18-20MPa

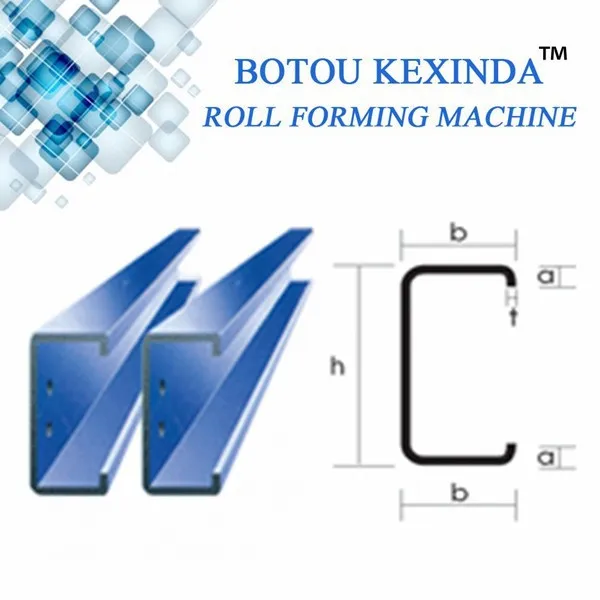

Forming Size
80-300mm
Feeding Thickness
1.5-3.2mm
Roller Station
12 Stands
Roller Diameter
80mm
Backboard Thickness
18mm
Chain Size
66mm
Cutter Standard
Cr12
Roller Standard
45#steel
Cr-Plating Size
0.05mm
Overall Size
9500×1400×1350mm
Total Weight
6T
All technical parameters can be changed,according to user s need.
Packaging & Shipping
Our Services
Guarantee:
12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.
After-sale service:
We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.
