14000lx KL5LM KL6LM LED coal mine safety cap lamp for mining miner headlamp

Product Overview

Description

14000lx KL5LM KL6LM LED coal mine safety cap lamp for mining miner headlamp

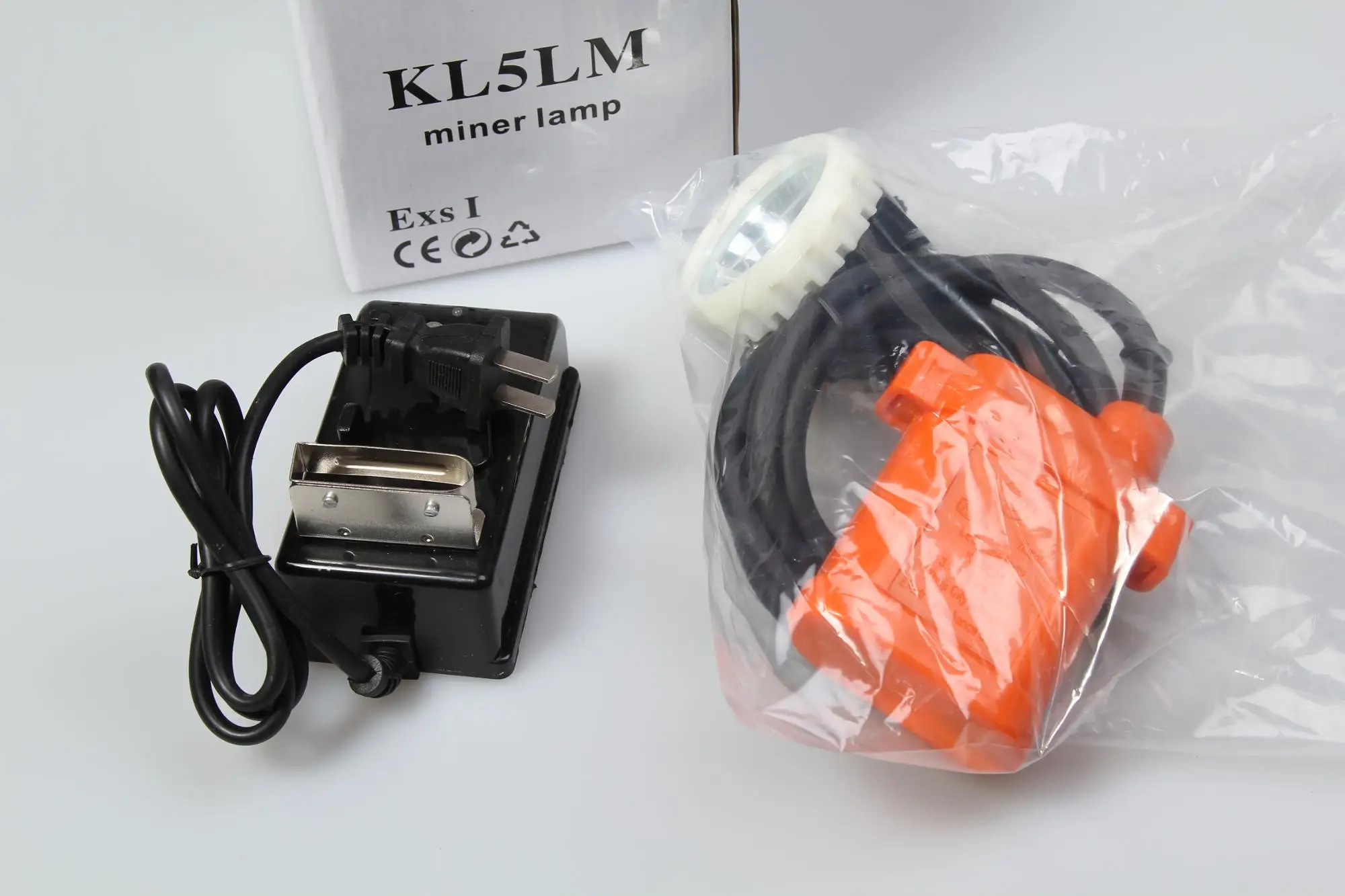

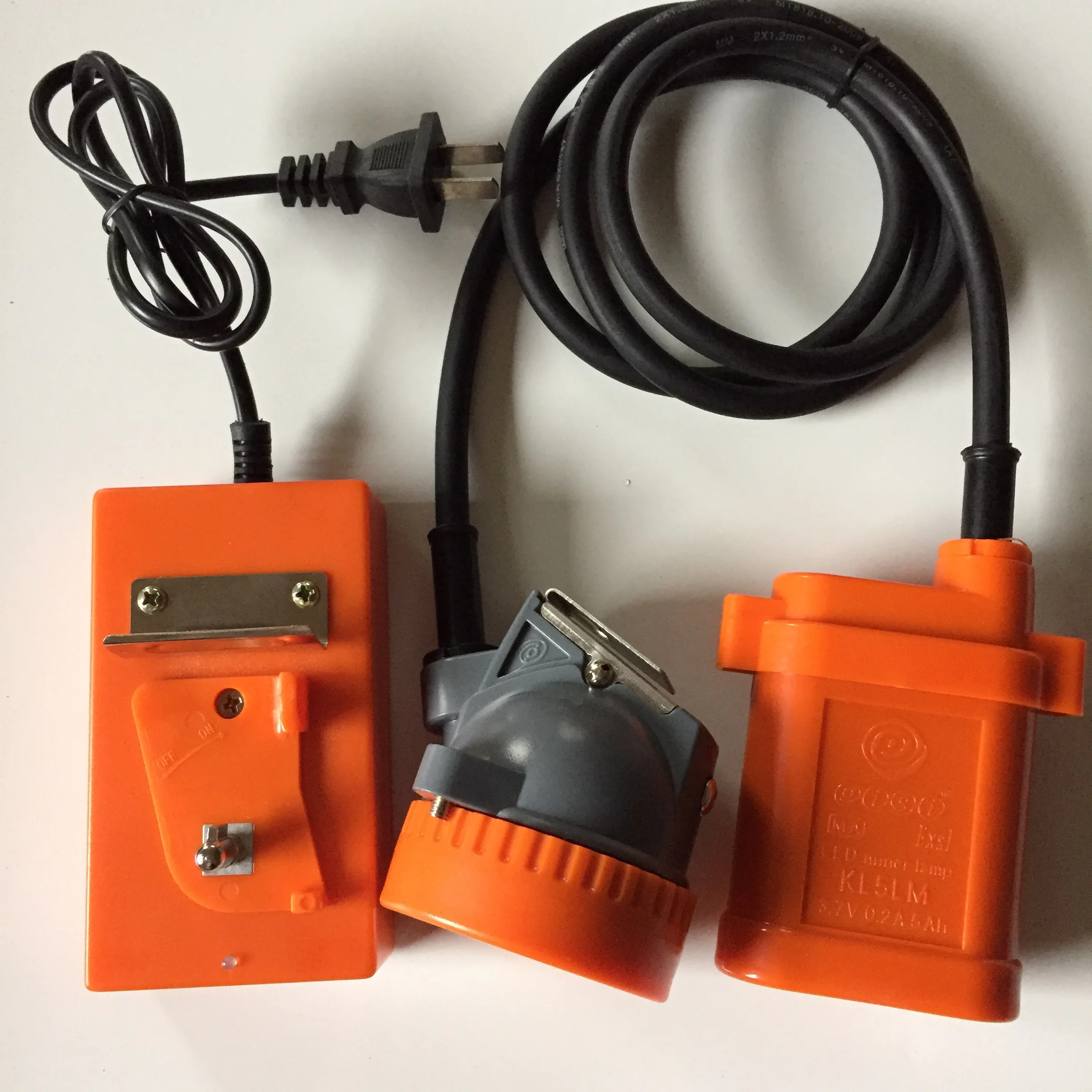

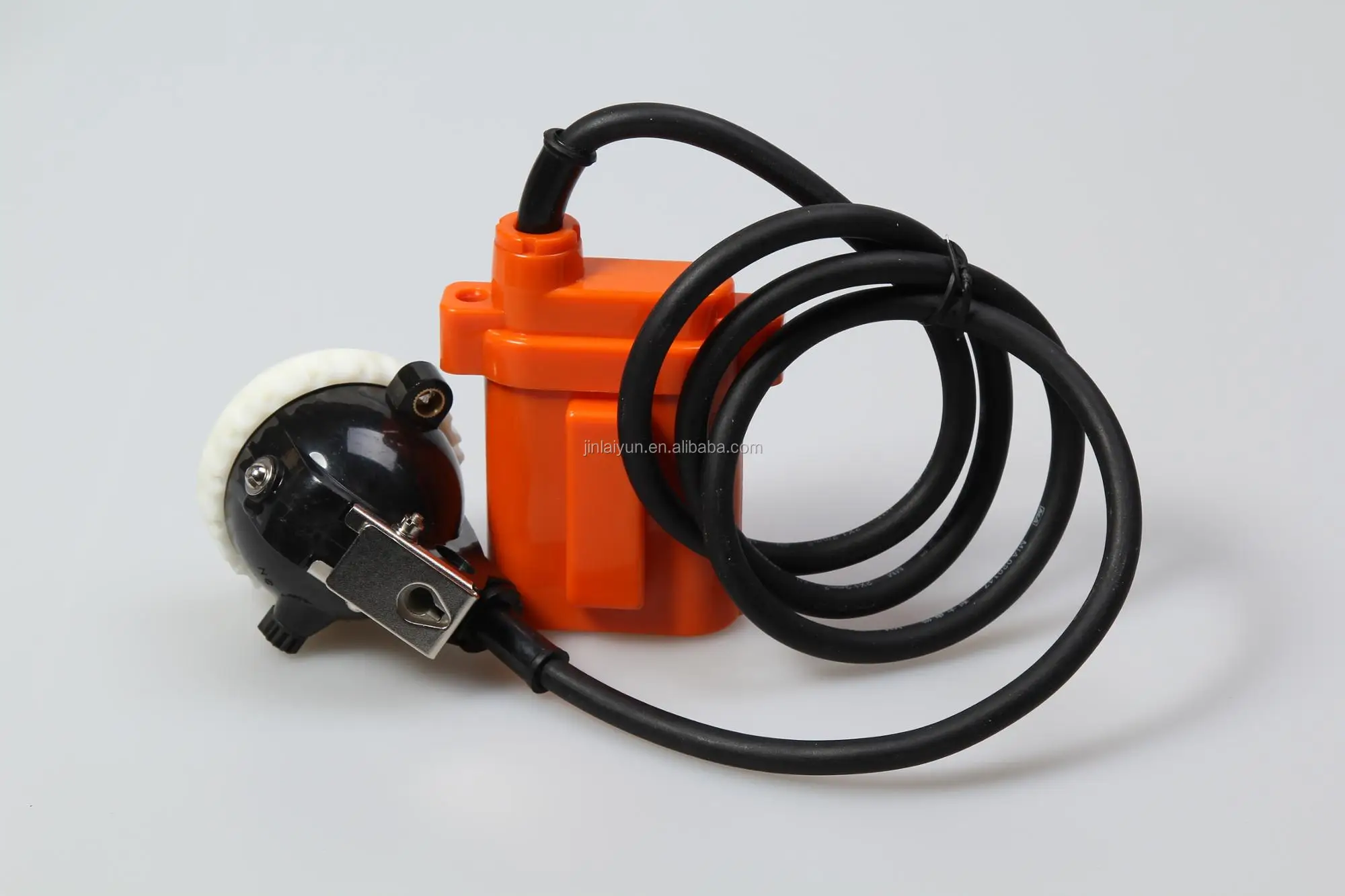

 this is common KL5LM.which u can buy directly.

rated voltage: 3.7V

rated capacity: 6Ah

lighting time: >22H (main illuminant)

illumination: >12000Lx (start of lighting)

LED current: 0.4A (main illuminant)

battery life: >800 cycle time

amperage of charge: 1000mA (average)

weight: <450G

Ambient Temperature: -15~40 °C

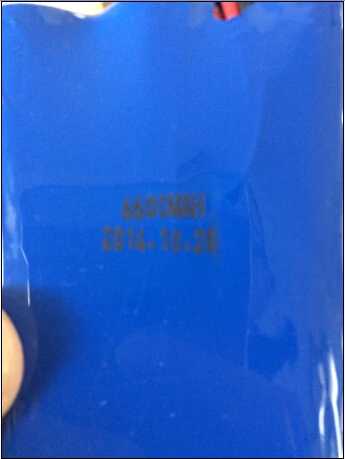

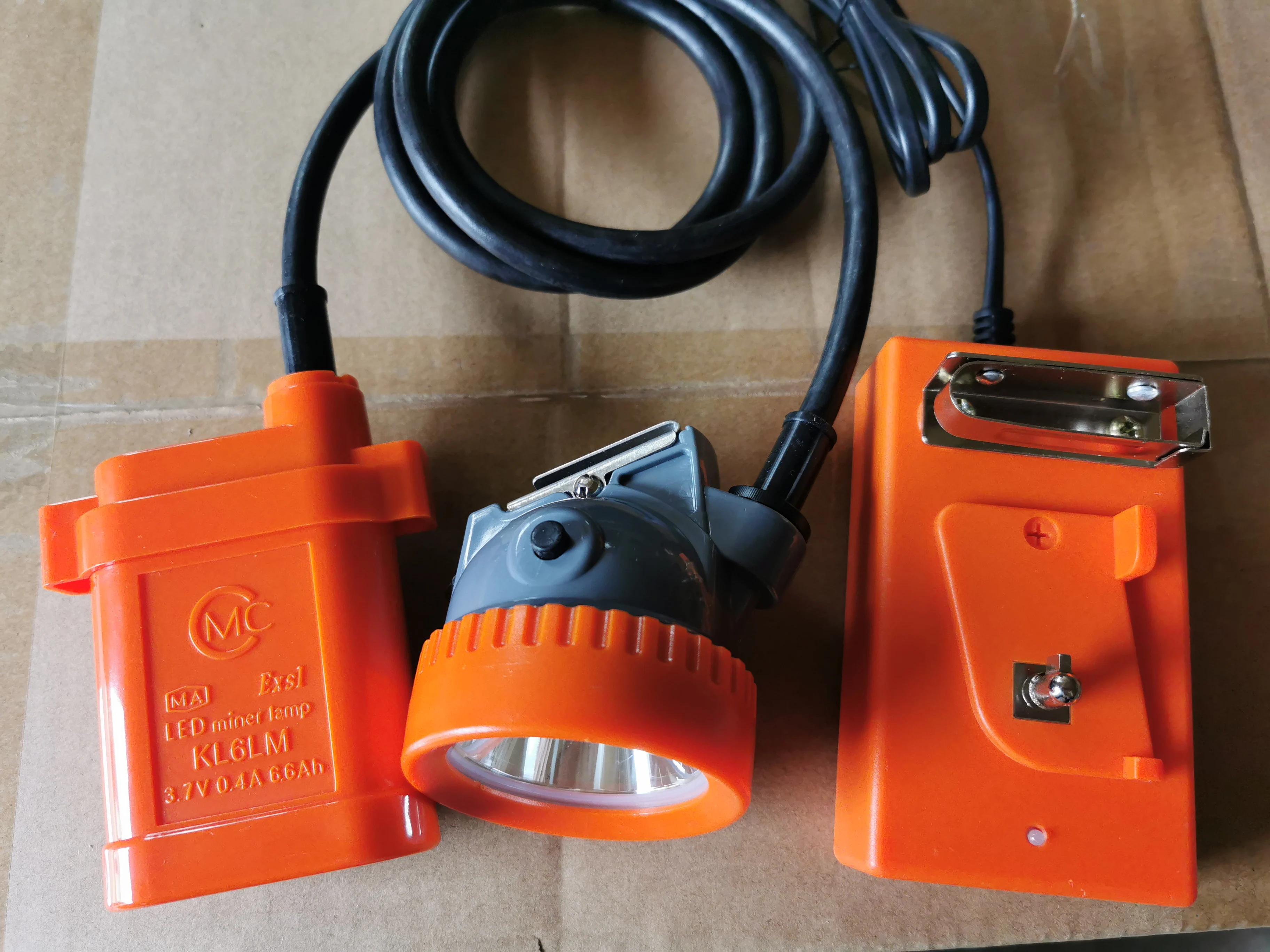

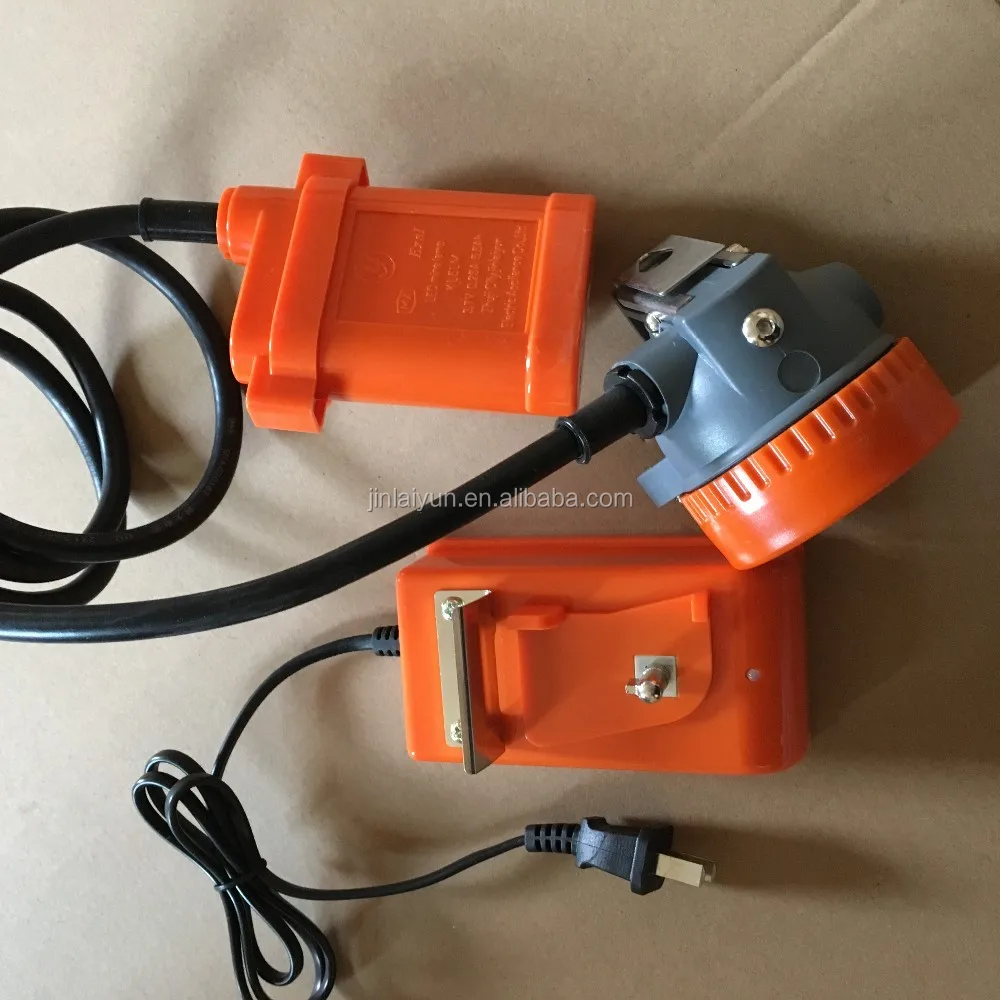

 this is 3W KL6LM.use Cree XPG bulb,6600mah or 7500mah li-ion battery.if u need it.please contact with us.

Technical Data for  KL6LM
No.	Item				Value	Unit	Note
1	Rated voltage				3.7	V
2	Rated Capacity				7.5	Ah
3	Lighting time		Principal		>22	hr
			Auxiliary		>30
4	illumination		Start of lighting		18000	Lx	1m
			lighting for 11hours		>14000
5	LED	luminous flux(Main illuminant)			220	Lm
		Current		Main illuminant	0.5	A
				Sub illuminant	0.2
		Voltage			3.7	V
6	BATERY	Capacity			7.5	AH
		Amperage of charge			1500	Ma	Intelligent charger
		Battery Life			1000	Cycle time
		Battery storage life			2	year



















































































 we produce the under mine headlamp
