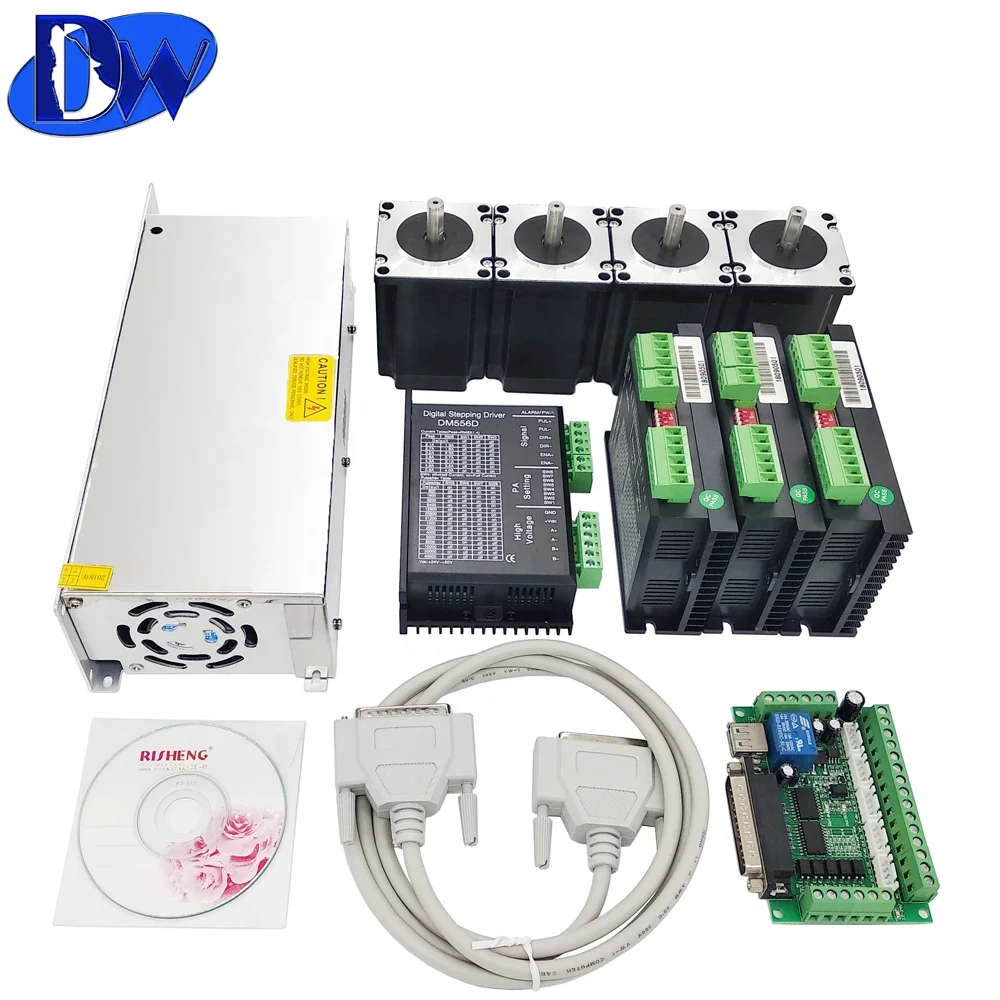

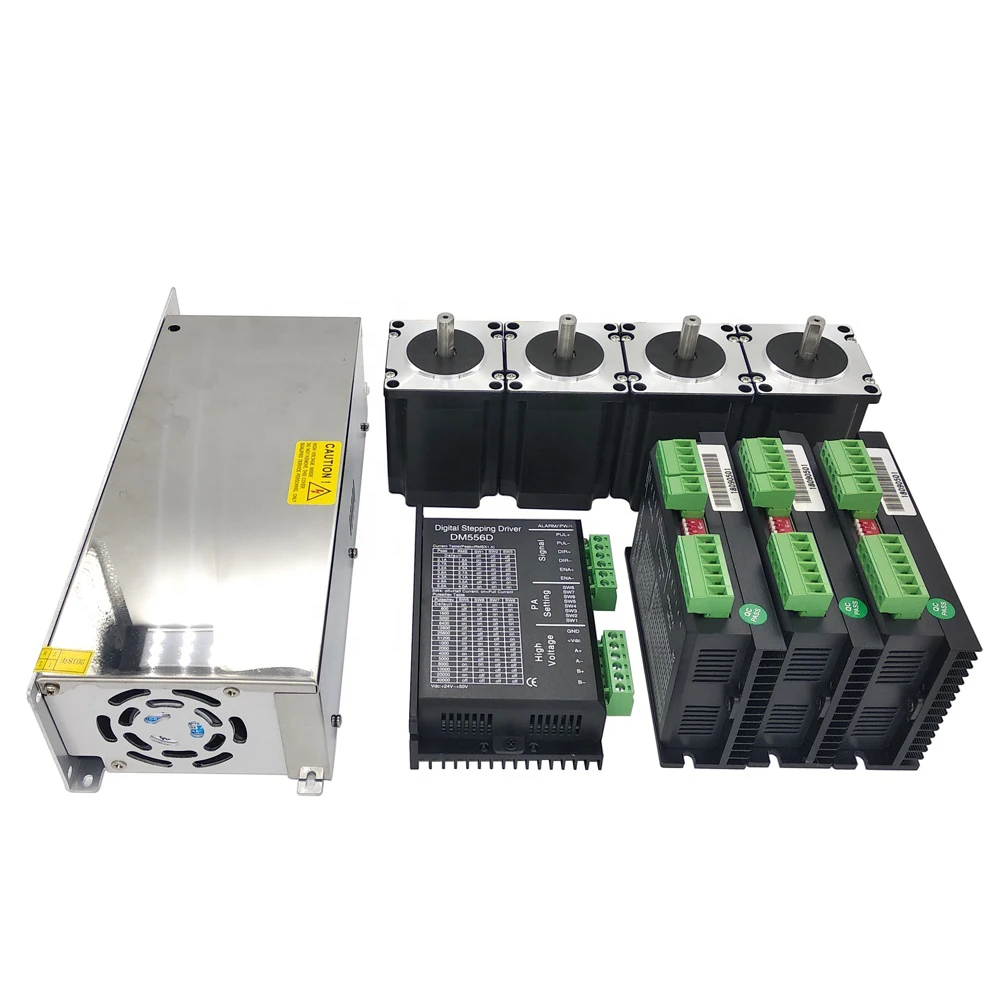

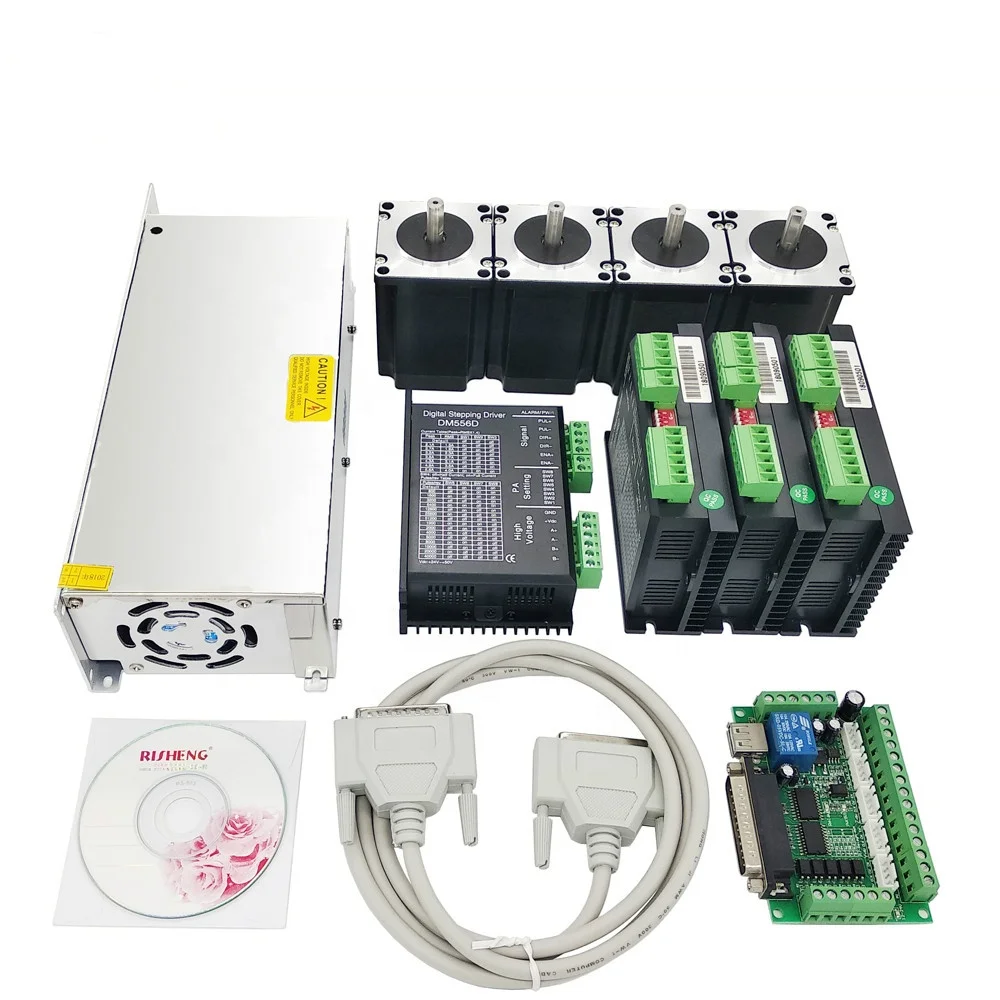

Nema 34 4 axis cnc stepper motor kit

Mach3 cnc Stepper Motor Controller operation instruction

Features:
1. full support for MACH3, KCAM4, EMC2, and support parallel
port to control the host computer software;
2.5 output signal ,can connect 5 stepper motor driver ;
3. 5 input port, Can connect to the limit switch, emergency stop, or
other Input devices ,5 input signal indication LED;
4.One relay, it can be used to control spindle start and stop,1 signal
indication LED beside relay;
5. power supply have 2 choice, USB power form computer or an
external 5V power supply;
6.pulse and direction signal shaping,enhanced, data transfer speeds
7. have 2 kinds connector ,the 4PIN XH connector can connect driver
convenient and efficient .

Detail:

Note: power port 1 and power port 2,Can only choose one, cannot be
used at the same time!

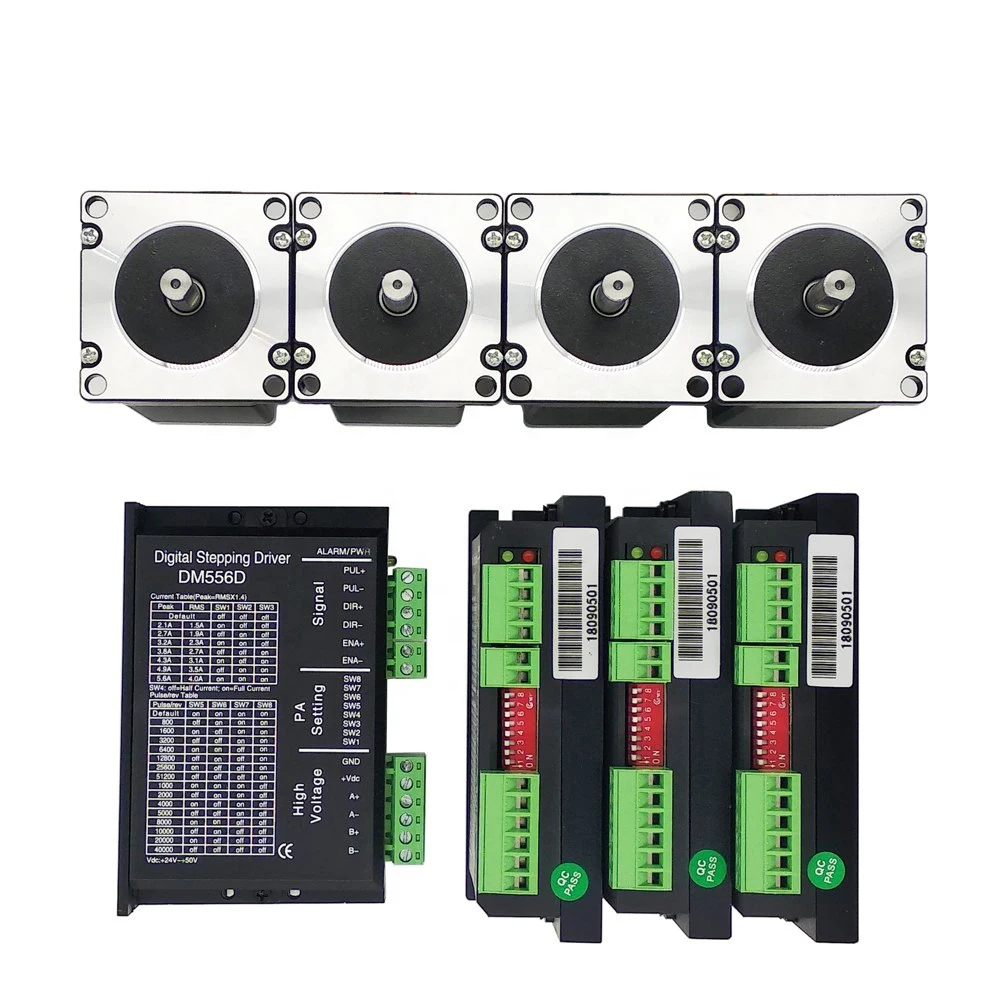

Stepper motor: DW86HS118-6004

Parameter List:
