XD-168 Kamege Double Wheeled Belt Edge Leather Grinding Machine
US $955.00-$1100

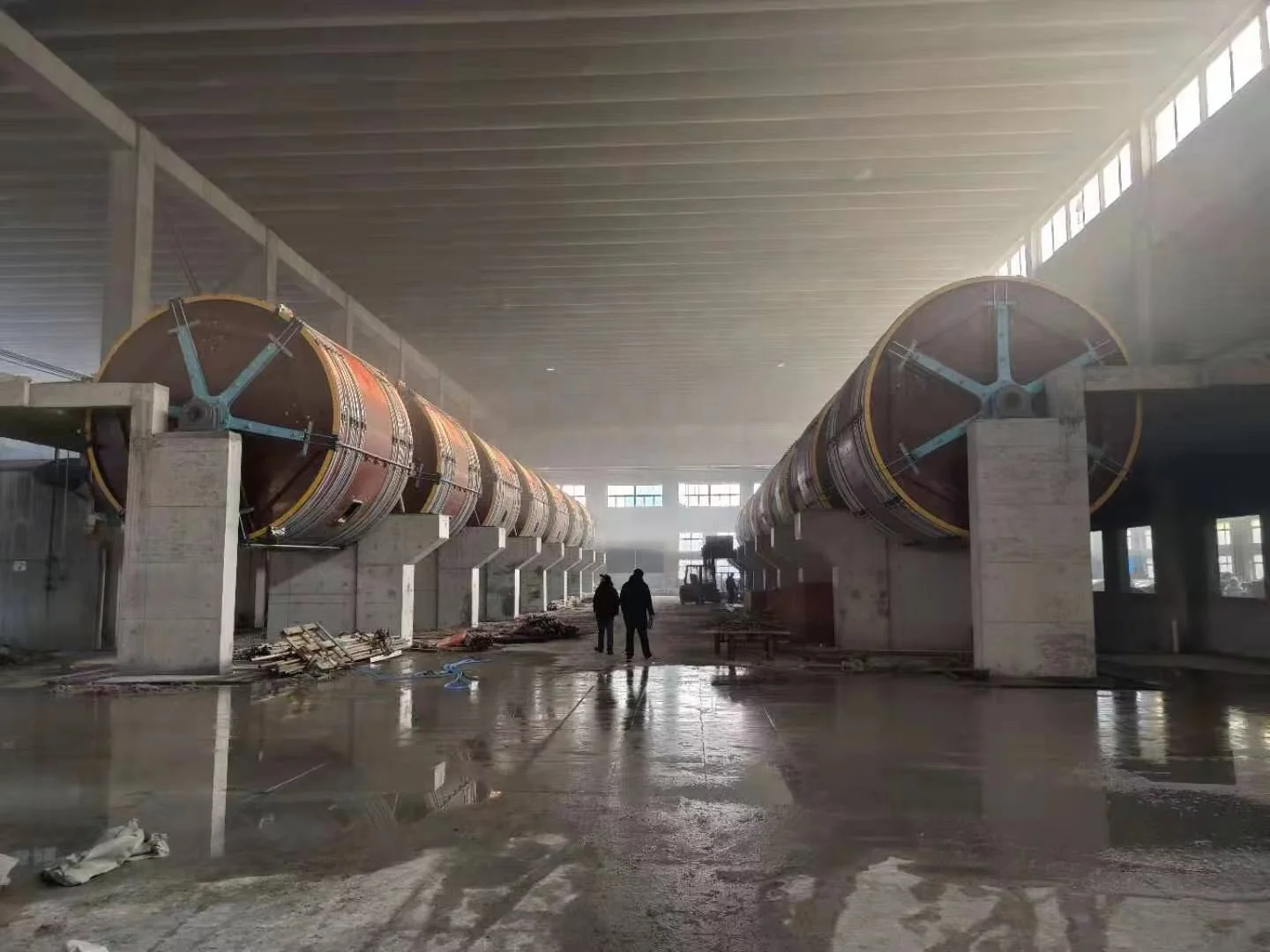

tannery drum/leather machine/leather processing machine
- Category: Leather Production Machinery >>>
- Supplier: Yancheng Shibiao Machinery Manufacturing Co. Ltd.
Share on (60275574828):
Product Overview
Description
Product Description
Φ2000X2000mm wooden drum configuration form
The Specification(mm) | Φ2000x2000 wooden normal drum | |
Drum body | Wood Material | Imported Ekki from Africa |
Plate thickness(plank) | 70mm,1400kg/m3 | |
Wood Guarantee | 15 years | |
Drum’s door | Material and style of the door | 316L Stainless steel horizontal sliding door |
Dimension of the door | Size of the door: 500x500 | |
Gearwheel | Φ1800,M12, standard cast-steel, integrated casting with main spindle Guarantee for all use life except normal abrasion | |
Spider/star | Φ1000,standard cast-steel, integrated casting with main spindle Guarantee for all use life except normal abrasion | |
Speed of the revolving drum | About 12rpm,single speed, (made as request) Customer need confirm drum speed | |
Motor | 5.5kw , provide hydraulic coupling Customer need confirm voltage and frequency | |
Gear box | Hard-surface gear,140 style Specially used in drum ,and provide pneumatic brake Customer need confirm gear box direction, it means the gear box is on left or right side when person faces drum standing on the floor. | |
Small gear of the gear box | Wear-resistant steel gear | |
Main spindle and the bearing | Main spindle zg45#,provide 22224 self-aligning bearing | |
Outside drum | HoopsΦ20x6 with hot galvanization, made of 45# steel material | |
Inside Drum peg | Wooden drum peg Φ67xL(total)260, 9 steps,3/2 crisscross | |
Electrical control cabinet | Every drum has a cabinet with functions of forward and reverse starting, crawl, controlling total working time, reduced voltage starting and brake lag. | |
Packaging & Shipping
Our Services
1. )Warranty:
Engineers available to serive All of our leather wooden drums overseas.
During the guaranteed period, any of the parts could be replaced upon receipt of your photos for proof.
1. The wooden frame 15 years
2. grear reducer:5 years
3. gearwheel/spider:all use life except normal abrasion
4. The whole machine:1 year except normail abrasion
5. 24 hours online service, 24 hours on call
6. LC available, MOQ 1 PC.
7. Help you supervise all the manufacture step, and take photos for you.
8. Delivery fast and on time.
9.Supply some parts for free.
10.All of ourleather wooden drums reaches international standard, we get the certificate like SGS, etc.
11.Competitive price, the more drums you order, the better price we will afford.
Company Information
Our company provides GJOB1-2 series impendent iron, wooden drums, GJOF series full-automatic stainless steel cylinder, octagonal milling drums, HC series paddles, and many other leather machinery products all the year round. Our Products are sold well in Zhejiang, Shandong, Guangdong, Fujian, Henan, Hebei, Sichuan, Xinjiang, Liaoning, and other areas. They are popular with many leather factories all over the country. Our products have been successively passed provincial tests and the test conducted by National Leather & Shoe Machinery Quality Testing and Supervision Center. They were awarded the Silver Prize on China High- and New- Technology & New- Products Exhibition in year of 2005. Our product parts, steel-cored nylon-plastic drum posts, have obtained national patent right. At the same time, our company provides many services including design of leather machinery with special specifications, repair and adjustment of equipment, and technical reform. We have established complete testing system and reliable after-sale services.
