Quality Stainless Steel Bag Filter Housing For Beer Filtration Equipment
Product Description

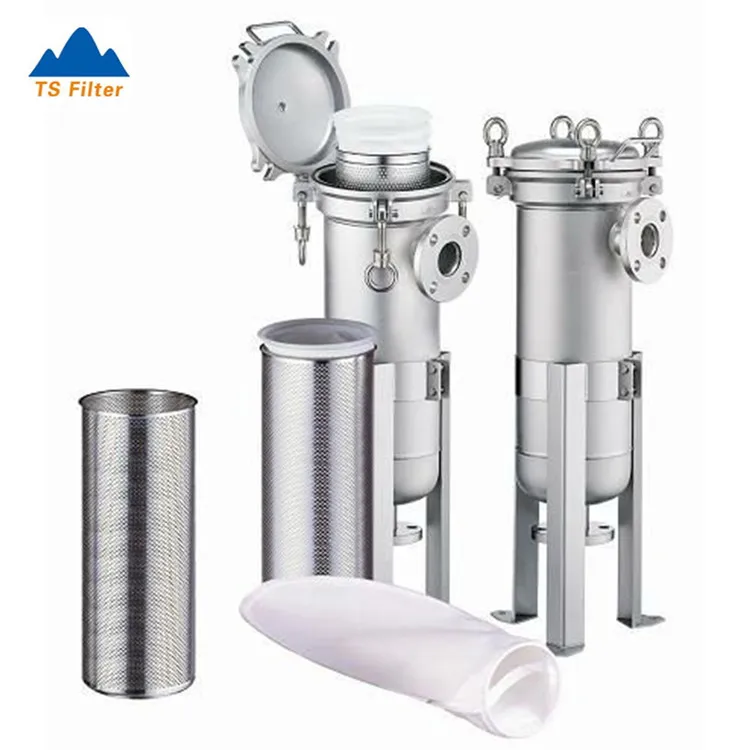

Bag filters are particularly useful for filtering large volumes or high viscosity liquids, which are constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement.
Features & Benefits:
High flow rates
Complete stainless steel 304,316L structure
High temperature & High pressure design are available
Wide range of bag size for choice
Easy to clean
Bag Size:
Item
Flow rate(m3/h)
Filtration area(m2)
Diameter(mm) X Length(mm)
#1
20
0.25
180(7") X 410(16")
#2
40
0.50
180(7") X 810(32")
#3
6
0.10
102(4") X 210(8.25")
#4
12
0.15
102(4") X 356(14")
#5
25
0.30
175(6,7/8") X 870(34")
*Size could be on your request

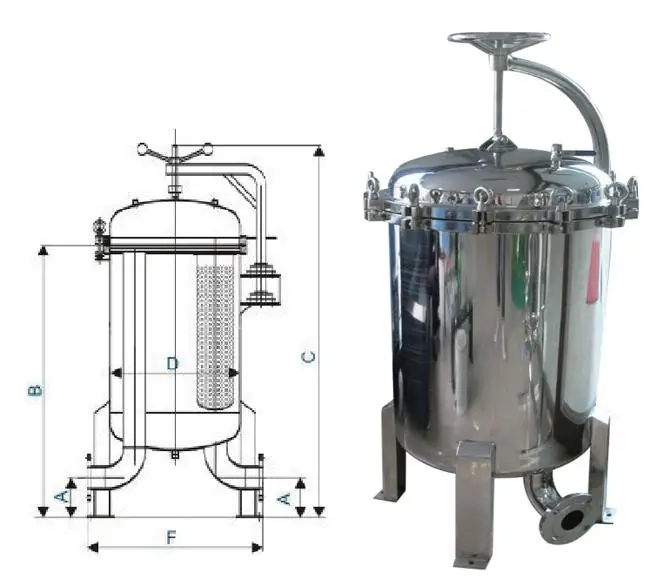

Specifications:
Type
Model
Dimension(mm)
Connection
Bag
Flow rate(m3/h)
Diameter
Height
Size
Q'ty(pc)
Single Bag Filters
BJD1
220
550
2''Tri-Clamp, Flange, NPT, DIN, etc
#1
One
20
BJD2
220
950
#2
40
BJD3
130
650
#3
6
Muti-Bag Filters
BJD2-2
400
1550
3'', 4", 5" Tri-Clamp, Flange, NPT, DIN, etc
#2
Two
80
BJD2-3
500
1550
#2
Three
120
BJD2-4
550
1550
#2
Four
160
BJD2-5
600
1550
#2
Five
200
Operating Conditions(Bag Filter):
Max.Operating Pressure: 6 bar(87psi)
Max.Operating Temperature: 120°C
Applications:
Processing Chemicals
Paints,Inks,Coolants
Oils,Edible Oils, Vegetable Oils
Pharmaceuticals
Sugar Syrup
Cleaning Fluids
