Product Overview
Description
Product Overview

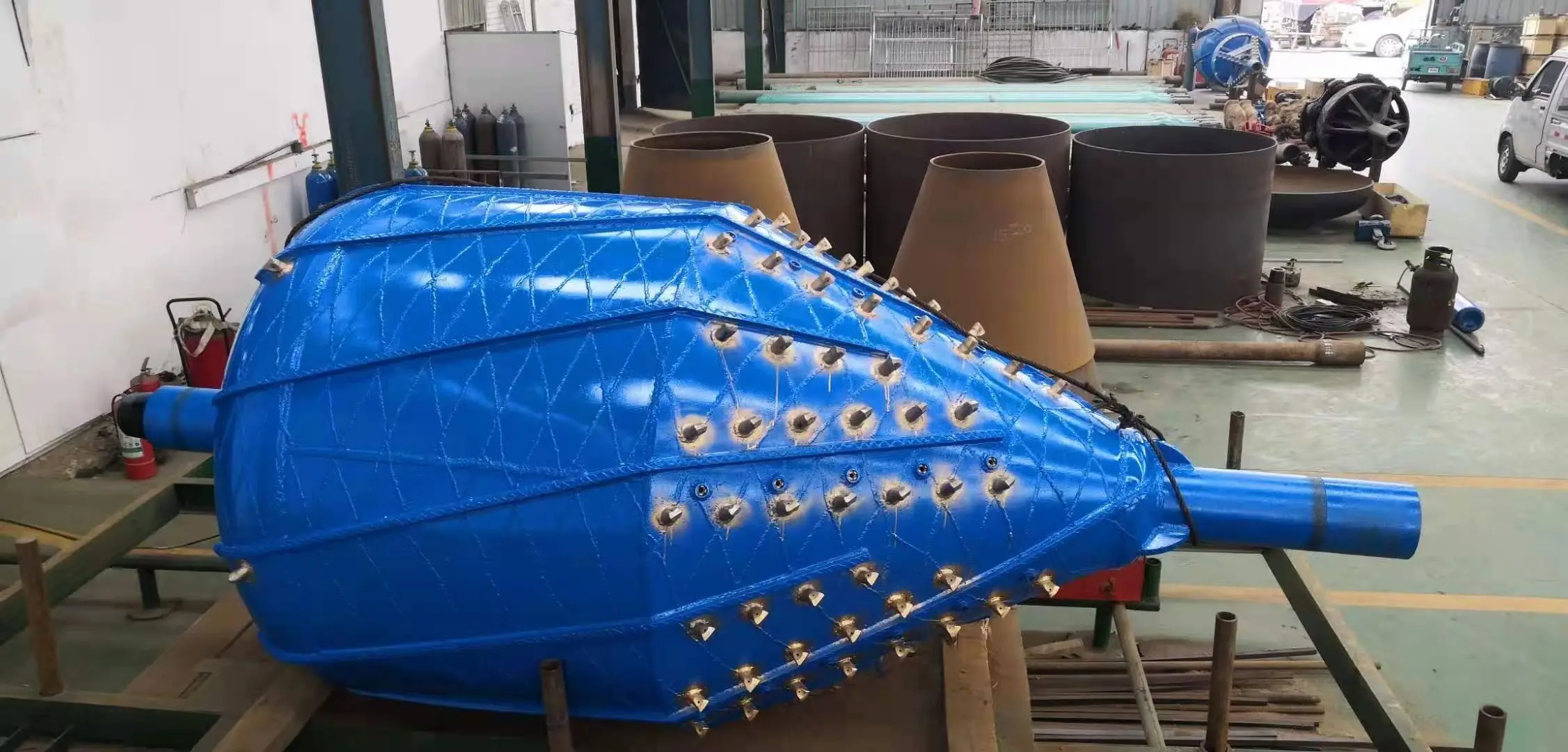

customize Horizontal Roller Cone Hole Openers Back Reamers
Reamer bits(Hole openers)
Our Tungsten carbide insert teeth (TCI ) Steel tooth cone reamers are promptly manufactured, we also custom manufacture reamers according to customers’ special request.
The Custom manufactured reamers’ OD are between 220mm to 1600mm. According to the features of drilling machine and different methane condition.
Our Tungsten carbide insert teeth (TCI ) Steel tooth cone reamers are promptly manufactured, we also custom manufacture reamers according to customers’ special request.
The Custom manufactured reamers’ OD are between 220mm to 1600mm. According to the features of drilling machine and different methane condition.
We adopt more suitable tooth type, bearing structure, sealing type and angle of inclination of paws.water cutting, good sand returning can effectively reduce sand gathering, cones are made of hot-coating-anti-waring alloy reducing wearing. Unique anti-falling design of cones prevent the accident caused by falling cones which is leaded by bearing damage.

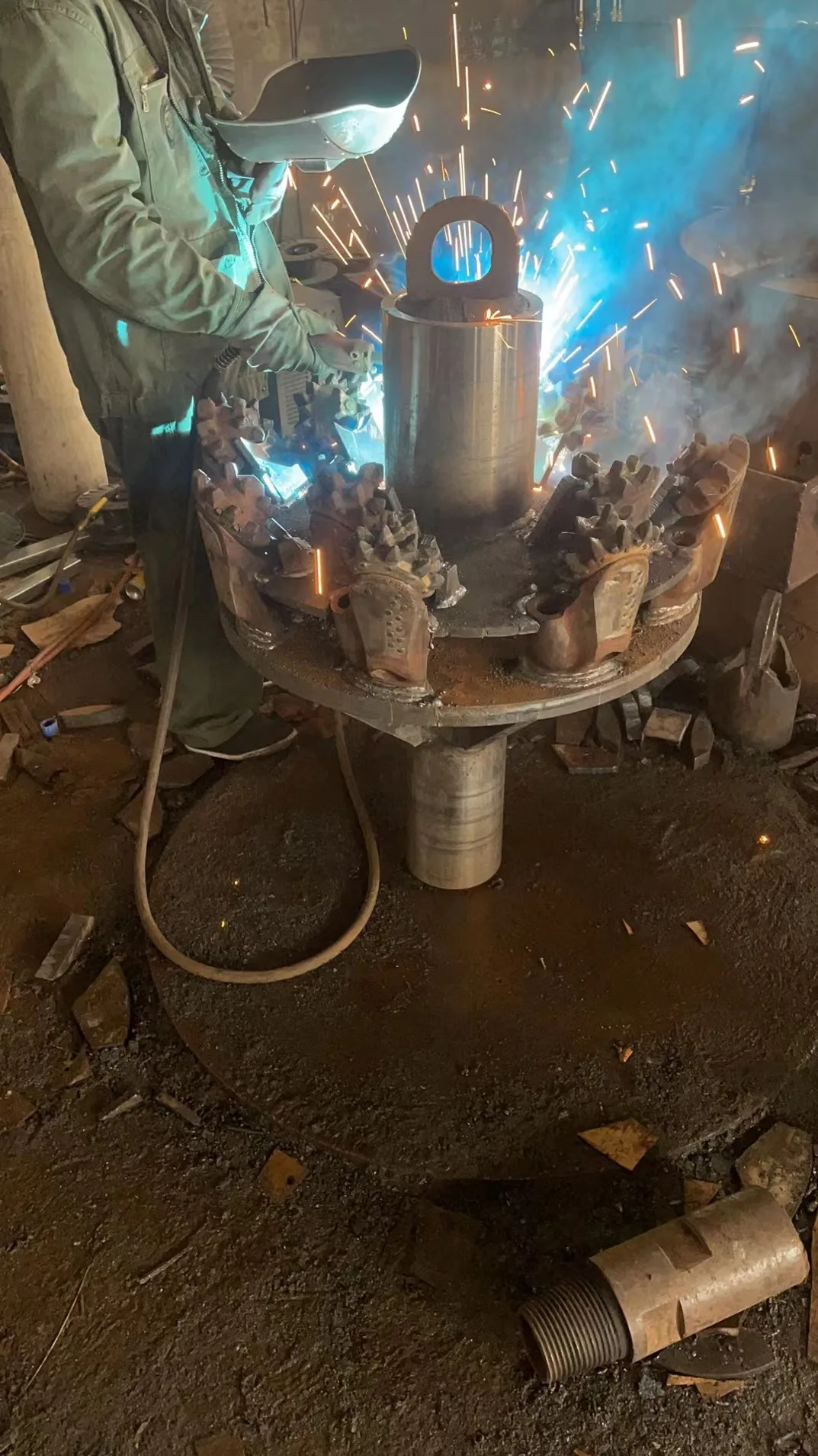

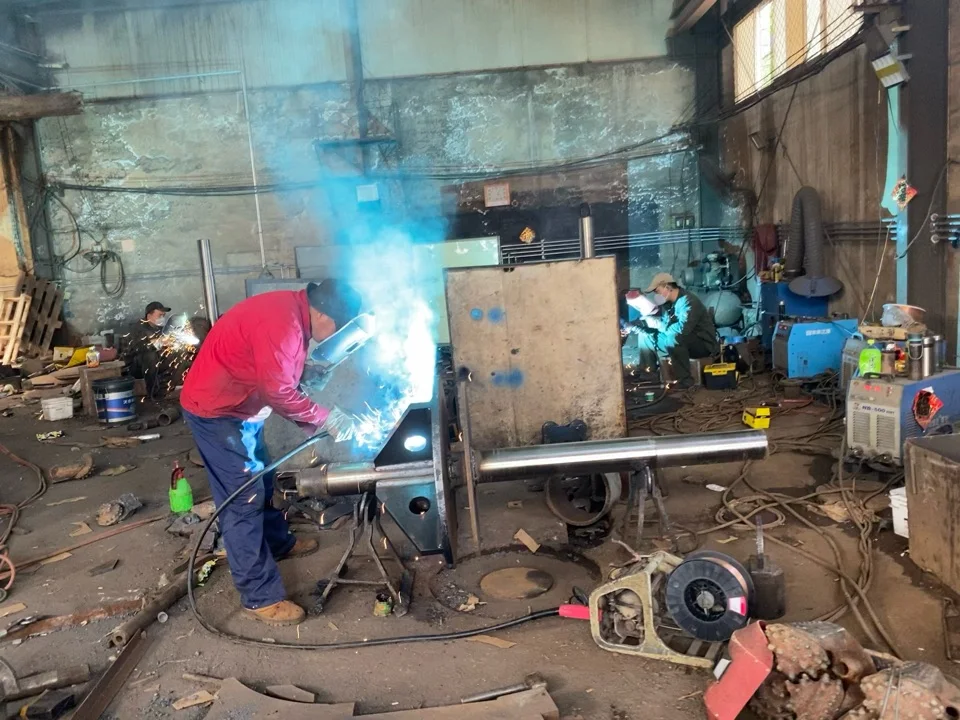

Perfect welding process prevents the damage to sealing and bearing system because of over beat. The bit body adopts spiral design with good stabilizing and sand returning performance to improve hole opening speed reducing repeating rock breaking of cones.
This type of tooth mainly applied in the methane whose hardness in under 100 MPA-140MP.
This type of tooth mainly applied in the methane whose hardness in under 100 MPA-140MP.

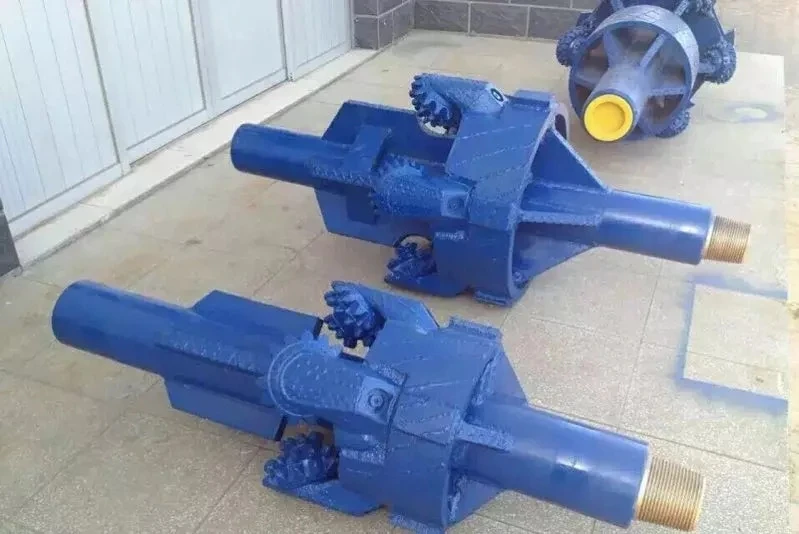

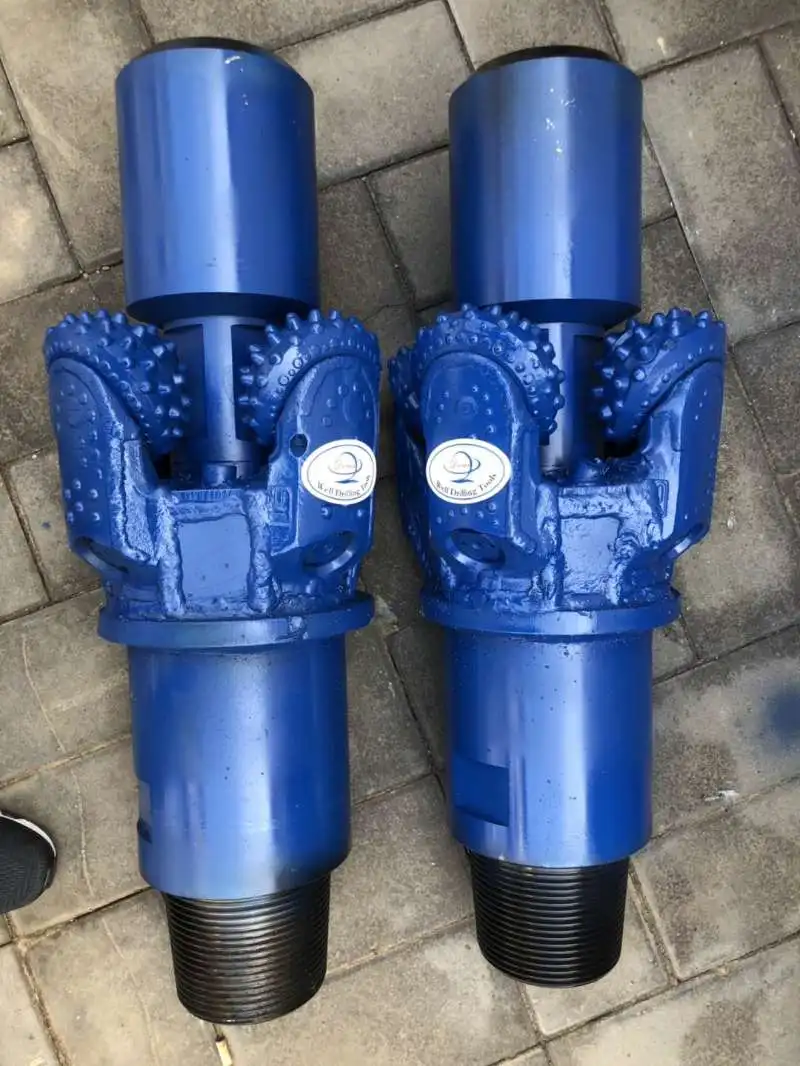

Steel tooth roller cones reamer bit for soft formation

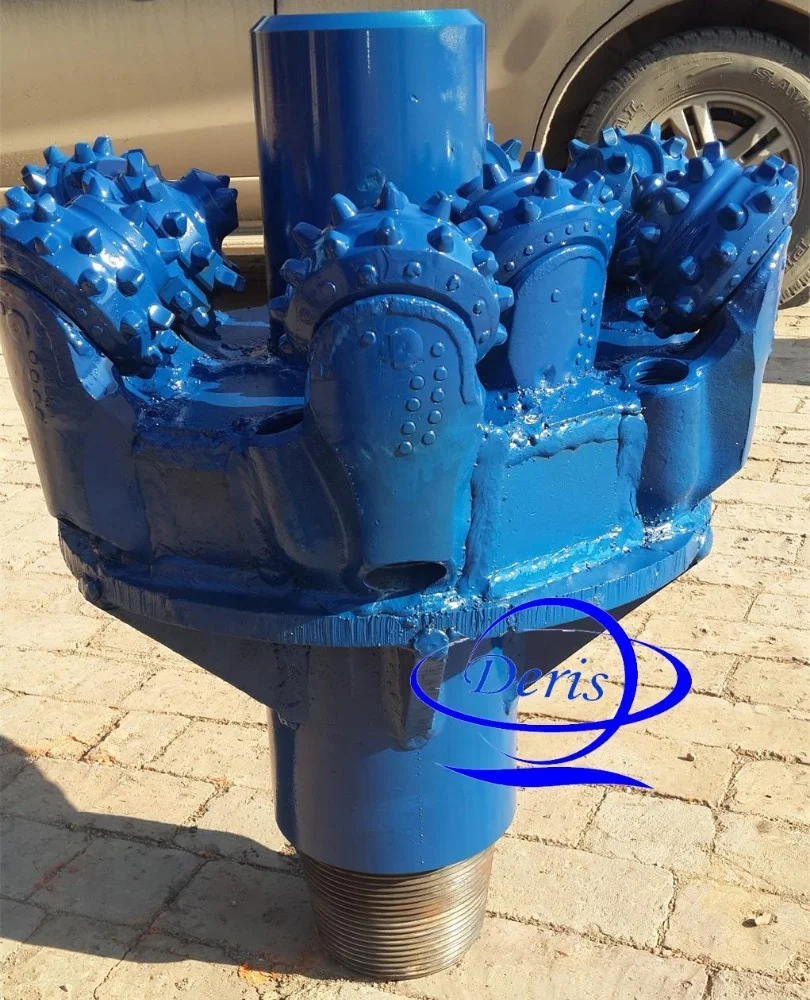

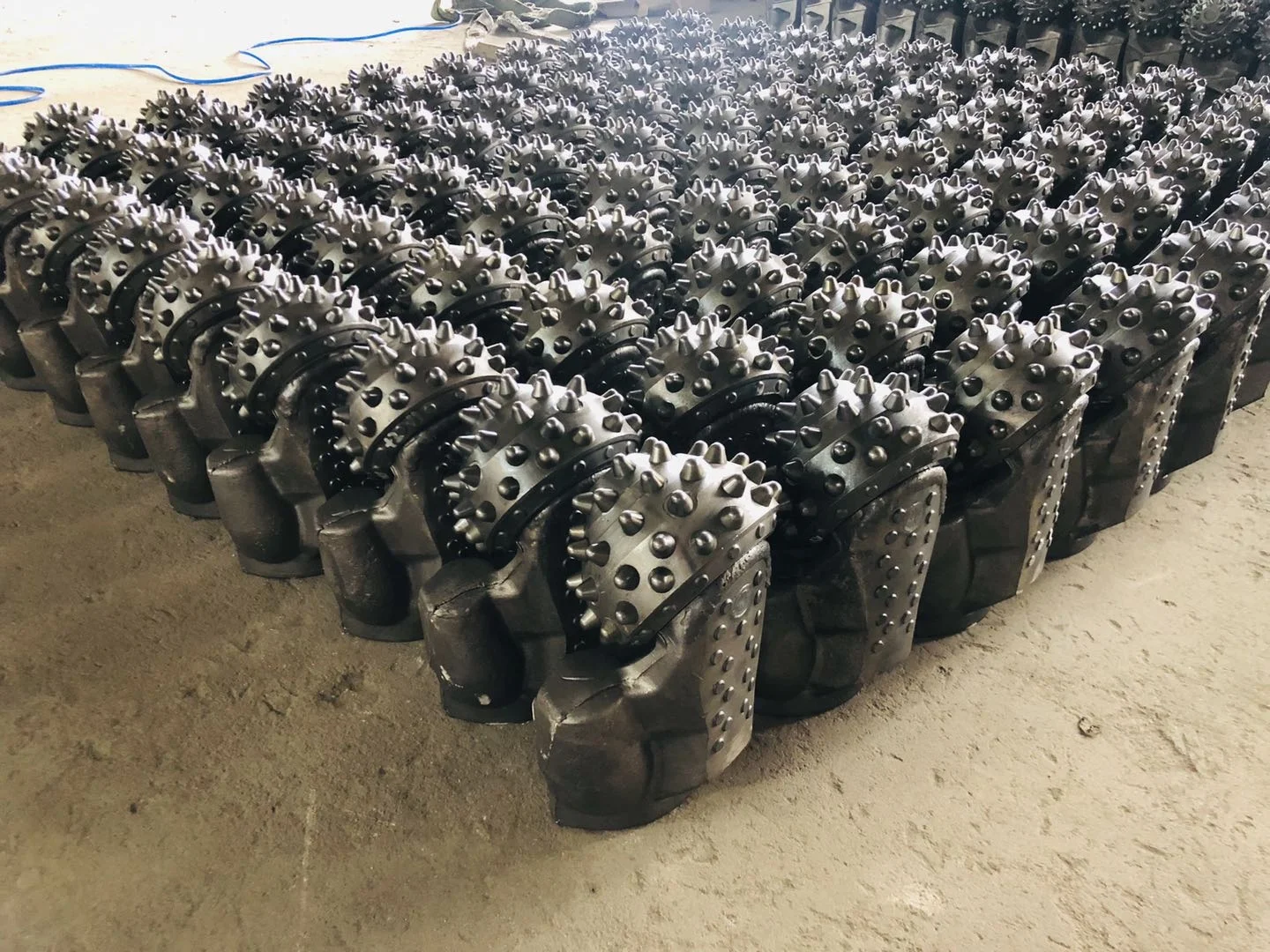

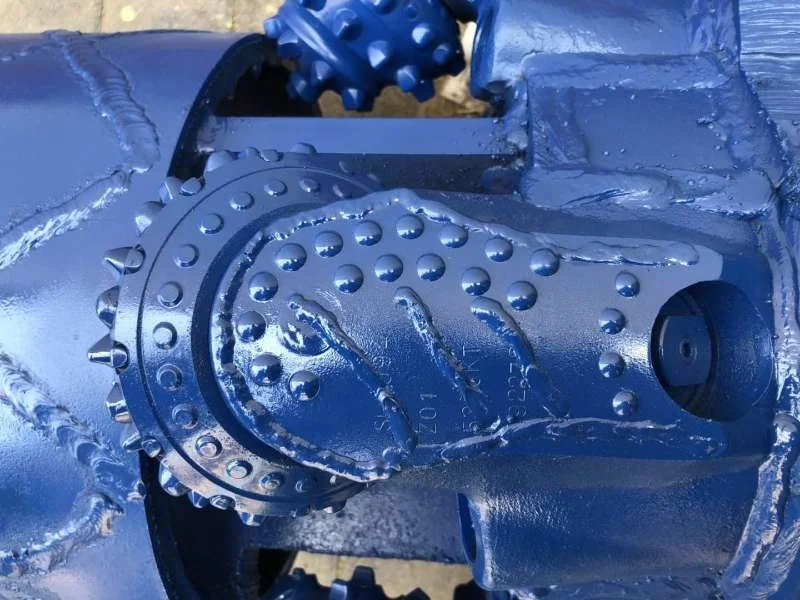

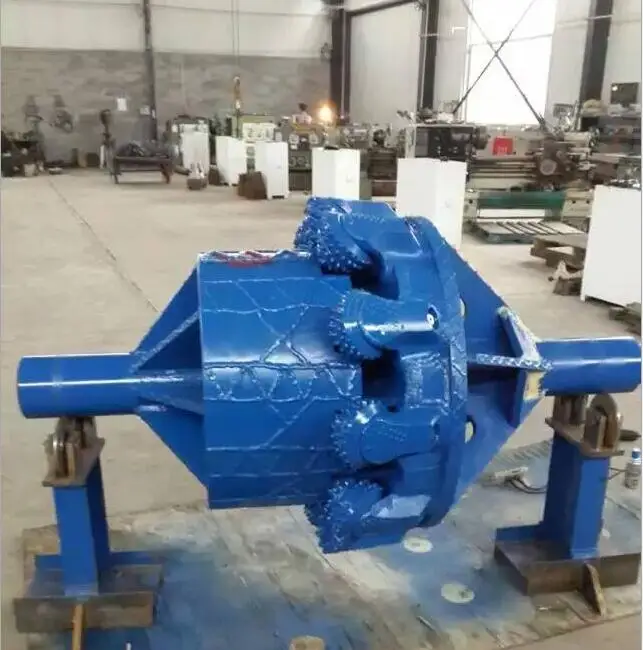

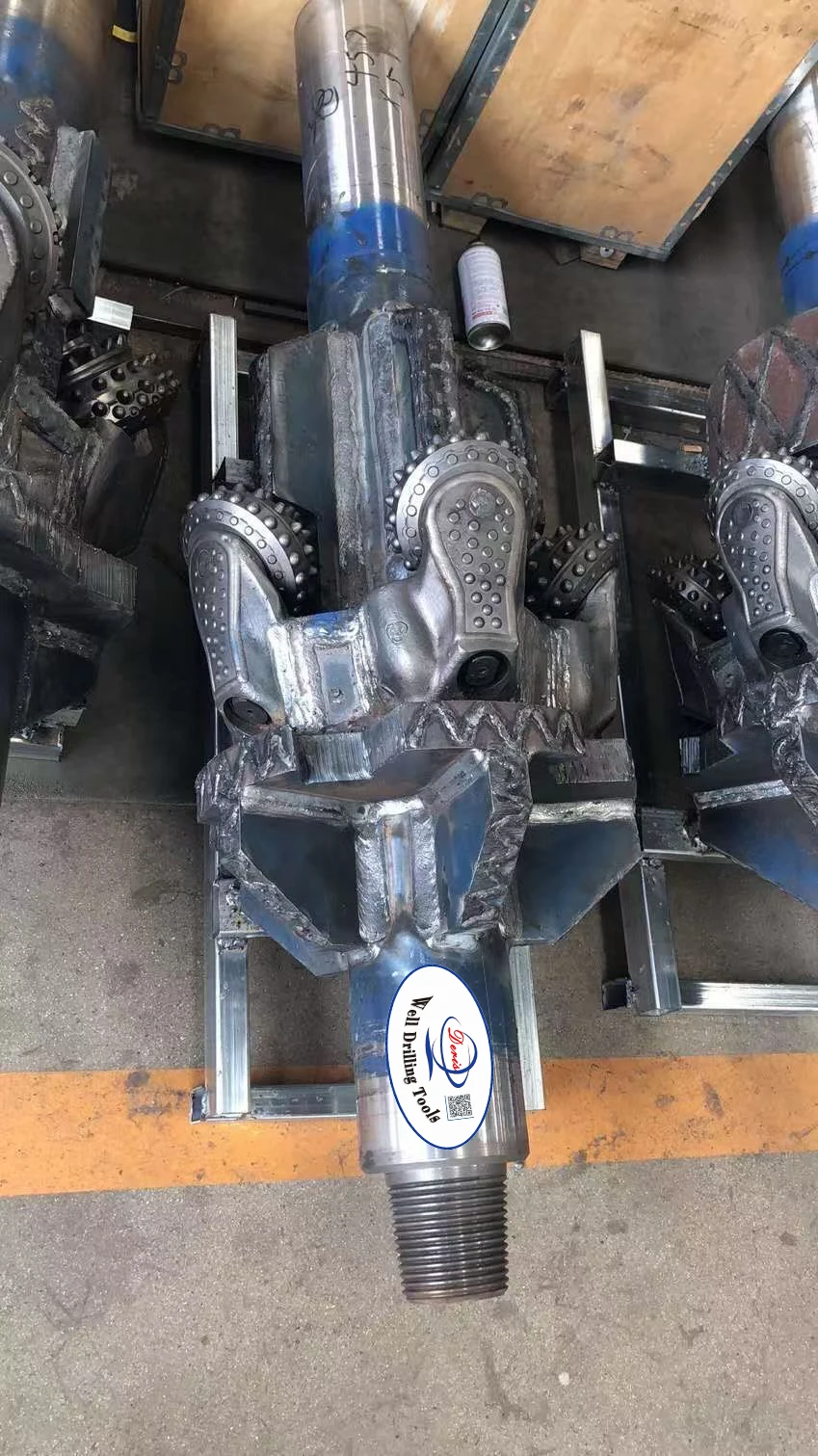

Tungsten carbide insert teeth (TCI ) cones hole opener

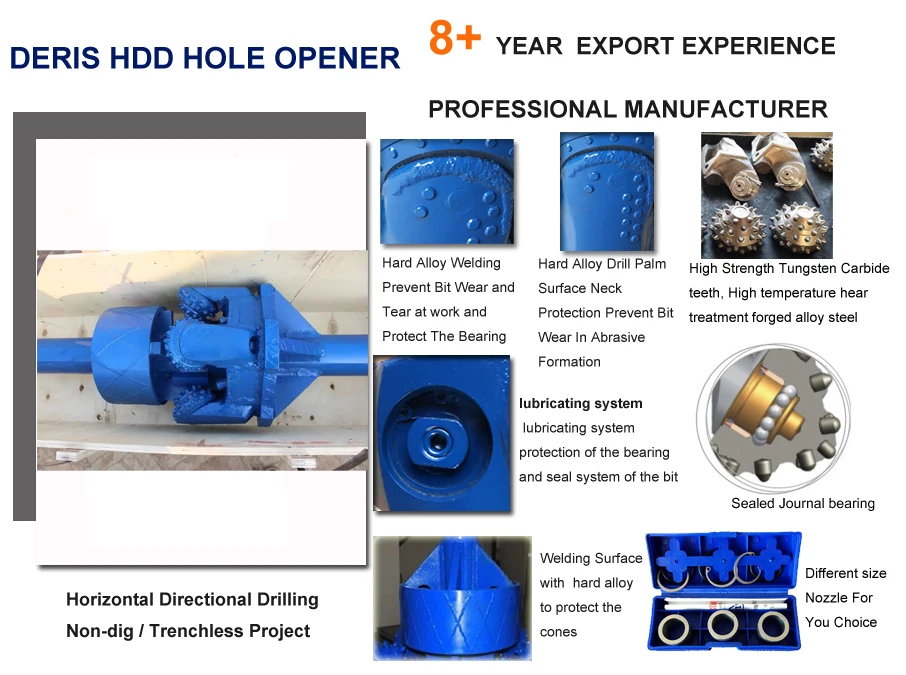

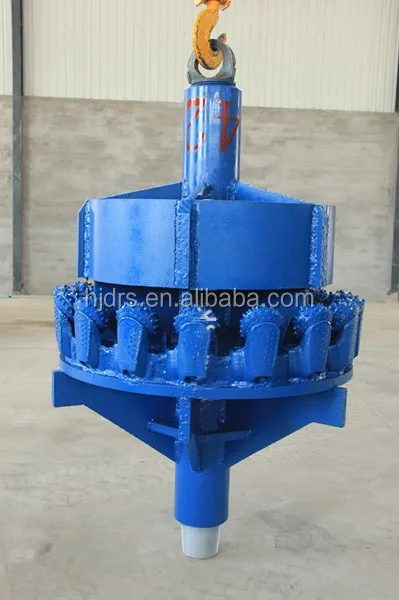

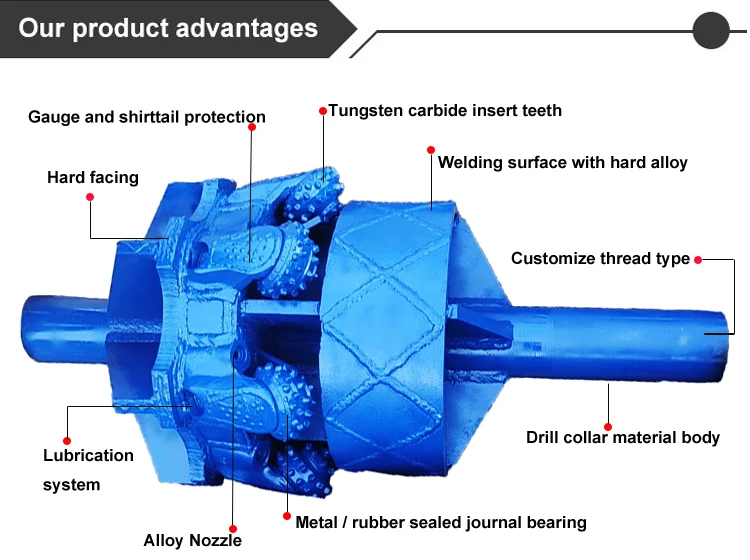

Assembled reamer bit Main structure features
1. Journal bearing. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. The load capacity and seizure resistance of the bearing is greatly improved.
2. O ring seal is made of the more wear resistance high saturated buna-N with the increased seal section and precisely designed sealing flange in the cone sealing area increased the reliability of the seal.
3. The bit bearing can be ball locked or ring locked. Bit with ring lock bearing can stand high weight on bit and bit with ball
lock bearing can be applied to high rotary speed drilling.
4. All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication
system and this provides the bearing system with good assurance of lubrication.
5. New type of grease that can sustain high temperature up to 250°C is utilized.
6. High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high
strength and high toughness in combination with optimized compact numbers and rows, the exposure height and special shaped compacts. For steel tooth bit, the tooth surface is hardfaced with new type of wear resistant material and thus extended working life of the cutting structure while still maintaining high ROP.
2. O ring seal is made of the more wear resistance high saturated buna-N with the increased seal section and precisely designed sealing flange in the cone sealing area increased the reliability of the seal.
3. The bit bearing can be ball locked or ring locked. Bit with ring lock bearing can stand high weight on bit and bit with ball
lock bearing can be applied to high rotary speed drilling.
4. All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication
system and this provides the bearing system with good assurance of lubrication.
5. New type of grease that can sustain high temperature up to 250°C is utilized.
6. High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high
strength and high toughness in combination with optimized compact numbers and rows, the exposure height and special shaped compacts. For steel tooth bit, the tooth surface is hardfaced with new type of wear resistant material and thus extended working life of the cutting structure while still maintaining high ROP.
PRODUCT SPECIFICATIONS
Products parameter
1.Main sizes: Generally bit diameters: 311mm, 346mm, 500mm, 800mm,900mm and so on, all sizes could be customized by requirements.

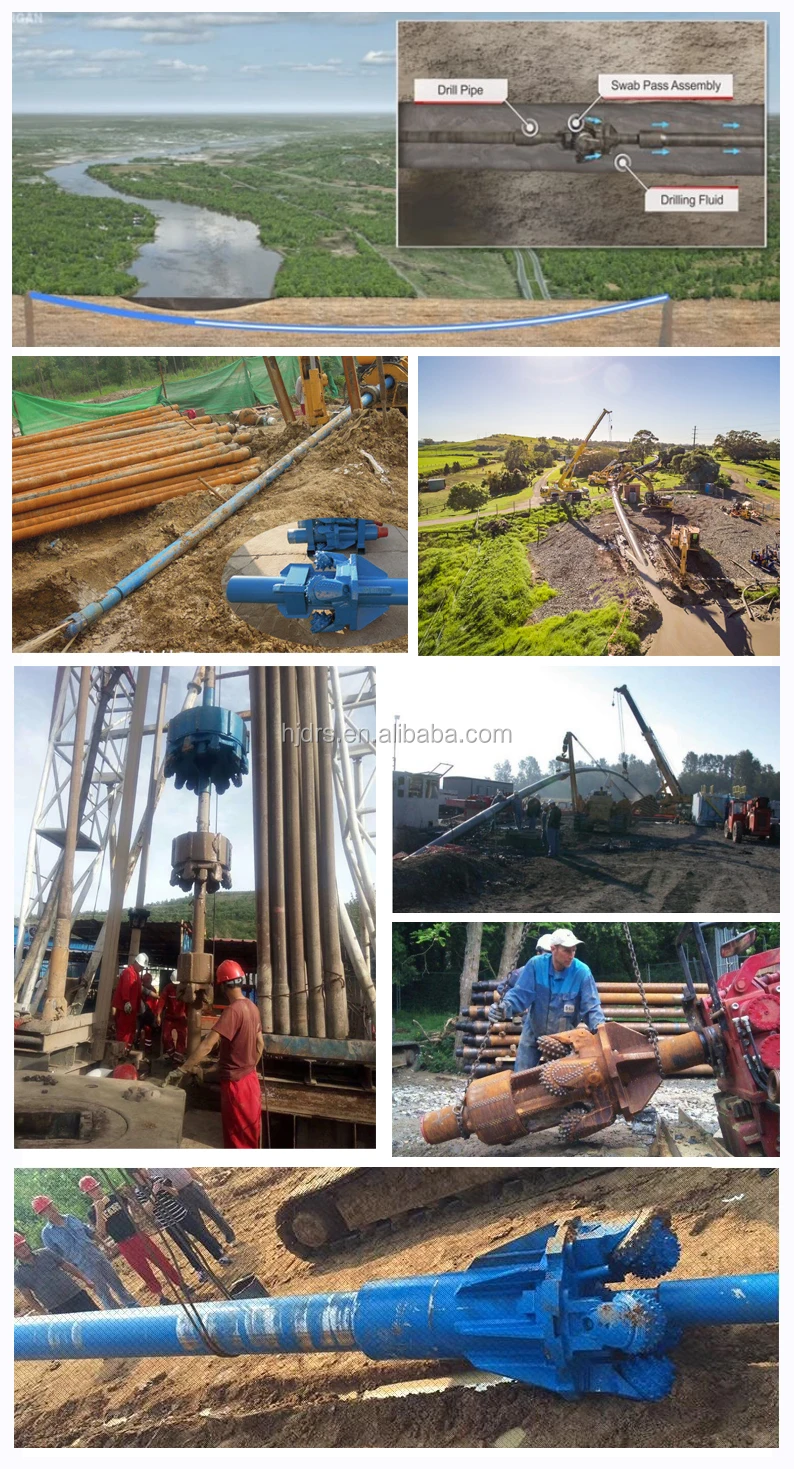

2.Application: Hole opener can enlarge a small well hole to bigger diameter in construction field,bridge construction,super highway construction,railway construction etc. This kind of bits are suitable for different complex formation, shales , limestone,cobblestone and so on.
2.Application: Hole opener can enlarge a small well hole to bigger diameter in construction field,bridge construction,super highway construction,railway construction etc. This kind of bits are suitable for different complex formation, shales , limestone,cobblestone and so on.
Reamer Size | 20" | 24" | 30" |
Total length | 1200mm | 1200mm | 1200mm |
Cutter Size&Type | 8 1/2 IADC637 | 8 1/2" IADC637 | 12 1/4" IADC637 |
Stabilizer Size | 16" | 18" | 20" |
Thread Connection | 4 1/2" IF box&pulling eye | 5 1/2"FH pin&box | 5 1/2"REG pin&box |
Recommend make up torque(KN.M) | 46.1-54.2 | 46.1-54.2 | 62.4-70.6 |
Operation parameter
Rotary Speed (rpm) | 60-110 | 60-110 | 35-120 | |
Weight on Bit (KN) | 40-90 | 40-90 | 30-70 | |
Max. WOB (KN) | 120 | 130 | 110 | |
Flow Rate (lps) | 97-105 | 110-127 | 156-177 |
SIMILAR PRODUCTS
COMPANY
Hejian Deris Petroleum drilling equipment Co., Ltd was established in 2000, located in Hejian City Junziguan Industrial Park, close to Tianjin Port, Beijing Airport, convenient transportation.
Specializing in the production and sales of drilling tools such as Tricone bit, PDC drill bits, Hole opener, roller cone drills, hammer and hammer bit, drill pipes, drill collars, etc. CNC machine tools, drilling machines, milling machines, quality testing equipment, etc. to ensure quality and timely delivery. Make sure that every quality product meets customer needs. A professional design, production, inspection and foreign trade sales team has been established.
Specializing in the production and sales of drilling tools such as Tricone bit, PDC drill bits, Hole opener, roller cone drills, hammer and hammer bit, drill pipes, drill collars, etc. CNC machine tools, drilling machines, milling machines, quality testing equipment, etc. to ensure quality and timely delivery. Make sure that every quality product meets customer needs. A professional design, production, inspection and foreign trade sales team has been established.
Products are sold to the United States, Canada, Russia, Kazakhstan, Qatar, Sweden, Germany, Australia, Singapore, Mexico, Colombia and other more than 30 countries.
CNC machine tools, drilling machines, milling machines, quality testing equipment, etc. to ensure quality and timely delivery.
Looking forward to working with you.
Looking forward to working with you.
Certifications
Contact

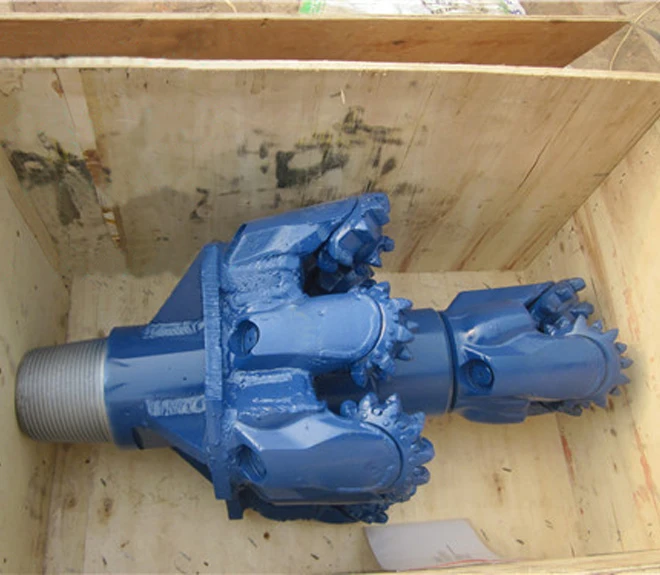

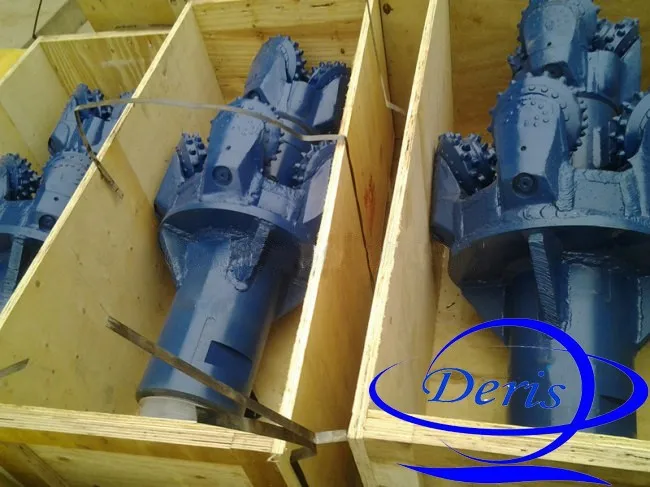

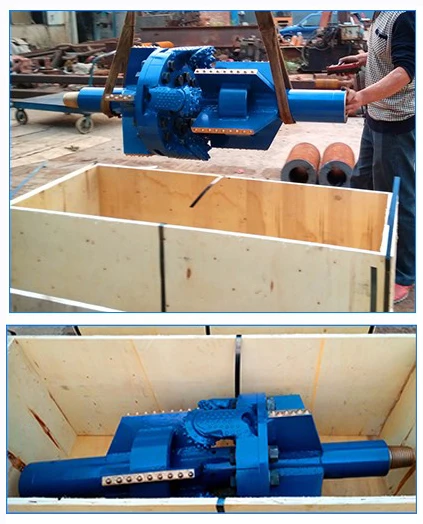

Product packaging
FAQ
1. About lead time?
Answer: Answer: We always have regular model stock, i.e. payment on delivery, which is our advantage. Batch production depends on the number of orders. It usually takes three to five days to get to Tianjin Port or Beijing Airport in China. Even small or urgent orders can be shipped to you by air upon receipt of your consent. According to the distance from China to your port, it takes about 30 days to ship from China to Europe. It takes about 25 days to ship to the west of the United States.
2. About payment terms?
Answer : We accept all regular payment terms, including letters of credit, T/T, etc. 100% payment through Alibaba Trade. Please pay 30% T / T in advance for customization.
Answer: Answer: We always have regular model stock, i.e. payment on delivery, which is our advantage. Batch production depends on the number of orders. It usually takes three to five days to get to Tianjin Port or Beijing Airport in China. Even small or urgent orders can be shipped to you by air upon receipt of your consent. According to the distance from China to your port, it takes about 30 days to ship from China to Europe. It takes about 25 days to ship to the west of the United States.
2. About payment terms?
Answer : We accept all regular payment terms, including letters of credit, T/T, etc. 100% payment through Alibaba Trade. Please pay 30% T / T in advance for customization.
3. Guarantee and Warranty of Quality:
We are API&ISO certified factory, we have one integral set of system to control quality in production and make after-sale service.
4. Referenced Letters: We have many Referenced Letter issued by our customers from many countries for checking our quality and service.
4. Referenced Letters: We have many Referenced Letter issued by our customers from many countries for checking our quality and service.
5.Can I visit your factory online? Yes, we can show our workshop, warehouse, offices online by WeChat, Whatsapp or Skype.
