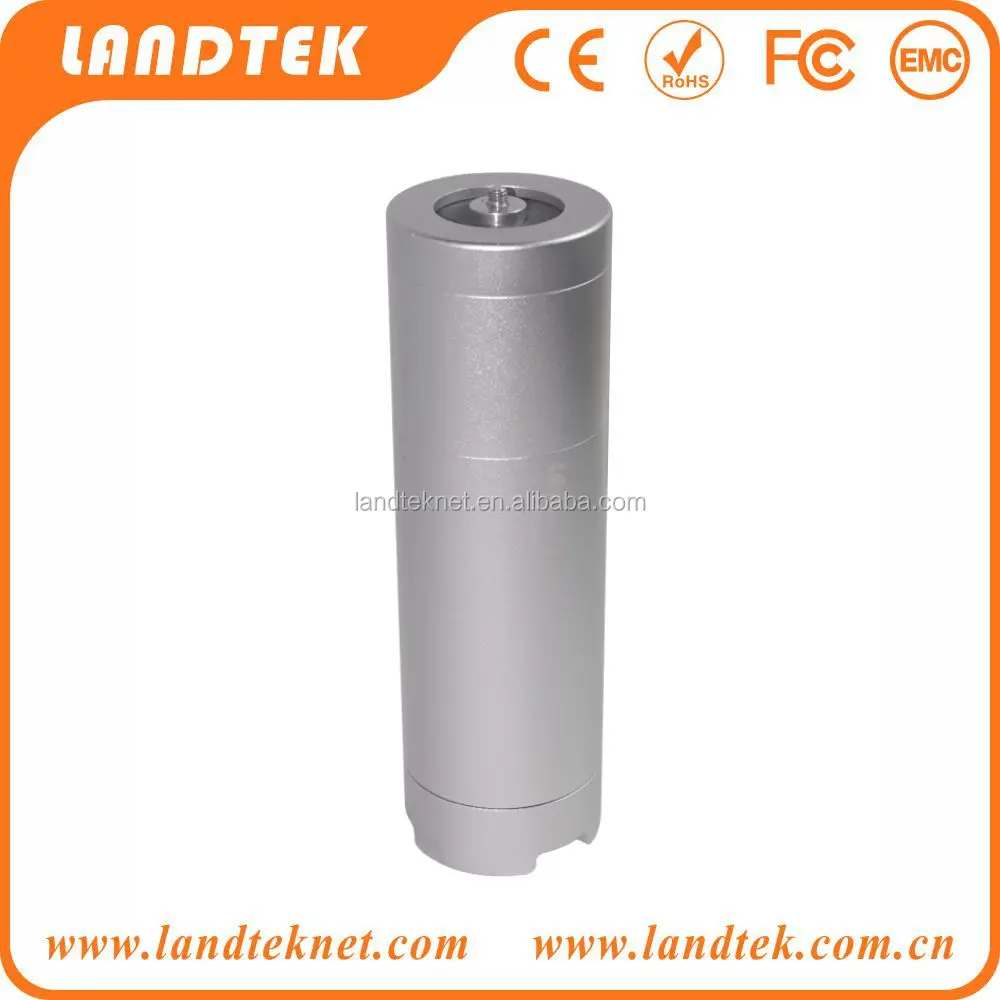

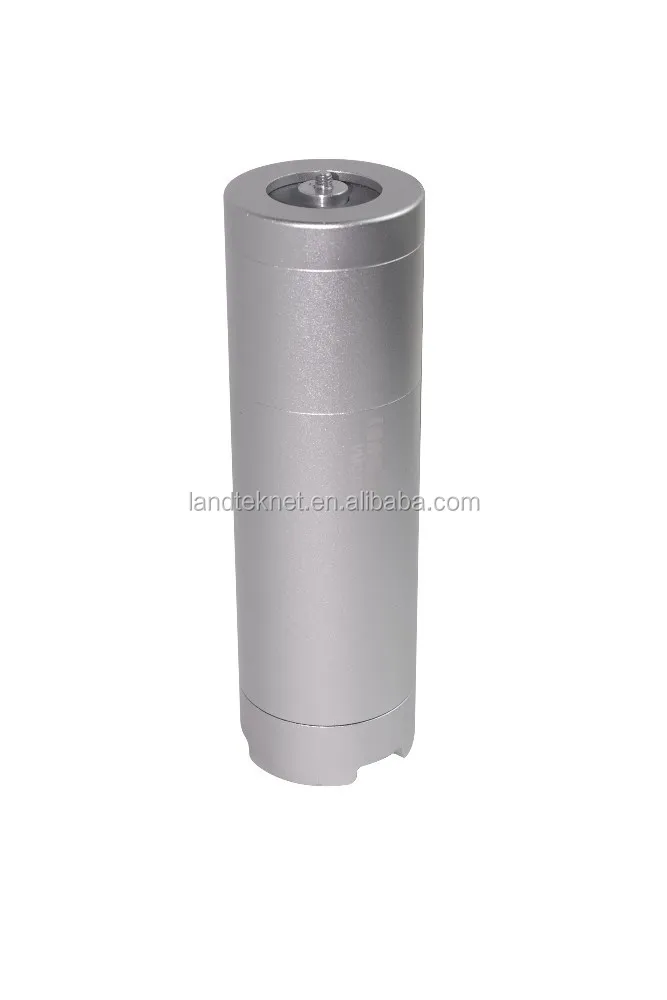

159.2 Hz Operating Frequency and Electronic Power Smart Vibration Calibrator VMC 606

Product Overview

Description

Applications:

The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy check-ing of accelerometers, vibration monitoring systems and recording systems. Providing a known and cont-rolled RMS vibration for verification of acceleromet-ers weighing up to 150g.

*Operates at 159.2 Hz.

*10 mm/s RMS velocity output.

*Drives vibration sensors up to 150g.

*CE compliant.



Operating Frequency	159.2 Hz ± 0.5 %
Acceleration Output	10 m/s² (RMS) ± 3%
Velocity Output	10 mm/s (RMS) ± 3%
Displacement Output	10 um (RMS) ± 3%
Transverse Output	< 5%
Distortion	< 3%
Maximum Load	150 g
Ramp-Up Time	< 3 Seconds
Operating Conditions	Temperature : -10~40 °C        Humidity : < 85 %RH
Internal Battery	4x1.5V AA (UM-3) battery
Size (Diameter x Height)	56 mm x 200 mm
Weight (with batteries)	900 g



Standard Accessories:

1. Main Unit

2. Carrying Case

3. Manual Book
