DIN125A gi washer galvanized flat washer
US $0.05-$0.10
Belleville Disc Springs, Belleville Spring Washers, Serrated Bellevilles washers
- Category: >>>
- Supplier: Hebei Othello Sealing Material Co. Ltd.
Share on (60284736041):
Product Overview
Description

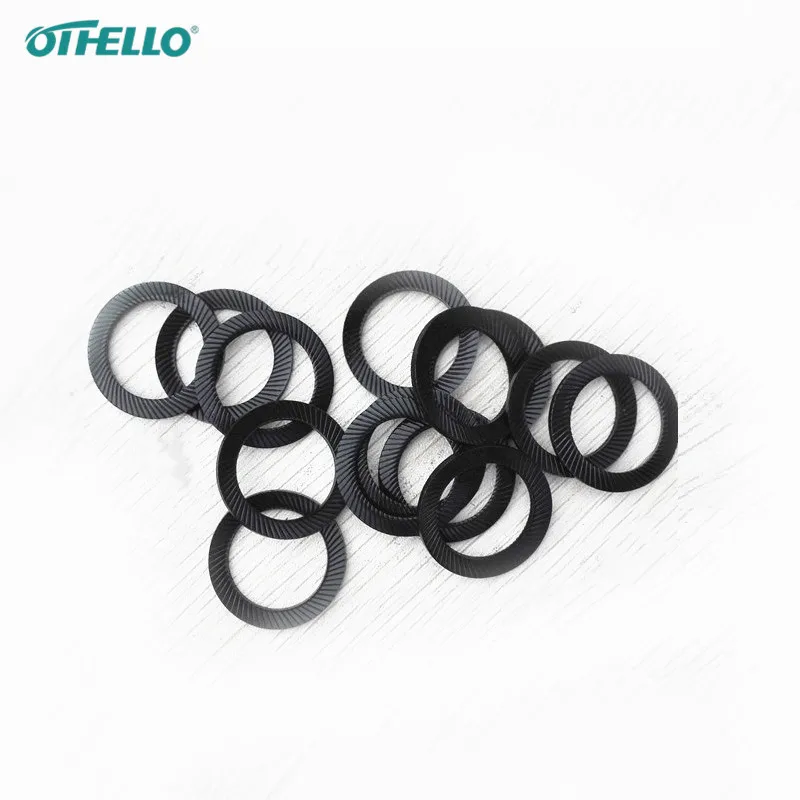

Belleville Disc Springs, Belleville Spring Washers, Serrated Bellevilles washers
Product Description
Locking Disc Spring properties:
Locking Belleville spring surface using oblique tooth structure, increasing friction
between the bolt and the Belleville spring, flange and Belleville spring, while also
increasing the self-locking function of the bolt, elastic compensation adds friction
to prevent loosening, good long bolt lock working condition.
Application:
locking Belleville spring is mainly used for the load is not too great, but the violent shock bolts, can effectively prevent loose bolts and Inverted wire, played a locking feature, compensation the preload to ensure durable and reliable seal, bolt and equipment have good versatility.
Specifications:
locking Belleville spring common specifications M6 ~ M36, also we could design it by customers requirements.
Normal size of locking disc spring
No. | Type (mm) | Outside diameter(mm) | Inside diameter(mm) | Thickness (mm) | Free height (mm) |
1 | M6 | 10 | 6.4 | 1 | 1.4 |
2 | M7 | 12 | 7.4 | 0.7 | 1.3 |
3 | M8 | 13 | 8.4 | 1.2 | 1.7 |
4 | M10 | 16 | 10.5 | 1.5 | 2 |
5 | M12 | 18 | 13 | 1.5 | 2.1 |
6 | M14 | 22 | 15 | 1.5 | 2.2 |
7 | M16 | 24 | 17 | 2 | 2.6 |
8 | M18 | 27 | 19 | 2 | 2.7 |
9 | M20 | 30 | 21 | 2 | 2.8 |
10 | M22 | 33 | 23 | 2 | 3 |
11 | M24 | 36 | 25.6 | 2.5 | 3.4 |
12 | M27 | 39 | 28.6 | 2.5 | 3.7 |
13 | M30 | 45 | 31.6 | 2.5 | 3.8 |
14 | M32 | 49.72 | 34.98 | 3.1 | 4.5 |
15 | M33 | 49.72 | 35.05 | 3.1 | 4.6 |
16 | M36 | 54 | 38 | 3.1 | 4.7 |
Detailed Images

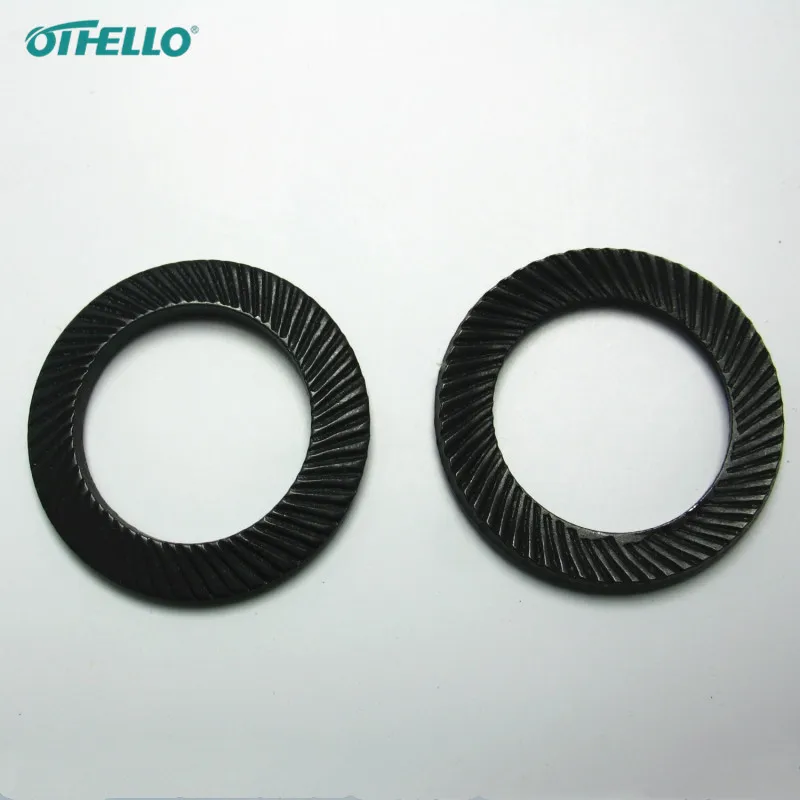

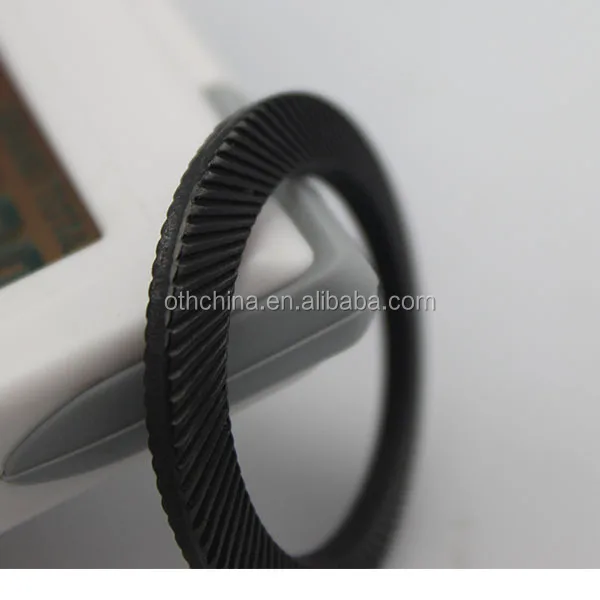

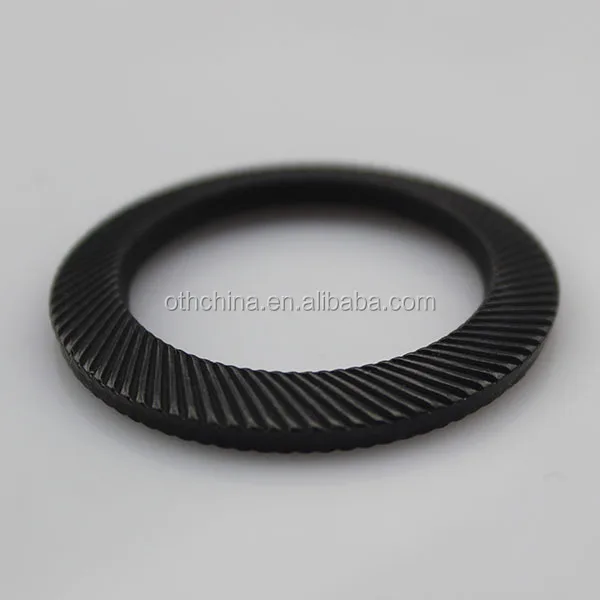

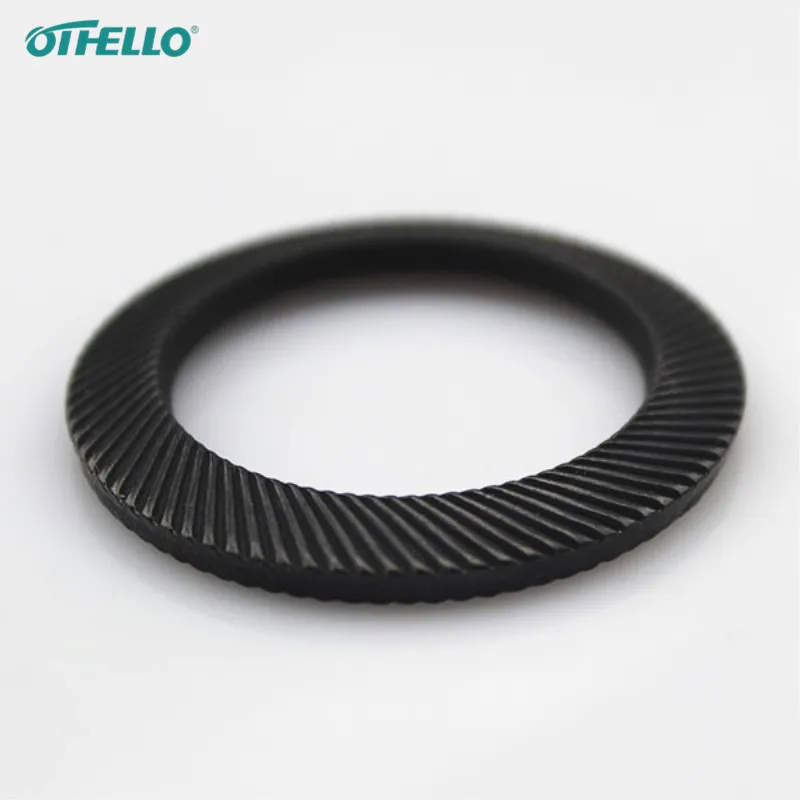

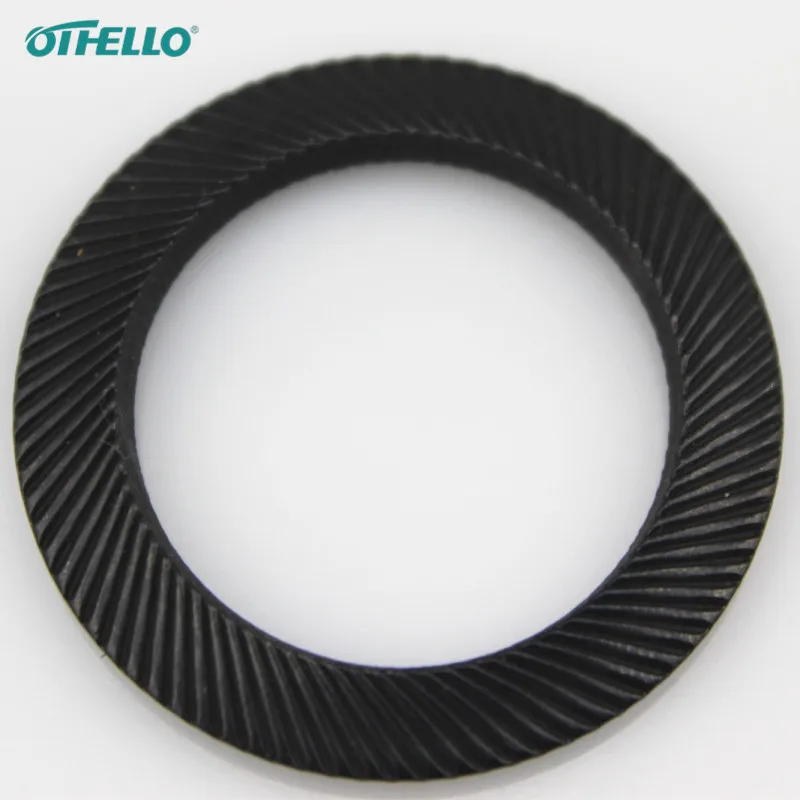

Detailed images of disc springs

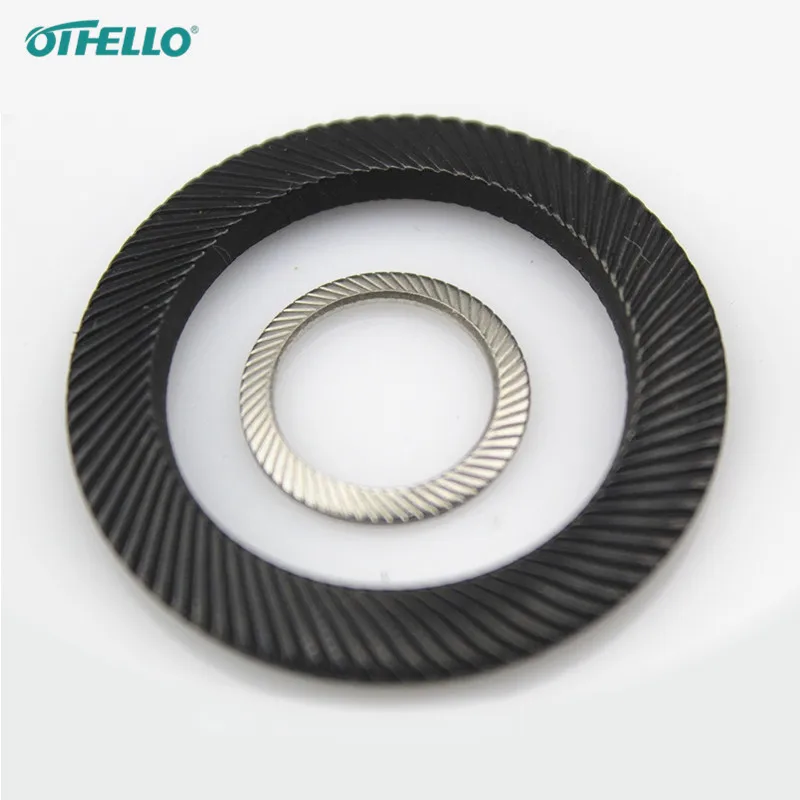

More types disc spring belleville washers for your choose
Certifications

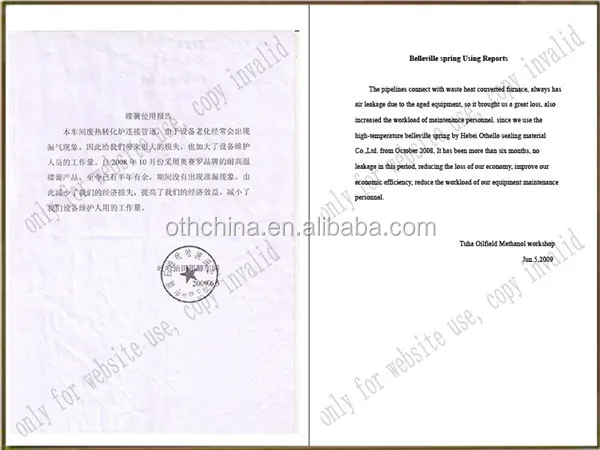

Using reports
Using reports of disc spring belleville washers.
Company Information
Hebei Othello Sealing Material Co.,Ltd was founded in 2006, We are specialized In the industry sealing field for about 10 years.
We have professional R&D teams, excelletc raw materials and first class customer service management system can provide feasible proposals for customers within the shortest preiod of time.
FAQ
1. Are you a factory or trading company?
[Othello]: We are manufacturer specialisted in sealing material for about 10 years, located in Shijiazhuang, Hebei, China.
2. Where is your nearest loading port?
[Othello]: Xingang, Qindao and Lianyungang Port all acceptable.
[Othello]: Xingang, Qindao and Lianyungang Port all acceptable.
3. Can you do OEM?
[Othello]: Yes, we can produce according to customer design, also we have our own products for your selection.
4. How can I get some samples?
[Othello]:Free samples are available,new clients are expected to pay for the courier cost,
this charge will be deducted from the payment for formal order.
5. How does your product quality control?
[Othello]: With ISO quality management system and advanced quality testing devices. 100% insptection before shipment.
6. Do you accept small order?
[Othello]: Yes, we can accept small order for a trial.
6. What is your payment terms?
[Othello]: We have joined the alibaba trade assurance, and the normal method is TT in advance, LC at sight or as negotiation.
Contact us
Any comments for OTHELLO Disc spring belleville washers, pls not hesitate to contact us! We will reply you at the first time!
Send mail to me directly oth01@othchina.com
or add my skype, aimee.oth
