ZH 880FT автоматическая машина для склеивания картонных коробок

Product Overview

Description

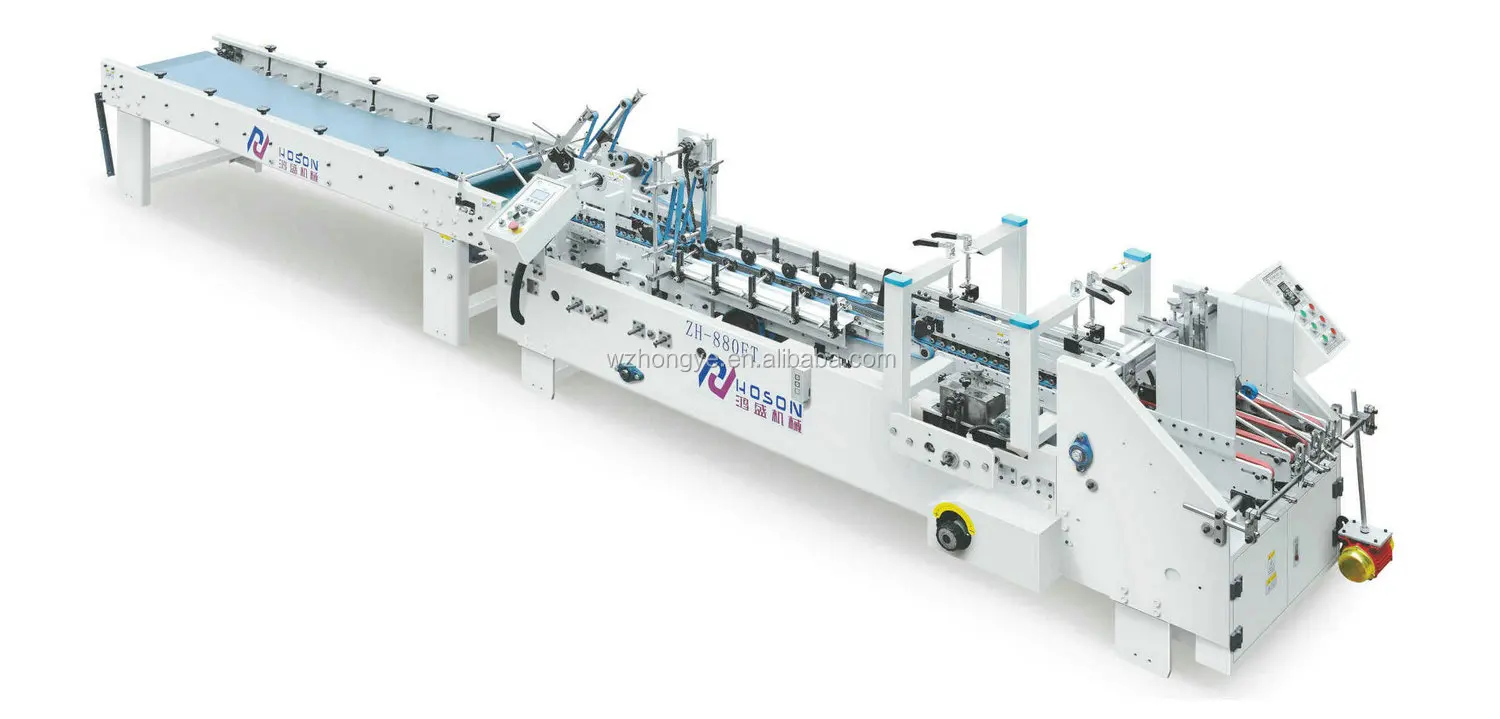

ZH-880FT Two-Fold Type Paperbox forming / Folder Gluer Machine



Features:

1) This machine is designed for straight line paperbox.

2) It is running steady with strengthened single-side driving system, also easy for maintenance.

3) Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.

4) Grinders are provided in both side of machine ,to help guing more stable and firm.

5) AN infrared photo-electric control system is in this machine.

6) Machine will slow down and stop running when no sheet there to reduce waste

7) Small box like out-put size in 35mm is able to be done after the special design.



Parameters.

Box Type	Picture	A Max	A Min	B Max	B Min
Straight Line  box		580-110mm		580-90mm



1	Line speed	0-160m/min , Continuous adjustment
2	Usage paper	250-500 g/ms, paperboard
3	Box forming	Straight line box
4	Fold method	2nd & 4th folds 180°
5	Paper feeding	Automatic feeding, grinding unit
6	Electric Power	2.4kw
7	Dimension	6.1*1.1*1.4m
8	Weight	1500kg
9	Condition	New

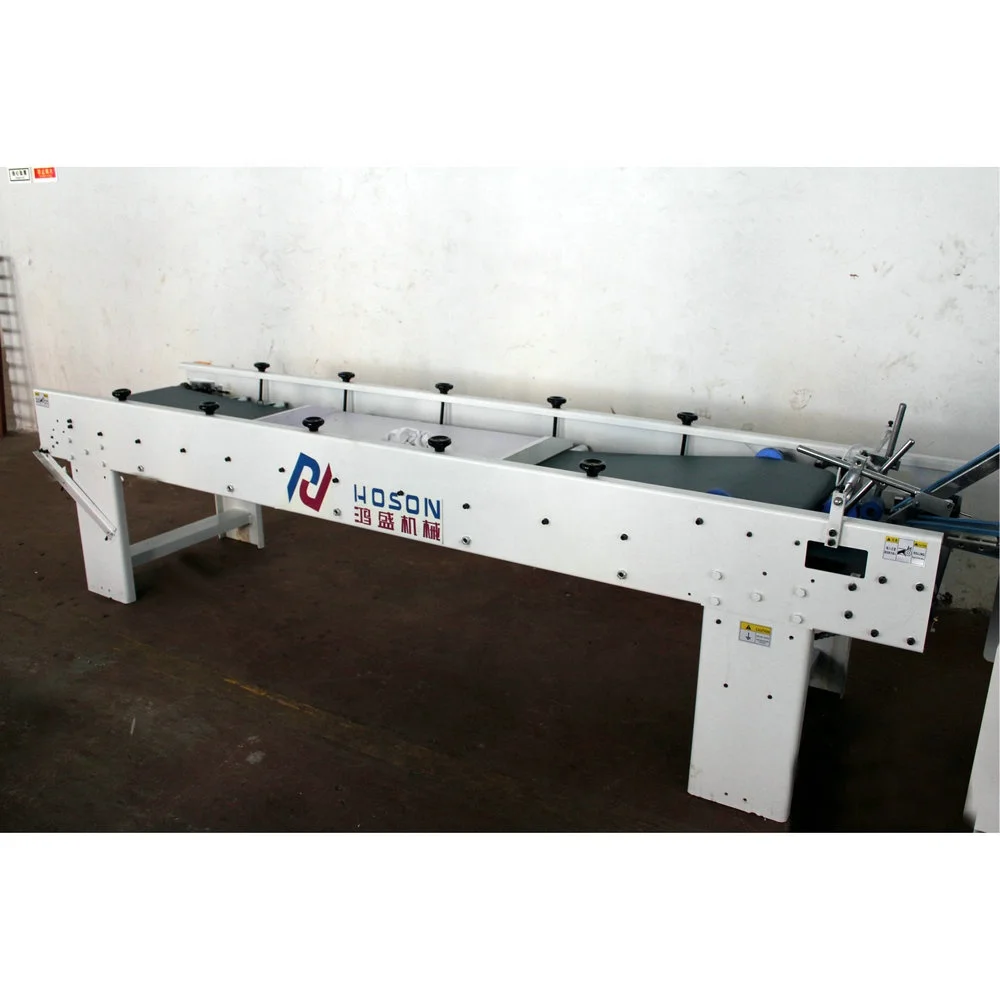

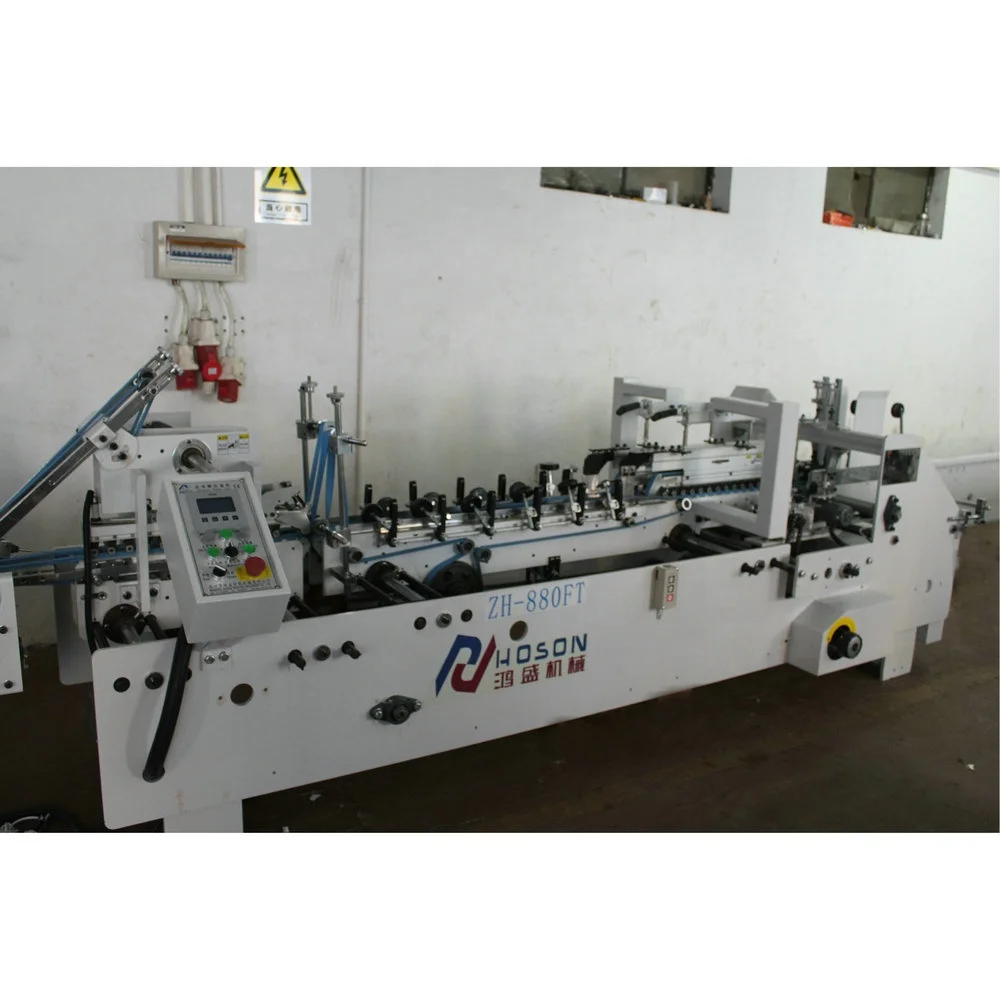

Details of ZH-880FT.
