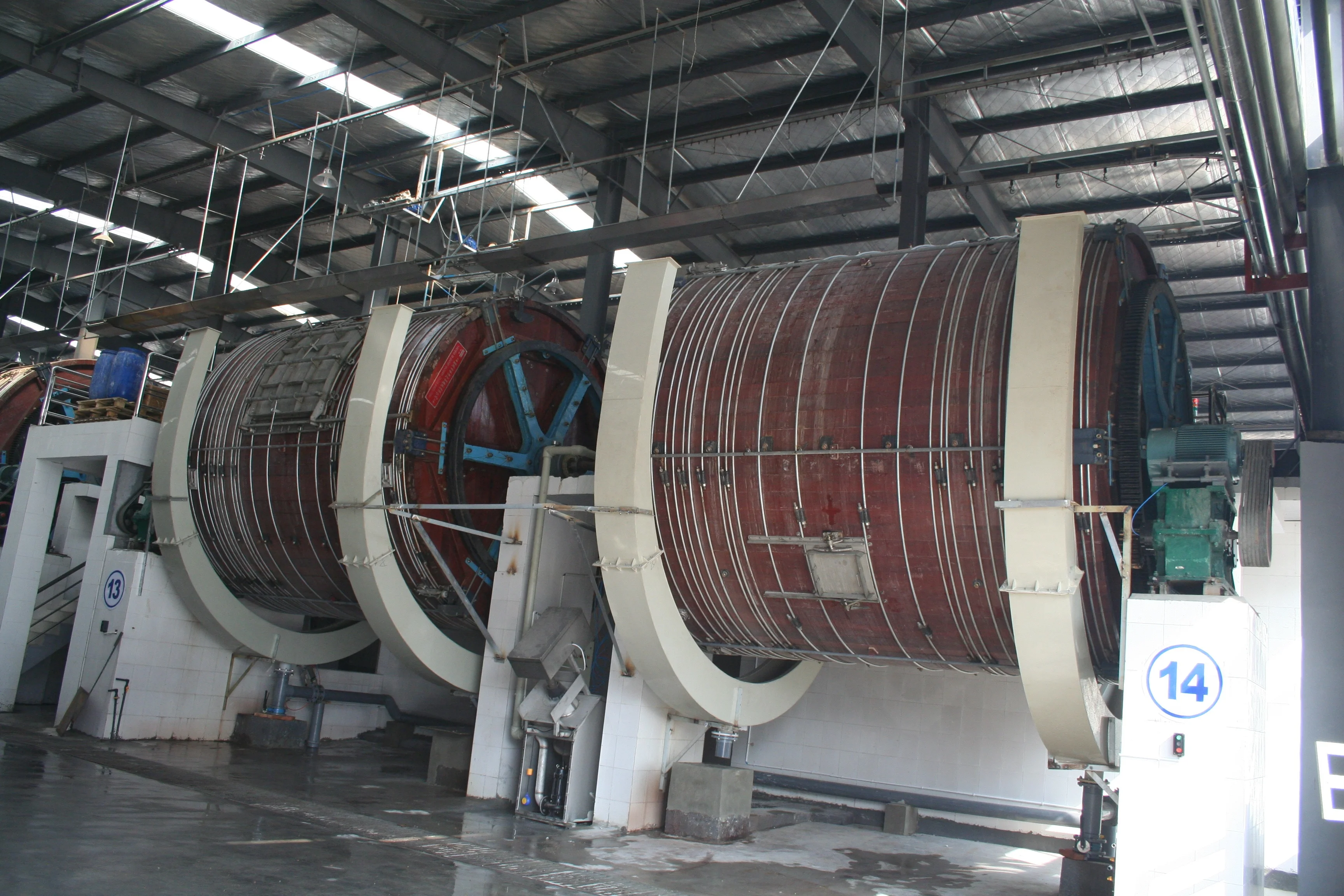

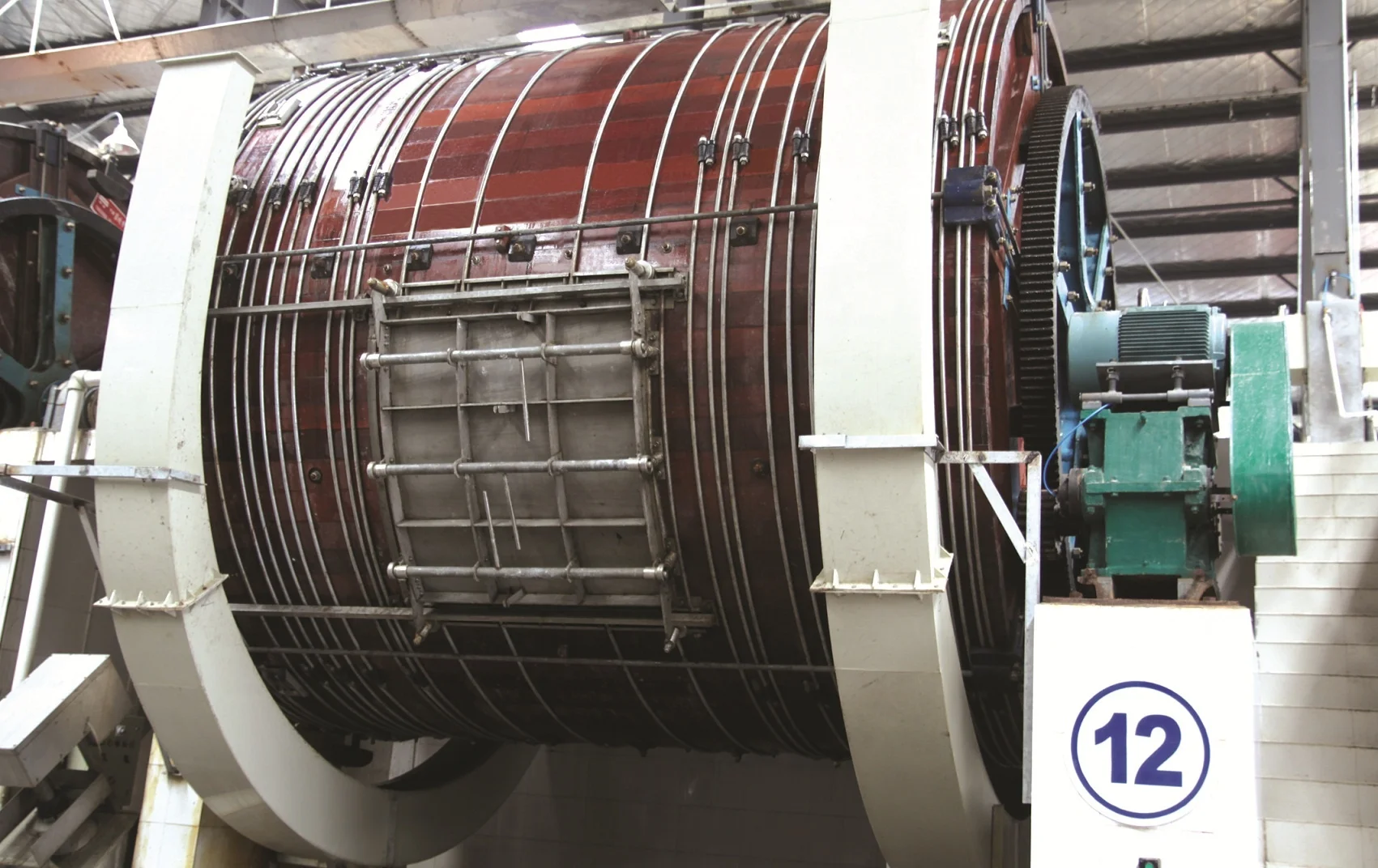

device for leather tannery D4.5 BY 4.5 M leather superloading wooden liming drum/leather machine made in China (60288749872)

Share on (60288749872):


Price:$60,500.00 - $61,000.00
Price in USD:Details

Quantity:


Product Overview

Description

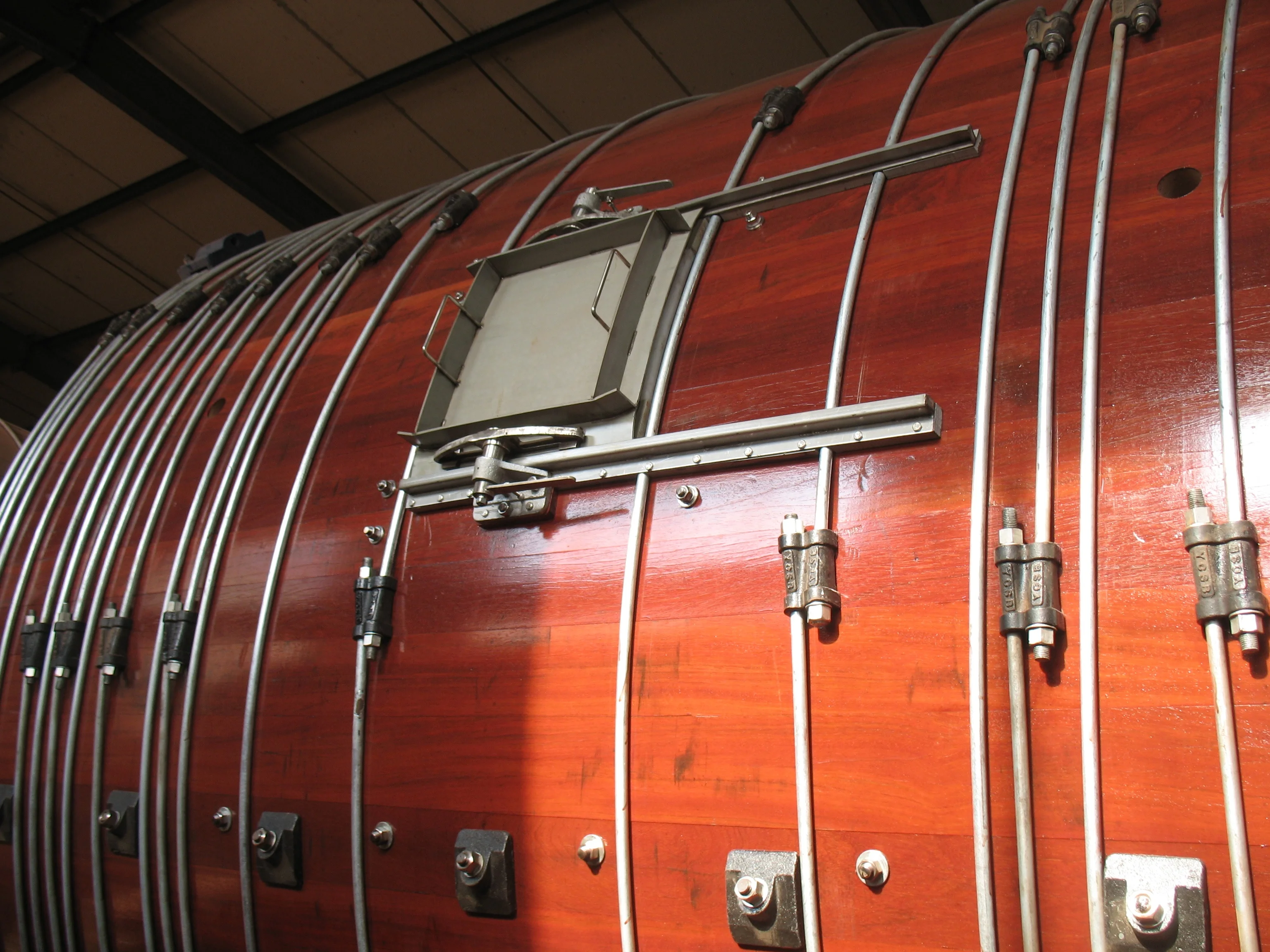

Φ4500X4500mm wooden overloading drum






Product Description












 Φ4500X4500mm wooden overloading drum configuration form























































































































The   Specification(mm)



Φ4500X4500mm wooden overloading   liming/tanning drum



Loading   capacity



If leather :water=1:2,For liming, load 20 ton leather


For   tanning, load 13.3 ton leather



Drum   body



Wood   Material



Imported   Ekki from Africa



Plate   thickness(plank)



100mm,   1400kg/m3



Wood   Guarantee



15   years

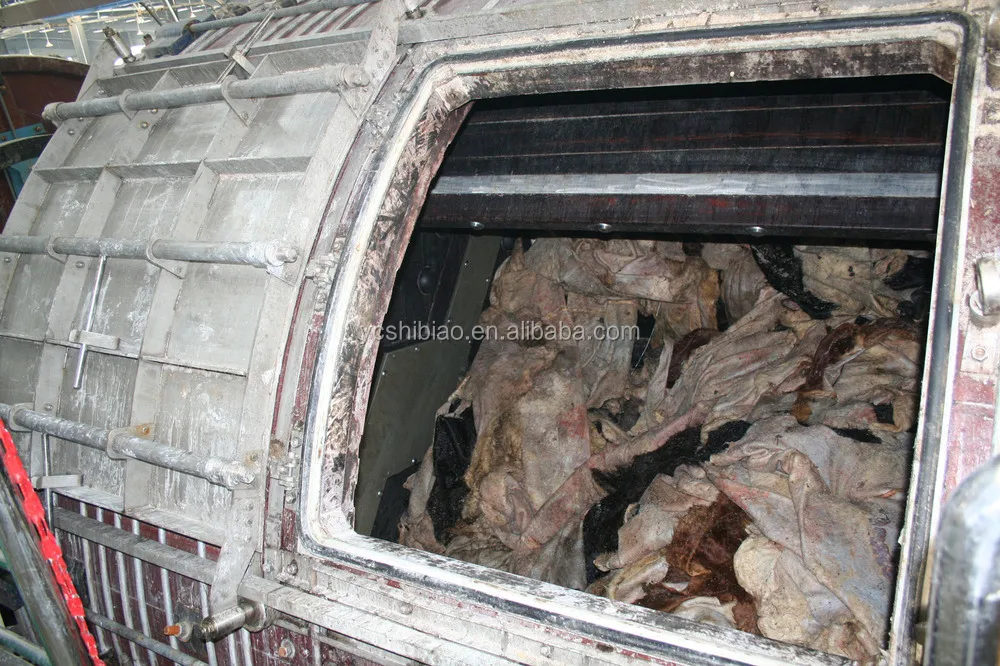

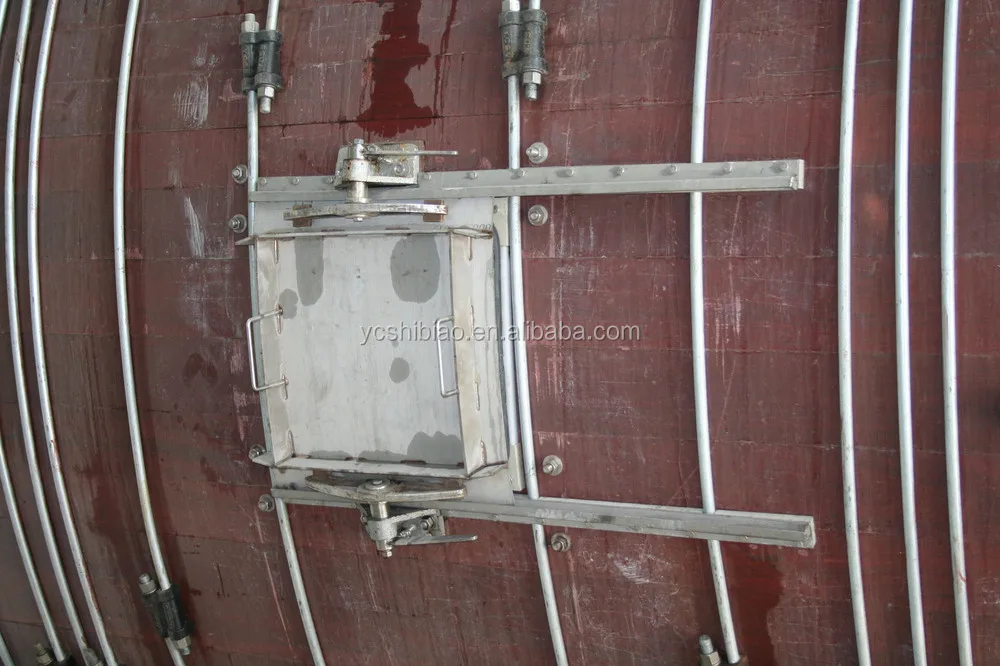

 Drum’s door



Material   and style of the door



 AISI   316L Stainless steel traversing gate, screw is AISI 316L stainless steel



Dimension of the door



Size   of large door 1300x1300, size of small door 450x450



Gearwheel



Diameter



Φ3600mm,M14,heavy   style



Material



standard   cast-steel ,integrated casting with main spindle



Guarantee



All   use life except normal abrasion



Spider/star



Diameter



Φ3500mm



Material



standard   cast-steel ,integrated casting with main spindle



Guarantee



All   use life except normal abrasion



Assembly   screws for gearwheel and star



PP   nylon cap, 45# steel screws



Drum   Revolution speed



2 rpm , single speed, (made as   request),


Customer need confirm drum speed



Motor



45kw for liming, 55kW for tanning


Customer need confirm voltage and   frequency



Gear   box



Hard-surface   gear,280 style Specially used in drum ,and provide   pneumatic brake


Customer need inform the gear box   direction, it means it’s on left or right side when person faces drum   standing on the ground.



Pinion   of gear box



Wear-resistant   steel pinion



Main   spindle and the bearing



Main   spindleZG45#,provide   ZWZ 23060CK/W33+H3060,self-aligningbearing



Drain   valve,water   guide



All   Material of drain valve are AISI 316L   stainless steel, draining two sides ,4 valves each side .


One   side water guide, PP material



Vent   valve



Venting   one side,3 valves, AISI 316L   stainless steel



Outside   drum



CranesΦ20x28,transverse   braceΦ30x6, vertical rodΦ22x12,all Material are 45# steel .


Cranes hot galvanization



Drainage   banana



2   PP material drainage bananas



Shelf



 4 Huge diagonal inclined shelves, I-stainless   steel frame



Rotating   joint



Combine   with stainless steel and bronze

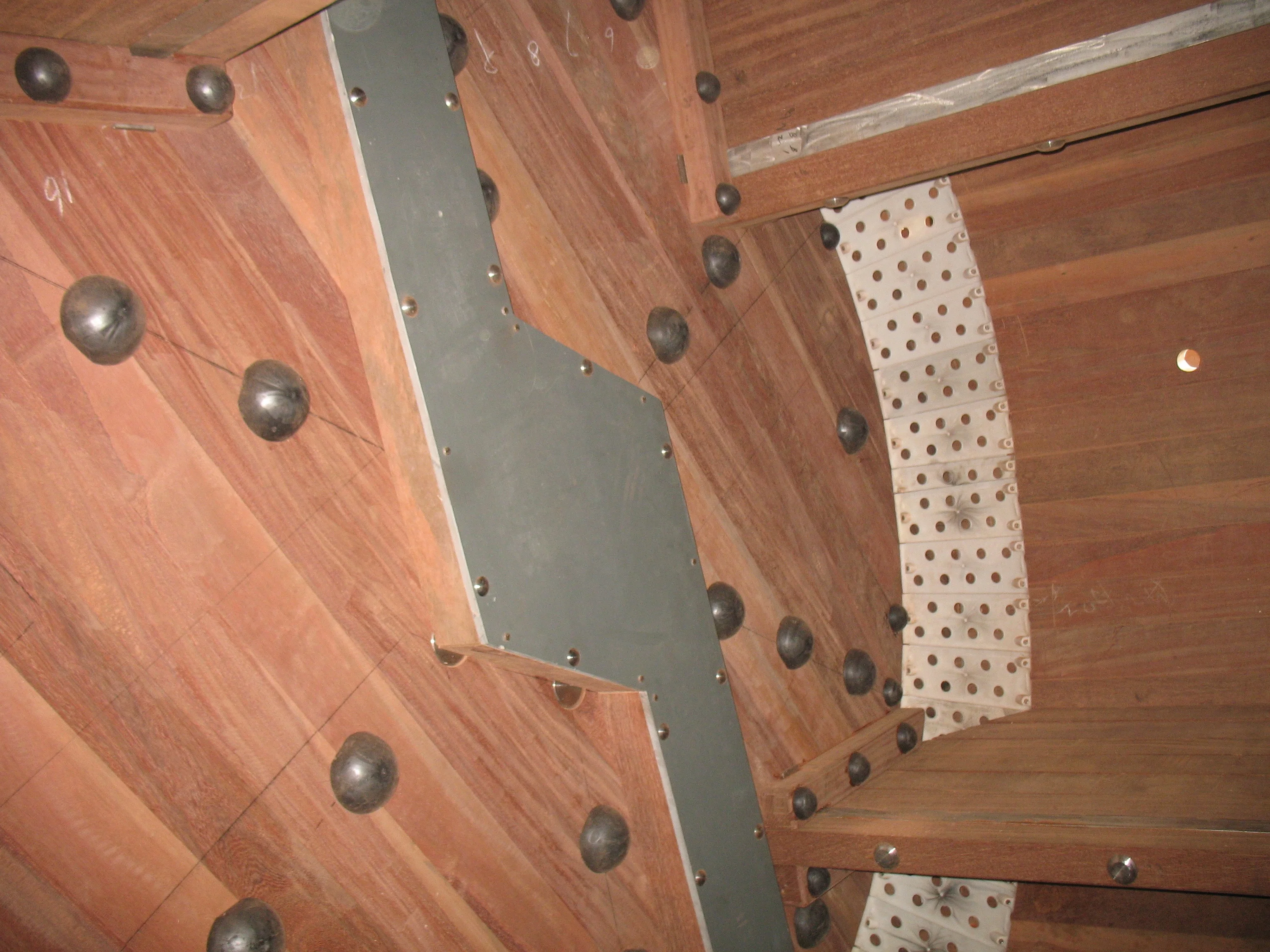

Inside   Screws touched leather



Except   PP nylon cap for gearwheel and star, other touched leather screws are AISI 316L stainless steel material

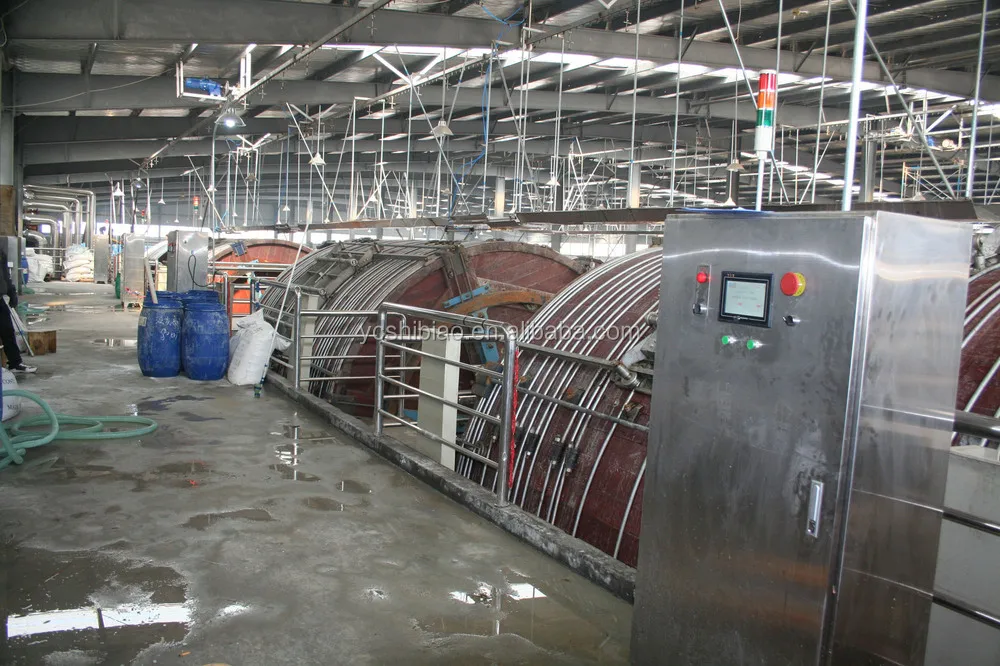

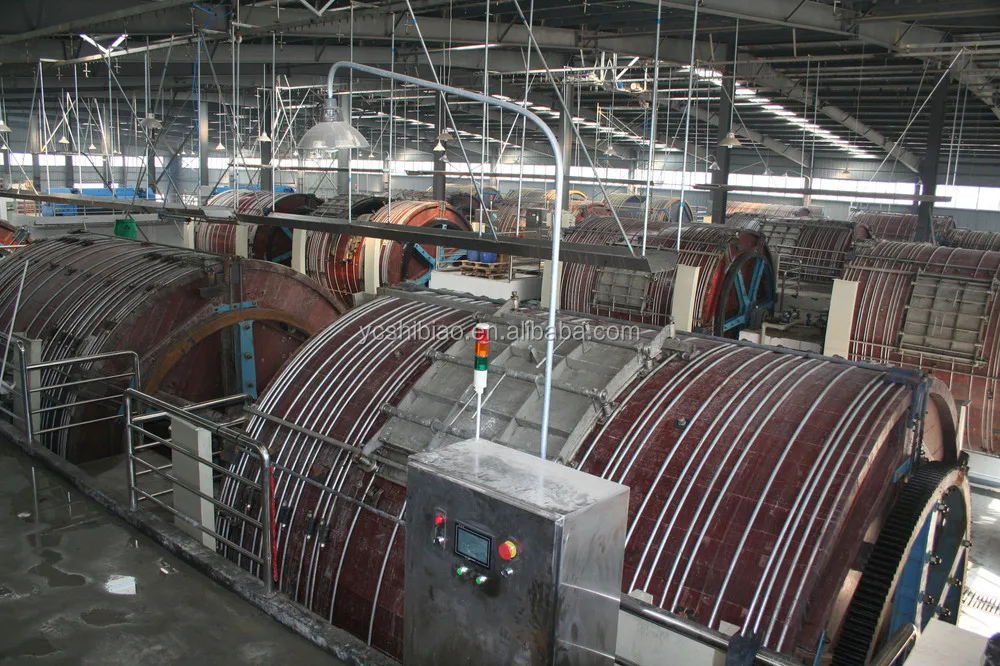

Electrical   control cabinet



Every   drum has a cabinet with functions of forward and reverse starting, crawl, controlling total working time,   reduced voltage starting and brake lag.

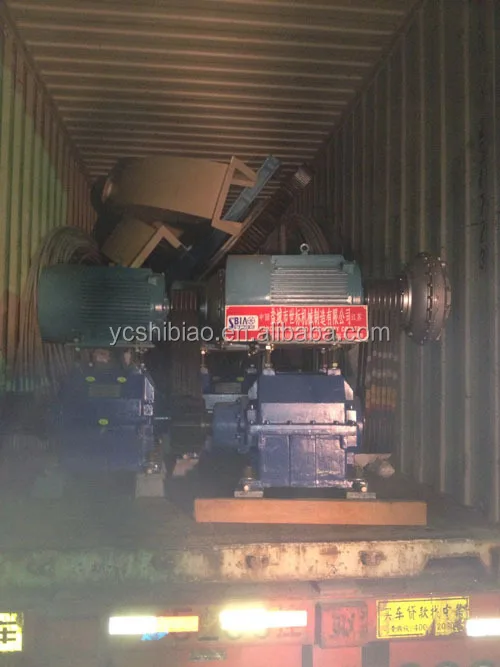

Packaging & Shipping



















Company Information










Yancheng Shibiao Machinery Manufacturing Co., Ltd. (Former named Yancheng City Panhuang Leather machinery Plant) was reformed its ownership system to be a private enterprise. The company lies in Yancheng City in the coastal area of the Yellow Sea in Northern Jiangsu. Yancheng City is a boom industrial town in eastern coastal area in Jiangsu, a memorial place where the New Fourth Army rebuilt its military headquarter, and a tourism city of natural scene of coastal beaches and wetlands-economic development zone, sheyang district,Yancheng. The company provides Overloading wooden drums (the same as the newest one in Italy/ Spain), GJOB1-2 series impendent iron, wooden drums, Y-shape stainless steel automatic drums, GJOF series full-automatic stainless steel cylinder, octagonal milling drums, HC series paddles, and many other leather machinery products all the year round. Products are sold well in Zhejiang, Shandong, Guangdong, Fujian, Henan, Hebei, Sichuan, Xinjiang, Liaoning, and other areas. And they are popular with many leather factories all over the country. The products have been successively passed provincial tests and the test by National Leather & Shoe Machinery Quality Testing and Supervision Center. The products have been awarded the Silver Prize on China High- and New- Technology & New- Products Exhibition in year of 2010. The products' parts: The steel-cored nylon-plastic drum posts, have been obtained the national patent right. At the same time, the company provides many services including design of leather machineries with special specifications, repair and adjustment of equipment, and technical reform. The company has established complete testing system and reliable after-sale services. For a long time, Yancheng City Shibiao Leather Machinery Co., Ltd. Has always been guided by the principle of seeking existence by quality, seeking development by service, and the good reputation is the aim. Sincerely welcome customers old and new to come for a business cooperation and welcome friends from all social circles to give guidance!
