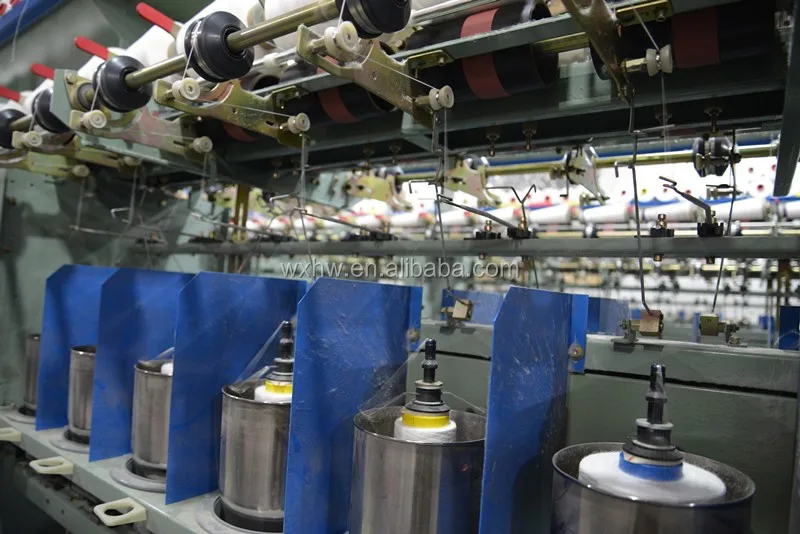

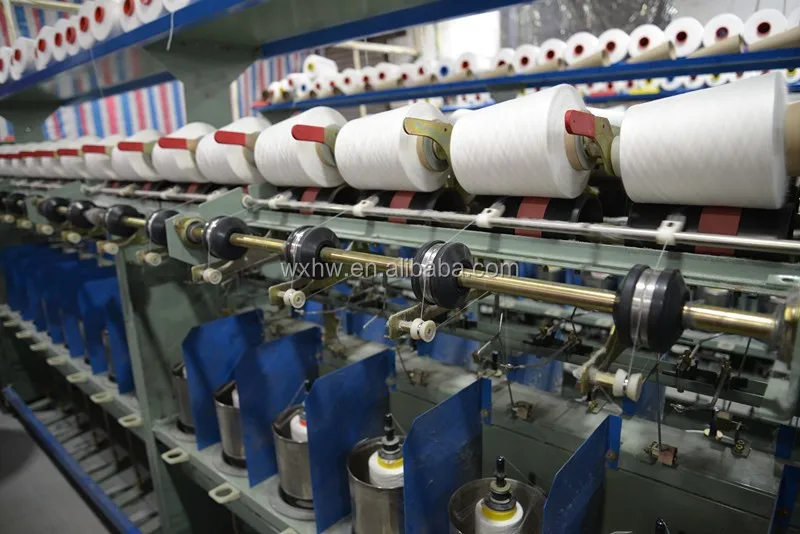

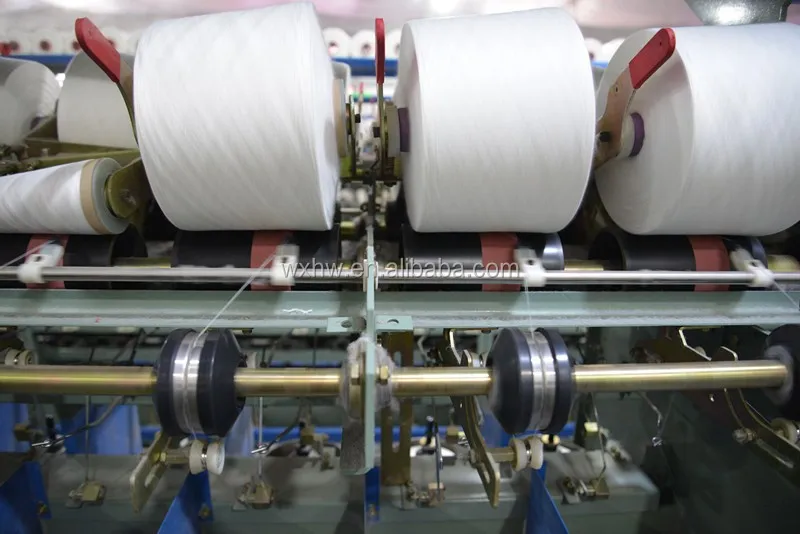

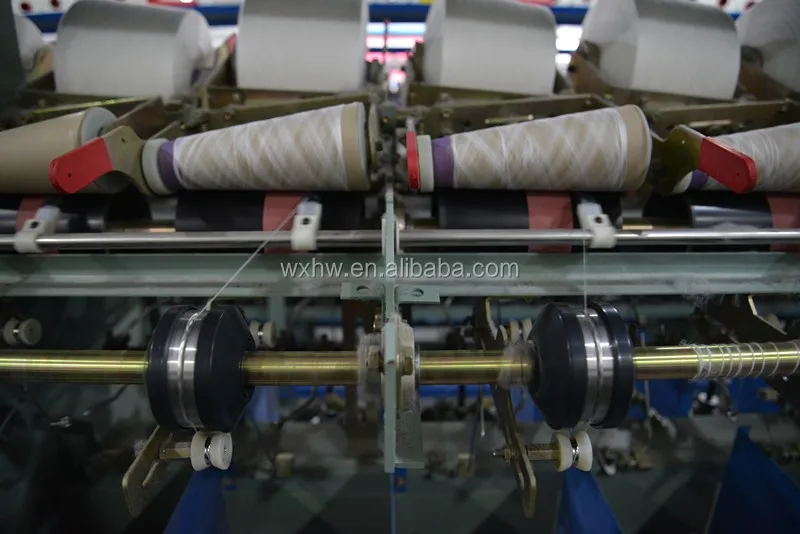

HW363J-2 Two For One Twister For Short Fiber / Two for one twisting machine for short fiber
Product Description
Product Description:
Application: Cotton yarn, wool yarn, acrylic yarn, polyester yarn and other blended yarns,etc.
1. Single side, single layer, beautiful aspect, logic structure, easy operation;
2. High quality spindles perform a long-lasting stability under high speed running.
3. At the same time a capsule-type tension regulator is applied, accepting more extensive twisting conditions;
4. Winding tension is regulatable on the overfeed roller at will, so it is applicable to a loose and soft winding for dyeing purpose;
5. Foot pedal barking to remove tangential belt from spindles, constant spindle speed, easy operation, also extending service life both of tangential belt and spindles;
6. Logic end remaining yarn structure makes latter operation job easy and handy;
7. Easily removable waxing device of air loop housing, bringing more adaptabity to extensive yarn variety.
HW363J2 Parameter
HW363J2 Main Specifications:
| 1 | Machine Form | Double sides, single layer |
| 2 | Spindle Number | 128 Spindles (16 spindles/section ) |
| 3 | Spindle | Φ146 (twist plate), Φ34 (spindle pulley) |
| 4 | Spindle driving | Tangential belt transmission |
| 5 | Spindle speed | 5000~10000r/m frequency inverter speed adjustment |
| 6 | Application | Cotton yarn: 16/2~100/2 Ne Wool yarn: 2/17~2/76Nm Blended yarn: 20/2~45/2 Ne |
| 7 | Twist direction | S or Z |
| 8 | Spindle fixing | Magnetic steel, magnetic force |
| 9 | Spindle distance | 225mm |
| 10 | Twist range | 108~2368 T/m |
| 11 | Tex range | 36.44~7.288 (16s'/2~80s'/2) |
| 12 | Feeding bobbin specification | Φ43.5 x Φ37.5 x 170; Φ66 x Φ26.5 x 170 |
| 13 | Winding capacity | Max.1500g |
| 14 | Winding stroke | 152mm |
| 15 | Winding mode | Flangeless cone bobbins cross winding |
| 16 | Winding angle | 10°51'~23°19' |
| 17 | Winding bobbins | A type head with groove d1=Φ46, d2=17, L1=175 B type head without groove d1=Φ46, d2=24.7, L2=175 |
| 18 | Motor power | 11Kw (or 15Kw) |
| 19 | Starting mode | Frequency inverter starting |
| 20 | Tension device | Pressure spring in tension capsule (or steel ball), brake washer, counterweight are used together |
| 21 | Spindle brake device | Pedal brake |
| 22 | Overall dimension | 16880 x 750 x 1520mm |
Customer Visiting
Customer Visiting:
Packaging & Shipping
Packaging & Shipping:
We mostly use the nude cargo with waterproof plastic bags. We will separate the whole machine into sections after adjustment, and then put each section one by one into the container.
FAQ
FAQ:
Are you the manufacturer or the trading company?
We are the experienced manufacturer of textile machines, especially for the two-for-one twisting machines, doubling winder machines, yarn covering machines and etc. We have got the self-support imports and exports right.
What is your advantage compared with other textile manufacturers?
We are expert at making yarn machines for almost 20 years and we have a professional technical team who can provide special customer requirements. Our machines have been exported to a lot of countries such as Vietnam, South Korea, Uzbekistan, the Philippines, Tunisia, Morocco and so on.
What kind of service can you offer?
Design with your requirements by professional team.
ISO 9001:2008 certificates and letters patent.
Engineers go overseas for training.
How to check my order at last?
We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come here, we can also take photos and videos for your confirmation.
