Product Description

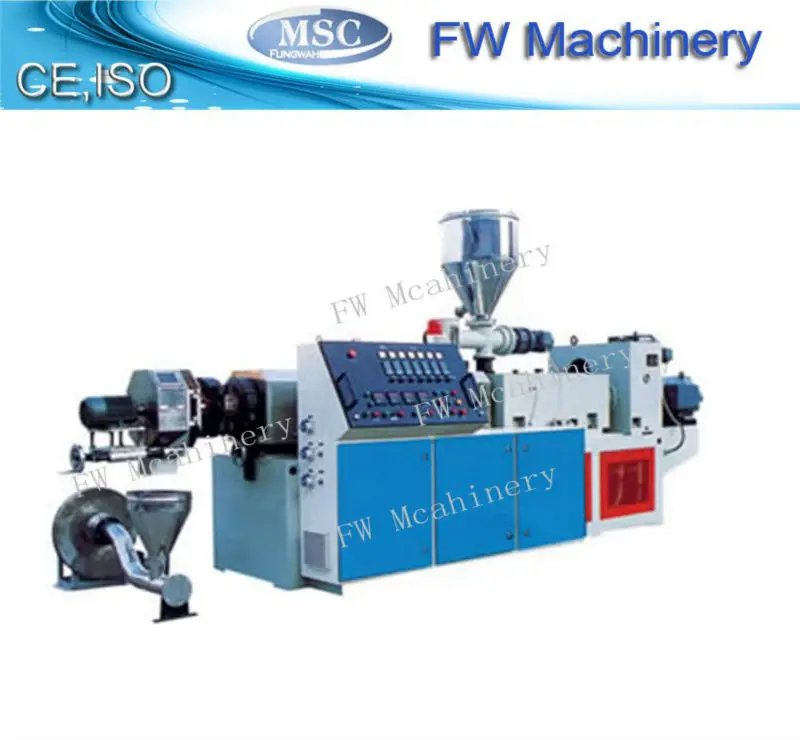

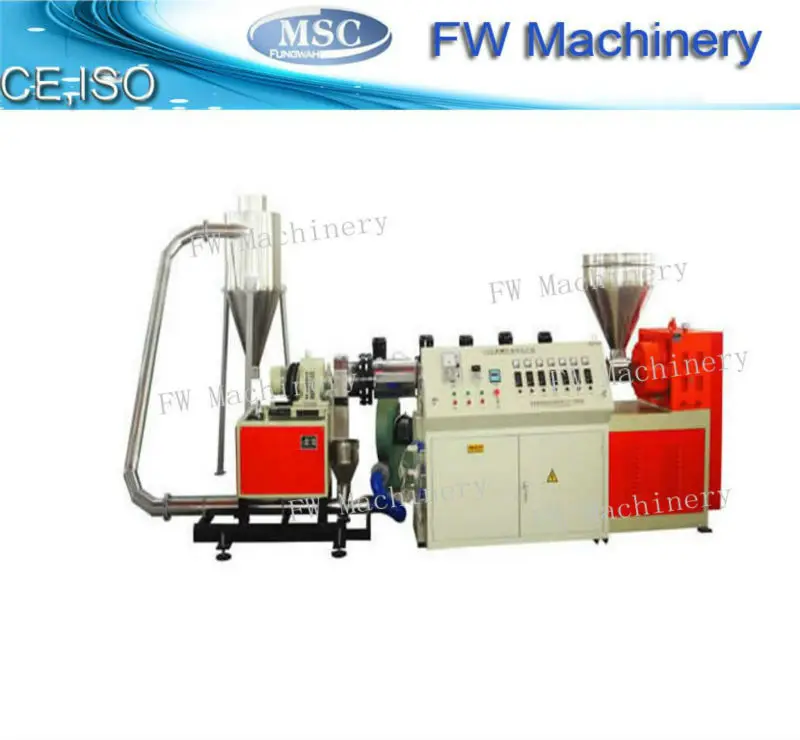

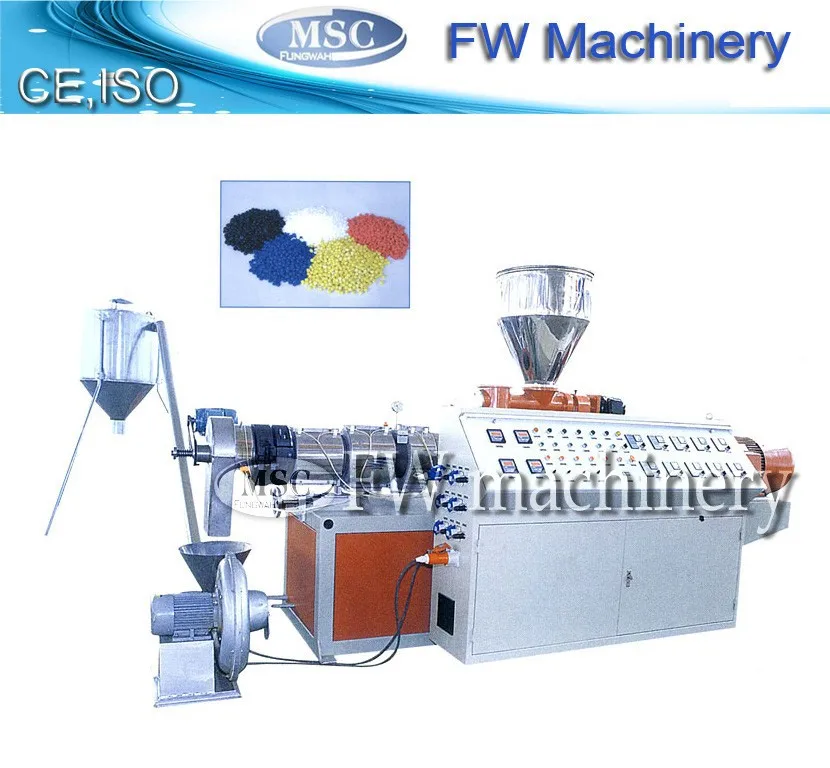

Product application of pvc recycled granulating line

This pelletizing machine has special screw design and different configuration, it is suitable for the recycling and pelletizing of raw materials such as PVC and the pelletizing of the raw materials with different colors. The gearbox is high torque designed which attains the functions of low noise and stable operation. The surface of the screw and barrel have been special treated so that the screw and barrel are wearable, they have very good plasticization and mixing effect and the production capacity is high. The extruder has the vacuum vented design which can exhaust the vapor or gas during the production, so that the output are more stable and the pellets are more uniform.



Technical parameters of plastic hout cutting pelleting equipment
Model
SJSZ80
SJSZ65
SJSZ55
Power
100
70
40
Capacity
400
250
120
Diameter of cutting granulation
Φ3
Φ3
Φ3
Total length
10
10
9


Main list of plastic granules making machine
No.
Machine list
Qty.
1
ZJF series plastic feeder
1set
2
Conical twin screw extruder
1set
3
Granulation mould
1sets
4
Cutter
1set
5
Air delivery device
1set
6
Vibration sieve
1set
7
Stock bin
1set




Certifications




Detailed Images


Screw feefer




Twin screw extruder machine

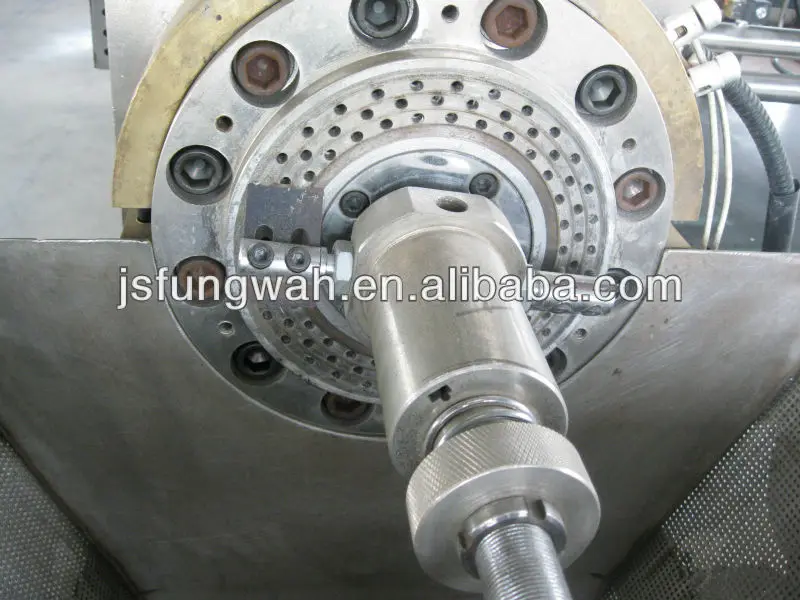

Hot cut die

1.Material 38CrMoAlA,
2.surface nitriding treatment,
3.HV = 950 ~ 1100;



Die face pelletizer (including rail)




Eager and air delivery device
