Shelby tube soil sampler

Shelby tube soil sampler

Thin-wall open-tube samplers (Shelby Tube Samplers) are used for soils that are particularly sensitive to sampling disturbance. They are suitable for fine soils up to a firm consistency, and free from large particles.

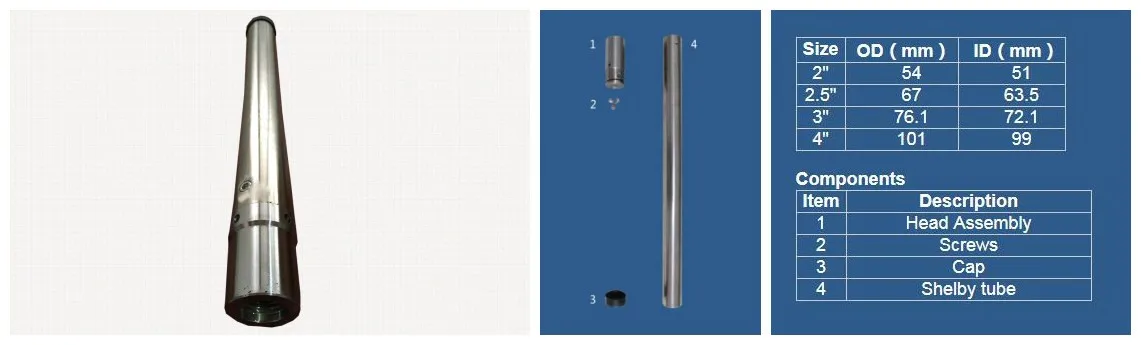

The sampler consists of a thin-walled steel tube whose lower end is chamfered to form a cutting edge. The area ratio is approximately 10%. The Shelby Tube Sampler gives good quality undisturbed samples in all fine cohesive soils, including sensitive clays, provided that the soil has not been disturbed by sinking the borehole.

Sample tubes are driven into the ground by a percussive method, using a Sliding Hammer.

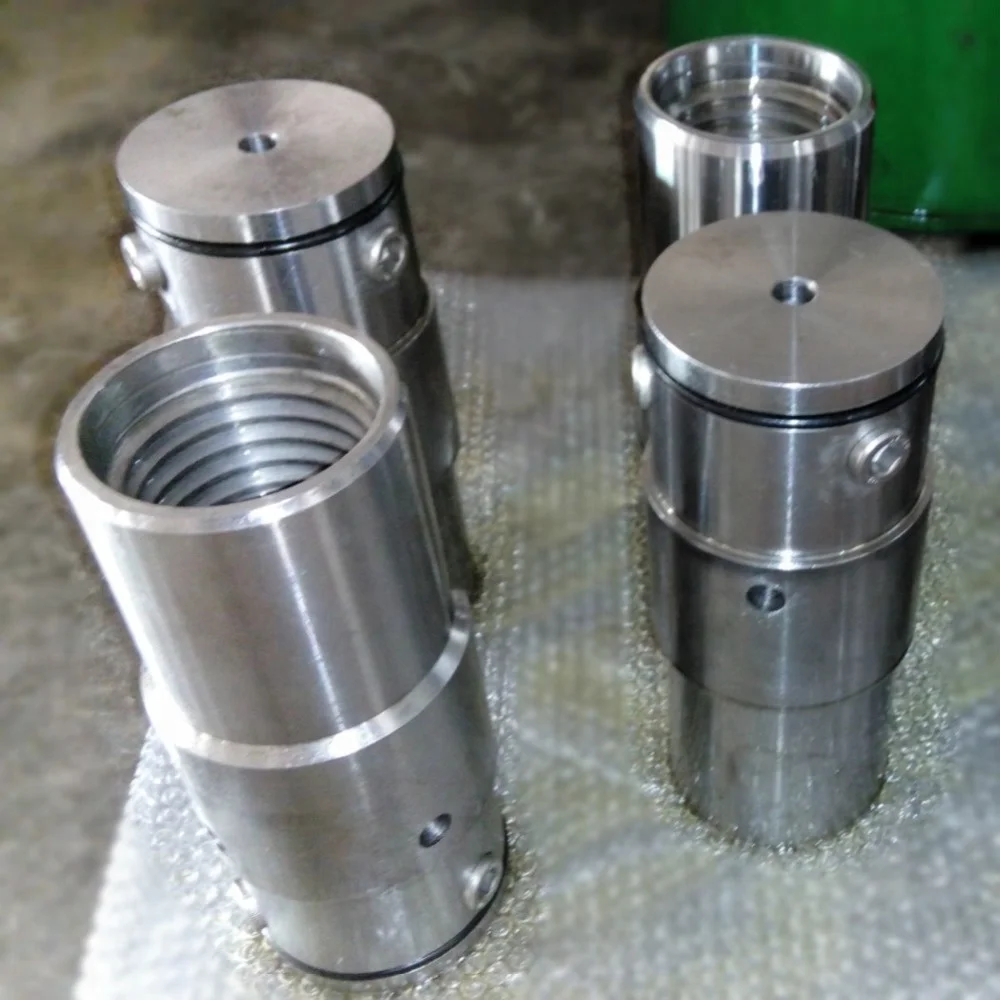

The Drive Head is manufactured with an NW rod female connection unless otherwise specified. The head

has an air-relief port and a simple arrangement for fixing the shelby tubes with 3 screws.

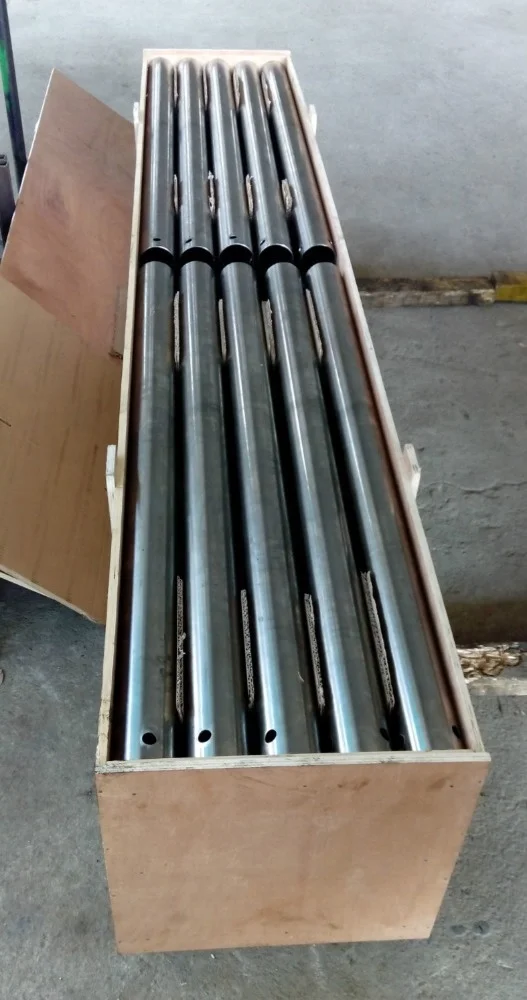

Shelby Tubes are available in cold-drawn seamless carbon steel and in stainless steel.  When specifying the length of the tube required please allow an extra 100 mm for fixing the tube to the drive head.

Please note that the cutting edge is thin and fragile and is likely to distort after some period of normal use. A refurbishment service is offered on used tubes.

This sampler, often reffered to as a Shelby tube sampler, is the simplest and most widely used of the in situ quality samplers. We combined it with HSA technology, in soft, plastic soil conditions. The length of the sample tube between 0, 2 -1.0m.

Q: Are you a manufacturer or trading company?

A: We are a manufacturer, the factory is located in Changsha, Hunan, China.

Q: What are your main products?

A: Our products cover diamond core bit, non-coring bit, reaming shell, core barrel, casing pipe, drill rod, soil sampling equipment and other accessories.

Q: How about the delivery terms?

A: 1. Payment: T/T, L/C, Western Union, Paypal.

     2. No request on min. order quantity.

     3. Transportation: By DHL/UPS/Fedex express, air, sea, train.

Q: How about discount?

A: Price is based on order quantity.

Q: Do you accept sample order?

A: Yes sure, please contact us for details.

Q: How about your after-sales service?

A: As a manufacturer, we offer promt technical support for all issues. Besides we accept goods return or replace for quality problem.

Q: How does your company control the quality?

A: Quality always comes first. In order to guarantee quality for our products, Forsun always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.

1.Import & Export Certificate

2.ISO9001:2000 Certificate

3.Business Registering Certificate

4.Organization Code Certificate
