PA1000 500/1000kg capacity mini electric hoist winch
- Category: >>>
- Supplier: Beijing Tengli Hengxin Crane Machinery Co. Ltd.
Share on (60298102989):
Product Overview
Description
Product Description

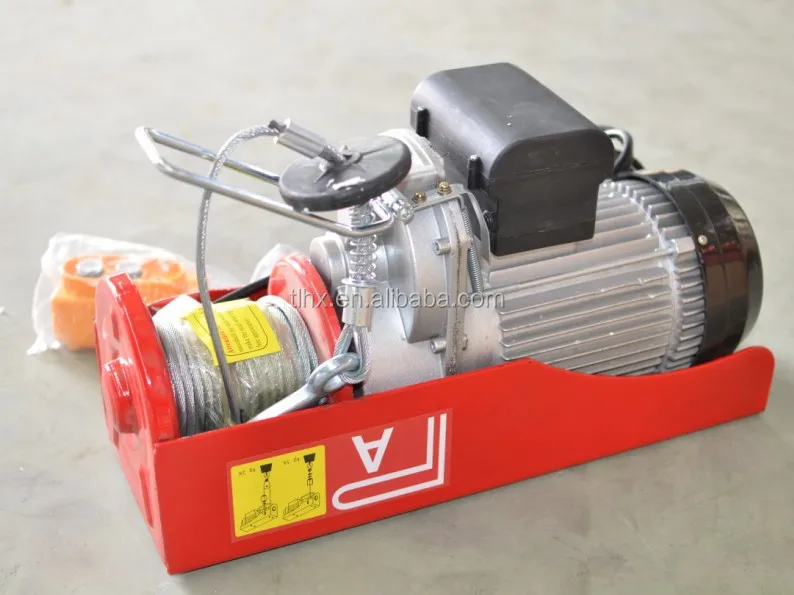

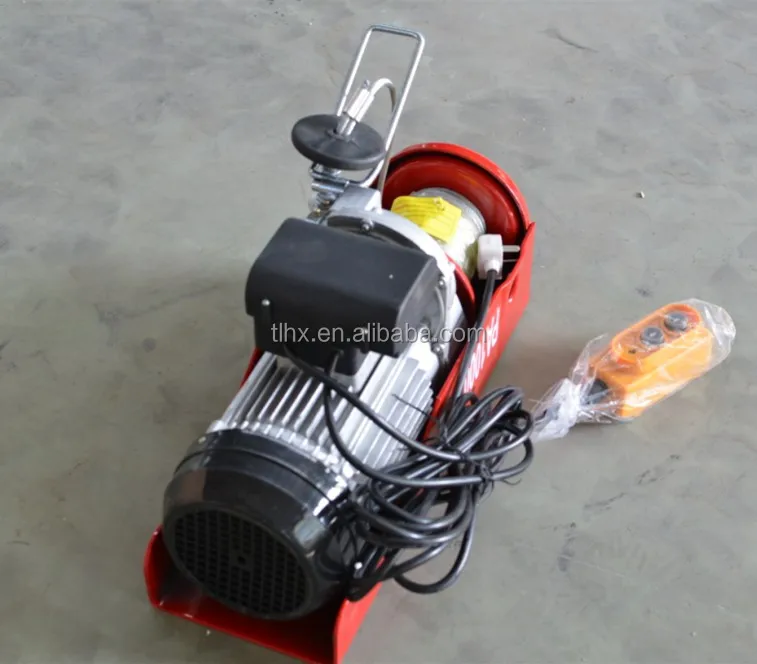

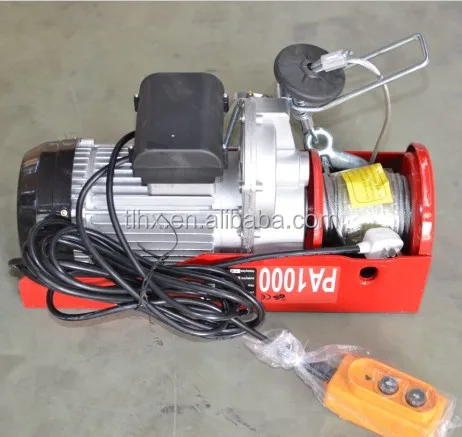

PA1000 500/1000kg capacity mini electric hoist winch
 | Method of use | double hooks | single hook |
| Rated volt | 220V/110V | 220V/110V | |
| Input power | 1600W | 1600W | |
| Lifting capacity | 1ton | 0.5ton | |
| Lifting speed | 4m/min | 8m/min | |
| Lifting height | 6M | 12M | |
package(cm) 1pcs in one carton | 54X22X31 | 54X22X31 |
PA mini electric rope hoist can be used in factories, mines, agriculture, electric power. Construction building
site, dock and warehouse for installation of the machines, lifting the cargoes Loading and unloading the trucks
This small hoist lift up to MAX.1000kg,the power is 110V or AC 220V single phase,it can be used at home. Perfect for general maintenance lifting or engine repair applications.
PA1000 1t electric rope hoist parameters:
Model | Usage Method | Voltage (V) | Input power (w) | Capacity (kg) | Lifting speed (m/min) | Lifting Height(m) | Qty/Carton (pcs) | Packing dimension(cm) | GW/NW. (kg) |
PA200 | Single line | 220/110 | 510 | 100 | 10 | 12 | 2 | 44×38×20
| 24/22 |
Double line | 200 | 5 | 6 | ||||||
PA250 | Single line | 220/110 | 550 | 125 | 10 | 12 | 2 | 44×37×25 | 25/23 |
Double line | 250 | 5 | 6 | ||||||
PA300 | Single line | 220/110 | 600 | 150 | 10 | 12 | 2 | 47×37×16 | 26/24 |
Double line | 300 | 5 | 6 | ||||||
PA400 | Single line | 220/110 | 980 | 200 | 10 | 12 | 2 | 52×45×17.5 | 35/33 |
Double line | 400 | 5 | 6 | ||||||
PA500 | Single line | 220/110 | 1020 | 250 | 10 | 12 | 2 | 52×45×17.5 | 36/34 |
Double line | 500 | 5 | 6 | ||||||
PA600 | Single line | 220/110 | 1200 | 300 | 10 | 12 | 2 | 53×45×19 | 38/36 |
Double line | 600 | 5 | 6 | ||||||
PA800 | Single hook | 220/110 | 1300 | 400kg | 10 | 12 | 2 | 53×28×35 | 40/38 |
Double hook | 800kg | 5 | 6 | ||||||
PA1000 | Single hook | 220/110 | 1600 | 500 | 8m/min | 12 | 1 | 53×28×35 | 32/30 |
Double hook | 1000 | 4m/min | 6 |
Pictures Show :

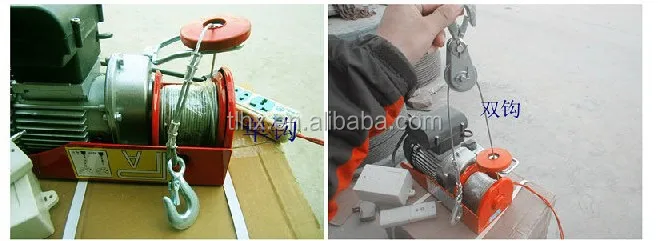

How to use the PA1000 mini electric crane hoist?

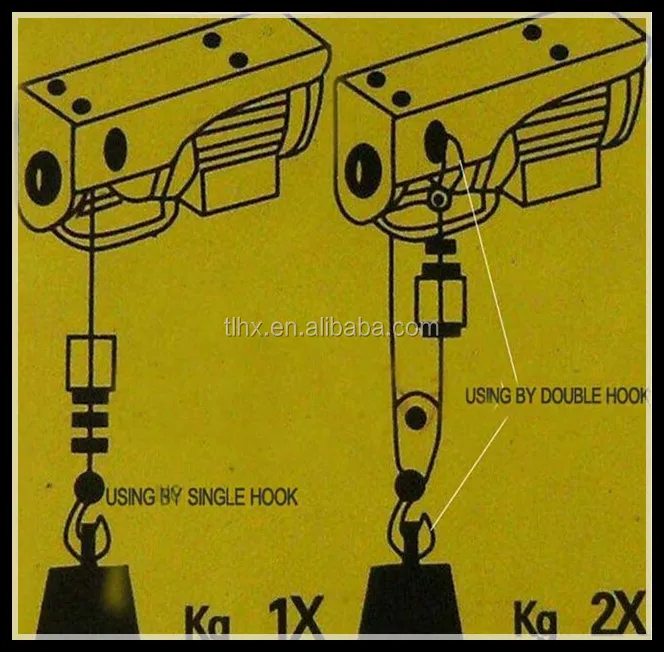

It is very easy to operate,there are two hooks for the PA1000 wire rope lifting hoist,you can use by single hook or double hook,when you lift the goods by double hooks,it can lift 1000kg with 6M high,and single hook can lift 500kg with 12M high.The following picture usage is for your reference
We produce the PA model mini crane lifting hoist by copper wire motor,which is more durable
Packaging & Shipping
For PA1000 mini lifting hoist winch,we pack by using cartons,1pc in one carton
