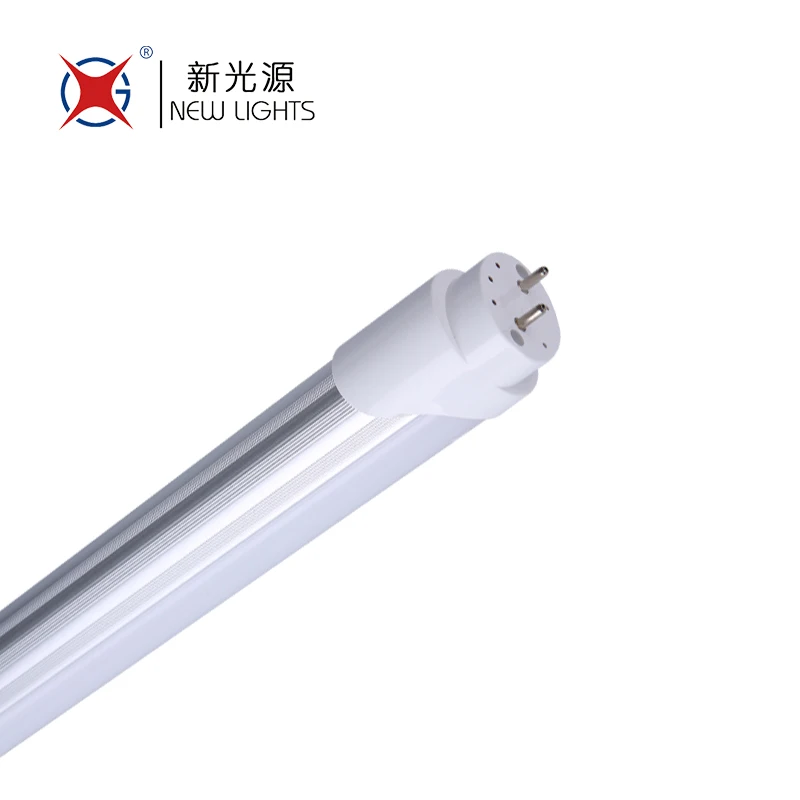

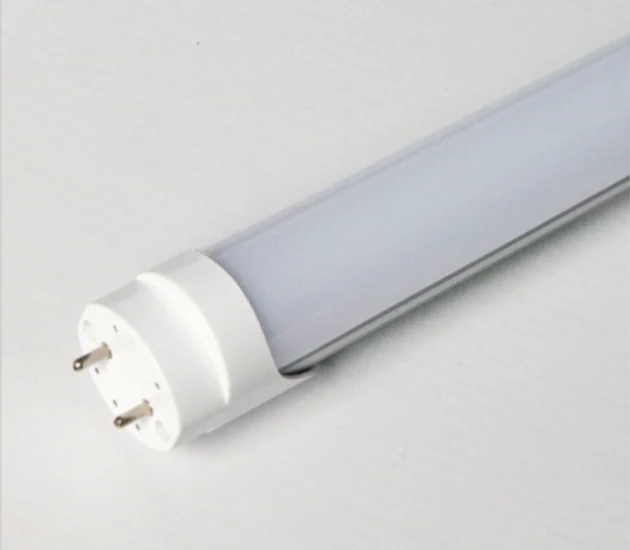

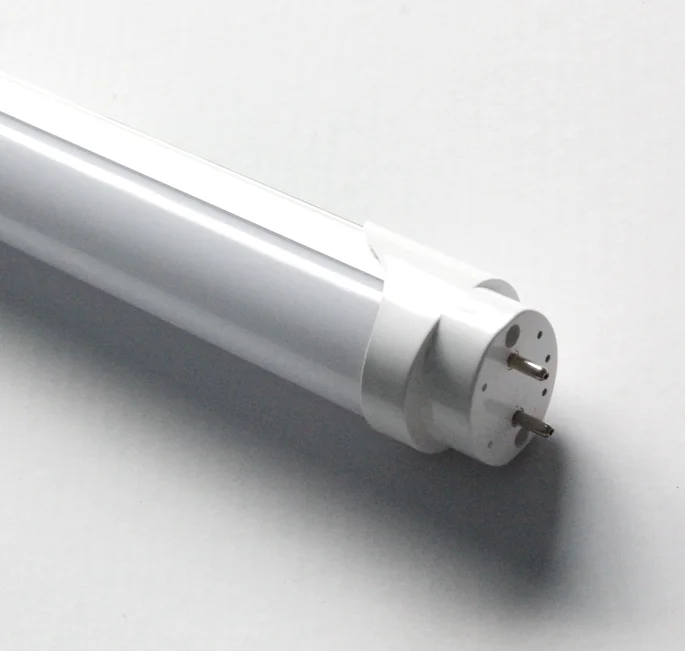

Color temperature changing double pin t8 led tube made in china smd2835 led tube

Product Overview

Description



Color temperature changing double pin t8 led tube made in china smd2835 led tube



Products Advantages of made in china smd2835 led tube
1.Longer life time 30,000hrs.
2.Higher luminous efficacy,90-100lm/w.
3.Lower luminous decay, 10% at 2000hrs.
4.Lower energy usage, up to 50% energy saving.
5.Environmental friendly, no mercury content.
6.Instant start, no delay and flickers.
7.IC Driver, constant current, safety guaranteed.
8.Passed CE, RoHS, ERP, SAA certification.
9.More attractive price.
10.No flash.



Made in china smd2835 led tube datasheet

Electrical data

LED chips	SMD 2835 60pcs
Rated wattage	9W ± 0.5W
Nominal voltage	85-265V
Operating frequency	50/60Hz
Power factor	>0.9
Claimed equiv. conventional lamp power	18W



Photometrical data

Beam angle	180°
Nominal luminous flux	900lm
Rated luminous flux	900lm
Color temperature	3000-6500K
Light color as per EN 12464-1	Warm Light - Day Light
Standard deviation of color matching	<6.0sdcm
CRI(Ra)	80







Dimensions

Overall length	600mm
Diameter	28.0mm



Life span

Nominal lamp life time

30,000hrs



Additional product data

Energy efficiency class	A
Material	Alu+PC



Items No.

Type	power	Dimension(mm)	CRI	LED chips	voltage	Power factor	luminous flux	Color temperature	Material	base	certifications
T8 6w	6w	28*331	80	SMD 2835 30pcs	85-265V	>0.9	450lm	3000-6500K	Alu+PC	G13	ISO CE CB
T8 10w	10w	28*590	80	SMD 2835 60pcs			800lm
T8 15w	15w	28*890	80	SMD 2835 78pcs			1250lm
T8 18w	18w	28*1199	80	SMD 2835 104pcs			1600lm
T8 20w	20w	28*1199	80	SMD 2835 120pcs			1800lm
T8 24w	24w	28*1499	80	SMD 2835 144pcs			2200lm





made in china smd2835 led tube Feature

1.  can directly repalce T8 Fluorescent tubes.
2.  high lumen and constant current technology.

made in china smd2835 led tube Advantage
1. Super energy saing, long life lasting.
2  No flickers, no UV radiations, environmentalfriendly.
3 Compatible to the traditional fixtures, easy toreplace.

made in china smd2835 led tube Applications
1).Hotels, Hospitals, Factories & Offices
2).Commercial Complexes
3).Conference/Meeting rooms
4).Residential/Institution Buildings
5).Schools, Colleges & Universities







Our Ability:

• over 14 years experience in fluorescent led tube and fixture, we believe we can do well in LED500 workers, short delivery time.
• ISO 9001:2008 International Quality System authorization.
• 11 years member credit of alibaba organization.
• best service based on lowest price and good quality.



Our QC:

       We have obtained the ISO9001 Quality Control Management System since 2000;

       We  have 16 QC staff in our factory and another 10 QC staff doing in-line inspections.













1. We have a 17-year experience in lighting and we know what our customer truly want.
2. We are Alibaba Assessed 10 years Gold Supplier.
3. We are very careful with the qualified raw material selection, best production capability, best service.
4. 100% QC inspection before Shipment.
5. CE/RoHS/SAA/ERP/CB listed, competitive price.





made in china smd2835 led tube packing

• One piece in a PE bag, then in a paper roll package
• One PE bag in a individual carton
• 25 pcs in a standard export carton

Packing data

PCS/CTN	25
Meas	124*19.5*20
CBM/CTN	0.0484



made in china smd2835 led tube shipping



Option 1: Choose a FCL of either 20GP, 40GP or 40HQ and enjoy a better price.

Option 2: Buy at LCL.

We offer the following shipping methods:

1) Courier services like FedEx, DHL for sample order.

2) Air shipment for emergency order.

3) Sea Shipment for bulk order.





Sample Service

• Small quantity of samples are free of charge, buyer shoulder the fright cost
• Sample delivery time is around 3-7 days after confirmation

Customized Service

• We accept OEM order and we can help customer design
• We also offer ODM service to customer when needed

After-sale Service

• We offer 7/24 Service
• Any quality issue, once confirmed, we will compensate our customer





FAQ:

Q1: What is the beam angle of your 17W T8 Glass Tube?

A1:  320 °.

Q2. How about your R&D group?

A2: We have a professional R&D group which is valued by our company, and each year, there will be more than 5% of the turnover used to invest in R&D. Thanks to them, our New Lights are now winning good reputations around the world.

Q3. Is it OK for us to visit your factory for 17W T8 Glass Tube?

A3: You are always warm welcome to visit both our factories. We are located in Yangtze River Delta, which is close to Hangzhou, Shanghai and Ningbo. If you really want to come to our company, we can also arrange drivers to pick you up.

Q4. If I have some failed product, how to deal with it?

A4: You can totally trust our products quality and this situation happens rarely, because during producing, we have a strict testing system to guarantee the quality, making sure our customers just get the right products. But, if it does happen, you may need to send us some details of the failed 17W Glass Tube  such as the operating condition and the surroundings, better with picture. Once we confirmed it is kind of Quality Issue from our side, we will send you replacement within your next shipment.

Q5: Do your LED bulbs emit UV light?

A5: No. But you should never point an LED light into your eyes. The light is very bright and could cause damage.
