Recycling Machine TS 1000 Rubber Shredder, Tire Shredder
- Category: Tire Shredders >>>
- Supplier: Xuchang Huarui Machinery Co. Ltd.
Share on (60301338316):
Product Overview
Description

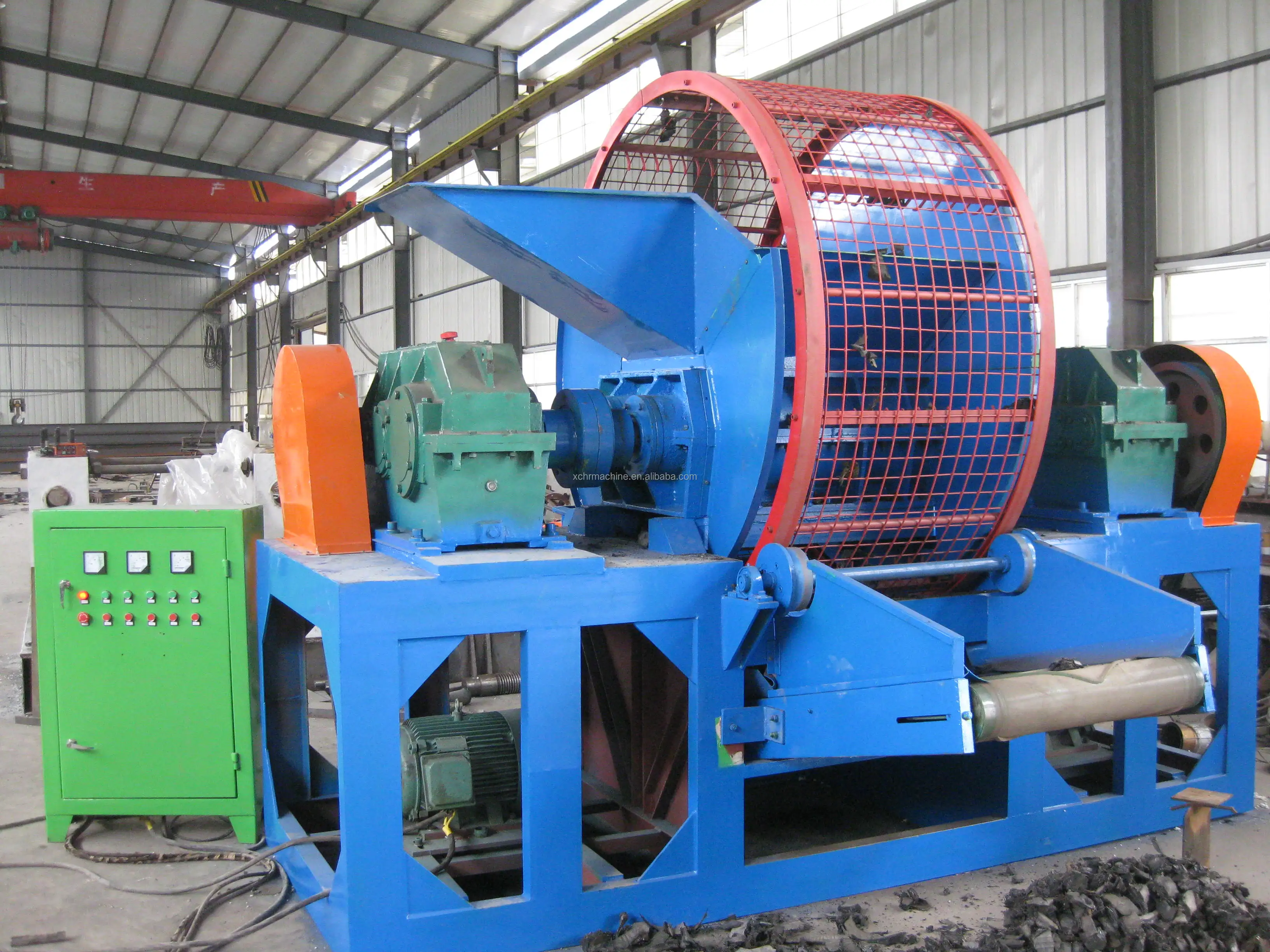

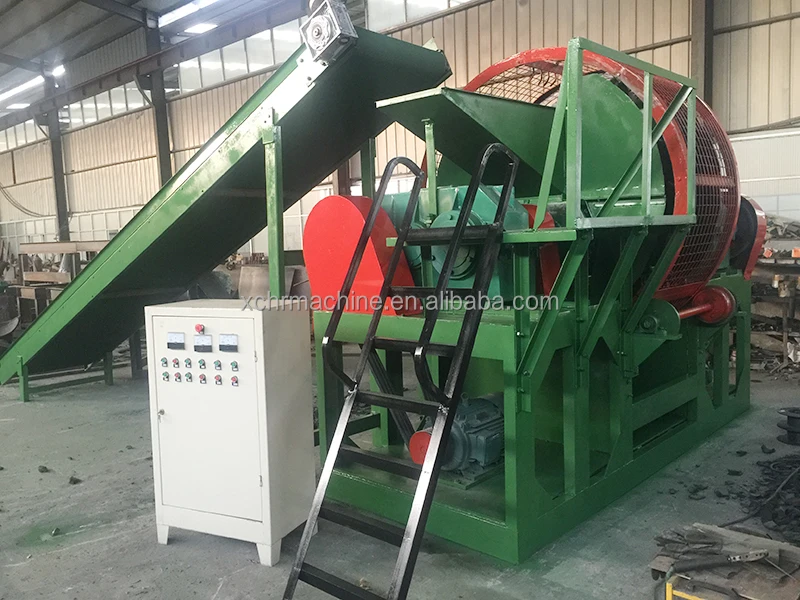

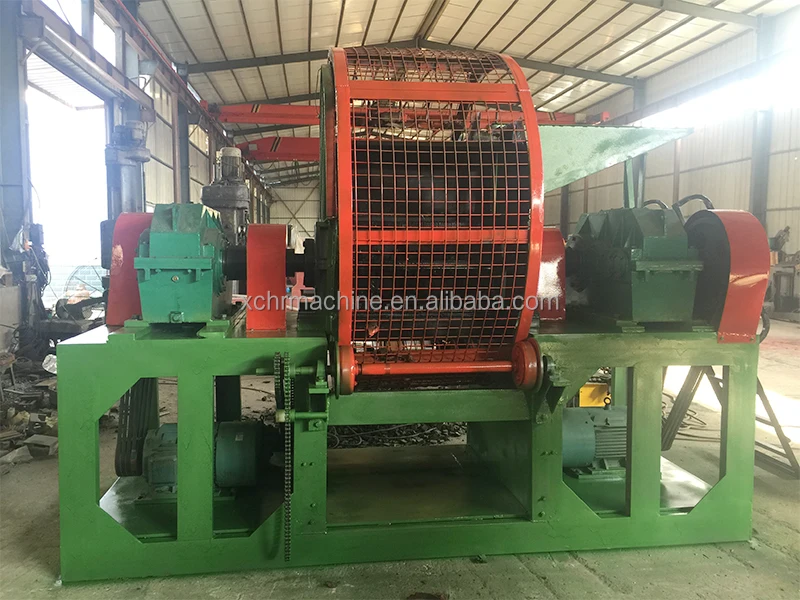

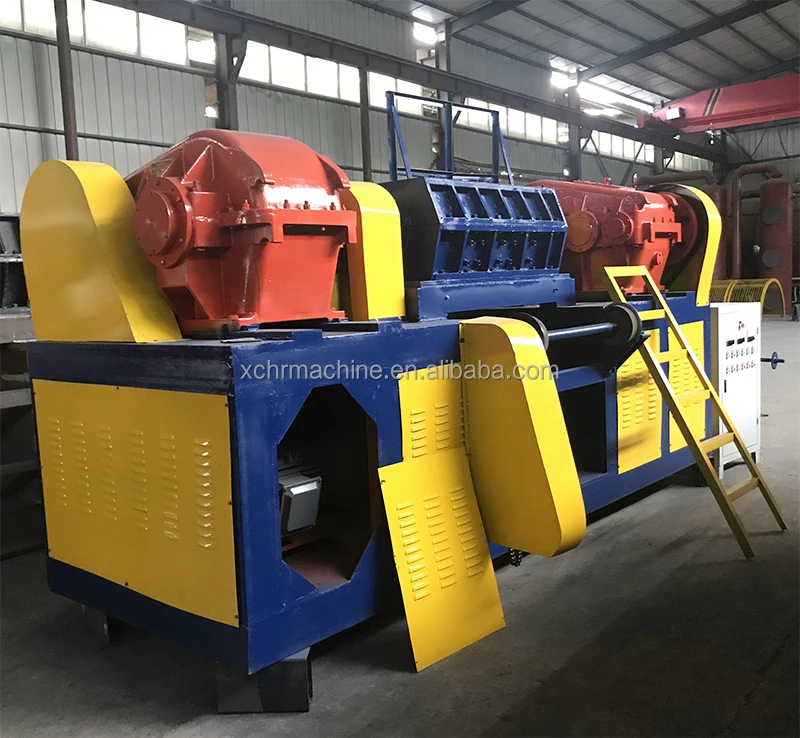

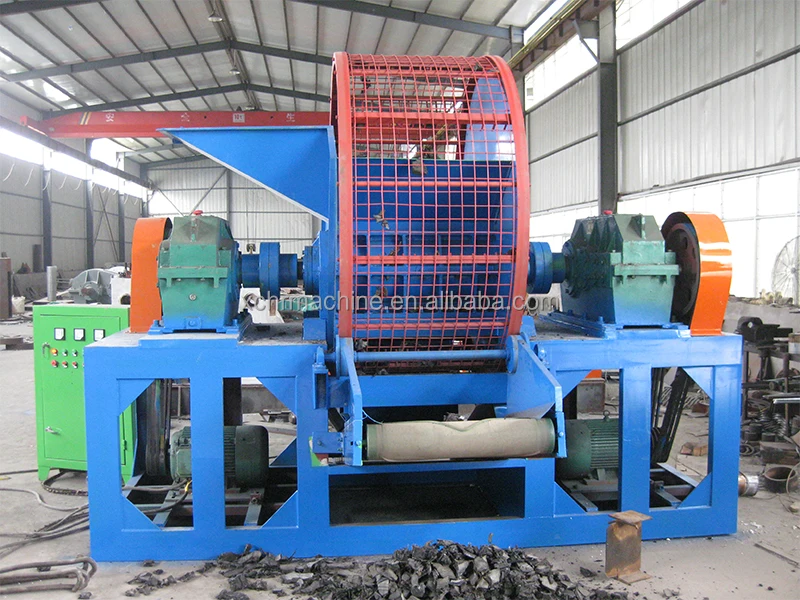

Recycling Machine TS-1000 Rubber Shredder, Tire Shredder

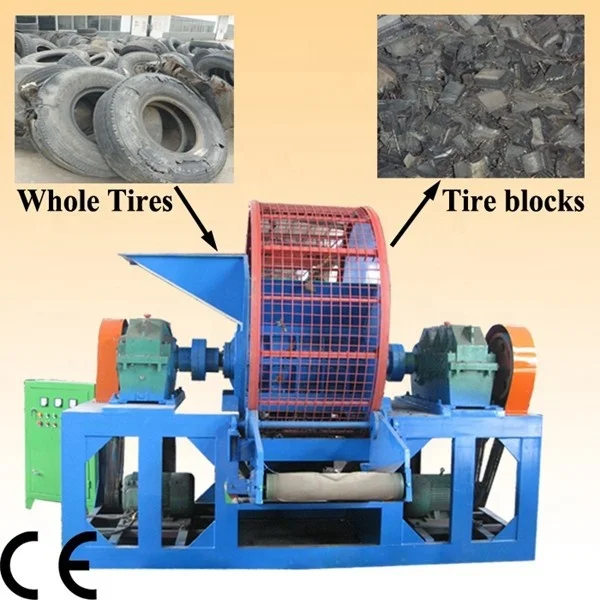

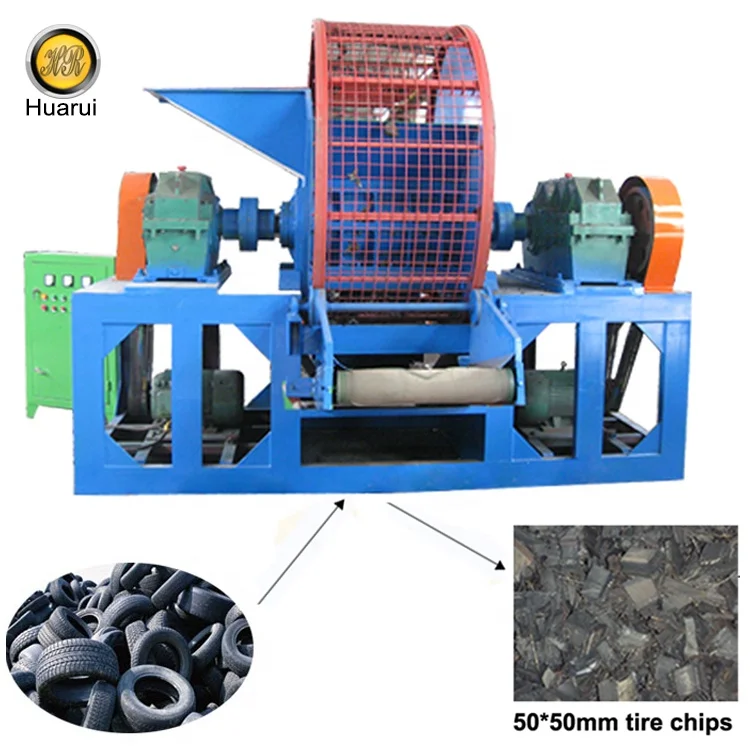

Function: The tire shredder is used to make whole tire to 50mm*50mm rubber chips.
Main technical parameter:
Model No. | TS-1000 |
Output(T/h) | 2-4on |
Feed size of tire(mm) | ≤φ1000 |
Output size(mm) | ≤50*50 |
Power(KW) | 45*2+3+1.5 |
Speed(r/min) | 17 |
Equipment weight | 12T |

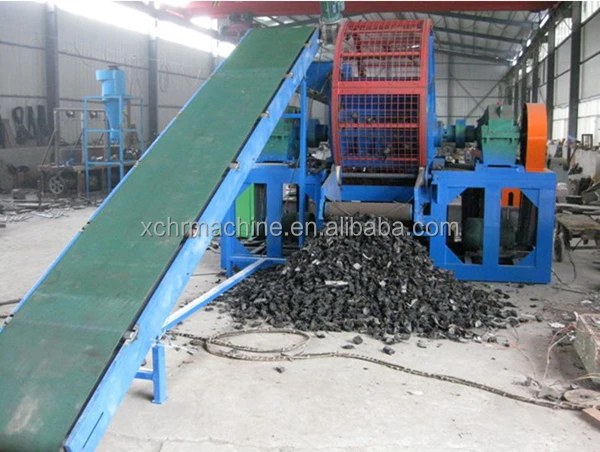

| The equipment include two conveyor belt | |
More pictures:
Other models available
Model No. | TS-800 | TS-1000 | TS-1200 | TS-1500 | TS-1800 |
Output(T/h) | 1-2T/h | 2-4T/h | 4-6T/h | 8-10T/h | 13-15T/h |
Feed size of tire(mm) | ≤φ900 | ≤φ1000 | ≤φ1250 | ≤φ1500 | ≤φ1800 |
Output size(mm) | ≤50*50 | ≤50*50 | ≤60*60 | ≤75*75 | ≤85*85 |
Power(KW) | 22/30*2+4 | 45*2+3+1.5 | 75*2+5.5 | 90*2+5.5 | 110*2+5.5 |
Speed(r/min) | 17 | 17 | 17 | 17 | 17 |
Equipment weight | 9T | 12T | 15T | 18T | 20T |

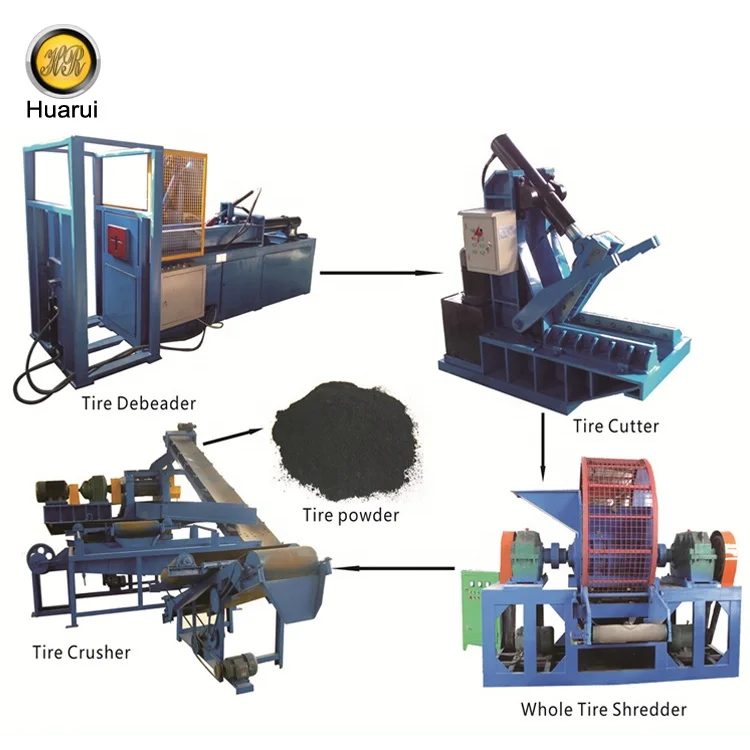

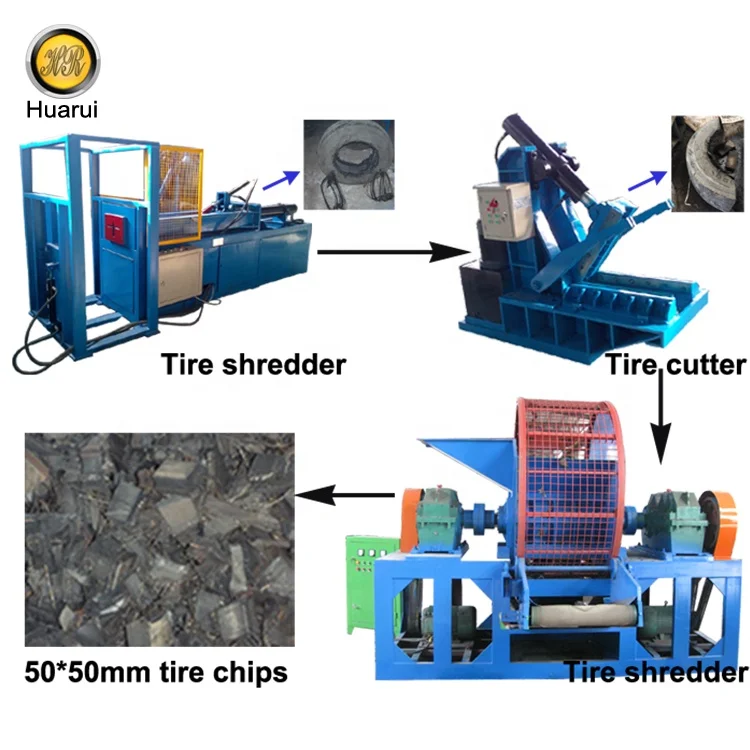

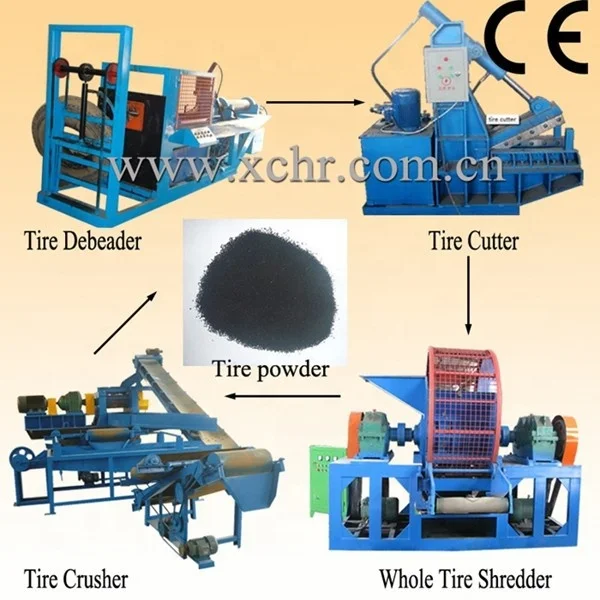

Other related equipment:

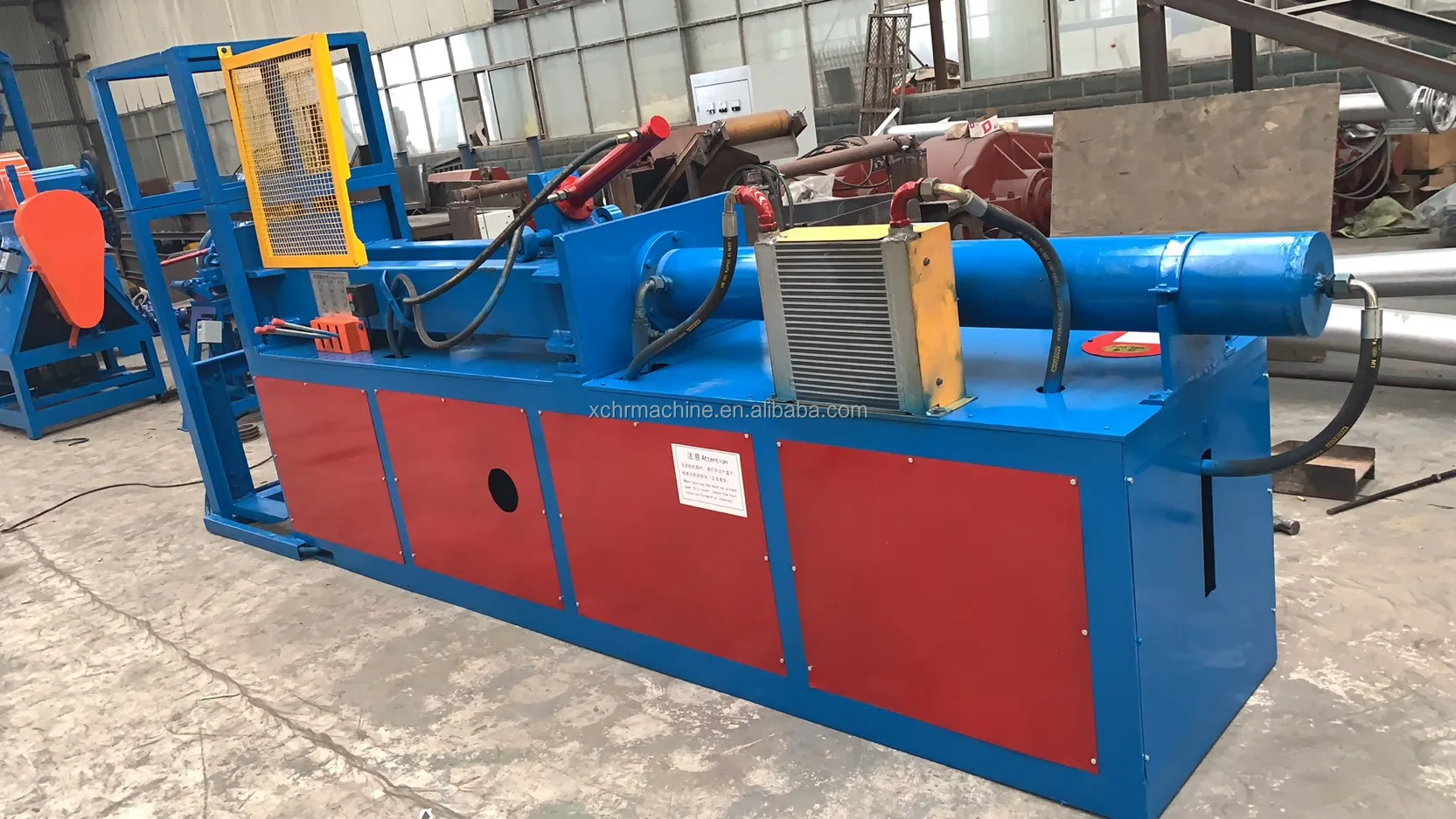

1. Tire Wire Drawing Machine
Application: used to draw out the steel loops from the tire bead.
Technical parameter:
Model No. | TD-1200 |
Feed size of tire(mm) | ≤φ1300 |
Capacity(tires/h) | 30-40 |
Power(KW) | 11 |
Overall dimensions(m) | 4.1*0.9*1.7 |
Equipment weight (T) | 1.8 |

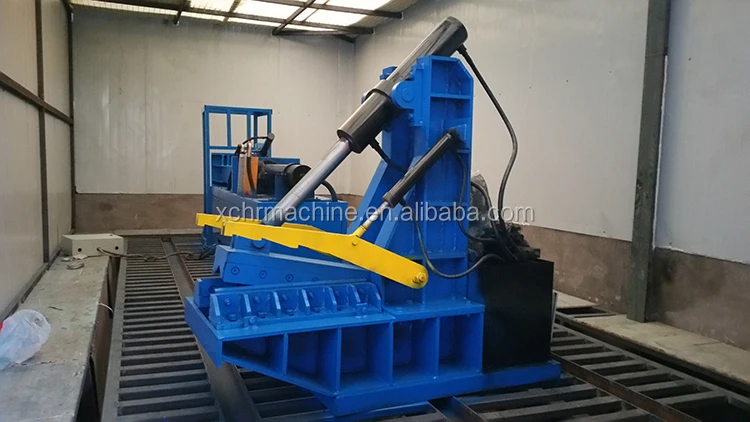

2. Tire cutting machine
Application: used to cut big tires to tree pieces or smaller pieces.
Technical parameter:
Model No. | TC-1200 |
Feed size of tire(mm) | ≤φ1300 |
Capacity(tires/h) | 30-40 |
Power(KW) | 5.5/7.5 |
Overall dimensions(m) | 1.9*0.9*1.85 |
Equipment weight (T) | 1.5 |

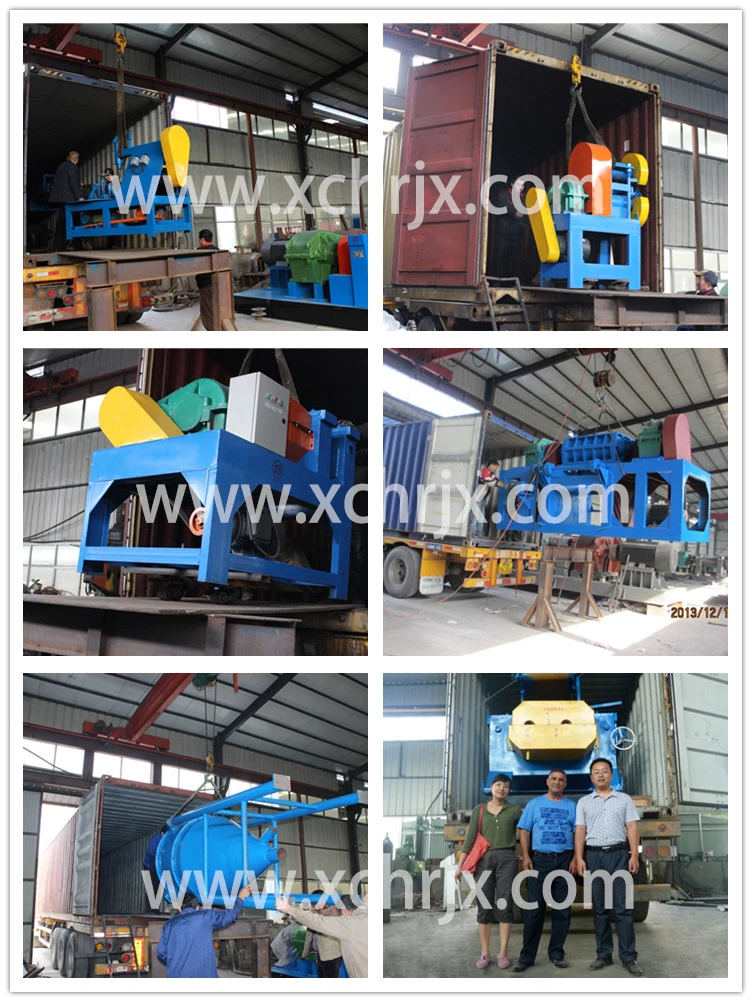

Packing and Shipping
Contact person: Ada Wang,
Skype: wu.ada1 ,
Whatsapp/Wechat is 0086 13569926370
