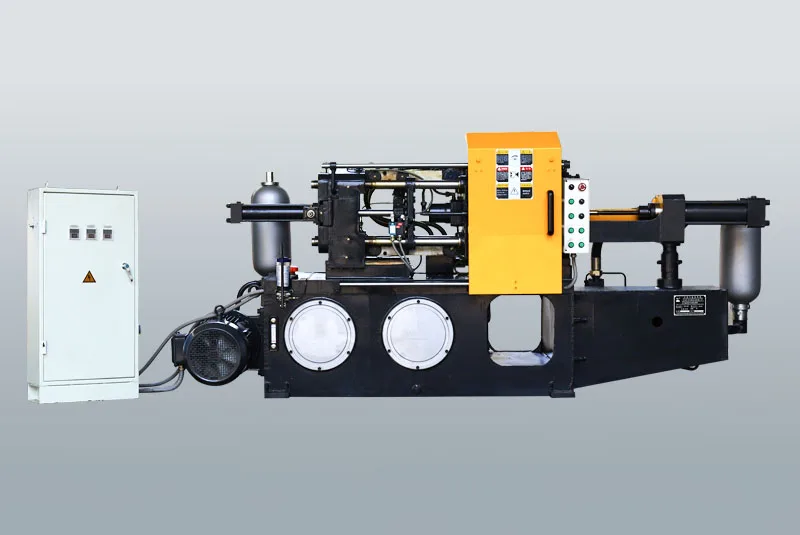

300kN Aluminum casting machine

Product Overview

Description

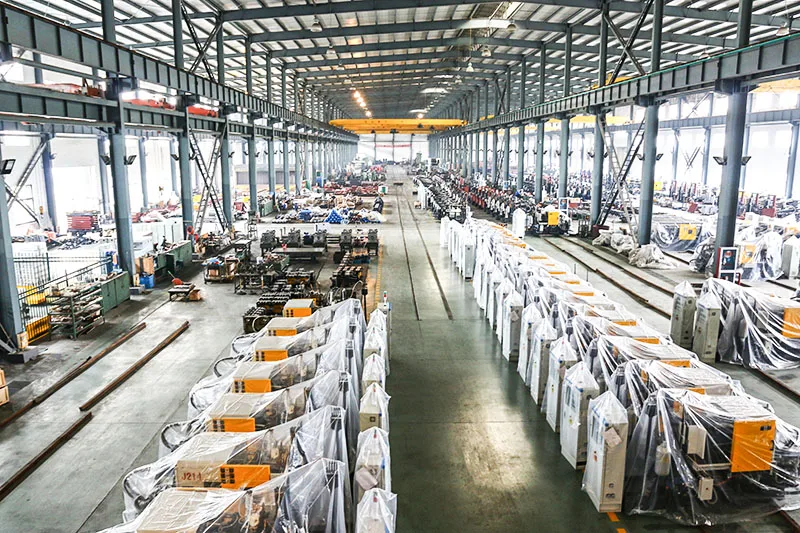

Strategy  In Ningbo Dongfang Die-casting machine Tool Co.,Ltd.,  the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 37 years, we always have perisistently pursue to provide perfect hot chamner and cold chamber die casting machine and sincere service.   * With a history of over  37  years                        * Factory Area : 40,000 square meters    *Employees : More than 500                                 *Production Capacity : 10,00-sets yearly capacity *Company owed Tech & Research center           * Main Machines: 100sets                        J113B Aluminium pressure die casting machine Features and applications 250Kn/25T Cold Chamber Casting Machine Suitable for aluminum,zinc and copper alloy Electronics control hydraulic drive 2-step injection system Two kinds of driving modes as manual and semiauto     This  cold chamner aluminum pressure die casting machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum,zinc and copper in industries of automobiles, motorcycles,meters and instruments,hardware and military supplies. It has a low price and high quality.   Electronics control,hydraulic drive,locking that is tensile,operational safety,2-step injection system that is fast   and slow speed can be separately adjusted.   There're two kinds of driving modes as manual and semiauto. It is a kind of small size pressure die casting      machine for Aluminum,zinc,copper alloy.   J113B Aluminum die casting machine Parameters                           Standard Configuration Spotting   Spotting limited position switch Injection Four level injection --- Slow injection  & Fist Rapid injection & Second  Rapid injection & Added injection Ejection pin limited position switch Independently fast accumulator Manul central lubrication system Gooseneck standard is25/35 Moving platen gliding adjustable Hydraulic Relief pressure control Die open&close stroke adjustable Control Relay control   Main Technical Parameter Table   Technical Figures Unit  Figures Spotting Spotting force kN(ton) 250(25)   Platen dimension(H×V) mm 400×400   Inner space between pull rod (H×V) mm 240×240   Diameter of pull rod mm 46   Stroke of spotting  mm 200   Max. thickness of die mm 320   Min thickness of die mm 120 Injection Injection force kN 35   Stroke of Injection mm 250   Diameter of standard Injection room mm 25/30   Dosage of metal per shot (Aluminum) Kg 0.2/0.3   Punch nun output(counted from fixed  plate install surface mm 60   Shot center position (0 is center of machine plate) mm 0, -30 Ejection Ejection Force kN 26.9   Stroke of Ejection mm 50 Time per Cycle  Total time of die open&close,  ejection& ejection return,  injection&injection back. s 8





Aluminum die casting machine



we can supply this kind Aluminum die casting machine with the die locking force from 250kN to 2800kN.  We do best in the manufacturing process from the material,including forging steel and iron plates,  to manchining,  japanning and assembly.





FAQ

Q:Are you a manufacturer of a trade company?

A:We are a manufacturer.And we have our own Export rights.



Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?

A:It 's no proplem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .



Q:How is your delivery time?

A:Generally ,we can dilivery the machine within 7-10 days after receiving your advance payment.

But it also depends on the iterm and the quantity of your order.



Q:How about the payment terms?

A:Generally ,the 30% T/Tdeposite ,the balance 70% T/T before delivering the goods.



Q:How about your warranty and after-sales services?

A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.



Q:How about your packing ?

A:Generally ,the machines are in nude packing and the spare parts are in wooden cases.
