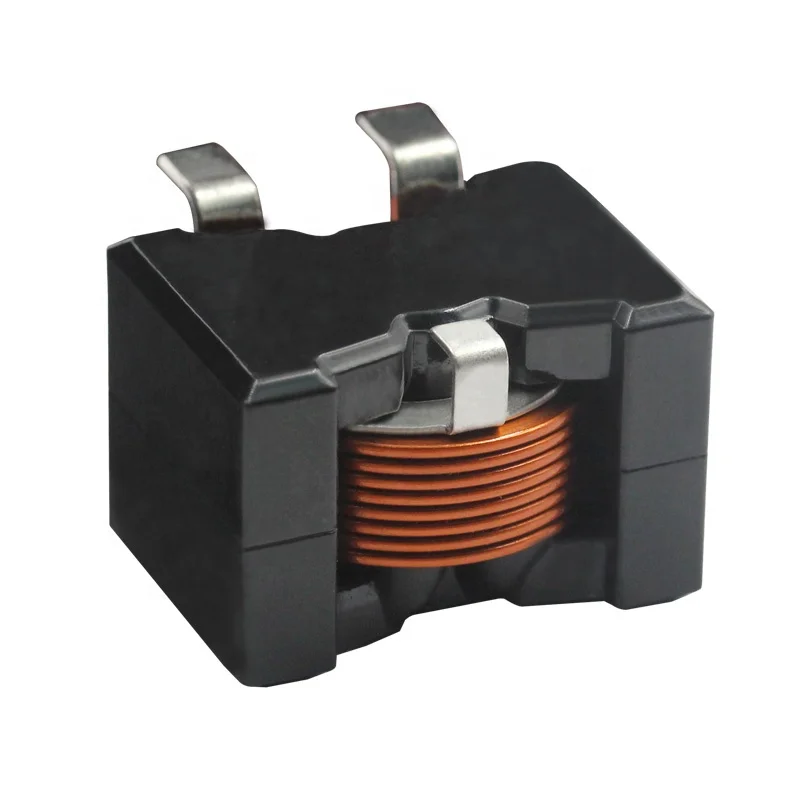

CODACA SMD Mn Zn Ferrite Core automotive electronic CSCF2918 Series High Current Power Inductor 1uH 33uH
- Category: Ferrites >>>
- Supplier: Shenzhen Codaca Electronic Co. Ltd.
Share on (60301860587):
Product Overview
Description
Product Description
Features:
1. Magnetically shield construction, anti-electromagnetic interference, ultra low buzz noise, high density installation.
2. Low magnetic loss, low DC resistance, highest curent in this package size.
3. Three terminals, stabal soldering, anti-oxidation, easy to solder.
4. Fast paint stripping craft, PIN finished smoothly, no distortion, easy to solder.

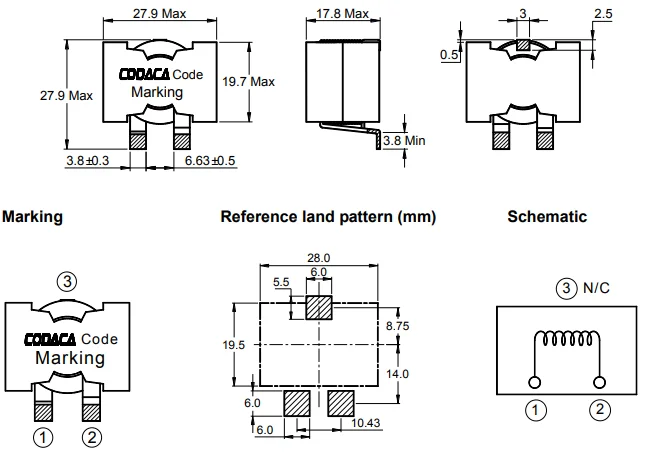

Appearance and dimensions (mm)
Electrical Characteristics
| Part No. | Inductance(μH) | DCR(mΩ) | Saturation Current(A) | Temperature rise current(A) | |
| Typical | Max | ||||
| CSCF2918-1R0MC | 1 | 0.5 | 0.6 | 120 | 60 |
| CSCF2918-1R5MC | 1.5 | 0.72 | 0.87 | 110 | 50 |
| CSCF2918-2R2MC | 2.2 | 0.72 | 0.87 | 85 | 50 |
| CSCF2918-3R3MC | 3.3 | 2.6 | 2.86 | 91 | 28 |
| CSCF2918-4R7MC | 4.7 | 2.6 | 2.86 | 61.2 | 28 |
| CSCF2918-6R8MC | 6.8 | 2.6 | 2.86 | 45 | 28 |
| CSCF2918-100MC | 10 | 2.6 | 2.86 | 31.2 | 28 |
| CSCF2918-150MC | 15 | 2.6 | 2.86 | 21.2 | 28 |
| CSCF2918-220MC | 22 | 2.6 | 2.86 | 14 | 28 |
| CSCF2918-330MC | 33 | 2.6 | 2.86 | 8.7 | 28 |

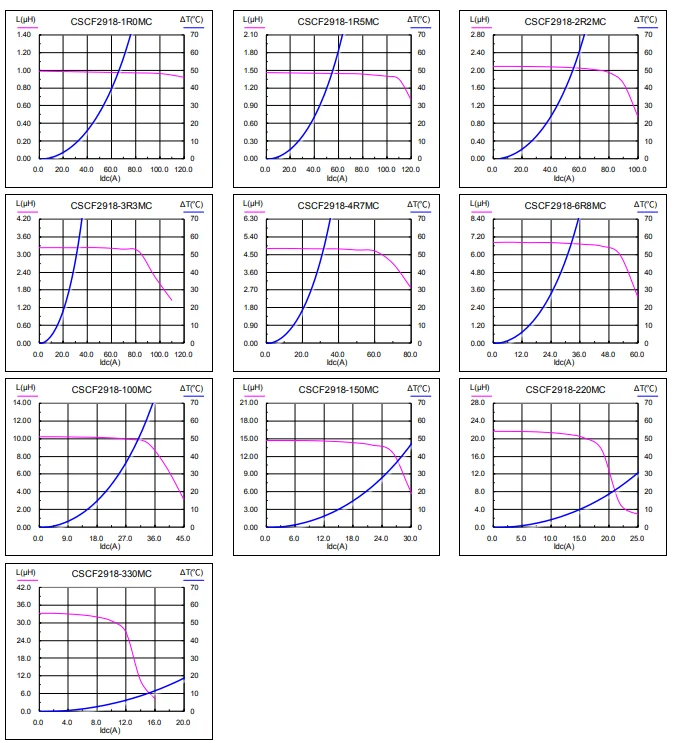

Saturation current VS temperature rise current curve
Company Information
Our Services
Q1. What's your main products ?
A: Our main products are High Current Power Inductor, Molding Power Choke, High Current Power Inductor for Digital AMP, SMD Power Inductor and DIP Inductor.
Q2. Which area are your inductors applied to ?
A: Codaca inductors are widely applied to LED Lighting, Automotive Electronic, New Energy, Medical Electronic, Industrial Control, Communication Equipment etc.
Q3. Could you provide samples for testing ? And what is the lead time ?
A: Yes. Samples will be provided as per requirement and it will take about 4-7 days lead time.
Q4. What is the trade terms ?
A: EXW, FOB, CIF etc.
Q5.What is the payment terms?
A: T/T, Paypal, Western Union are available.
