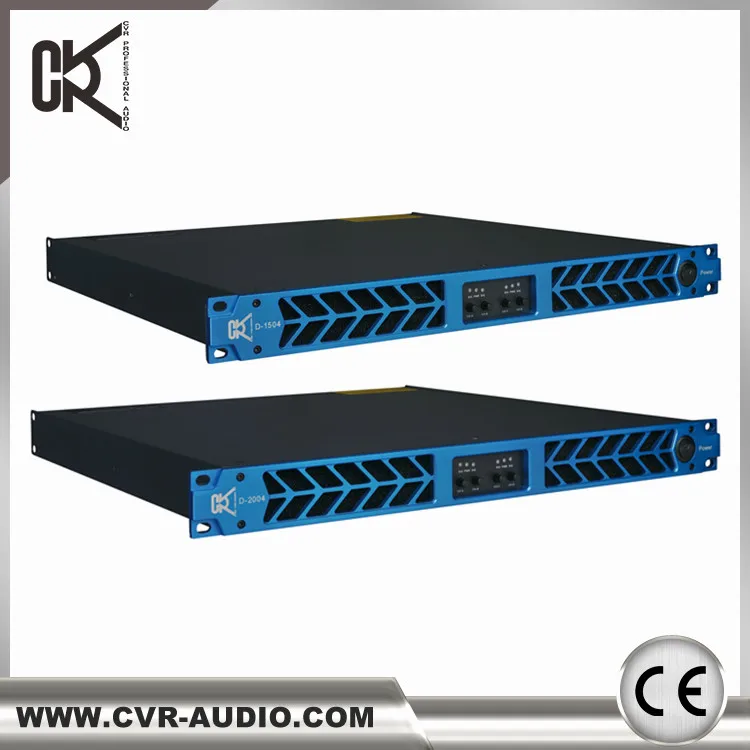

CVR D 2004 AMPLIFIERS dj amplifier system subwoofer amplifier

Product Overview

Description



CVR PRO AUDIO aims to:
Become your most trusted and reliable manufactory
Provide high quality pro sound equipment at realistic prices
Provide outstanding designs together with delicate finished
Provide meticulous and considerate service for clients
See more at: www.cvr-audio.com

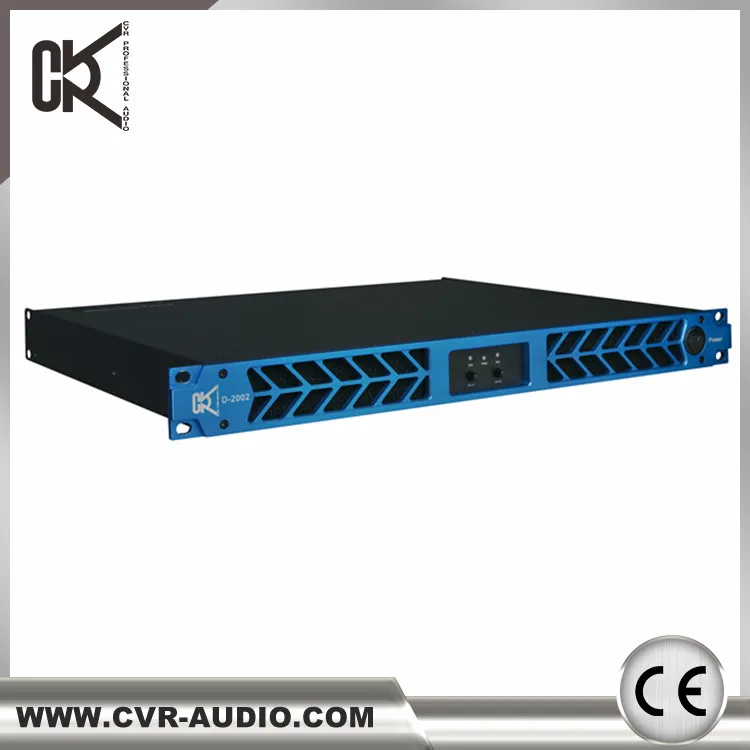

Model D-3002 D-2004 D-1504 D-2002 D-1502 D-1004 D-1002 D-802
8Ω/Stereo 2×3000W 4×2000W 4×1500W 2×2000W 2×1500W 4×1000W 2×1000W 2×800W
4Ω/Stereo 2×5100W 4×3400W 4×2550W 2×3400W 2×2550W 4×1700W 2×1700W 2×1360W
2Ω/Stereo 2×7140W 4×4760W 4×3570W 2×4760W 2×3570W 4×2890W 2×2890W 2×2310W
16Ω/Bridge 6000W 2×4000W 2×3000W 4000W 3000W 2×2000W 2000W 2×1600W
8Ω/Bridge 10200W 2×6800W 2×5100W 6800W 5100W 2×3400W 3400W 2720W
4Ω/Bridge 14280W 2×9520W 2×7140W 9520W 7140W 2×5780W 5780W 4620W
Output RMS voltage RMS 154.9V 126.5V 109.5V 126.5V 109.5V 89.4V 89.4V 80.0V
Slew rate 50V/us 50V/us 50V/us 50V/us 50V/us 50V/us 50V/us 50V/us
Sensitivity Selectable Selectable
41dB 38dB
38dB 35dB
35dB 32dB
32dB 29dB
THD+N 0.01% 0.01% 0.01% 0.01% 0.01% 0.01% 0.01% 0.01%
IMD-SMPTE 0.01% 0.01% 0.01% 0.01% 0.01% 0.01% 0.01% 0.01%
DIME30 0.01% 0.01% 0.01% 0.01% 0.01% 0.01% 0.01% 0.01%
Cross-talk ≥90dB ≥90dB ≥90dB ≥90dB ≥90dB ≥90dB ≥90dB ≥90dB
Frequency response ±0.2dB ±0.2dB ±0.2dB ±0.2dB ±0.2dB ±0.2dB ±0.2dB ±0.2dB
Input impedance 0kΩ(Balance), 10kΩ(Unblance)
Damp factor ≥500
SNR ≥115dB ≥112dB ≥110dB ≥110dB ≥110dB ≥110dB ≥110dB ≥110dB
Main power 90~260VAC, 50~60Hz
Protection Under voltage, DC, temperature, over load limiter, Short protection
Size (W×H×D) 483×44×465mm 483×44×370mm
Net weight 12kg 12kg 12kg 9kg 9kg 9kg 9kg 9kg























ABOUT CVR:

CVR PRO AUDIO is a cutting edge professional audio speaker manufacturer specializing in designing and manufacturing professional audio systems,including PA speaker,indoor and outdoor line array speaker,subwoofer,floor monitor, power amplifier and speaker management system. We provide these products for indoor and outdoor events, stadiums, churches, performing arts venues, theatres,conference rooms, meeting halls, and any space where audio system are needed.
