18inch subwoofer speaker Big power audio subwoofer speaker, 18 inch stage speaker (60672079601)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

18inch subwoofer speaker Big power audio subwoofer speaker, 18 inch stage speaker


1- 5 inch LARGE voice coil (inside and outside);


2- Ferrite Magnetics;


3- Die Cast Aluminum frame;


4- 1600W high power speaker driver;


































































































































MR18280125
18"-800W-96dB
NOMINAL SPECIFICATIONS
Nominal Diameter                            464mm (18 in)
Overall Diameter                            464mm (18 in)
Bolt circle diameter                        442mm
Baffle Cutout Diameter                      428mm
Depth                                       194mm
Net Weight                                   18.6kg
Shipping Box                                500×500×225mm
Shipping Weight                              19.6kg
TECHNICAL PARAMETERS
Nominal lmpedance                               8Ω
Minimum lmpedance                               6.9Ω
AES Power Handing(1)                            800W
Maximum Power Handling(4)                       1600W
Sensitivity(1W/1m)                              96dB
Frequency Range                                 40-1600Hz
Voice Coil Diameter                             125mm(5 in)
Winding Material                                CU
Former Material                                 Glass Fiber
Winding Depth                                    25mm
Magnetic Gap Depth                               12mm
Flux Density                                     1.1T
Magnet                                       Ferrite Ring
Demodulation                                 NO
Suspension(5)                                Triple Roll
THIELE & SMALL PARAMETERS
Fs                                                    40Hz
Re                                                   5.5Ω
Qes                                                   0.42
Qms                                                  10.20
Qts                                                   0.39
Vas                                                  150dm³
Sd                                                   756.2cm²(117.2 in²)
Xmax                                                 9.5mm
Mms                                                230g
Bl                                                28.5N/A
Cms                                              0.08mm /N
η(Eta Zero)                                         2.24%
EBP                                          90Hz

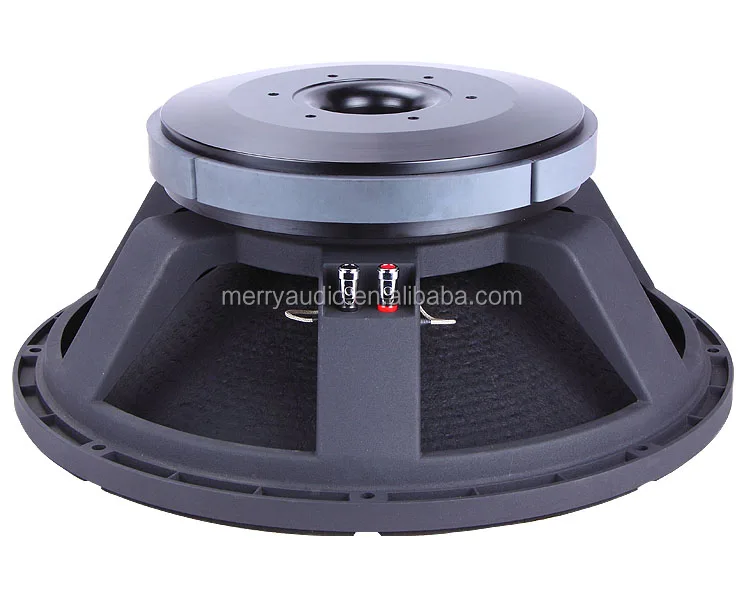

Speaker picture


Big power audio subwoofer speaker, 18 inch stage speaker MR18280125 MR18280125 (2).jpgMR18280125.jpg
