Ограничитель веса башенного крана с длительным сроком службы BCQ M/B
- Category: Engineering & Construction Machinery >>>
- Supplier: Yixing Silvanus Electric Manufacture Co. Ltd.
Share on (60306004303):
Product Overview
Description

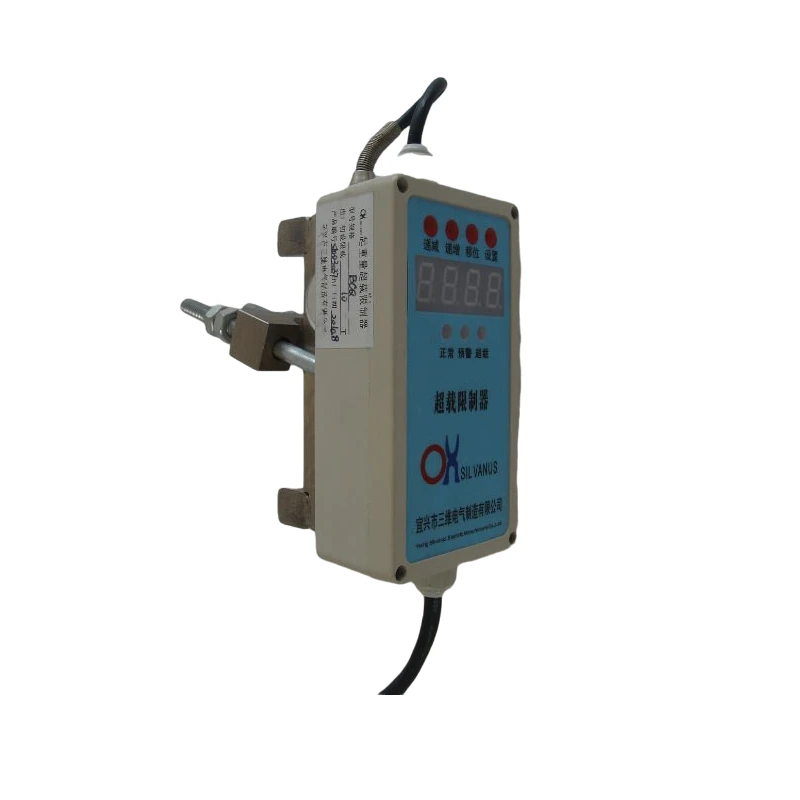

hoist load limiter

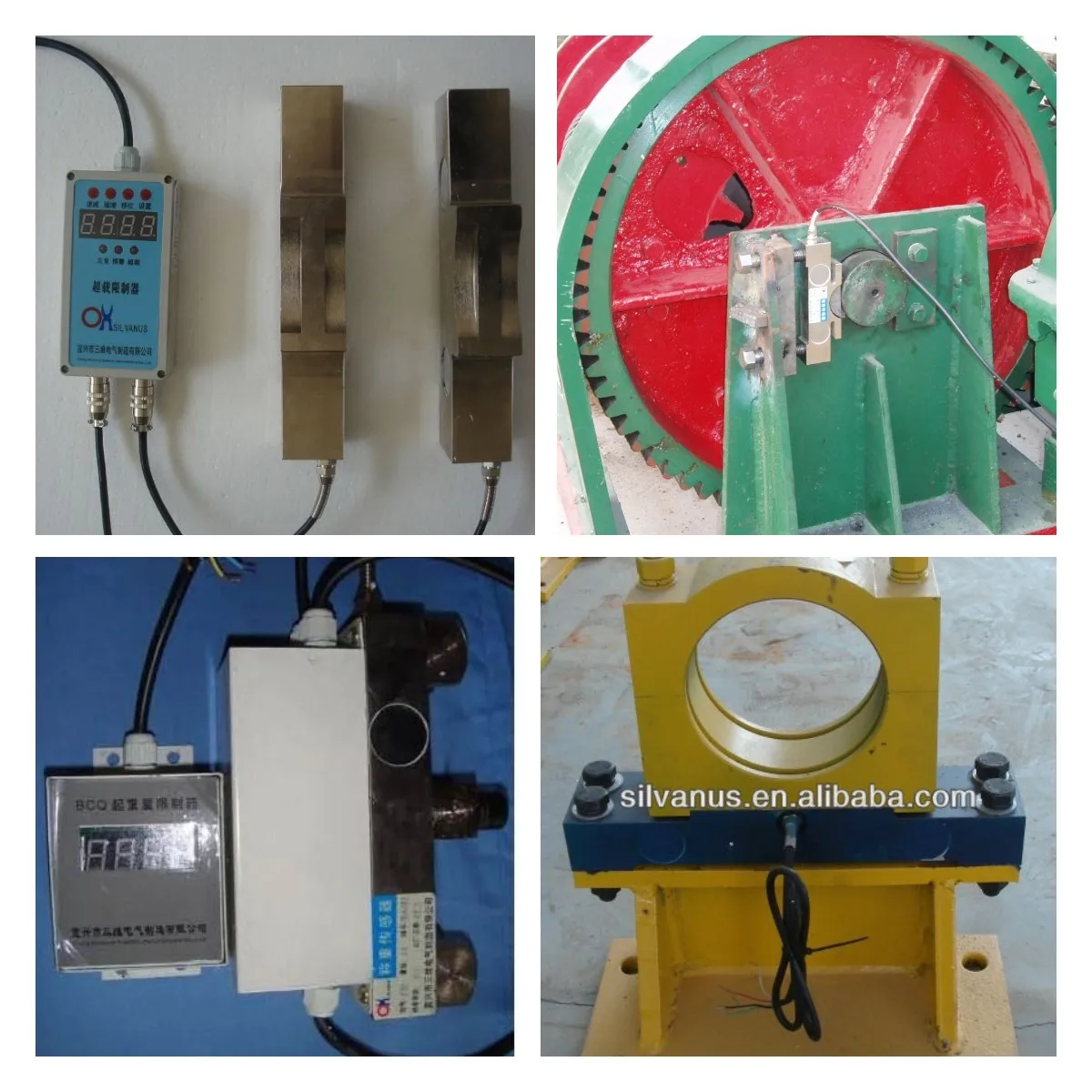

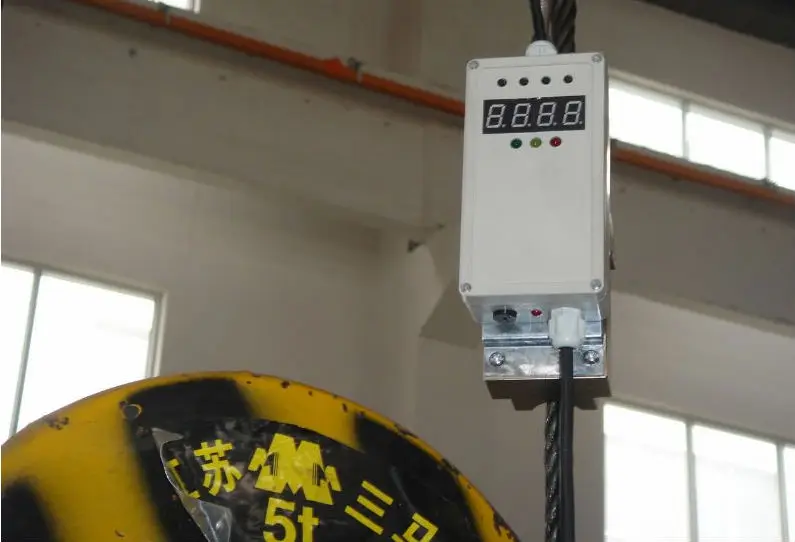

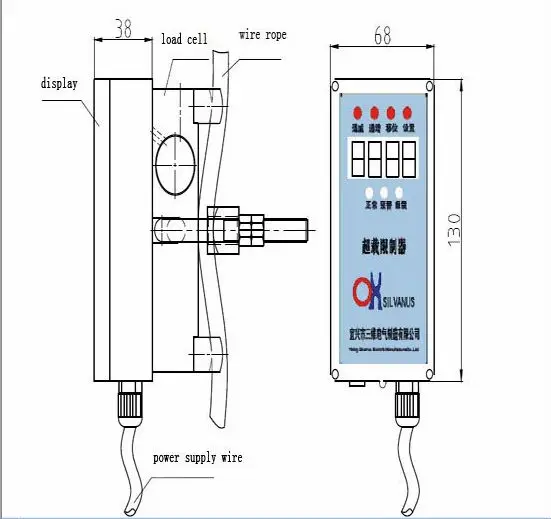

is applied to crane. It is a special safe protect device. it make up with load cell, wire rope ,indicator and connection box.
---.High-quality overload limiter
---Structure, convenient to install and maintenance
---Good ability for overload protect
main technical index
- application:0.5~63t
- sensitivity:±5%(F.S)
- error:±5%
- safe load limit:150%
- work environment:-10~60°C,90%RH
- mains voltage: ~380V±10% 50HZ
- relay contact capacity:380v 5A
- load cell protect class:IP65
- electric control box protection class:IP54
- set up warning point
1) warning forecast---90% of the rated load(red glint, buzzer warning sound intermittently. but don’t cut off power supply )
2) warning delay----105% of the rated load(delay 1~2 seconds red light, buzzer sound warning continuously. then cut off power supply)
3) warning immediately----130% of the rated load(red light, buzzer sound warning continuously .then cut off power supply at once)
1.We not only provide the weighing device, at the same time to undertake engineering orders, and provide personalized custom services to you.
2.We will work closely with you to analyze your measurement task and design the matching solution. Through rapid engineering (CAD) you get first concepts for your transducer in a short time. Advice on conceptual design is free for you.
3.After having agreed the concept with you, we provide you with a quote for the customized transducer that really meets your unique requirements.
4.We have twenty years of manufacturing experiences, it help us get a prototype of your sensors in a short time.If the prototype meets your requirements, production starts.
