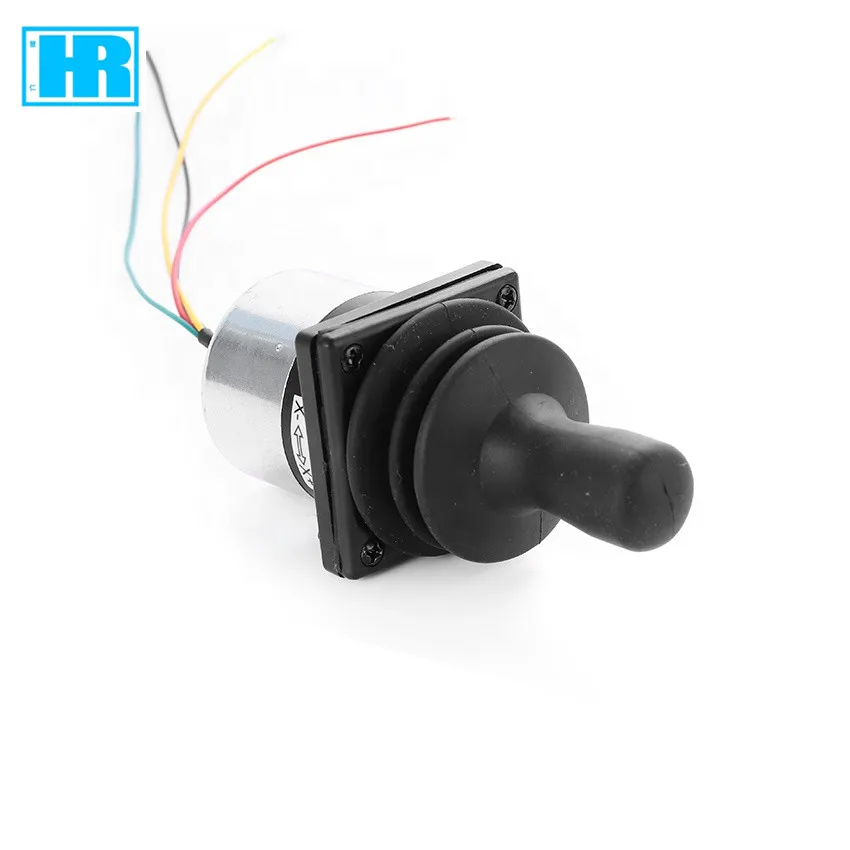

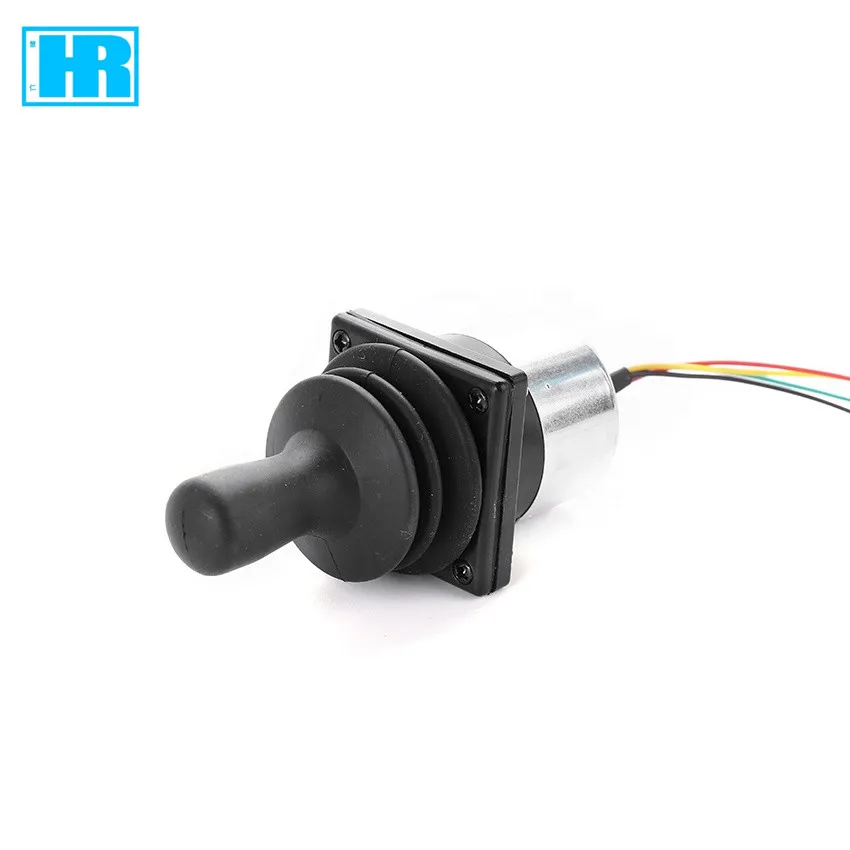

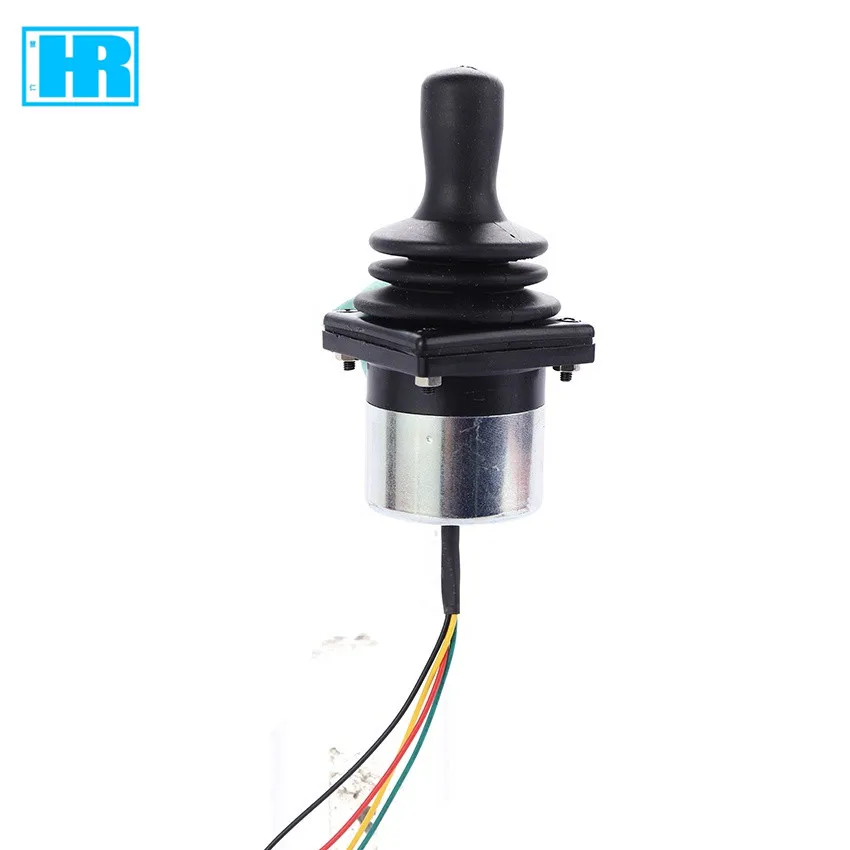

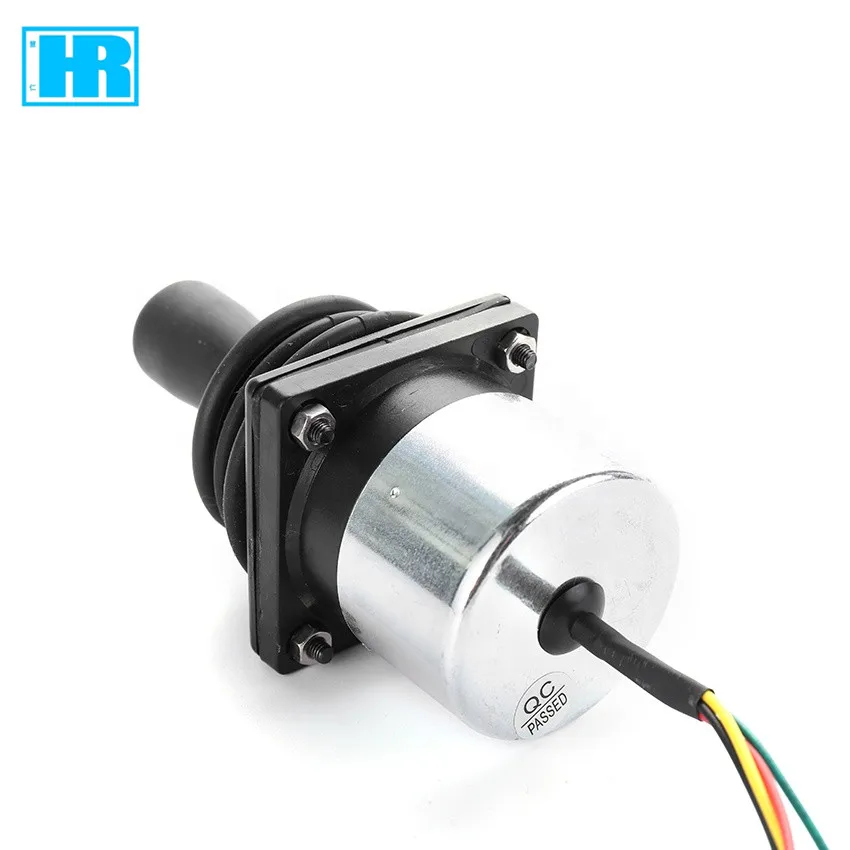

SJ6 Contactless hall effect joystick for control box
SJ6 Contactless hall effect joystick for control box
SJ6 Contactless hall effect joystick for control box
SJ6 Contactless hall effect joystick for control box
SJ6 Contactless hall effect joystick for control box
SJ6 Contactless hall effect joystick for control box

SJ6 Contactless hall effect joystick for control box

Share on (60307223173):


Price:$50.00

Quantity:


Product Overview

Description







Product Features


Finger operated，spring return
Arbitrary directional operated
Various voltage output optional
RS232 and USB interface output optional


Technical Information
Mechanical features
Travel angle
 ±20º
Operating type
Automatic Spring return
Breakout force
2.3N
Operating force (max)
6N
Maximum allowable force
 >300N
Expecting life
>5 million cycles (Hall effect)
Weight
Weight
120g
Electrical parameters
Hall type
Power supply
5.0±0.5Vdc
Supply current
<18mA
Maximum allowable overload voltage
30Vdc
Reverse maximum allowable voltage
-15Vdc
Output linearity tolerance
<±0.2V
Environmental parameters
Operating temperature
-30℃~+70℃
Storage temperature
-40℃~+85℃
Protection level
IP65 (Above the flange)


Product Configuration


Type SJ6 - □□□ -
Code ① - ②


① Product type
SJ6 series joystick, dual-axis hall effect, spring return, installation dimension with 35mm * 35mm

② Output signal


H51
Hall effect, 5VdcPower supply 0.5~2.5~4.5V output voltage
H52
Hall effect, 5VdcPower supply 0~2.5~5.0V output voltage
RS232
RS232 serial digital signal output
USB
USB interface digital signal output

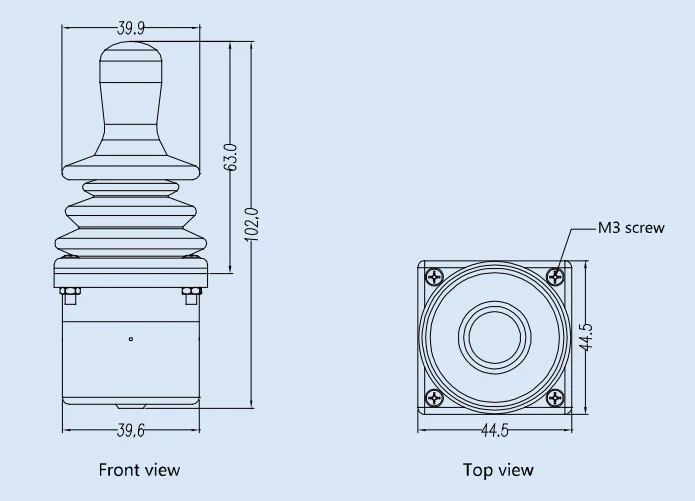

Dimensions

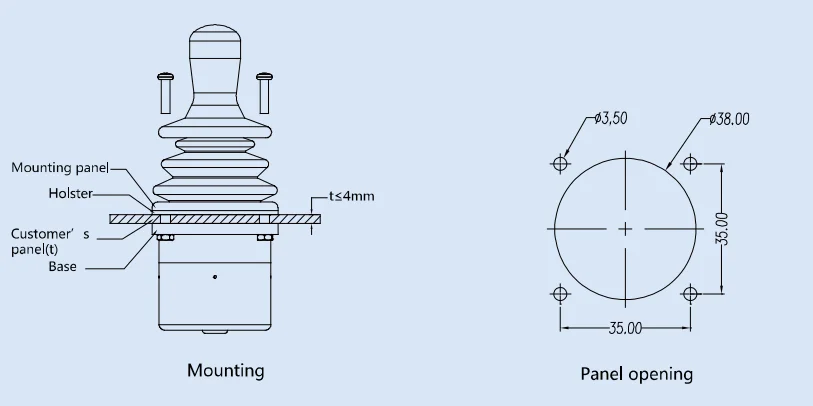

Product Installation






Recommend Products




Packing&Shipping


Contatct us:
Sunny Shen
Email: hrsales2@hzhuiren.com
Tel&Whatsapp& Whcat: +86 15757282130
Skype: miaomiao12501

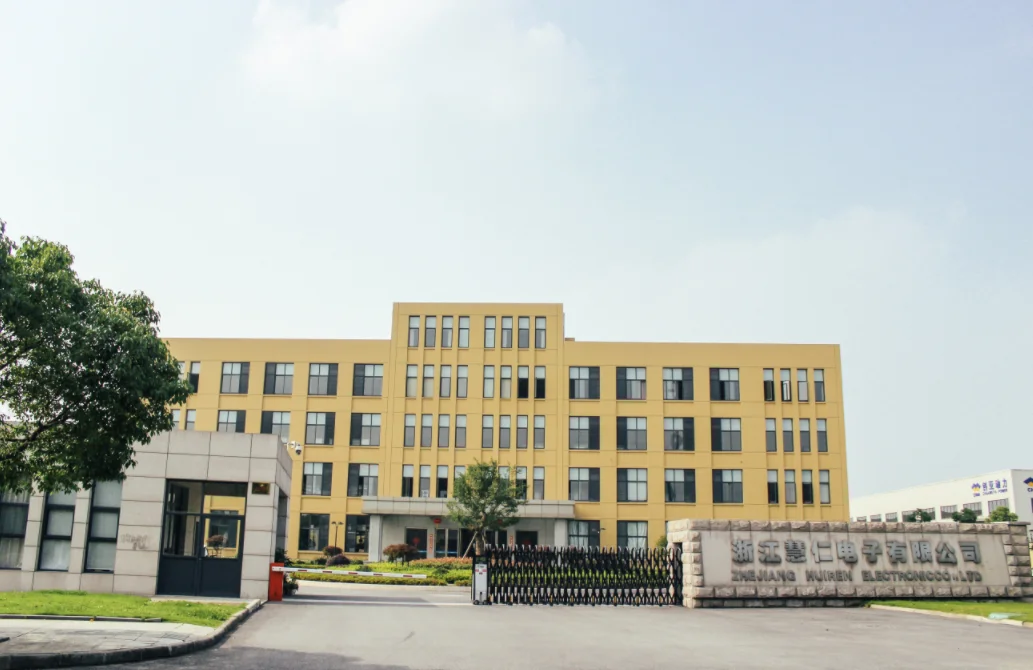

Company Introduction




HuiRen Electronic is proud to be one of the leader of conductive plastic potentiometer , Industrial joystick . Our products conductive plastic potentiometer are widely used in the field of automation control and servo.such as military affairs, aviation, automobile, oil industries, machinery and medical instruments and so on. Industrial joysticks are typically apply on Cranes, loaders, Forklifts, excavators, access platform, tractors, harvesters and so on.
