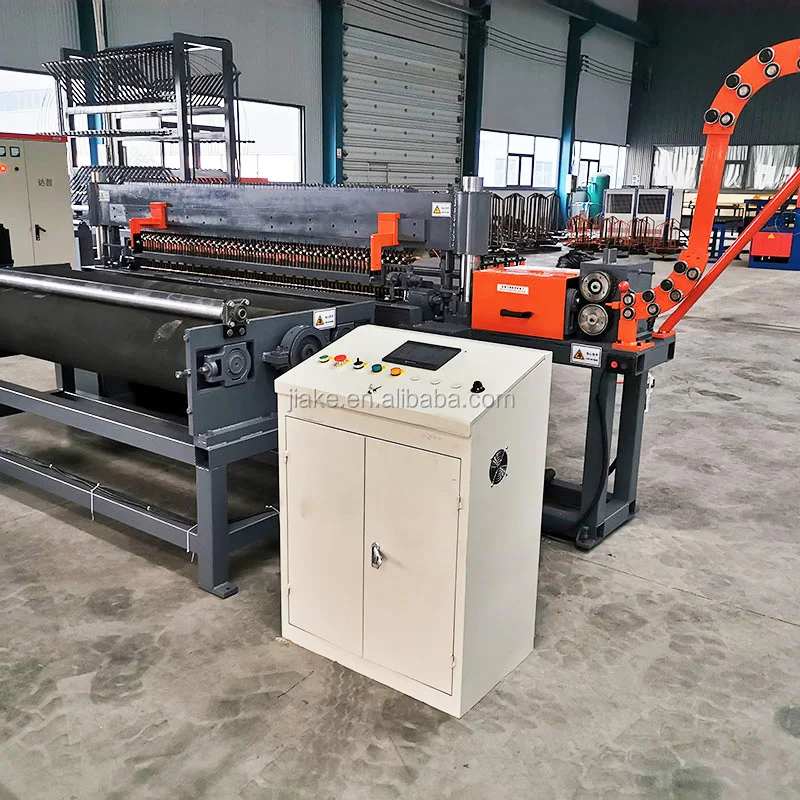

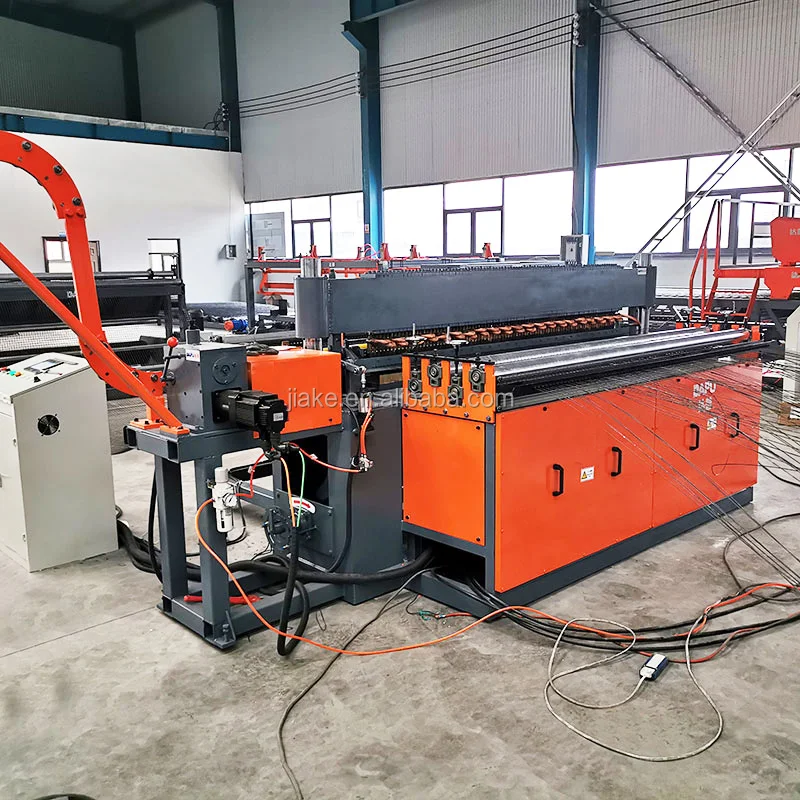

Полностью автоматические машины для производства сварной проволочной сетки

Share on (60307410351):


Price:25 800,00 $ - 27 800,00 $

Quantity:


Product Overview

Description



Description






Description

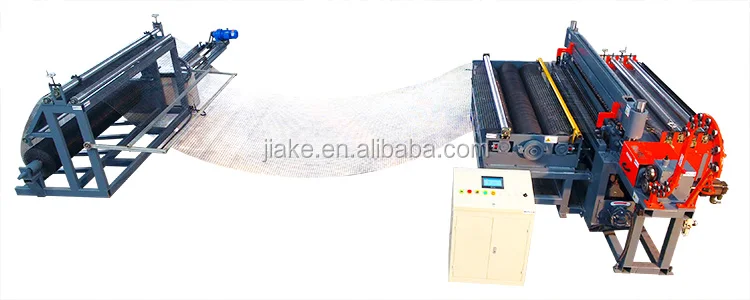

DJI_0777


The new Electric welded mesh machine with rubber shaft is a newly designed to suit for a bigger range of diameter and different mesh hole sizes. Different from the traditional mesh pulling system. By using rubber shaft pulling, the mesh aperture can be any size among 25-200mm.






Technical Parameters






Technical Parameters


































































 ModelDP-DNW-2  DP-DNW-3 DP-DNW-4
 Wire diameter0.65-1.2mm,0.8-2mm 1-2.5mm,1.3-2.8mm 1-3.5mm
 Line wire space1/2”, 1”, 2”
(12.5mm, 25mm, 50mm)

1”,2”,3”,4”,5”,6”


(25,50,75,100,125,150mm)

1”-6”


(25mm-150mm)
 Cross wire space 1/2”, 1”, 2”
(12.5mm, 25mm, 50mm)
 1/2”, 1”, 2”
(12.5,25,50,75,100,125mm)

1”-6”


(25mm-150mm)
 Mesh width 1.2m,1.5m,1.8m,2m
4ft,5ft,6ft,7ft
 1.5m,1.8m,2m,2.5m
5ft,6ft,7ft,8ft
 1.2m,1.5m,1.8m,2m
4ft,5ft,6ft,7ft
 Main motor2.2kw, 4kw, 5.5kw5.5kw, 7.5kw5.5kw,7.5kw
 Welding transformer60/70kva*4,5,6,7pcs85/100kva*5,6,7,8pcs125kva*4,5,6,7pcs
 Welding speedMax.120-180times/minMax.60-100 times/min Max.60-100times/min
 Weight2T/2.5T/2.8T/3.2T2.8T/3.2T/3.5T/4T 3T,3.5T,4T,4.2T





Machine Advantages






Machine Advantages

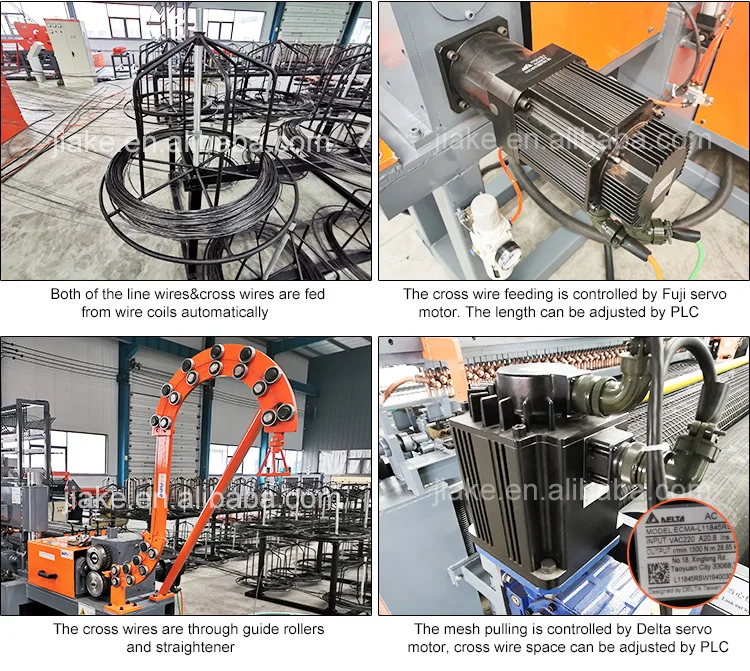

Machine details1

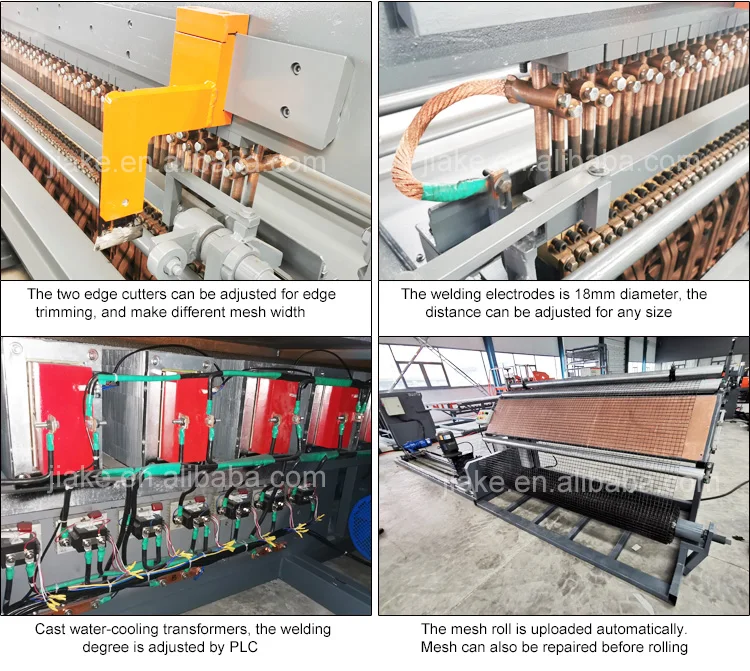

Machine details2

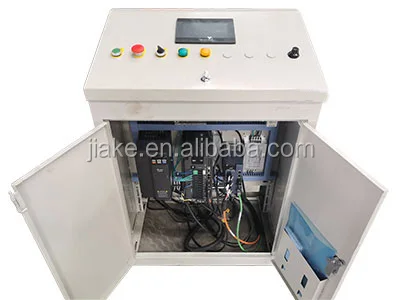

Main Electric Components






Main Electric Components
















03

  • Delta (Taiwan) PLC

  • Weinview (Taiwan) touch screen

  • Schneider (France) low-voltage apparatus

  • Schneider (France) relay

  • Schneider (France) air switch

  • Meanwell (Taiwan) power supply

  • Delta (Taiwan) inverter

  • Fuji (Japan) servo driver

  • Delta (Taiwan) servo driver

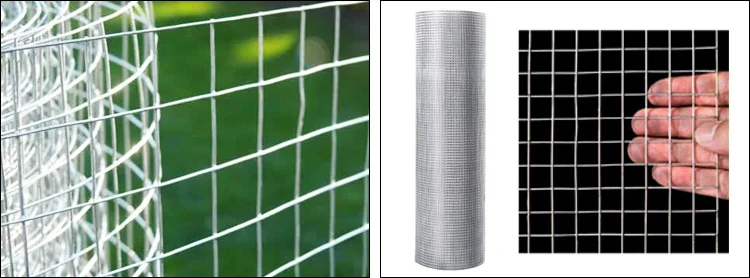

Finished Product






Finished Product









finished product






Our company






Our company









About Us-1-1






After-sales Service






After-sales Service









After-sales Service-1






FAQ






FAQ









Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.





Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology to develop the department and testing department.





Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.





Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.





Q: Can you export and supply the customs clearance documents we need?
A: We have a lot of experience in exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
