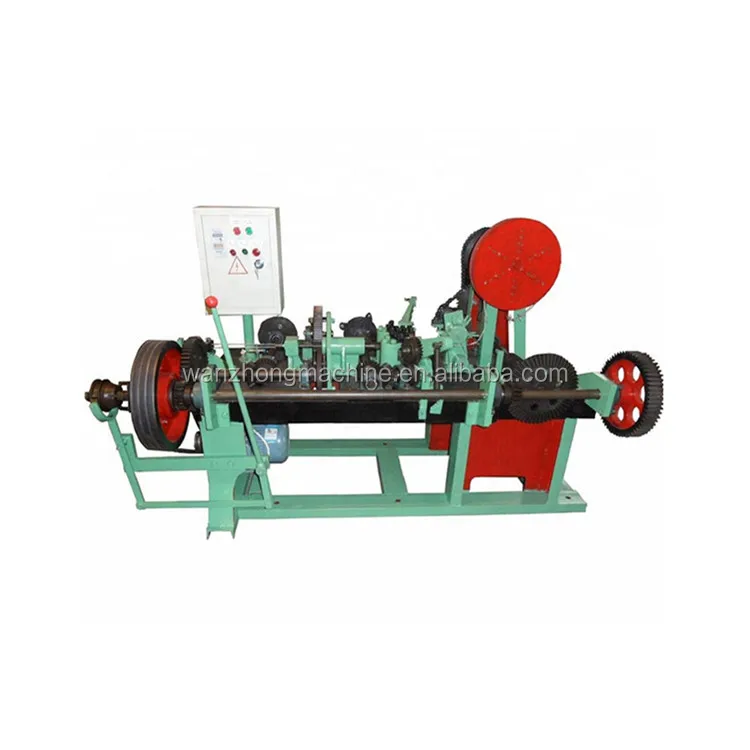

2018 колючая проволочная машина

Product Overview

Description

2018 razor barbed concertina wire machine

C-A Common Double Twisted Barbed Wire Making Machine
Motor	3.0kw
Main Drive Shaft Speed	402r/min
Diameter of Strand Wire	1.6-3.0mm
Diameter of Wire Barbs	1.6-2.8mm
Thom Distance	3",4",5"or 4",5",6"
Twist Number	3.5
Productive Capacity	100kg/hour
Dimmension	Main :2000*1200*1400mm Auxiliary:1800*650*800mm
Weight	1000kg





CS-C Positive and Negative Twisted Barbed Wire Machine
Motor	3.0kw
Main Drive Shaft Speed	402r/min
Diameter of Strand Wire	1.6-2.8mm
Diameter of Wire Barbs	1.6-2.4mm
Thom Distance	4",5"
Twist Number	4
Productive Capacity	60kg/hour
Dimmension	3000*1200*1500mm
Weight	800kg

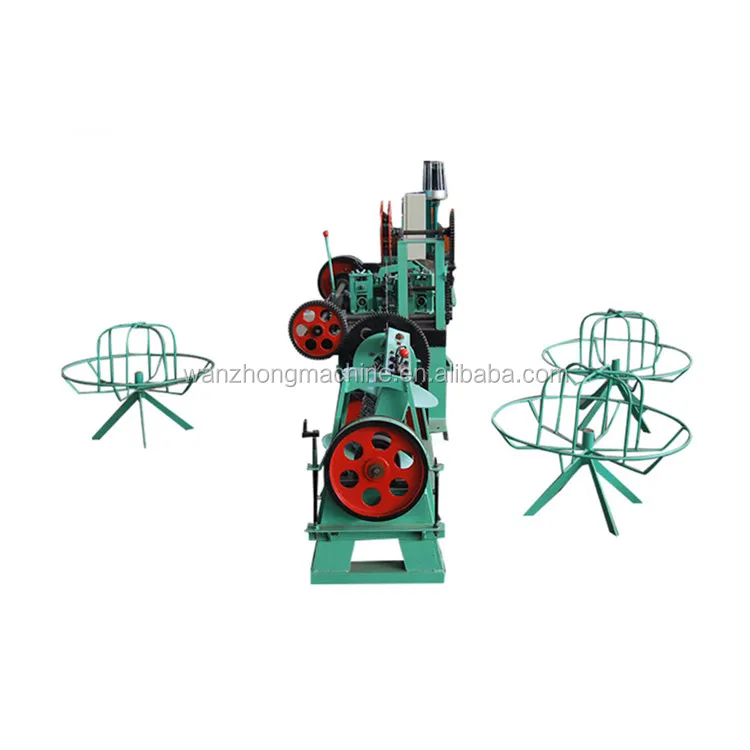

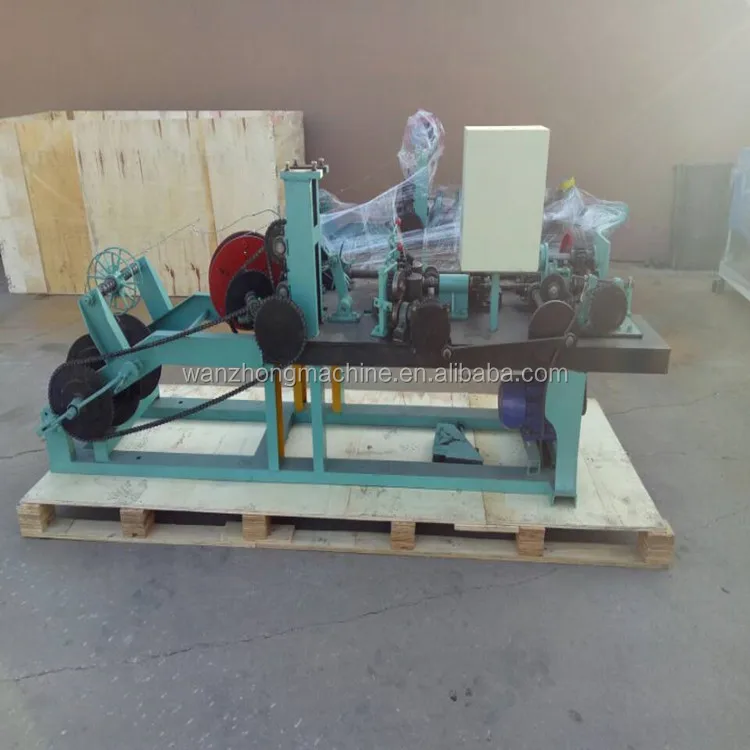

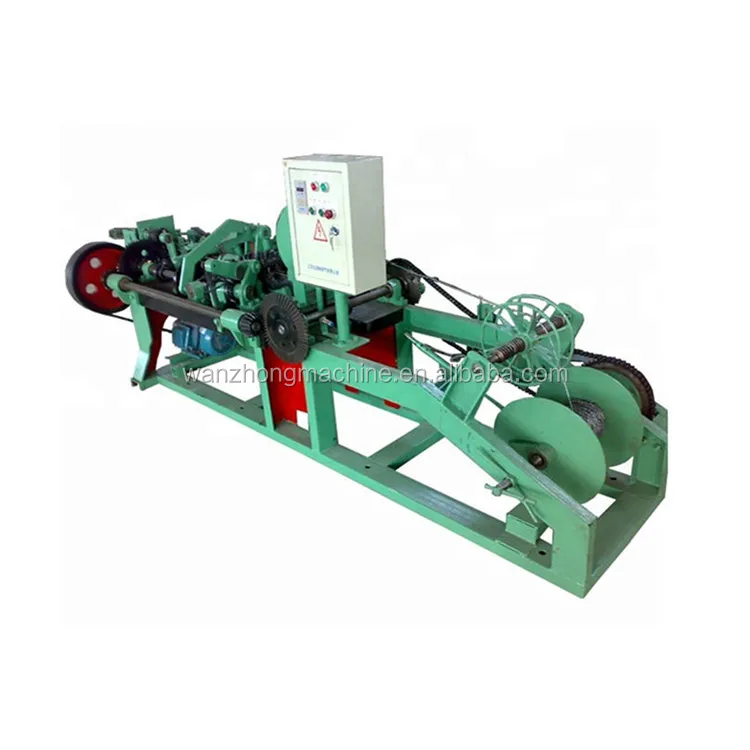

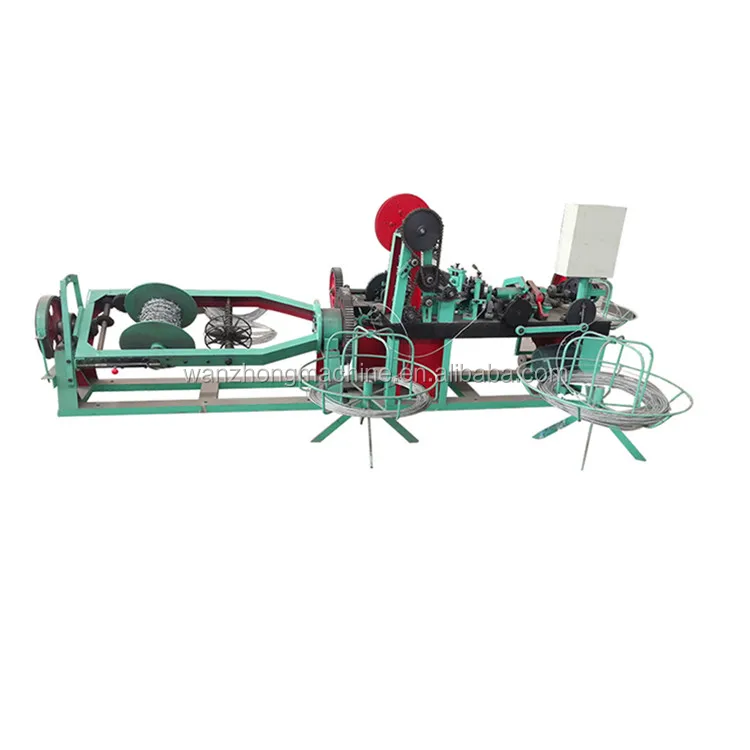

Photos:
