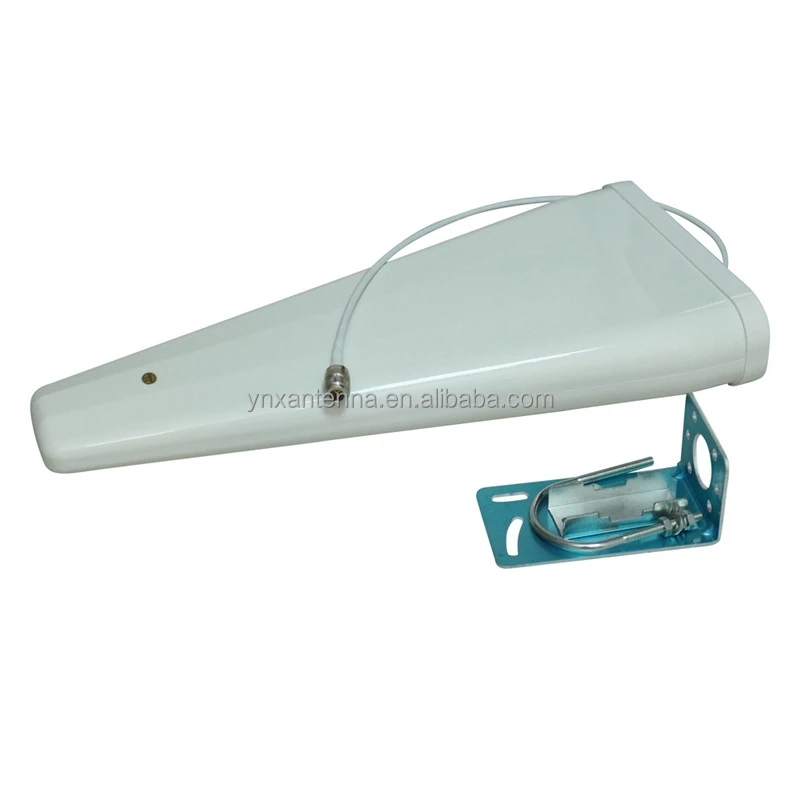

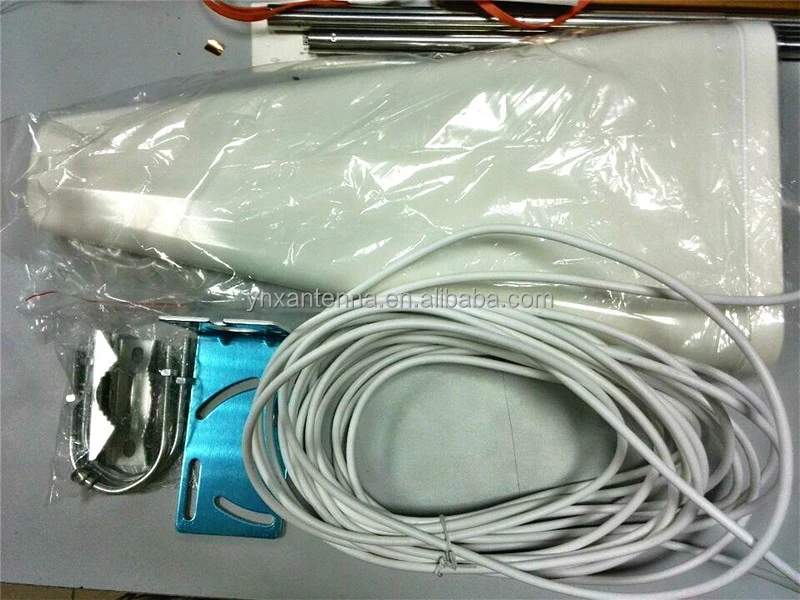

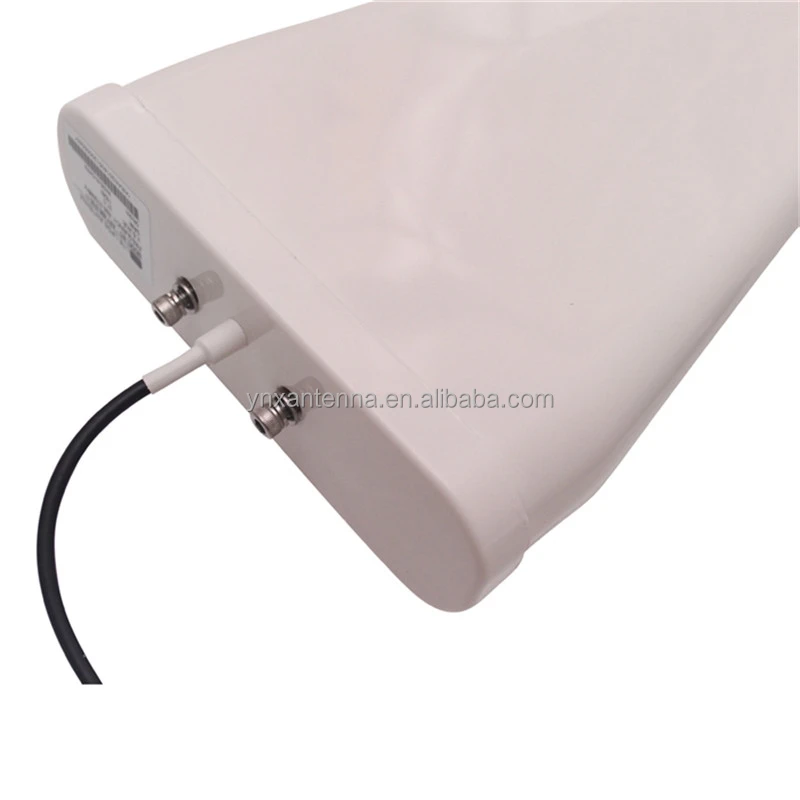

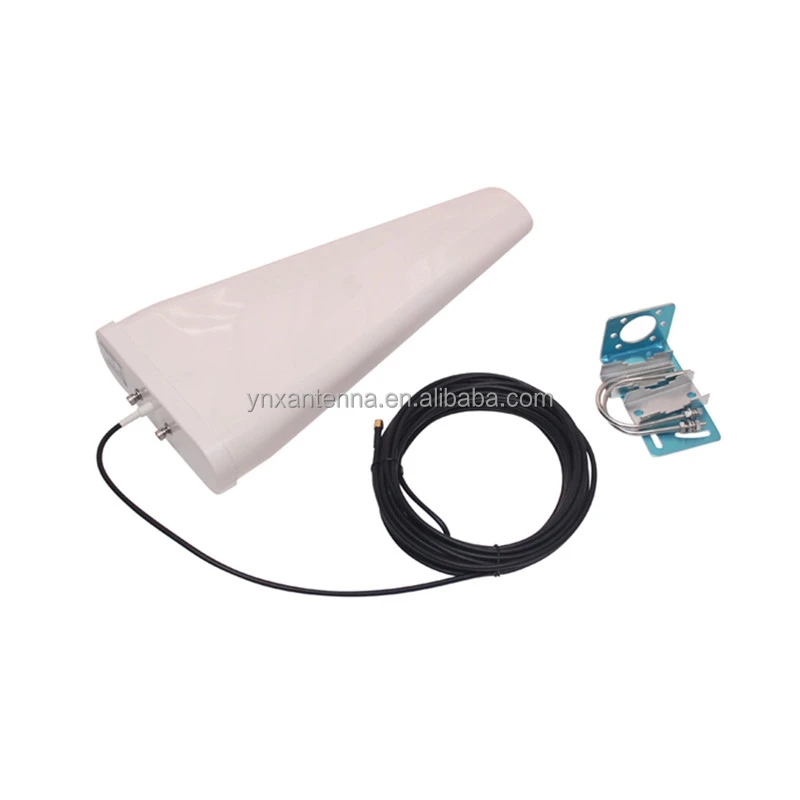

Outside directional LPDA antenna for signal booster repeater amplifier with 600-2700mhz frequency 4G LTE antenna
Basic Specification of LPDA antenna for signal booster
Product Name
698-2700MHz LTE LPDA antenna
Electric Specification
Frequency Range
698-960/1710-2700 MHz
Bandwidth
262/990MHz
Gain-dBi
12
Horizontal Beam width
70 °
Vertical Beam width
55 °
VSWR
≤1.5
F/B ratio
18
Input Impedance
50Ω
Polarization
Vertical
Maximum Power
100W
Connector
SMA/TNC/F/N
Cable Length
15m
Mechanical Specifications
Dimensions
450x215x65mm
Basic Information of LPDA antenna for signal booster
1. LTE(698-2700MHz) Yetnorson Band. 2. 12dBi with SMA connector and 5m cable. 3. LTE spread spectrum communication system .

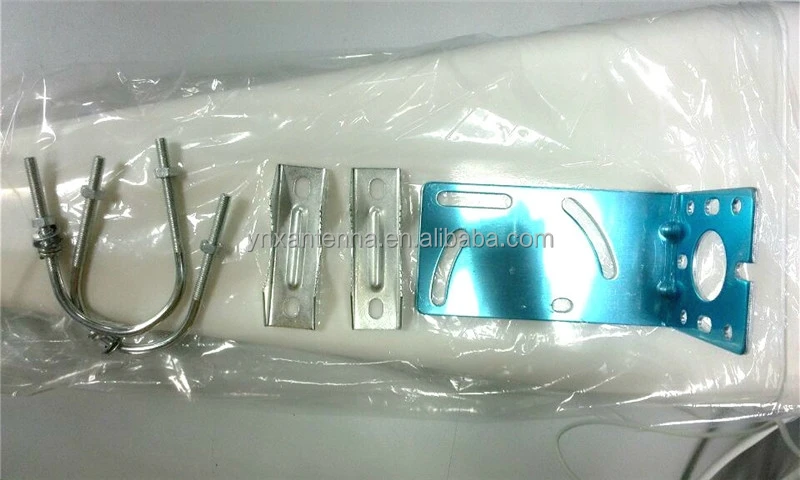

Antenna Key features of LPDA antenna for signal booster 1. 698-2700MHZ LTE system 2. Good appearance 3. Durable ,corrosion resistance 4. Provide with mount kits 5. Optimized dimension 6. Designed by board band technology 7. Lightning protection: DC grounded 8. Light weight,small size,nice appearance 9. Anti ultraviolet PVC material
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series
We Provide
1) High quality and competitive price 2) Standard packing and timely delivery 3) We supply OEM and ODM service 4) Sample Order and Small Order are acceptable
Certificate
FAQ
1,Q:what is you brand ? A: Yetnorson antennas
2,Q:how can i get the sample ? A: if you need sample to test ,please pay for the shipping cost and antenna cost ,there we can send the sample to you
3,Q: how much the shipping cost will be for sample ? A :The depend on the weight and packing size you are
4, Q :how can i get the price list ? A :please send the email and order information for us , so we can give the latest price for you
5.Q:Can you give me the deliver time?
A: Delivery time is approx. 14 to 25 business days (excluded Saturday & Sunday, Public Holiday) to most US/UK/AU destinations 1) Australia - 7-14 working days 2)UK/ Canada - 14-21 working days 3)Europe & Ireland - 18-24 working days 4)Brazil/ South America - 30-40 working days 5)Russian Federation:30-50 working days,we suggest you choose hk post
