800-2500mhz Outdoor Antenna 3G GSM Outside Directional LPDA Antenna for Signal Booster Repeater with 10m Cable
Basic Specification of 3G GSM Outside Directional LPDA Antenna
Frequency Range
806 - 960 MHz and 1710 - 2500 MHz
Gain
10dbi
Signal Transmition and Reception
directional
Beam-width
360
Polarization
Vertical
VSWR
<1.5
Inter-modulation
< -110 dBm
Max. Power
150W
Dimension
293x210x65mm (not includes fixer)
Connector Type
N Male (depend on your request)
Weight
0.95 Kg
Key features of 3G GSM Outside Directional LPDA Antenna This product is designed to boost multiple users with maximum power. It is best used in the following applications: 1. GSM/EGSM/CDMA800/3G/WLAN/WiMax 2. Wireless Communications and data transmission system Repeater 3.outdoor directional coverage

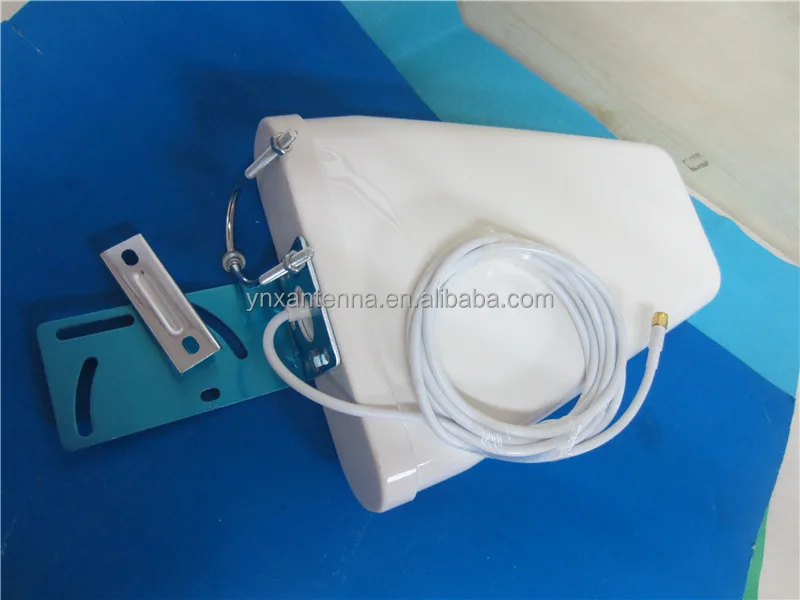

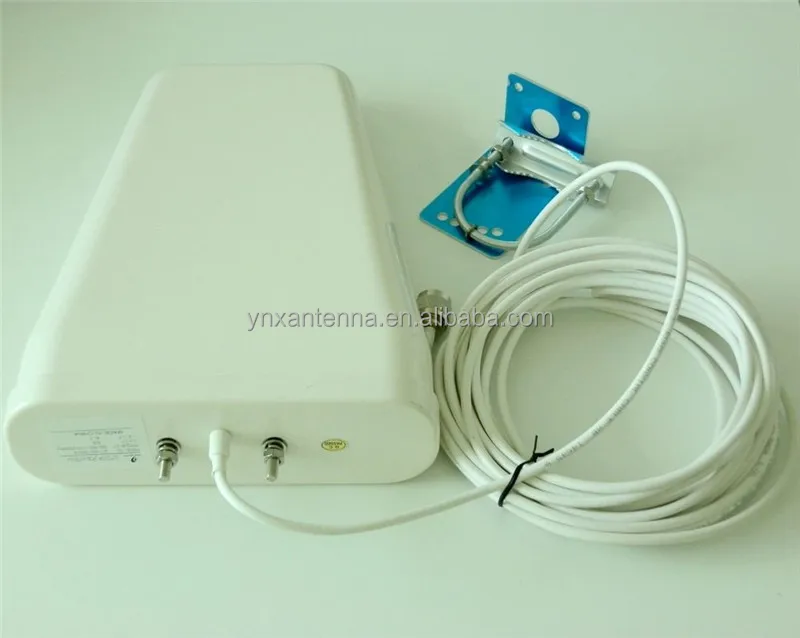

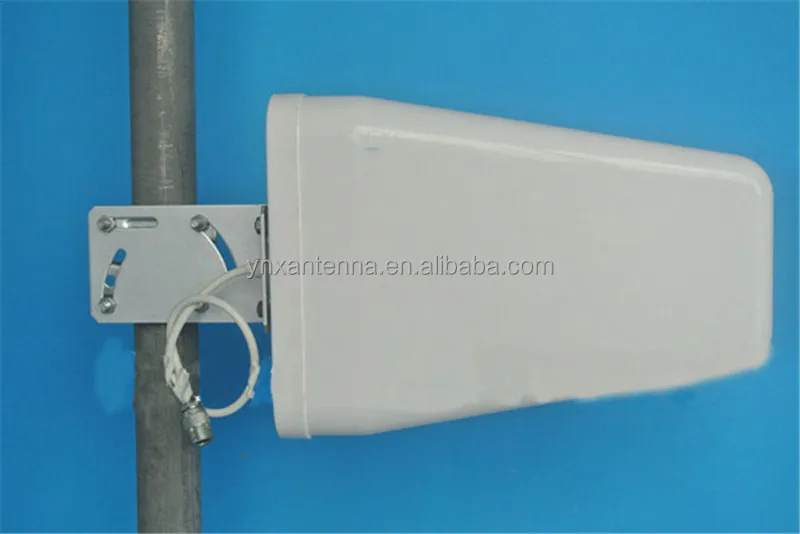

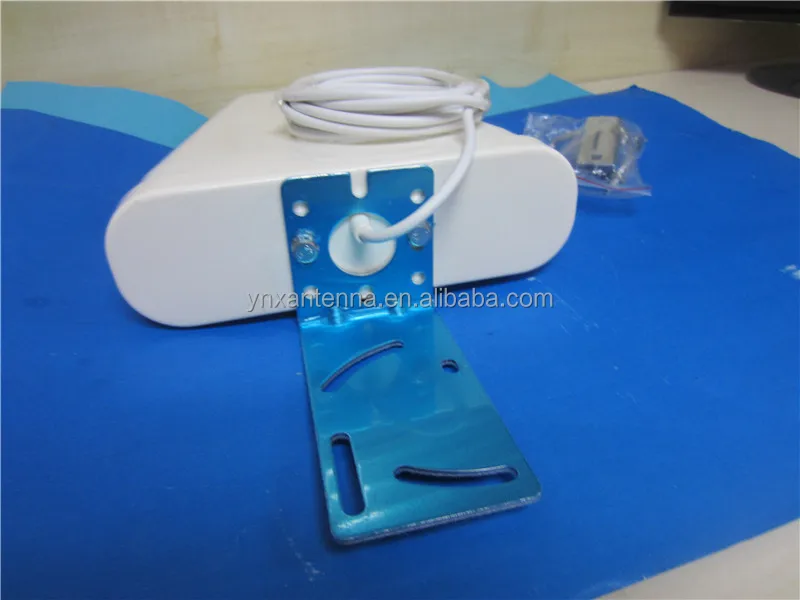

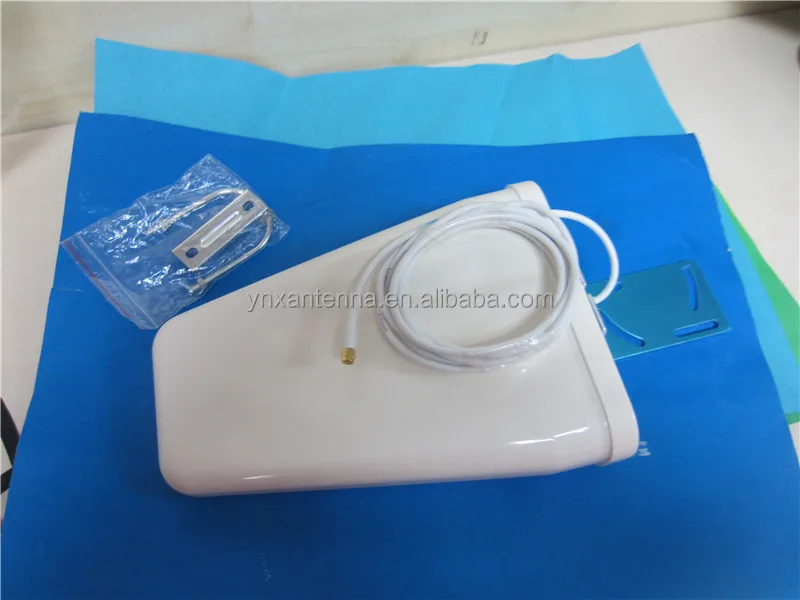

Product pictures of 3G GSM Outside Directional LPDA Antenna
Attention 1. This is an outdoor LPDA antenna only. It doesn't work alone. You need a Cell Phone Signal Booster/Repeater to work with this antenna. 2. This outdoor directional antenna is designed together with the cable , in order to reduce the loss of the signal and it can be installed easily
Company Information
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series
We Provide
1) High quality and competitive price 2) Standard packing and timely delivery 3) We supply OEM and ODM service 4) Sample Order and Small Order are acceptable
Certificate
FAQ
1,Q:what is you brand ? A: Yetnorson antennas
2,Q:how can i get the sample ? A: if you need sample to test ,please pay for the shipping cost and antenna cost ,there we can send the sample to you
3,Q: how much the shipping cost will be for sample ? A :The depend on the weight and packing size you are
4, Q :how can i get the price list ? A :please send the email and order information for us , so we can give the latest price for you
5.Q:Can you give me the deliver time?
A: Delivery time is approx. 14 to 25 business days (excluded Saturday & Sunday, Public Holiday) to most US/UK/AU destinations 1) Australia - 7-14 working days 2)UK/ Canada - 14-21 working days 3)Europe & Ireland - 18-24 working days 4)Brazil/ South America - 30-40 working days 5)Russian Federation:30-50 working days,we suggest you choose hk post
If You have Any Questions, Feel Free to Contact Us
I am Rainbow Zhang,welcome to inquire,any questions and request, please feel free to contact with me!
