brass metal gravity handle casting machine with lower price
- Category: Metal Casting Machinery >>>
- Supplier: Ningbo Dongfang Die-Casting Machine Tool Co. Ltd.
Share on (60312616848):
Product Overview
Description

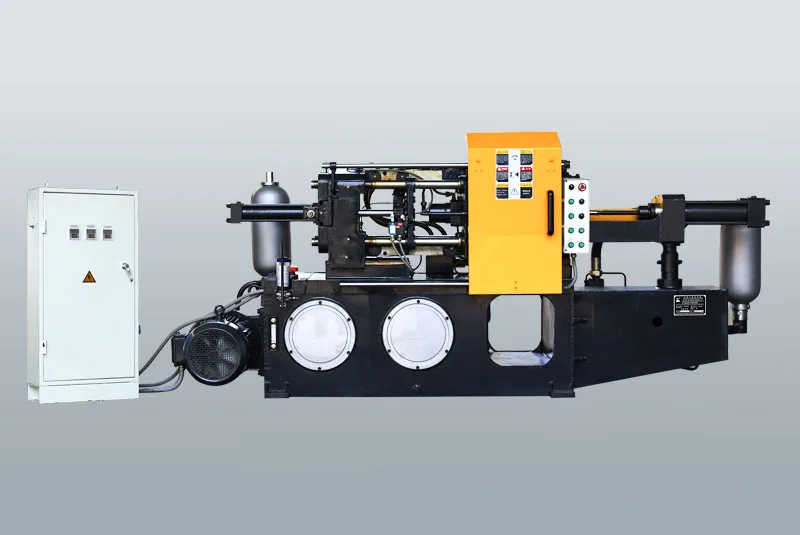

Features and applications of 250To copper/brass small size die casting machine
250Kn/25T Cold Chamber Die Casting Machine
Suitable for aluminum,zinc and copper alloy
Electronics control
hydraulic drive for die casting
2-step injection system
Two kinds of driving modes as manual and semiauto
This small size die die casting machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum,zinc and copper in industries of automobiles, motorcycles,meters and instruments,hardware and military supplies.
Electronics control,hydraulic drive,locking that is tensile,operational safety,2-step injection system that is fast and slow speed can be separately adjusted.
There're two kinds of driving modes as manual and semiauto. It is a kind of small size pressure die casting machine for Aluminum,zinc,copper alloy.
SUBJECT | UNIT | J113B | ||
Die lock force | kN | 250 | ||
Size of moving platen (HXV) | mm | 400X400 | ||
Inner space between bars(HXV) | mm | 240X240 | ||
Thickness of die block(Min./Max.) | mm | 120/320 | ||
Stroke of moving platen | mm | 200 | ||
Ejection stroke | mm | 50 | ||
Ejection force | kN | 26.9 | ||
Injection force | kN | 35 | ||
Injection stroke | mm | 250 | ||
Diameter of shot sleeve | mm | 25 | 30 | / |
Fluid metal dosage per shot(AL) | kg | 0.3 | ||
Injection pressure (Min.~Max.) | MPa | 49.5~71.3 | ||
projecting area of casting | cm2 | 50.5 | ||
Dry cycle | s | 4 | ||
Pipe line pressure | MPa | 7 | ||
Motor power | kW | 7.5 | ||
Machine weight | kg | 2000 | ||
Overall dimensions(LXWXH) | mm | 3030X1060X1300 | ||

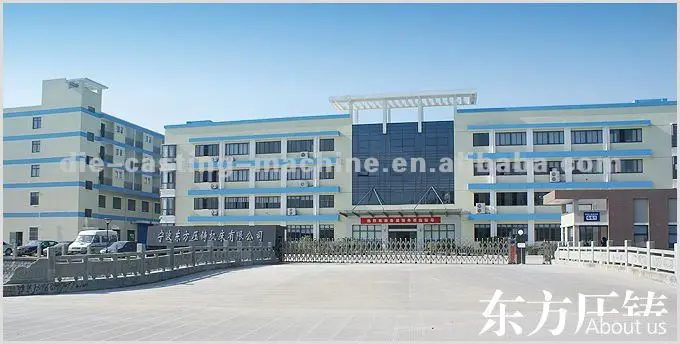

Strategy of the Company
In Ningbo Dongfang Die-casting machine Tool Co.,Ltd., the goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 37 years, we always have perisistently pursue to provide perfect hot and cold die casting machine and sincere service.
* With a history of over 37 years * Factory Area : 40,000 square meters
*Employees : More than 500 *Production Capacity : 10,00-sets yearly capacity
*Company owed Tech & Research center * Main Machines: 100sets
If you want to know more details pls contact us without hesitate.
