Strict quality standards and Certified by third party
Environment-Friendly
Door to Door delivery.
Airtight Loading, Discharge and Transporting.
Type of Tank Container
1) According to the physical properties of the medium
Liquid Tank container - a tank for transport of liquid.
Gas Tank container - a tank that is suitable for the transport of gases Silod Tank container- a tank for the transport of grains and powders
2）According to the functional characteristics of the tank
Food-grade tank container - a tank container which can only be loaded with food grade products Reefer tank container- a tank with the ability to cool the product to be transported
Electric heating tank container - a tank with the ability to heat the product to be transported
Lined tank container- a tank container with rubber or special painting liner.
SWAP Body tank container - a tank container with swap body and have a large volume.

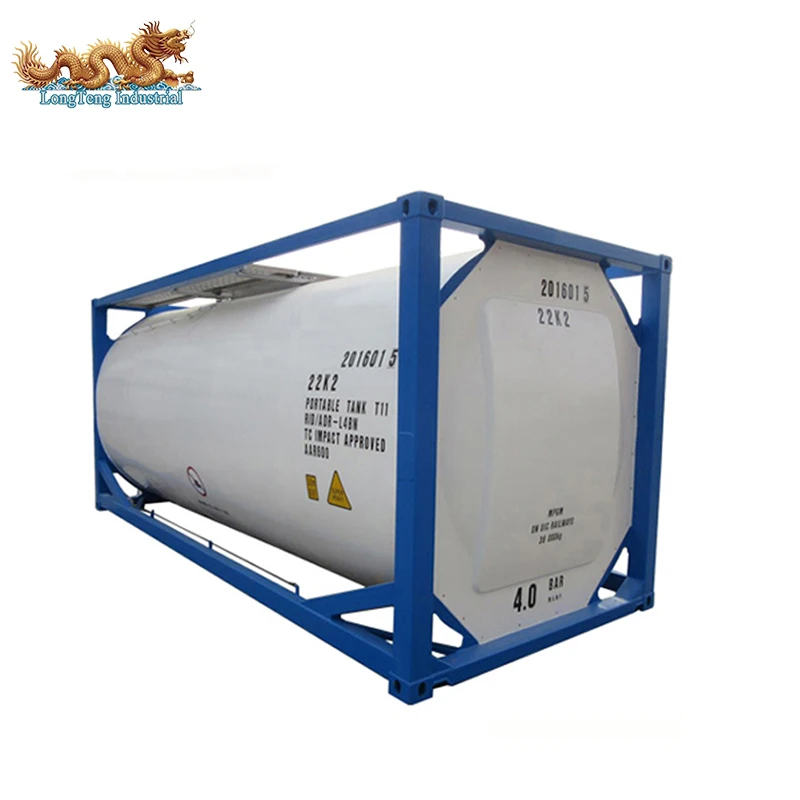

3）UN T Type Code T1 ISO tank container (for wine and light liquids )
T3 ISO tank container (for bitumen, Chocolate) T4 ISO tank container (for non-hazardous edible and non-edible oils)
T7 ISO tank container (for non-hazardous edible and non-edible oils and chemicals) T11 ISO tank container (for non-hazardous chemicals) T14 ISO tank container (for hazardous chemicals and acids like HCL and zinc chloride)
T22 ISO tank container (for High hazardous chemicals)
T23 ISO tank container (for Organic Peroxides) T50 ISO tank container (for High pressure liquefied gas，like LPG and ammonia gas) T75 ISO tank container (for Liquefied gas at low temperature，like LNG, LCO2, LO2, LN2,)

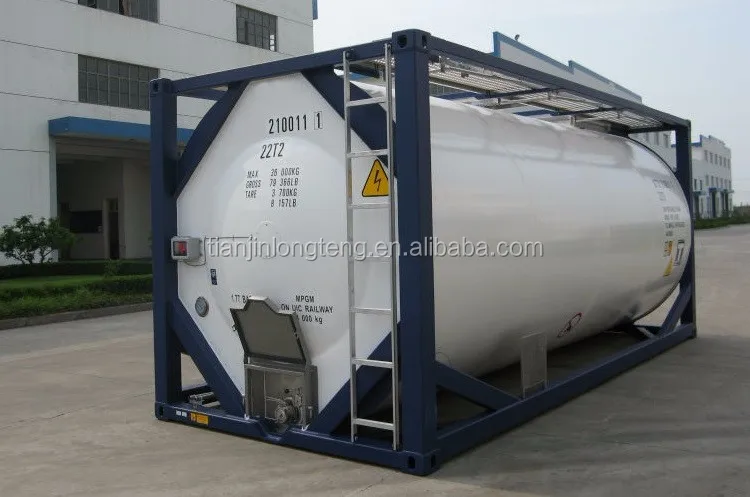

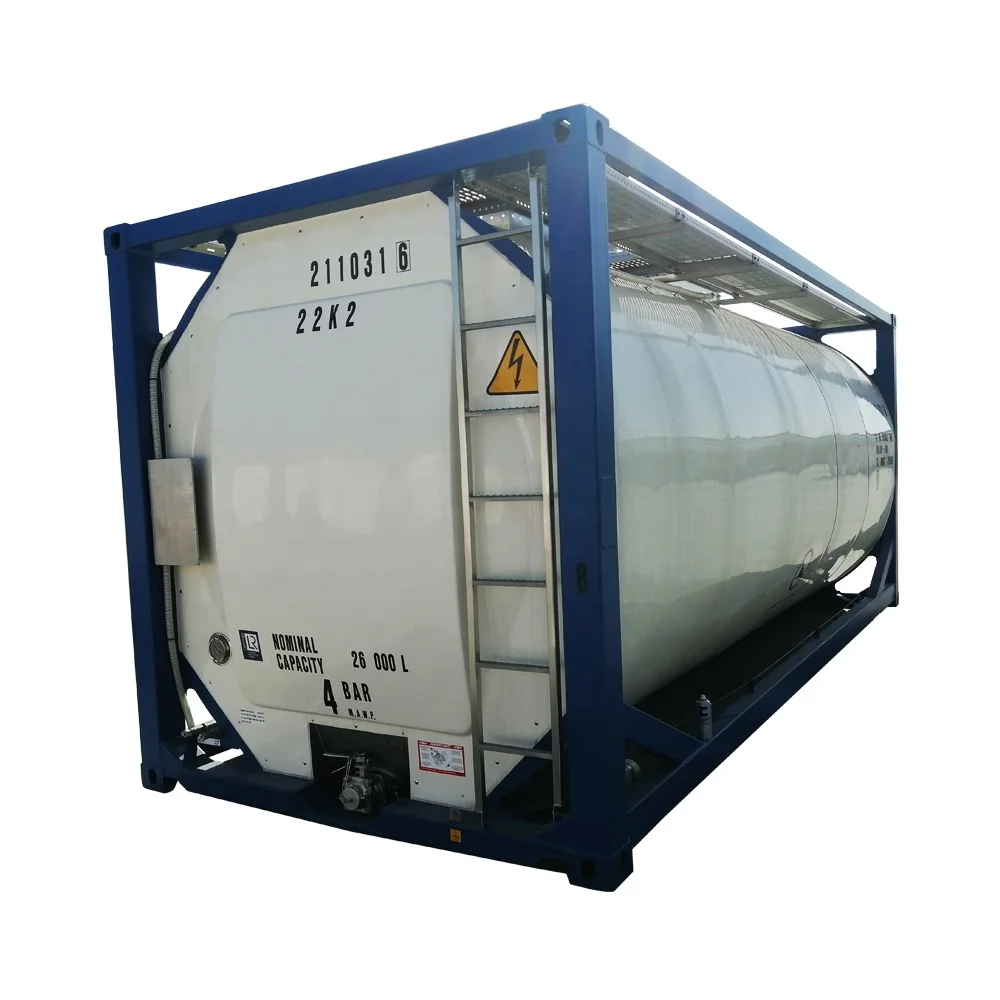

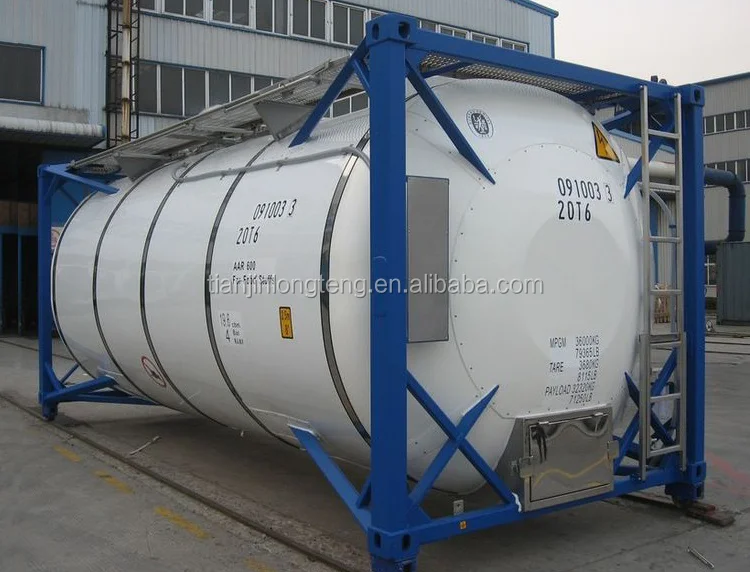

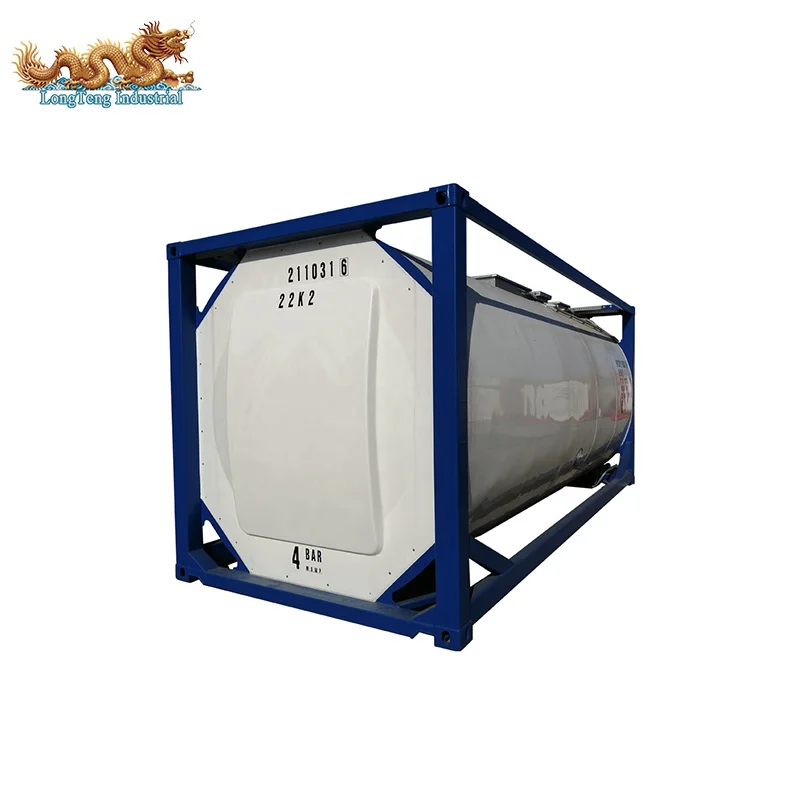

Food Grade UN T3 20ft ISO Tank Container for Milk Transportation
20 foot ISO tank container is used for shipping milk at 4 °C Insulated with high performance PU insulation system, and can keep milk under 4°C for 10 days. Have data loggers fitted recording both the ambient and milk temperature. Large capacity. (For example, 21,000 L, depends on the requirements of customers) Hygienic. Fitted with hygienic stainless steel milk fittings, and have a built-in CIP (cleaning in place) system with some 360°spray balls which can clean the inside surface completely.
With full 20ft frames:
No rails type:
Specification
20’ ISO food grade milk tank container
Specifications
Frame Dimensions
20’ x 8’ x 8’6”
Capacity
21,000 Litres +/- 2%
M.G.W.
36,000 kg
Tare Weight
3,700 kg
Max Payload
32,300 kg
Material
Vessel Material
SANS 50028-7 WNr 1.4402/1.4404 (C<0.03%) 316L
Shell: Cold Rolled 2B finish
Dished ends: Hot rolled and
polished internally to 1.0 Micron CLA
Shell Thickness
4.4 mm
Ends Thickness
4.7 mm Minimum after forming
Corrosion Allowance
0.2 mm
Frame Material
GB/T 1591-94-Q345D
Frame to Shell
304 stainless steel
Corner castings
ISO 1161 - 8 off
Pressure
Working Pressure
1.77 Bar
Test Pressure
2.65 Bar
Design Tempearture
-40°C to +100°C
Certification & inspection
Vessel Design Code
ASME VIII Div 1
Radiography
Shell:ASME Spot
Dished ends:ASME Full
Inspection Agency
Lloyds Register or Bureau Veritas
Design Approvals
IMDG T3, ADR/RID, CSC, TIR, ISO, UIC, US/UK DOT
Certifications
Usually we provide BV , LR certification for Milk tank container:
