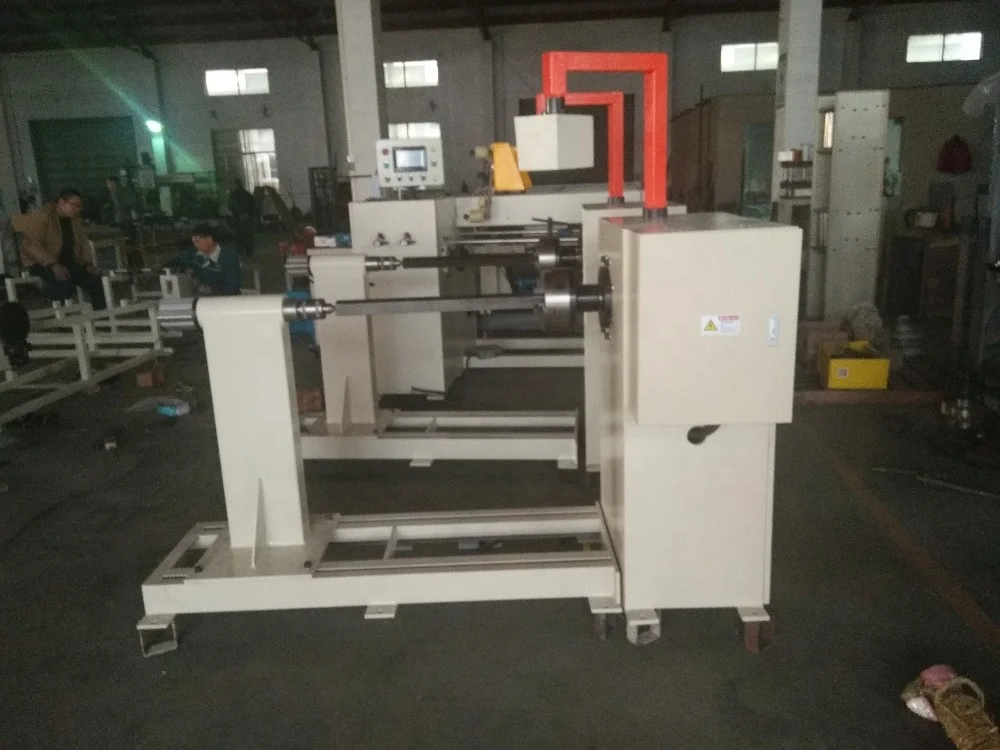

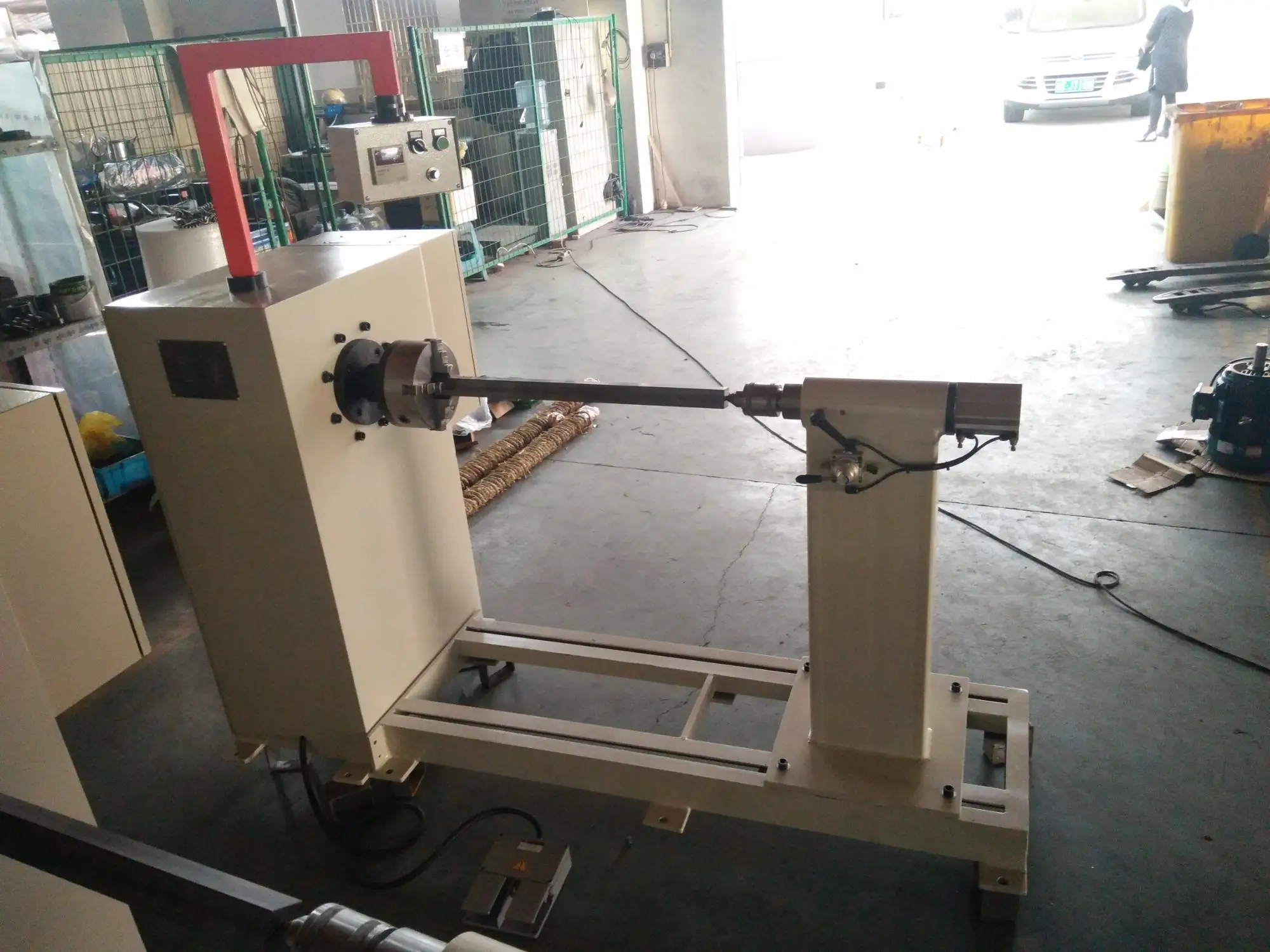

Semi Automatic Hydraulic Driven Live Center HV And LV Oil Immersed Transformer Coil Winding Machine
Introduction
Semi Automatic Hydraulic Driven Live Center HV And LV Oil Immersed Transformer Coil Winding Machine GDY-1T is suitable for winding different specifications of copper or aluminum wire coils, these coils can be used in HV and LV power transformers, reactors, and similar products.
Main Components

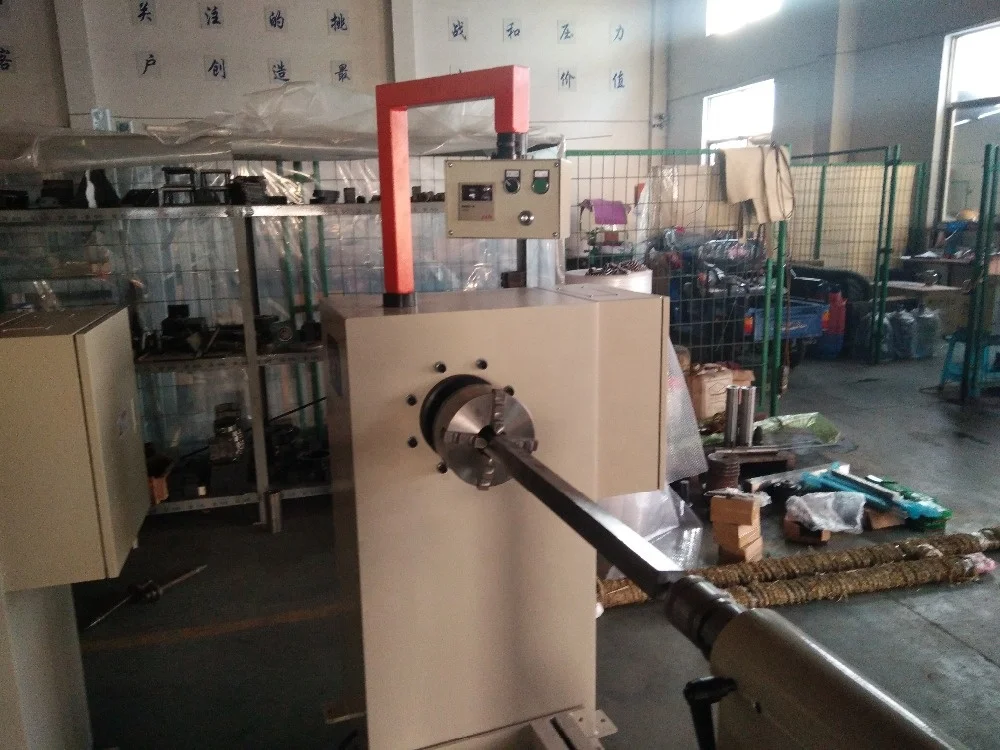

1.Main frame
2.Gearbox

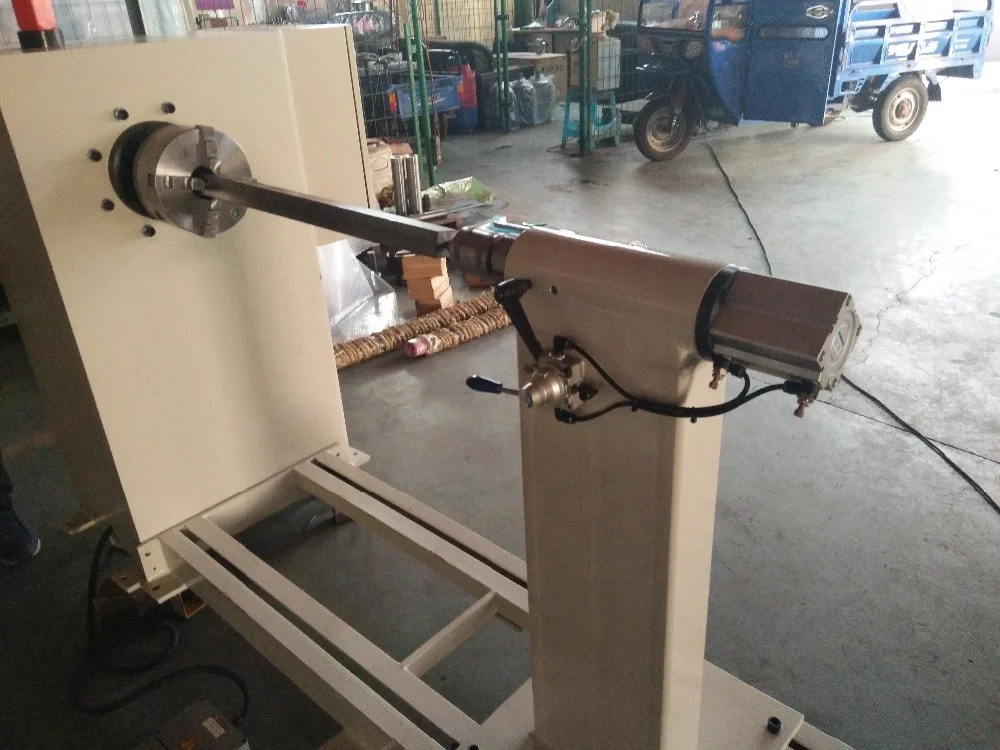

3.Tailstock

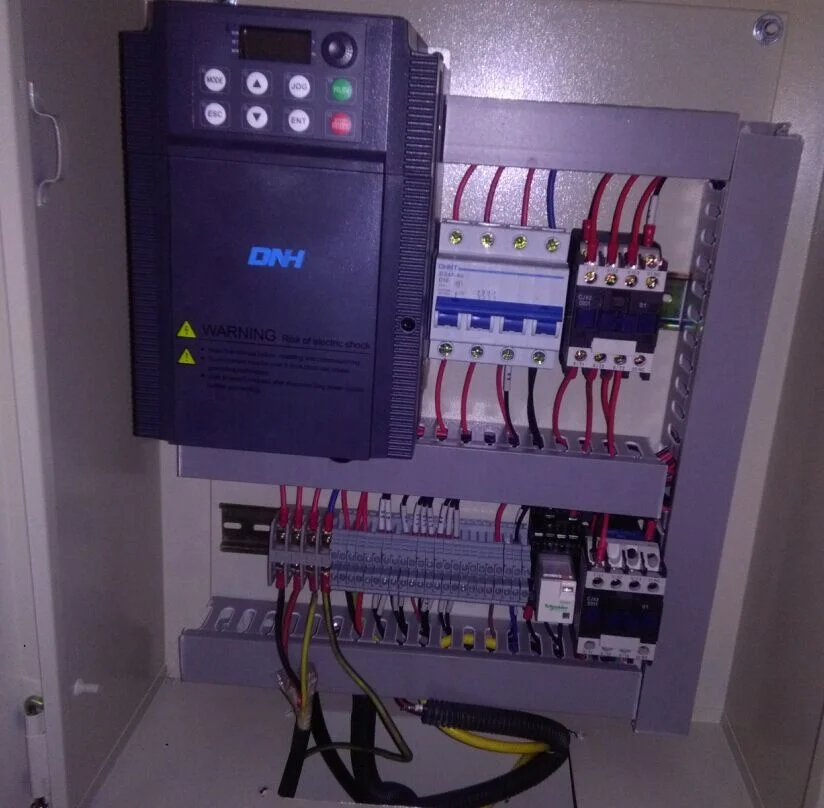

4.Electric control box
5.Foot pedal
Main Parameters
Typical standard specifications of GDY-1T are shown below, however these can be easily modified as requested.
No. | Item | GDY-1T |
1 | Center Height | 1000 mm |
2 | Mandrel Size | 40*40*1200mm |
3 | Flange Square Hole Size | 40*40mm |
4 | Max. Speed | 200 Rpm |
5 | Winding Height | 1000mm |
6 | Counting Range | 0-9999.9 |
7 | Max. Load | 1000Kg |
8 | Power | 3 Kw |
