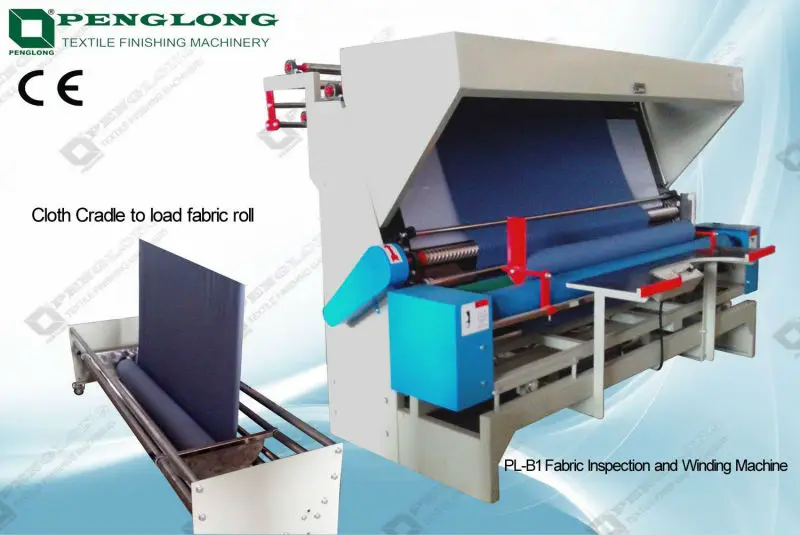

PL-B1 Fabric Testing and Winding Machine , Fabric inspection machine, textile machine, fabric winding machine, fabric rolling machine
Product Description
Specification:

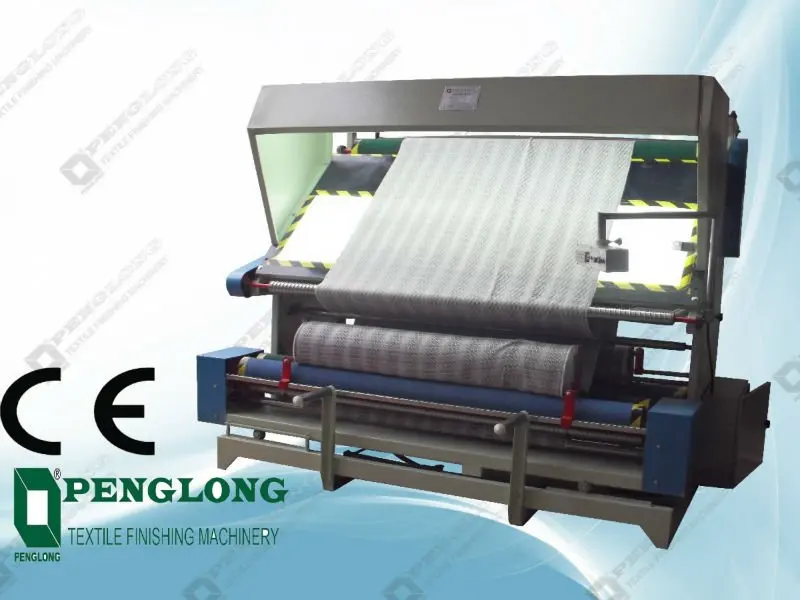

1. PL-B1 Cltoh Visual Inspection Machine
2.spreading rollers eliminiating curled edge.
3.speed could be adjusted.
4.CE certificated
Usage:
This type of Cloth Visual Inspection Machine is specially designed for inspecting all kinds of cotton, knitted fabrics,woven ,printed, tricot fabrics, etc.

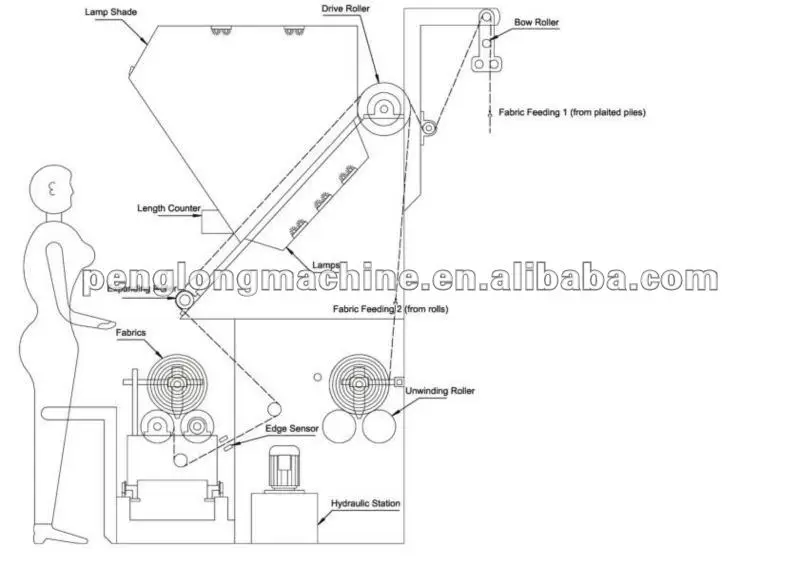

There're two feeding ways: 1. roll to roll 2.pile to roll , for your choice.
Technical Parameters:
1 Max Fabric Width
2000mm~3600mm
2 Diameter of Fabric Roll
600mm
3 Max Speed
80m/min
4 Main Motor
1HP×2
5 Edge-aligning Tolerance
±3mm
6 Dimension
2150mm(L)*2300mm(W)*2500mm(H)
Characteristics:

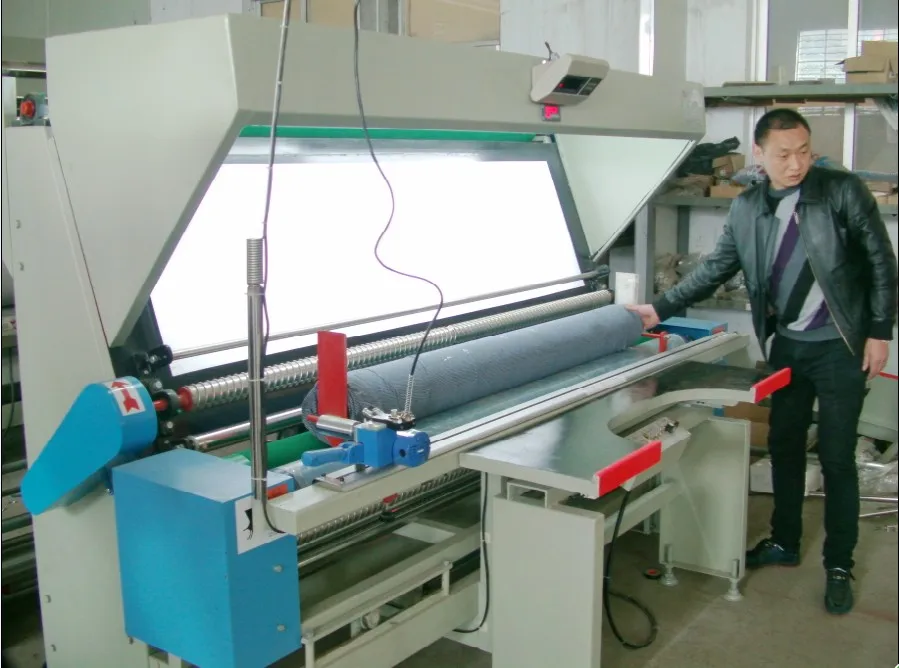

1.Special designed lopping inspecting board which is near to operator makes it easier to mend or label fabrics.
2. Fabric tension is adjustable via two inverters.

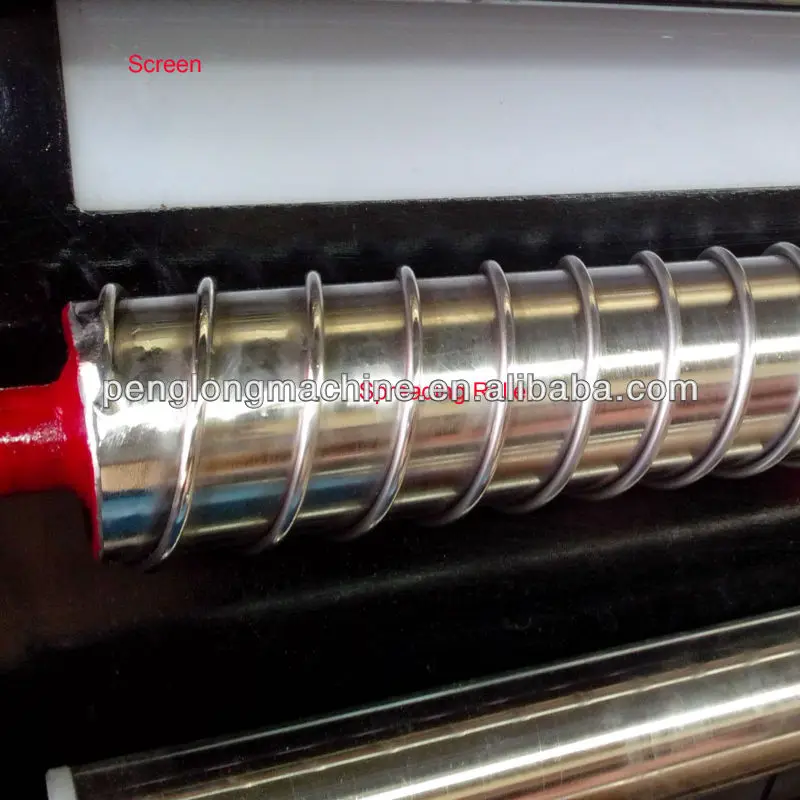

3. Equipped with spiral spreading roller to eliminate curled edge and avoid shrink of fabric width.
Expanding power:1/2HP

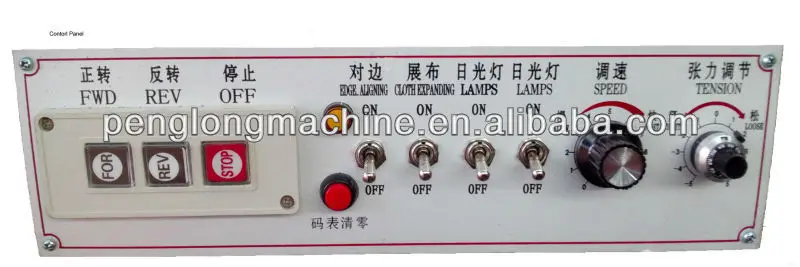

4.Working speed is managed by inverters and easy to control by the button on control panel.
5.Digital counter could make accurate measurement of length in yards or meters which can be interchanged.

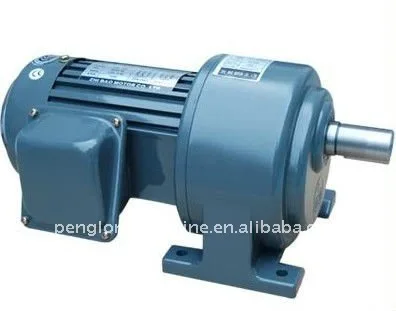

6.Winding roller and feeding roller are driven by gear motors.
7.Auto edge-alignment system consists of edge sensor and hydraulic station made in Taiwan is adopted.
Power 1/2HP.
8.High speed reaches 80m/min.
9.Inspection board is made of milky color acrylic.
10.This type of PL-B1 Fabric Testing and Winding Machine for knitting and woven fabrics.
Packaging & Shipping
Three ways of package for choice:
1. Bubble Wrapping--For Free
2. Wooden Pallet--Additional Charge of USD250
3. Wooden Case--Additional Charge of USD500
Our Services
Engineers are available to service machinery overseas.
Company Information
Changshu Penglong Machinery CO., Ltd has been founded in 2000.We are specially making and designing any kinds of fabric finishing machine according to customers' different requirements.
Our machines have been exported to Australia,Agrentina,South Africa,Ukrain,Uruguay,Portland,Brazil,El Salvador,Vietnam,Thanland,France,Bangladesh,Ethiopia,Iran,Iraq,Saudi Arabia,Sri Lanka and so on.
We are never stopping developing and improving our products and service before or after these years.Hope our rich experience in fabric finishing machine and our sincerity would offer your company help and satisfied you.
PS: Main Conventional Products: 1.Fabric inpection machine series : We have many different types.Some will aim to all kinds of woven fabric,knitted fabric or both.Some will aim to big fabric rolls,small rolls or both.Some aim to different fabric feeding,output or both.Also you can add some other special requirements.As you like.Model:PL-B,PL-B1,PL-B2,PL-A1,PL-A2,PL-N,PL-D,PL-D2,PL-F130,PL-G150,PL-G606,PL-C.
2.Fabric Plaiting Machine Series: We have several types of this machine which are specially designed.Model :PL-E1,PL-E2,PL-E3,PL-E4.PL-800
3.Fabric Opening Machine Series: These machines are used to slit/open tubualr fabrics.Such as roper opener ,PL-C Fabric slitting and inspection machine,Vertical High Speed Tubular Slitting Machine
