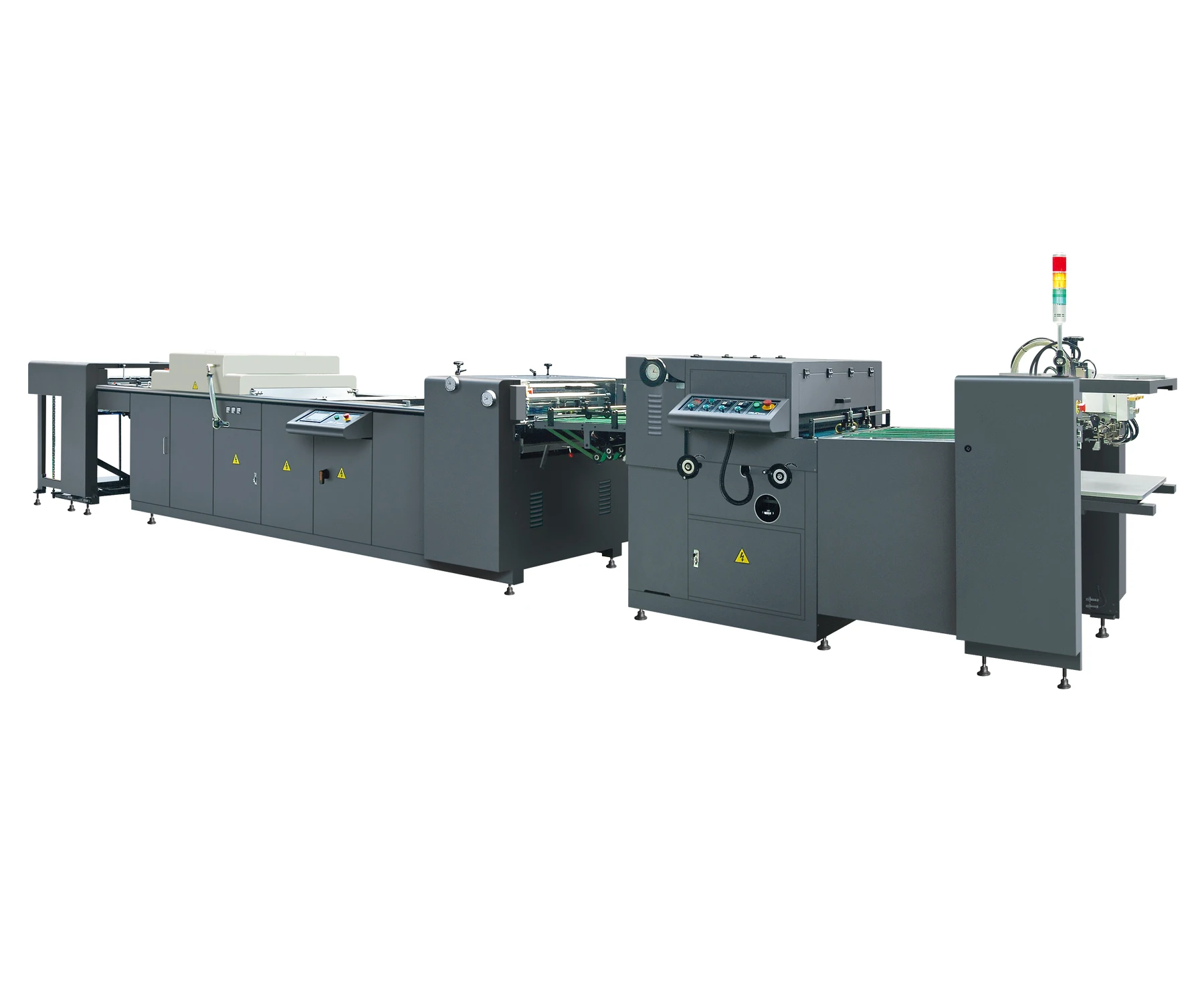

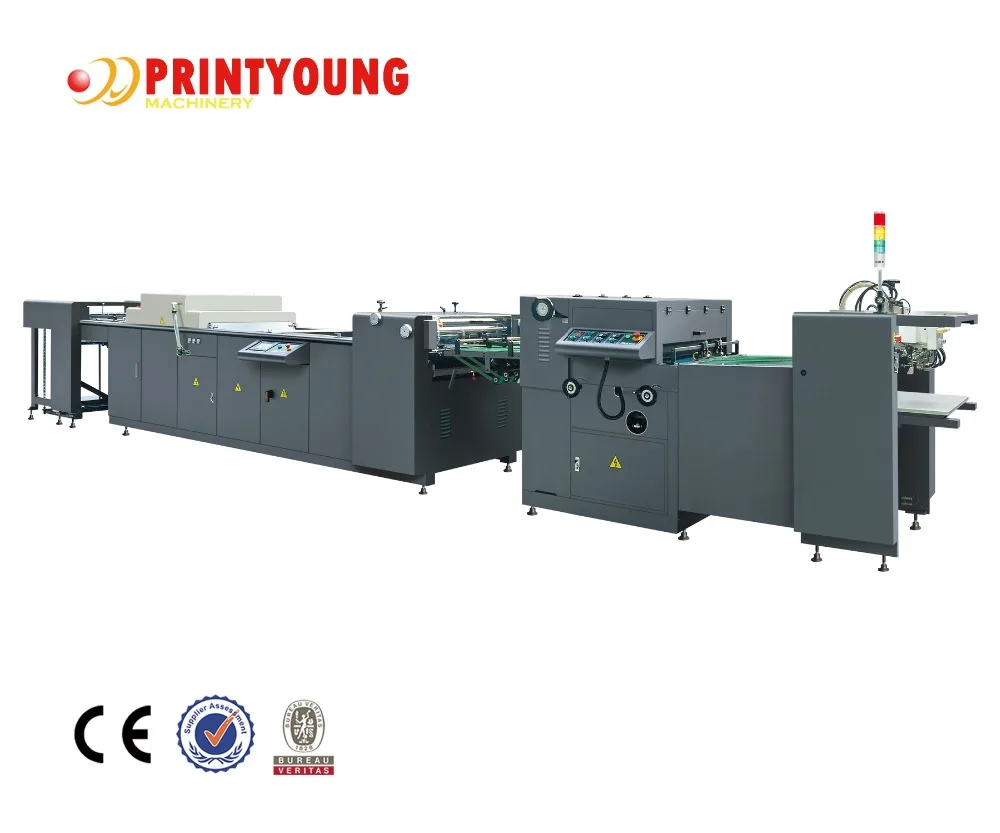

SGZ C UV740X A Small Automatic Digital UV Coating Machine with Powder Removing Section

Product Overview

Description



Performance And Characteristics:

SGZ-C-UV740X-A Small  Automatic Digital UV Coating Machine With Powder Removing Section is used for small size paper coating and the ideal for high volume production With high quality Compact design. easy operation. Especially energy-saving and flexibility are easily obtained with SGZ-X series machines which large coating machines can not match.



Standard configuration: automatic feeding. reversing coating system. air knife. adsorption conveying system.pneumatic turn-over UV curing chamber. automatic stacker.it is convenient to clean and maintain coating roller by special designed movable feeder.



Special configuration: automatic feeder and automatic stacker could be chose according to customer for reducing cost.

Option: 1) powder cleaner Which could remove paper surface powder;

              2) IR hot-wind drying which used for water-based coating.



Main Technical Parameter:

Model	SGZ- UV500X-A	SGZ- UI740X-A	SGZ-C- UV740X-A
Max. coating size	355x510mm	600x740mm	600x740mm
Min. coating size	210x280mm	210x280mm	210x280mm
Paper weight	80-450gsm	80-450gsm	80-450gsm
Max. speed	5000sph	6500sph	6500sph
Coating roller number	3	3	3
No. x UV Lamp(KW)	2PCS*5KW	3PCS*6.5KW	3PCS*6.5KW
No. x IR Lamp(Optional)	12PCS×1Kw	12PCS×1.2Kw	12PCS×1.2Kw
Total power(KW)	21Kw	31Kw	35Kw
Overall dimensions(L*W*H)	5900*1405*1520mm	7020*1600*1560mm	9000*1600*1560mm
Weight	2000Kg	2800Kg	3800Kg
