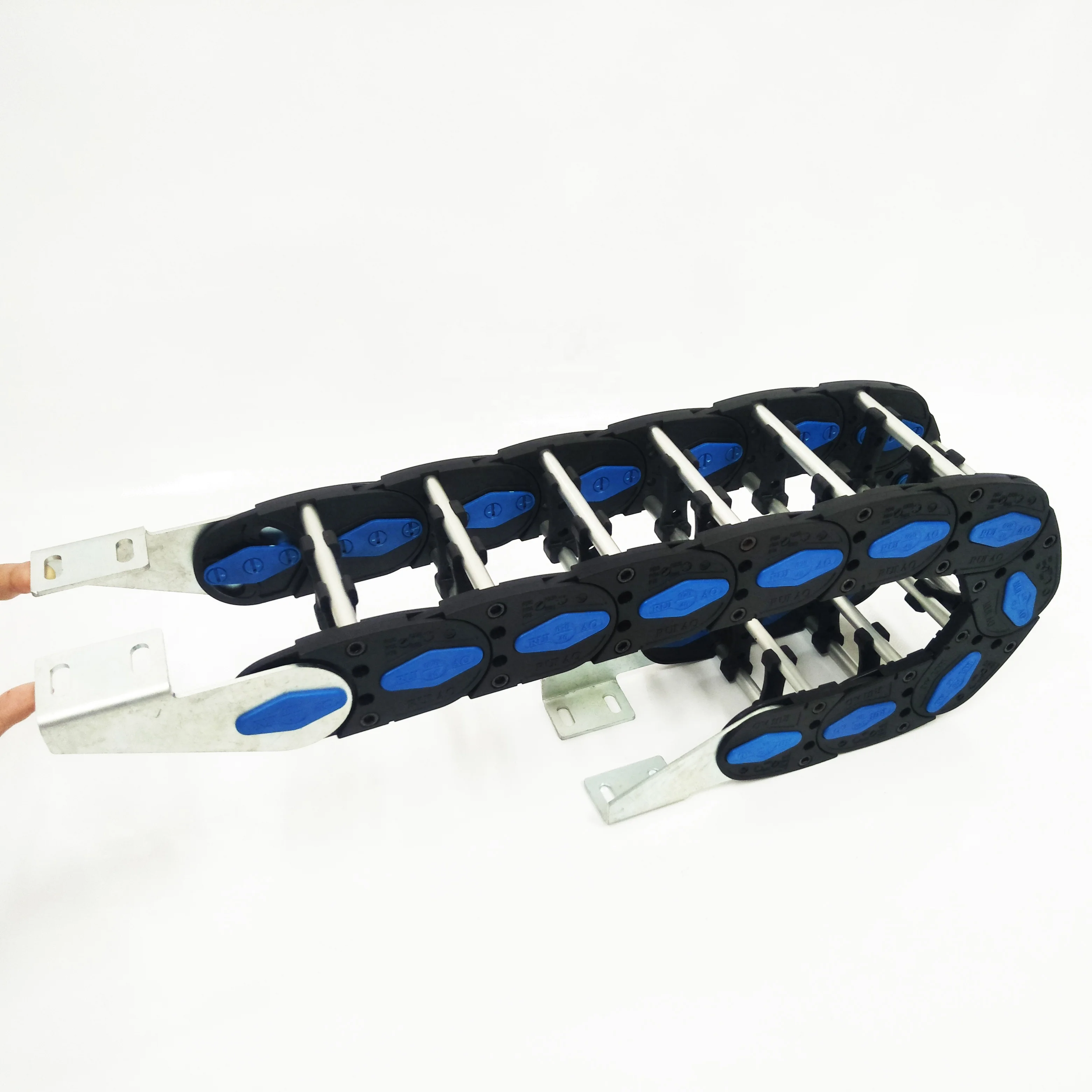

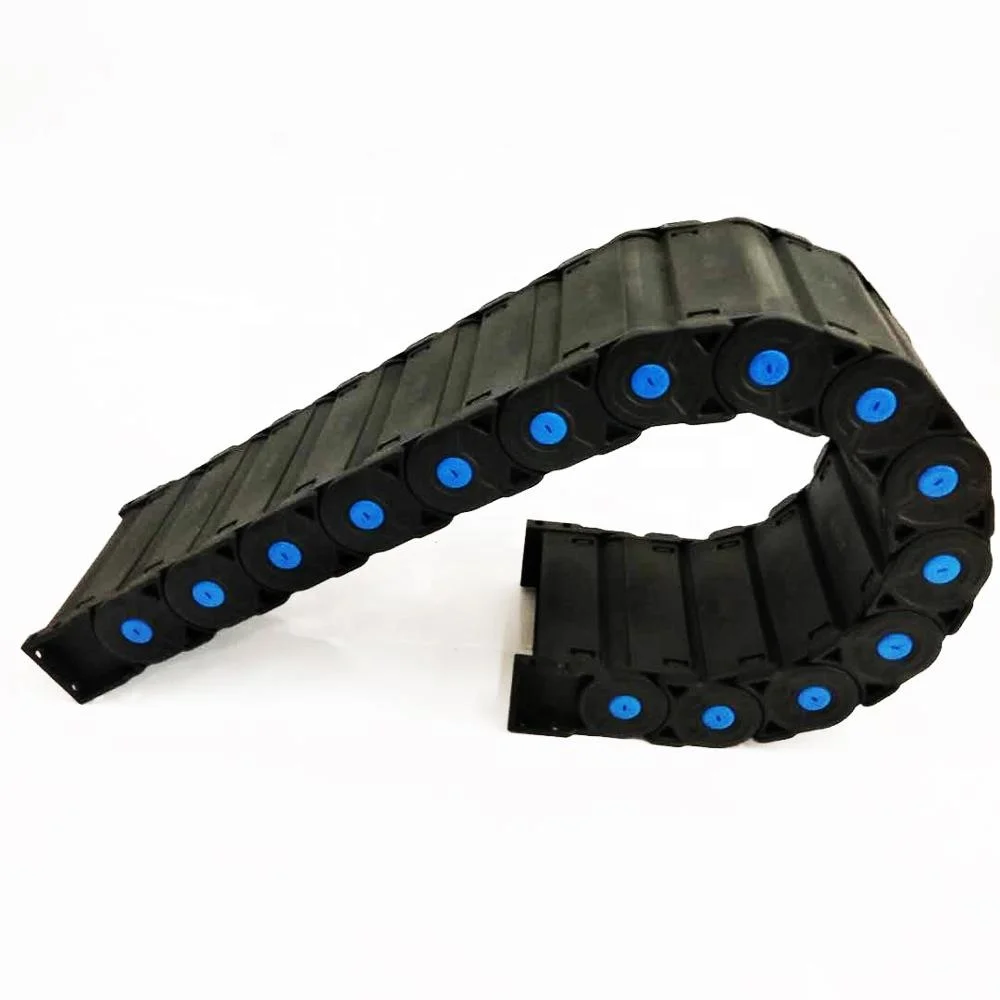

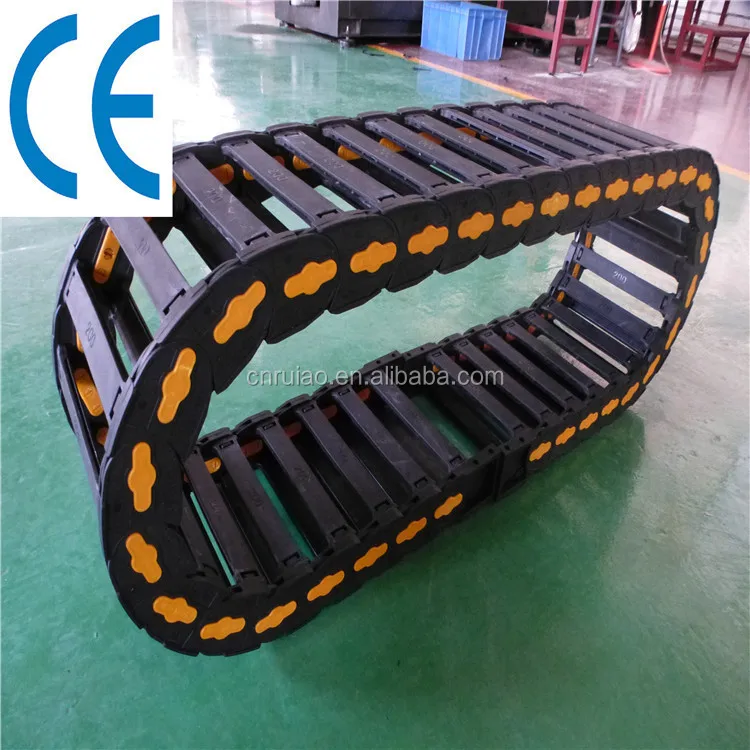

high speed cnc cable chain flexible plastic cable carrier energy chain made in china bridge type cable wire tracks







Principle for selecting  cable carrier

1. inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .


2. inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin


3. radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin



Characteristics and Applications of  cable carrier

1. The product can be used for such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.


2. Each joint of the chain can be opened up so as to facilitate repairs and maintenance. It gives low noises and is of antiwearing while running. It can also be operated under high speed.


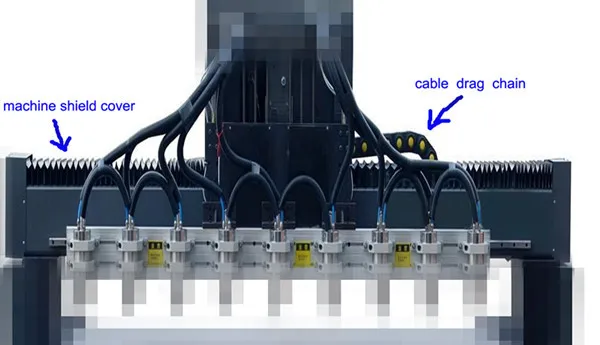

3. The drag chains have already extensively used in digital-controlled machine tools,electronic equipement,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.

Basic parameters of cable carrier



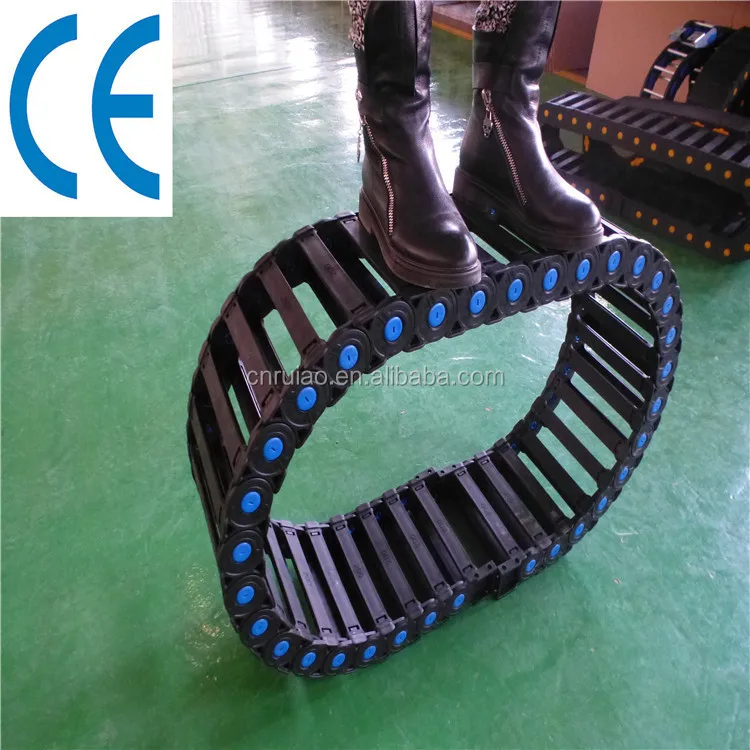

1. Material:reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity,wearing and falmable resistance


2. Resistances:It is oil and salt resistant.


3. operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).


4. Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)

 One hot sale type with main sizes for reference , other types can be requested for detail !



Type	Inside Diameter (height×length) (mm)	Outside Diameter (height×length) (mm)	Bending radius (mm)	Pitch (mm)	Non-support length(m)
TEZ25.25K2	25×25	40.6×45	55.75.100. 125.150	44	5
TEZ25.38K2	25×38	40.6×58			6
TEZ25.50K2	25×50	40.6×70			6
TEZ25.57K2	25×57	40.6×77			6
TEZ25.75K2	25×75	40.6×95			6
TEZ25.103K2	25×103	40.6×123			7
TEZ25.125K2	25×125	40.6×145			7
TEZ25.150K2	25×150	40.6×170			8
TEZ35.50D	35×50	58×77	75.100. 125.150.200.250	66	8
TEZ35.60D	35×60	58×87			8
TEZ35.75D	35×75	58×102			8
TEZ35.100D	35×100	58×127			10
TEZ35.125D	35×125	58×152			10
TEZ35.150D	35×150	58×177			12
TEZ35.175D	35×175	58×202			12
TEZ35.200D	35×200	58×227			15
TEZ45.50D	45×50	68×79	75.100. 125.150.200.250	66	8
TEZ45.75D	45×75	68×104			8
TEZ45.100D	45×100	68×129			10
TEZ45.125D	45×125	68×154			10
TEZ45.150D	45×150	68×179			12
TEZ45.175D	45×175	68×204			12
TEZ45.200D	45×200	68×229			15
TEZ56.100F	56×100	83×161...	150.200.250.300.350.400.500	91	15
TEZ56.125F	56×125	83×186...			20
TEZ56.150F	56×150	83×211...			25
TEZ56.175F	56×175	83×236...			30
TEZ56.200F	56×200	83×261...			30
TEZ56.250F	56×250	83×311...			30
TEZ56.300F	56×300	83×361...			30
TEZ65.100D	65×100	95×147	150.200.250.300.350.400.500	96	8
TEZ65.125D	65×125	95×172			8
TEZ65.150D	65×150	95×197			10
TEZ65.175D	65×175	95×222			10
TEZ65.200D	65×200	95×247			12
TEZ65.250D	65×250	95×297			15
TEZ80.100D	80×100	111×151	200.250.300.350.400.500	110	13
TEZ80.125D	80×125	111×176			13
TEZ80.150D	80×150	111×201			15
TEZ80.175D	80×175	111×226			15
TEZ80.200D	80×200	111×251			17
TEZ80.250D	80×250	111×301			20
TEZ80.300D	80×300	111×351			20











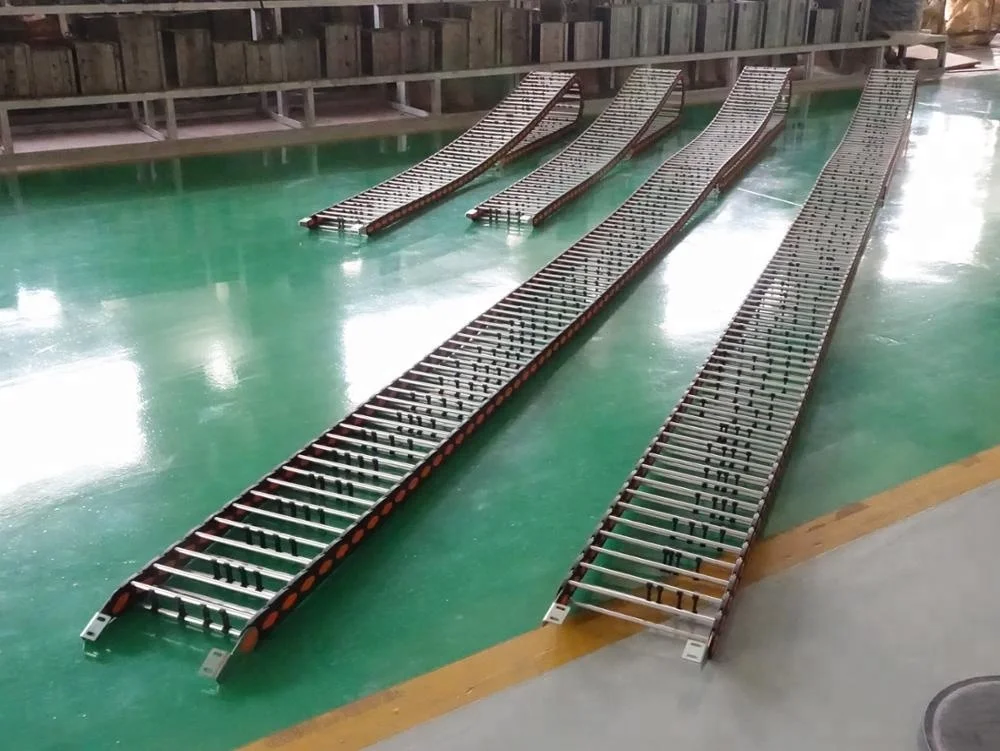

We have a large inventory, the production of 1,000 meters, to ensure timely delivery, waiting for your test ~

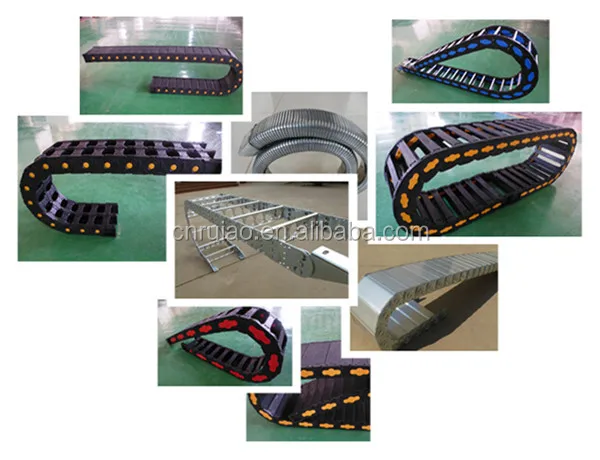

RUIAO cable carrier











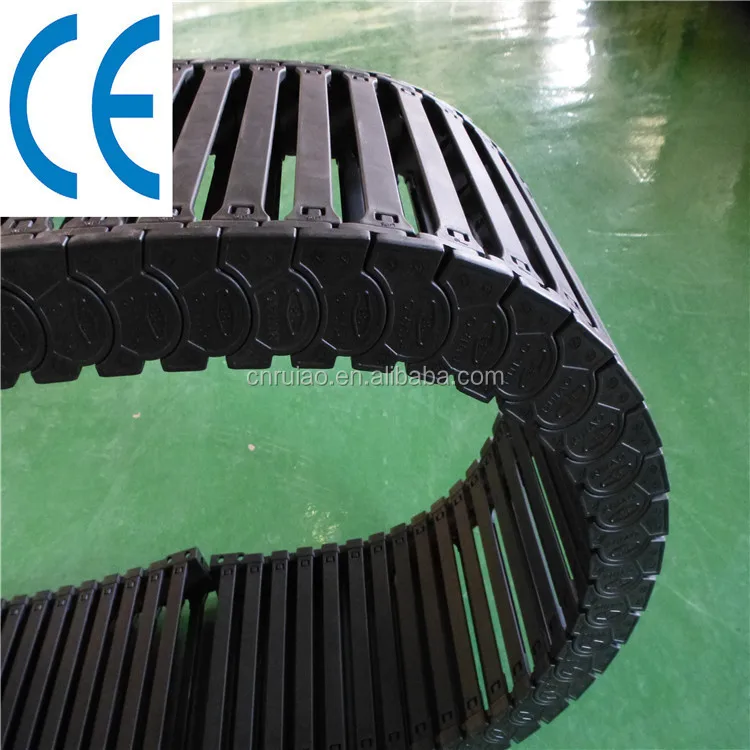

welcome here------anti noise type , silent type supplied by Ruiao











Careful packaging, ensure that the roller chains arrive immediately to your hands~~
