Model:

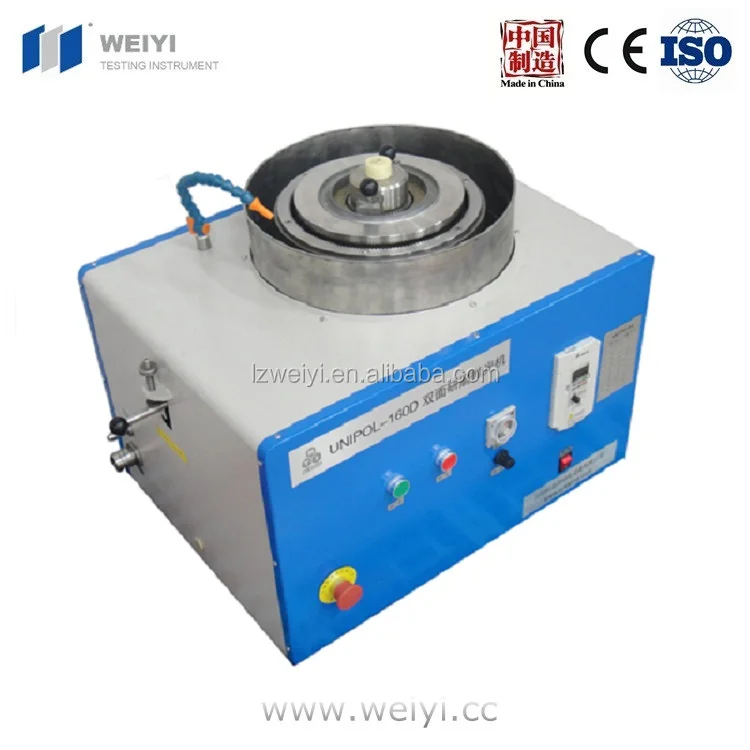

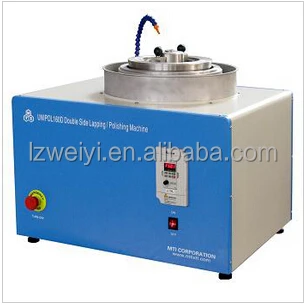

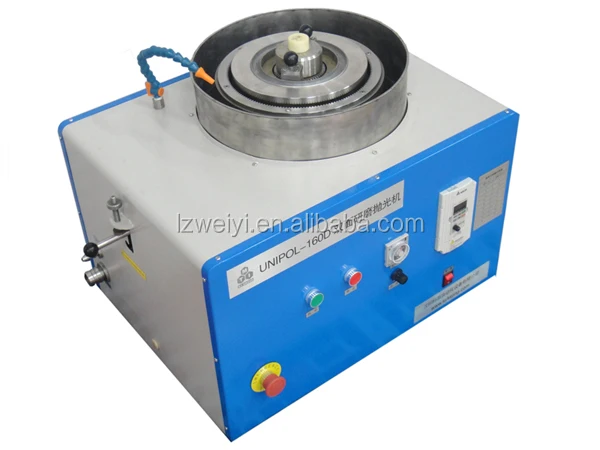

UNIPOL-160D Mini Double Edge Auto Polishing Machine



Brief


Introduction:



UNIPOL-160DMini Double Edge Auto Polishing Machine is bench-top precision double side lapping and polishing machine. It can lap and polish 4 pieces of Max. 2" wafers in double sides at same time, and achieves TTV less one micron in 2" diameter area. It is a idea tool to prepare Si, Ge and oxide single crystal wafer with diameter 2" or less in the laboratory.














Bottom Stainless Steel Lapping Plate









Top Stainless steel Lapping Plate









Different size of Gearing templates







Technical


Parameter:



1. Grinding disc size: 225mm x 94mm x 15mm


2. Upper grinding disc weight and additional weight: 5.5kg (3kg Additional weight)


3. Gearing template size: z=54 m=1.5  dia.81mm (Epoxy)


4. Max. Gearing templates quantity: 4


5. Max. processing substrate size:  dia. 60mm


6. Flatness and parallelism: 0.001mm


7. Grinding and polishing accuracy: +/-0.001mm


8. Surface quality: > grade 10


9. Input power supply: single phase  AC 220v


10. Motor: DC110V/600W/0~1500rpm (adjustable)



Specification:



Size: 615x375x494mm   Weight: 80kg



Optional


Accessories :



1 set (4pcs Gearing templates), not belong optional accessories, but we provide. Size and quantity:


      1pcs diameter 60 mm or 2" substrate


      3pcs diameter  1" substrate


      14pcs 10x10mm substrate


If need order, please provide substrate size and thickness after been polished.
