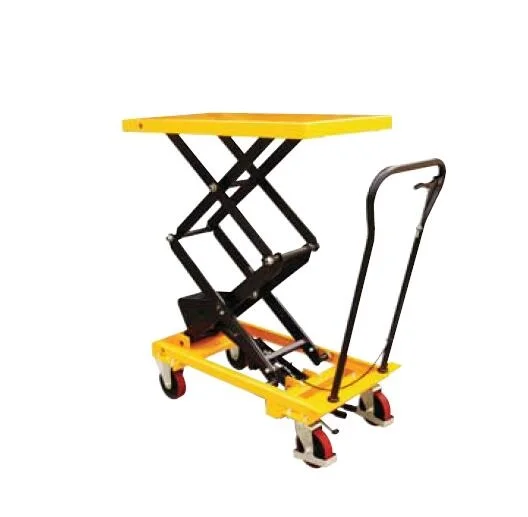

Hydraulic Scissor Lift Table
- Category: Lift Tables >>>
- Supplier: Wuxi Sflift Machinery Factory
Share on (60323876019):
Product Overview
Description
Lift Table AS series
• Economic range but reliable.
• New design to meet norm EN1570: 1999.
• New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains
irrespecti ve of the weight of the load
Model | AS20 | AS30 | AS50 | AS80 | AS35D | |
Capacity | (kg) | 200 | 300 | 500 | 800 | 350 |
Table Size | LxW (mm) | 700x450 | 852x502 | 852x502 | 920x520 | 920x520 |
Table Height | Hmin/Hmax (mm) | 265/755 | 330/910 | 390/910 | 442/1000 | 435/1500 |
Handle Height | h (mm) | 980 | 1100 | 1100 | 1130 | 1130 |
Wheel Dia. | (mm) | Φ100 | Φ125 | Φ125 | Φ150 | Φ150 |
Overall Size | BxC (mm) | 450x870 | 502x1050 | 502x1050 | 520x1170 | 520x1170 |
Foot Pedal to Max. Height | ≤25 | ≤30 | ≤40 | ≤70 | ≤70 | |
Net Weight | (kg) | 44 | 74 | 81 | 114 | 125 |
